Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1884 |

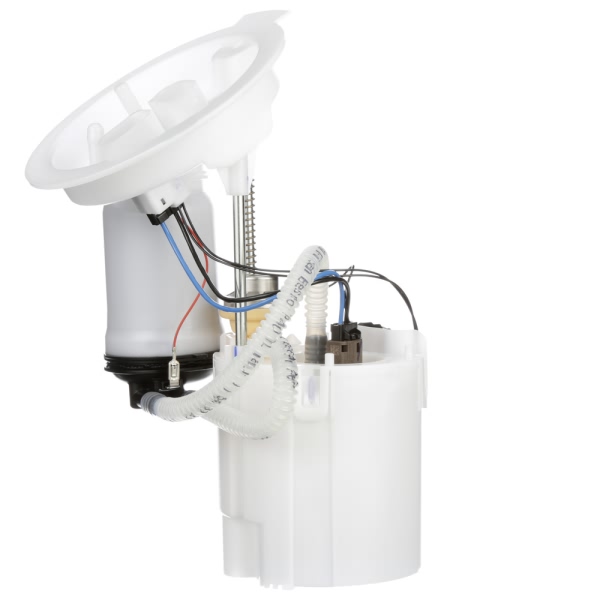

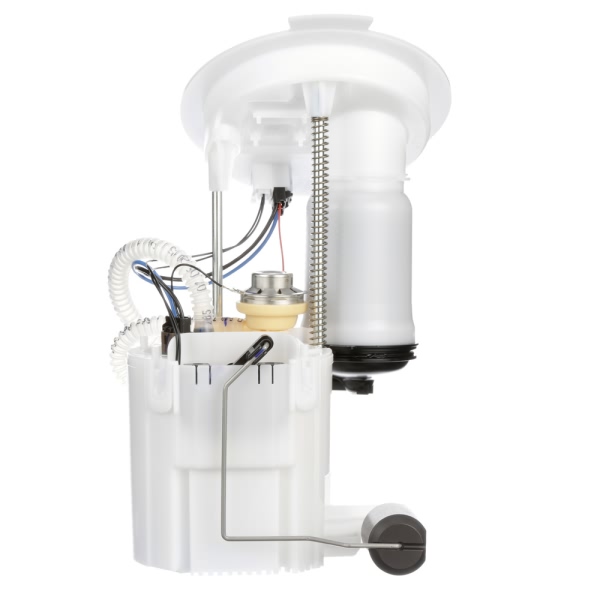

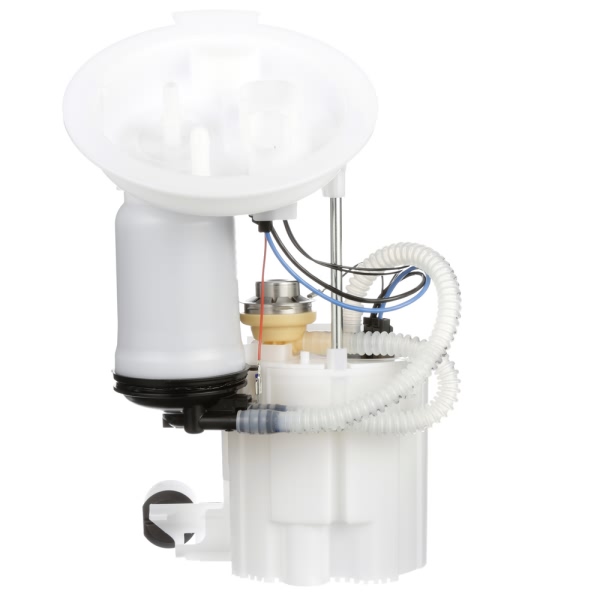

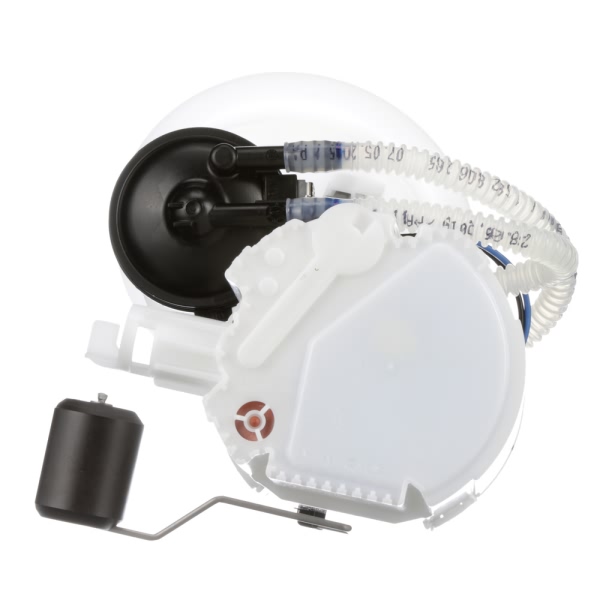

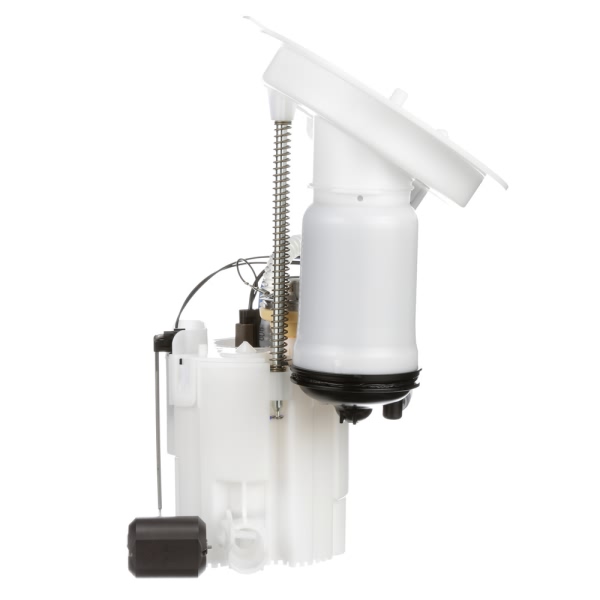

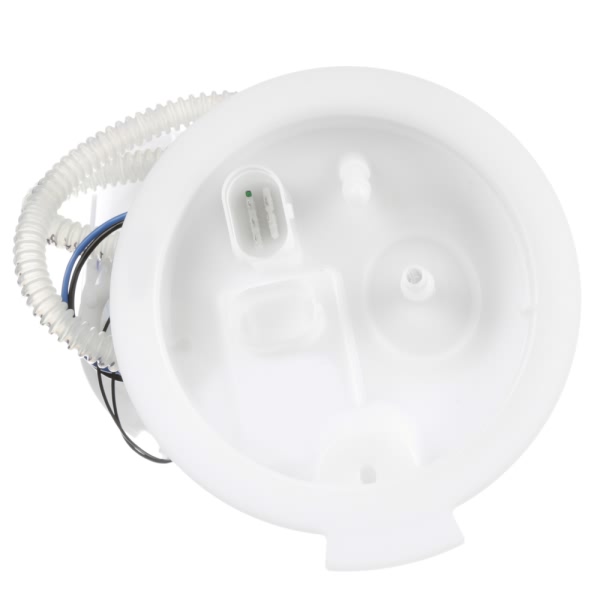

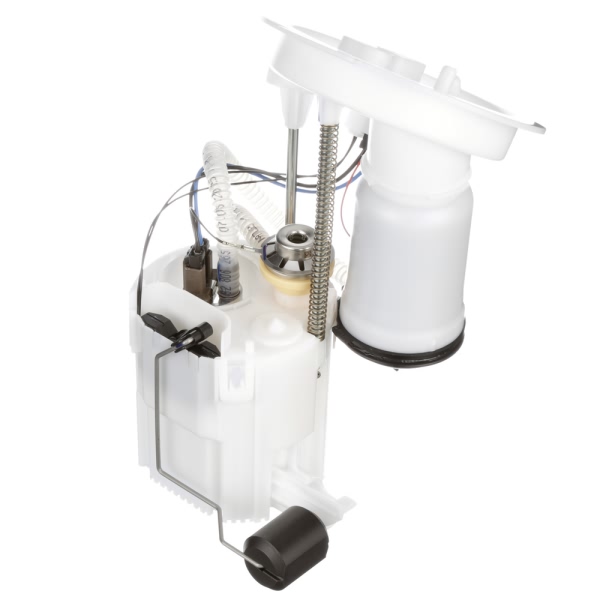

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 990.0 |
Resistance Ohms Full | 50.0 |
Strainer Included | Yes |
System Pressure | 70 psi |

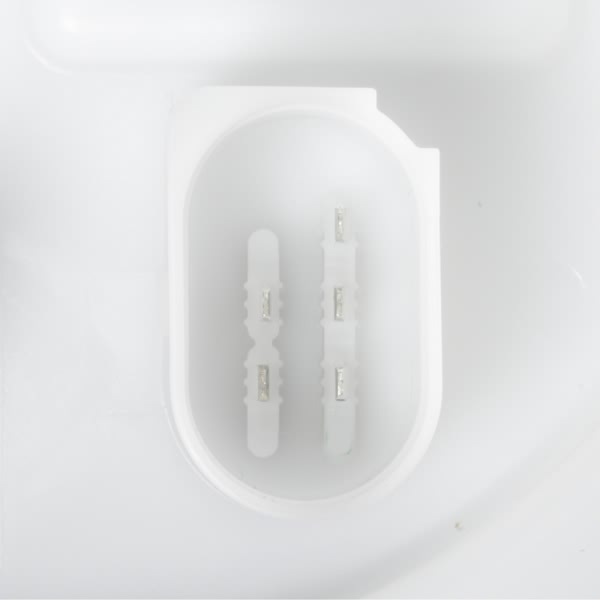

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604265079 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2014-2016 BMW 228i | All Trims | 4 Cyl 2.0L |
2015-2016 BMW 228i xDrive | All Trims | 4 Cyl 2.0L |
2013-2018 BMW 320i | All Trims | 4 Cyl 2.0L |
2013-2018 BMW 320i xDrive | All Trims | 4 Cyl 2.0L |
2012-2016 BMW 328i | All Trims | 4 Cyl 2.0L |
2014-2016 BMW 328i GT xDrive | All Trims | 4 Cyl 2.0L |
2013-2016 BMW 328i xDrive | All Trims | 4 Cyl 2.0L |
2012-2015 BMW 335i | All Trims | 6 Cyl 3.0L |
2014-2016 BMW 335i GT xDrive | All Trims | 6 Cyl 3.0L |
2013-2015 BMW 335i xDrive | All Trims | 6 Cyl 3.0L |
