Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1880 |

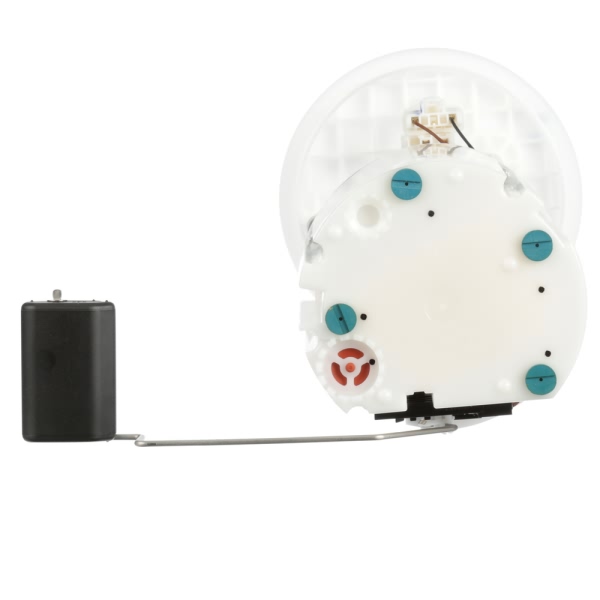

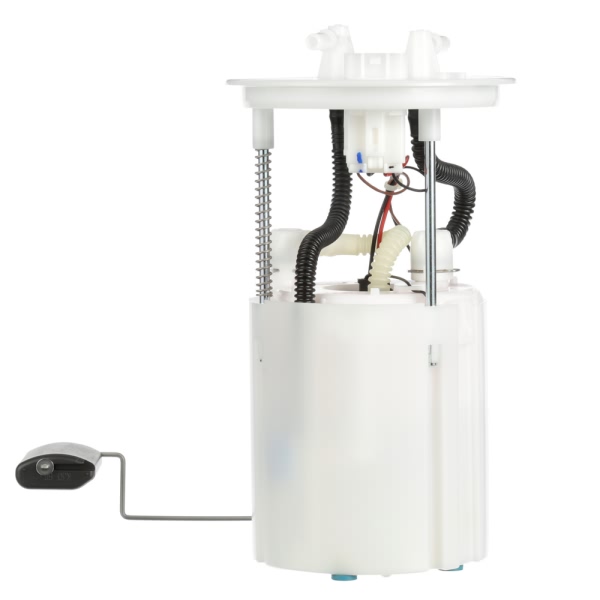

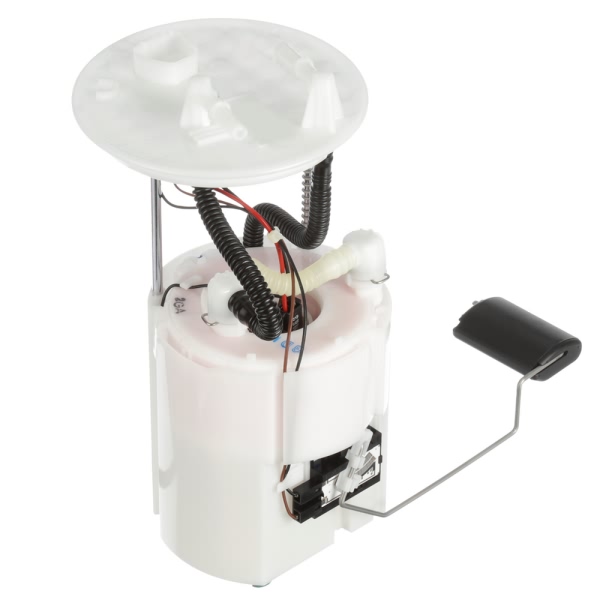

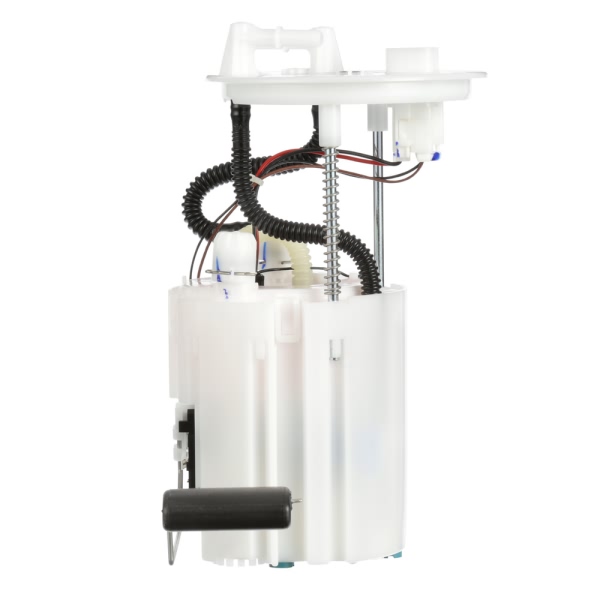

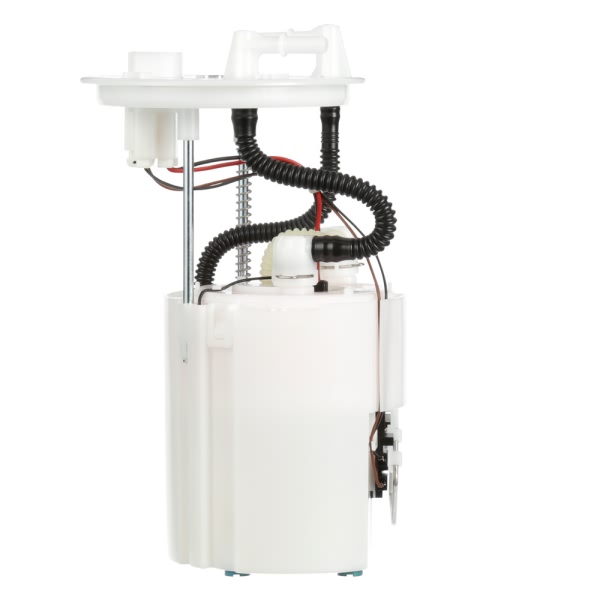

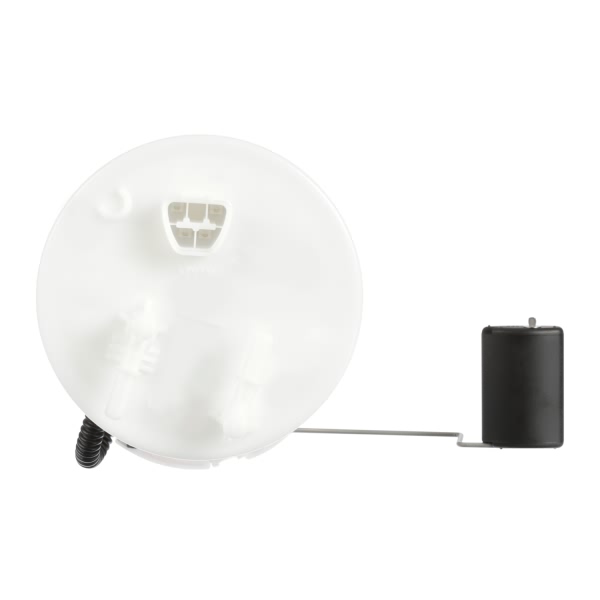

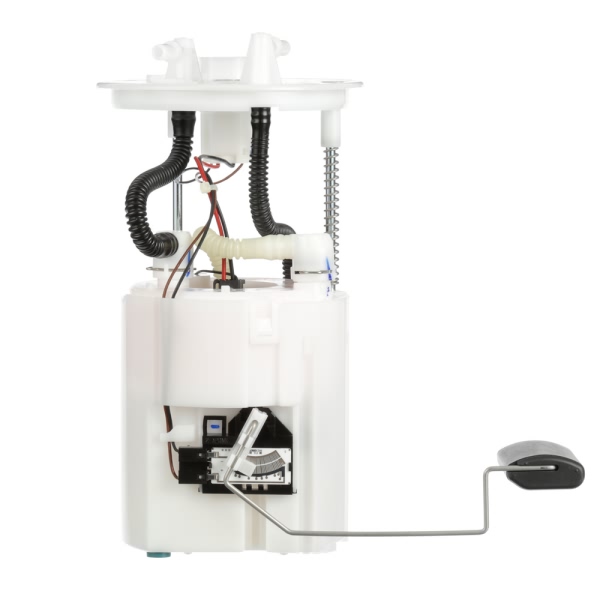

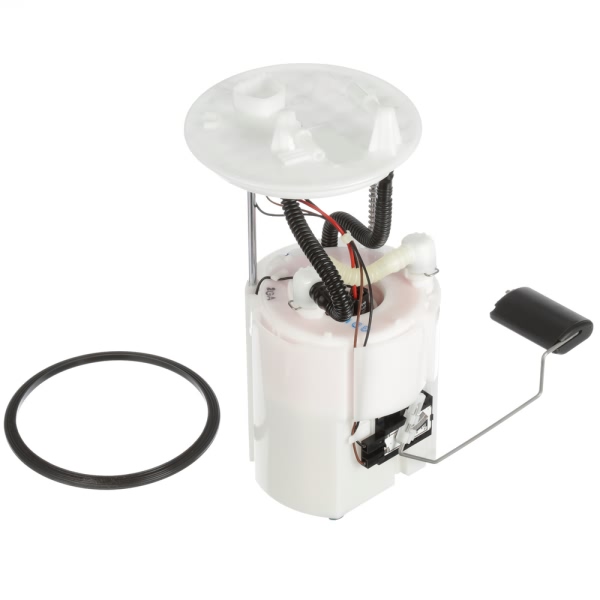

Part Description | Fuel Pump Module Assembly |
Average Current Draw | 10 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 138.0 |
Outlet Outside Diameter | 0.313 |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 90.0 |
Resistance Ohms Full | 0.1 |
Strainer Included | Yes |
System Pressure | 70 psi |

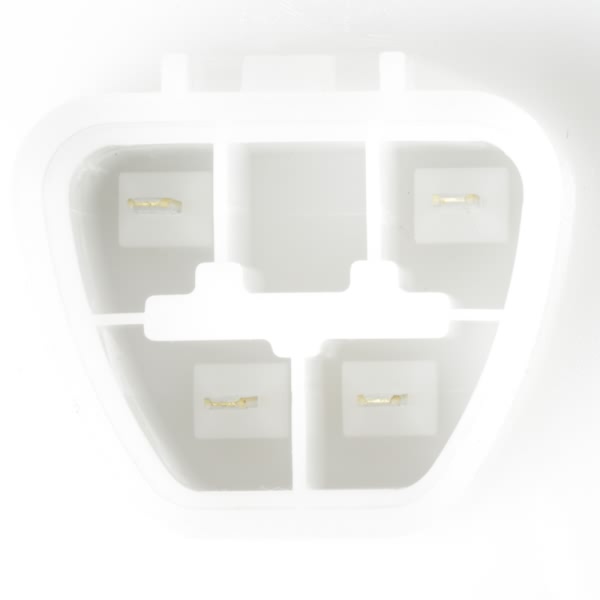

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604265390 |
Vapor Pressure Sensor | No |
Voltage | 12.0 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 Hyundai Genesis Coupe | All Trims | 4 Cyl 2.0L |
2013-2016 Hyundai Genesis Coupe | All Trims | 6 Cyl 3.8L |
