Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1852 |

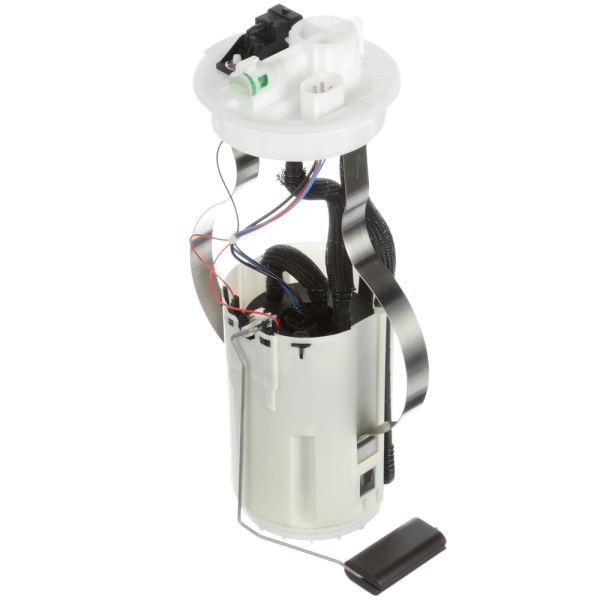

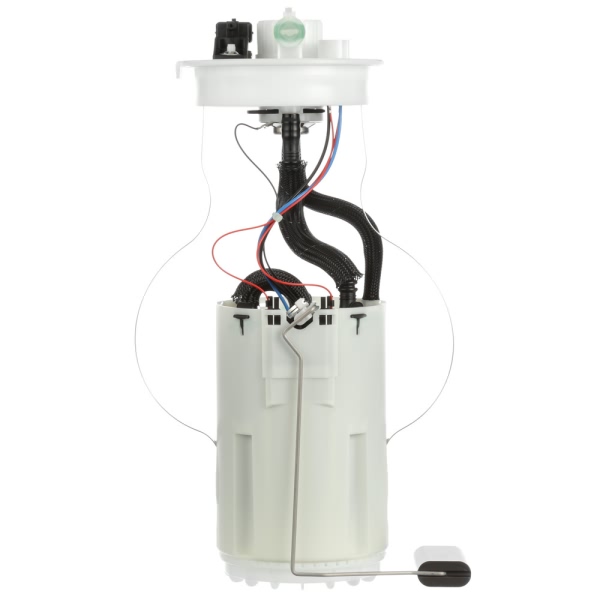

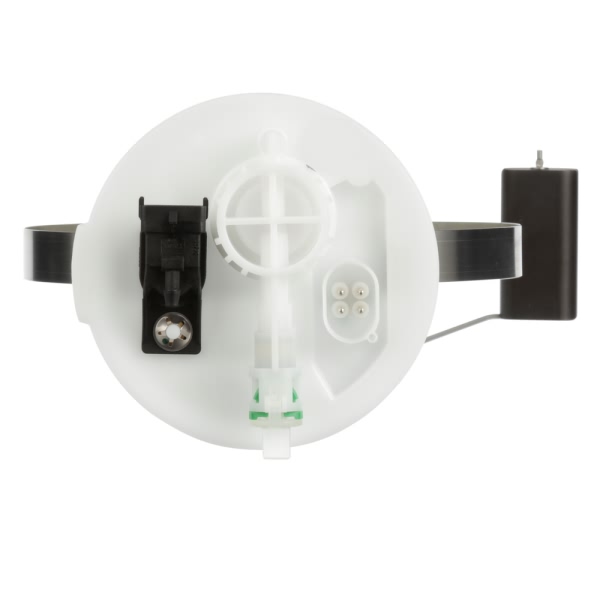

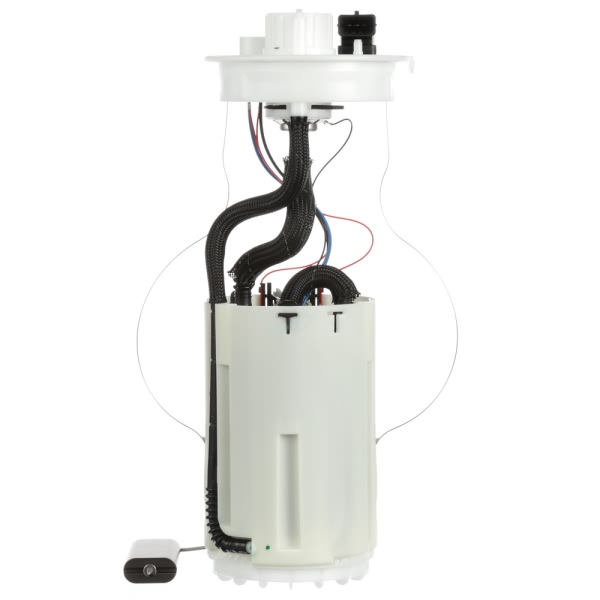

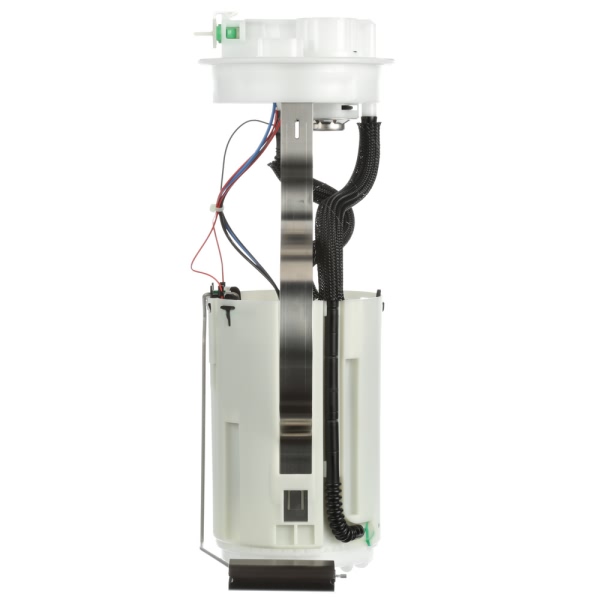

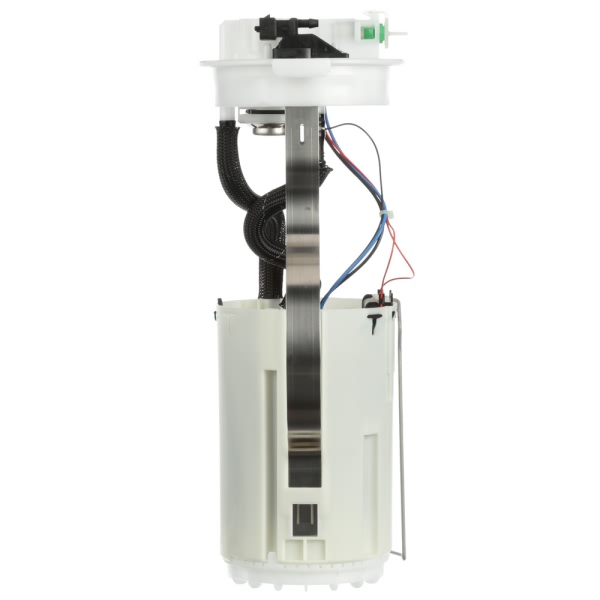

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 31 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |

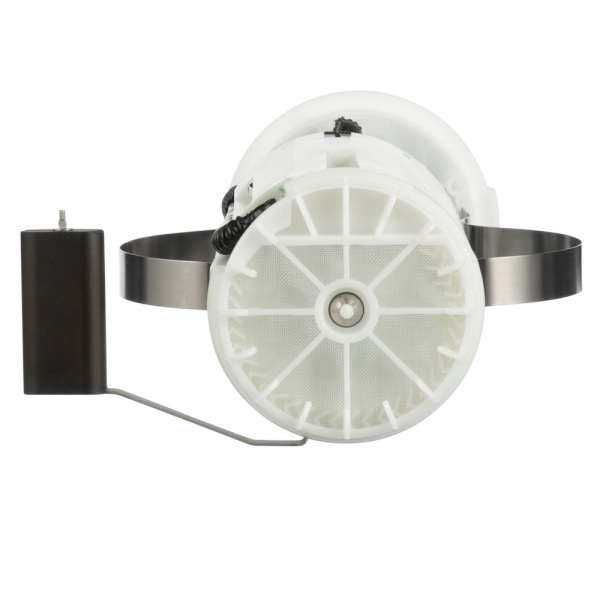

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 123.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Female Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 245.0 |
Resistance Ohms Full | 15.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

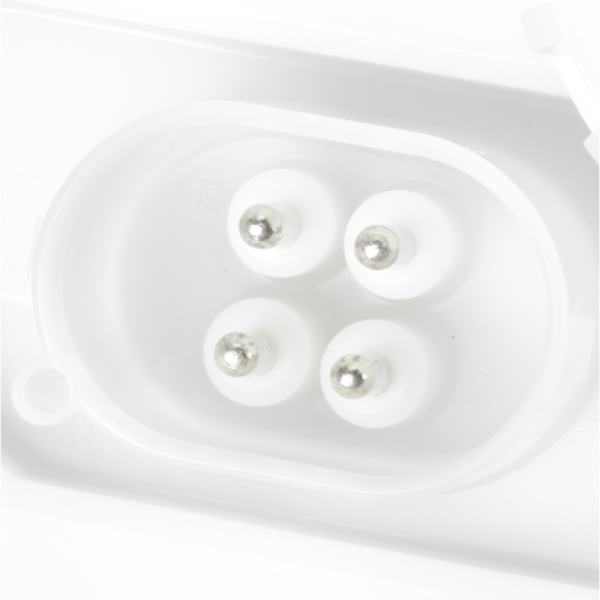

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604265383 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1999 Land Rover Discovery | Series II | 8 Cyl 4.0L |
2000-2002 Land Rover Discovery | All Trims | 8 Cyl 4.0L |
2003-2004 Land Rover Discovery | All Trims | 8 Cyl 4.6L |
