Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1814 |

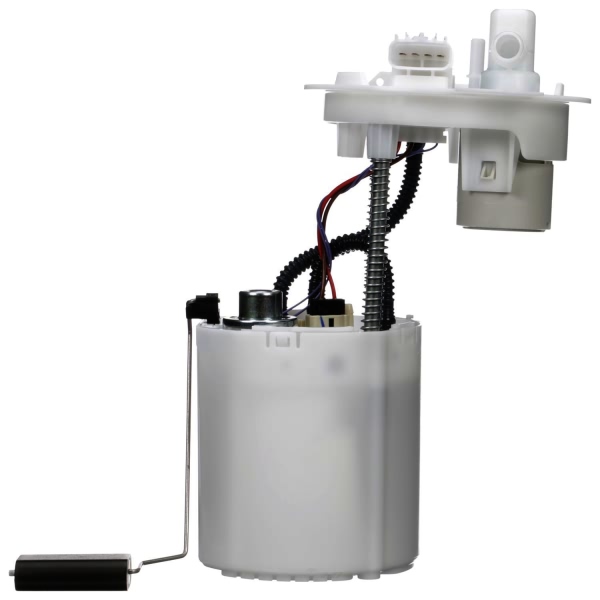

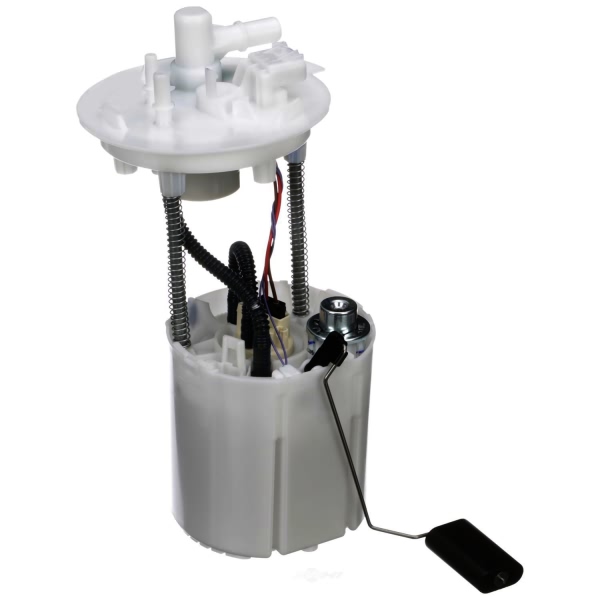

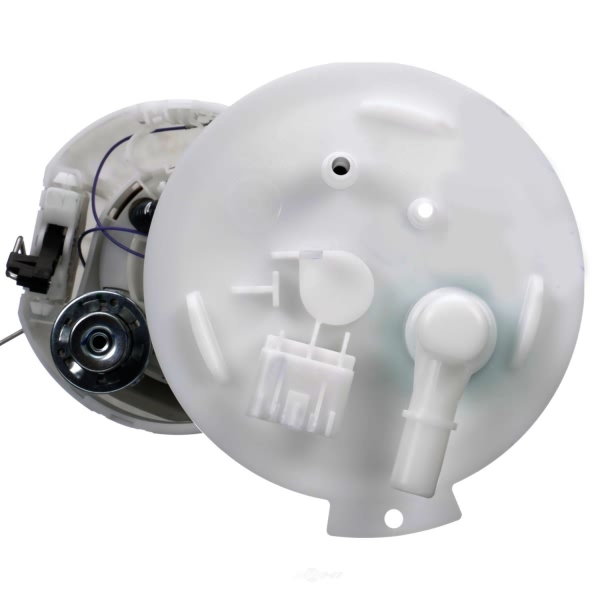

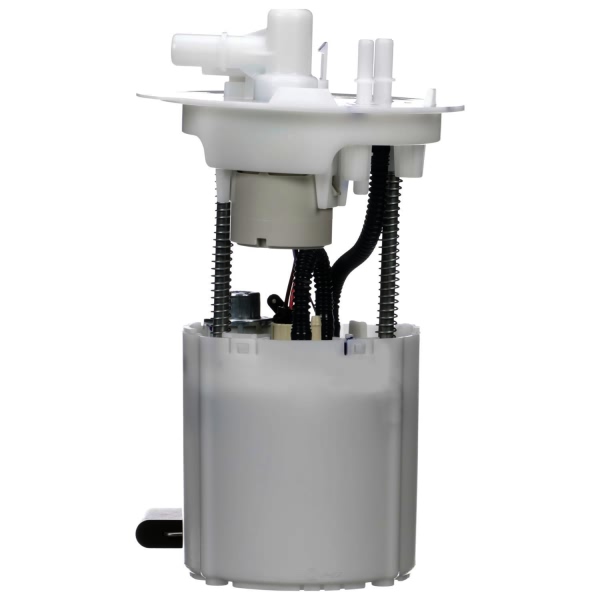

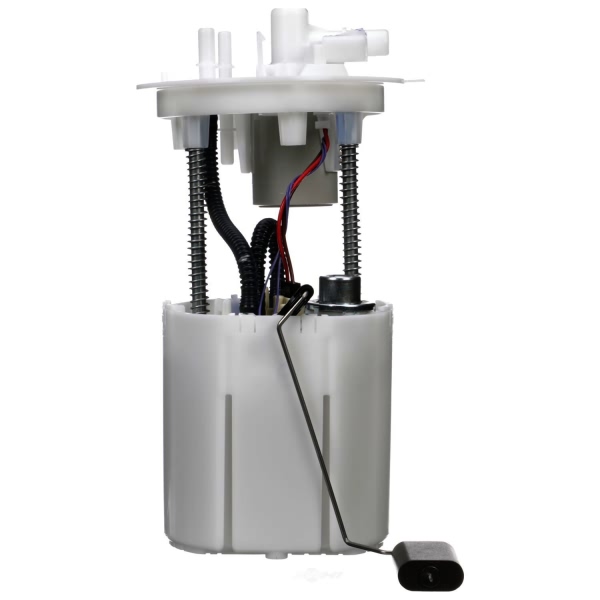

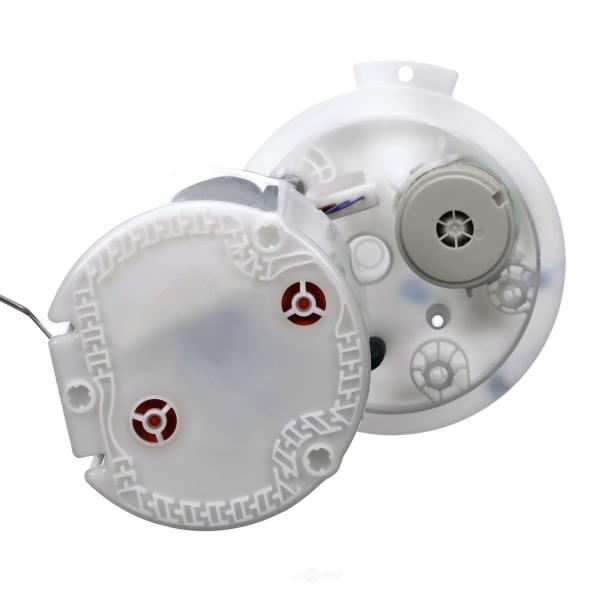

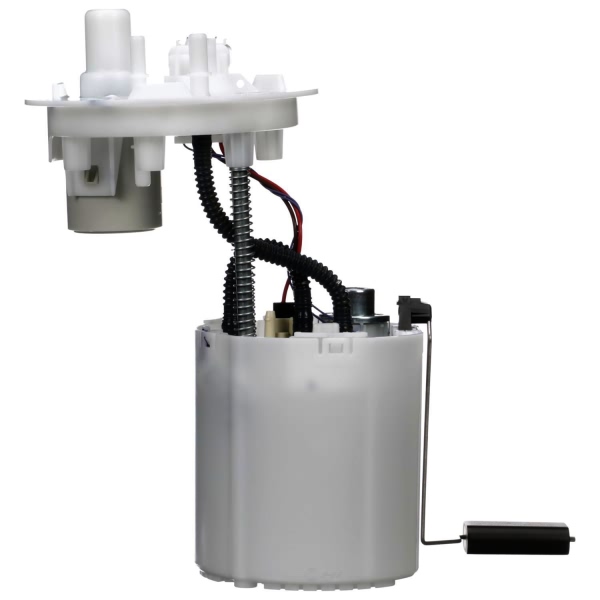

Part Description | Fuel Pump Module Assembly |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | GAS |
Gasket or Seal Included | Yes |
In Tank or External | In-Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 94.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly withFloat Arm, Seal, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 51 PSI |

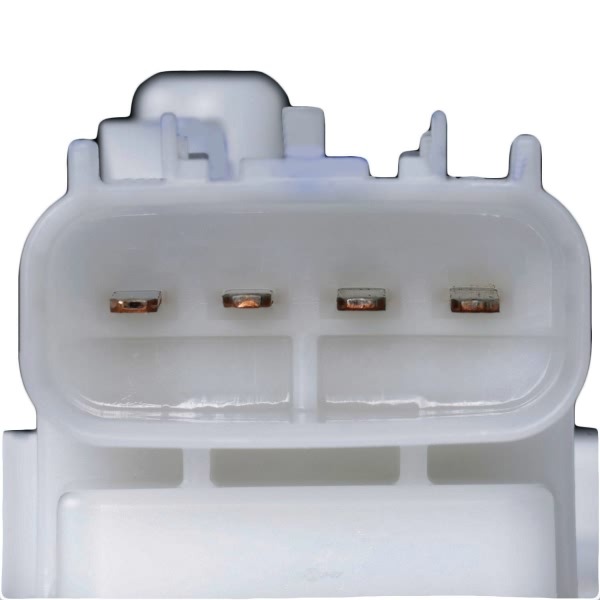

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604324653 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2014-2015 Chevrolet Impala | All Trims | 4 Cyl 2.5L |
