Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1811 |

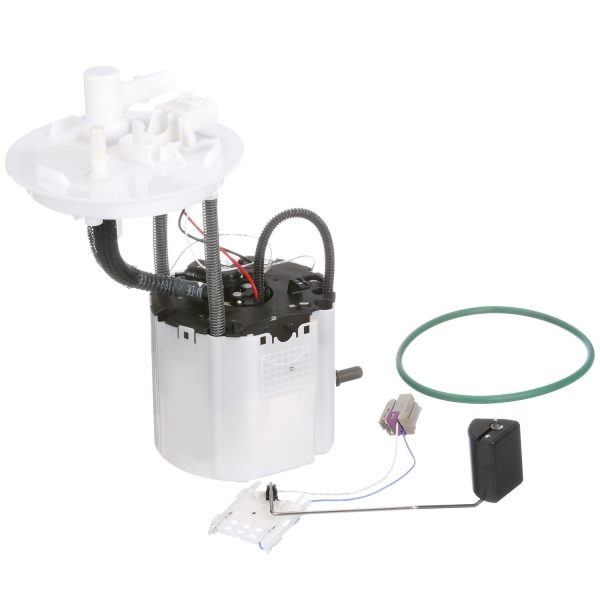

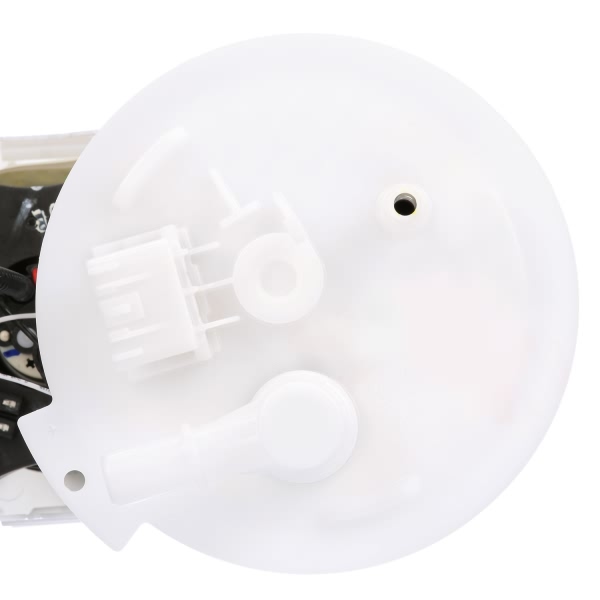

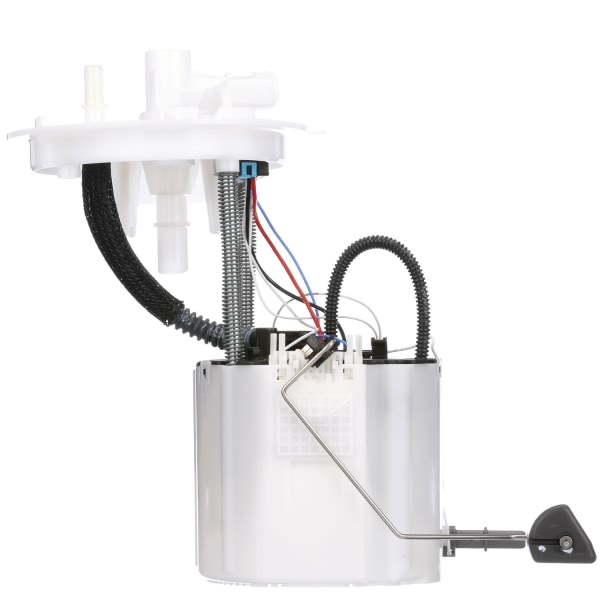

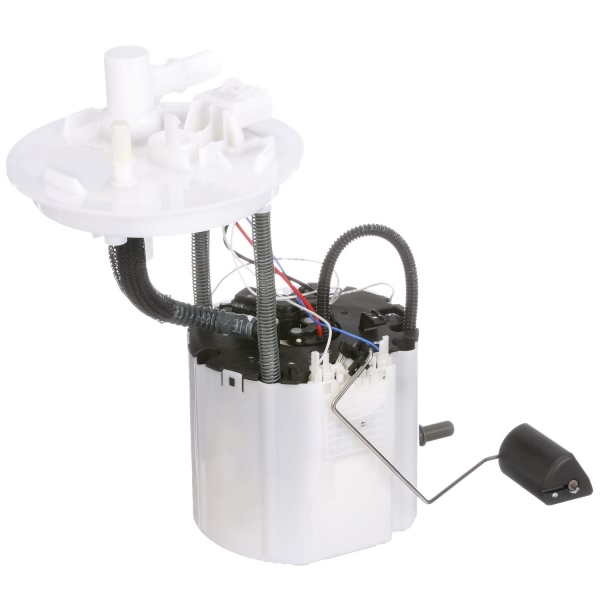

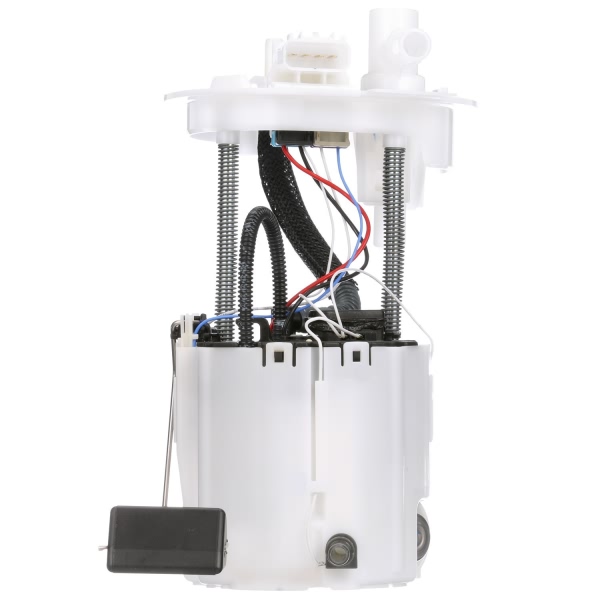

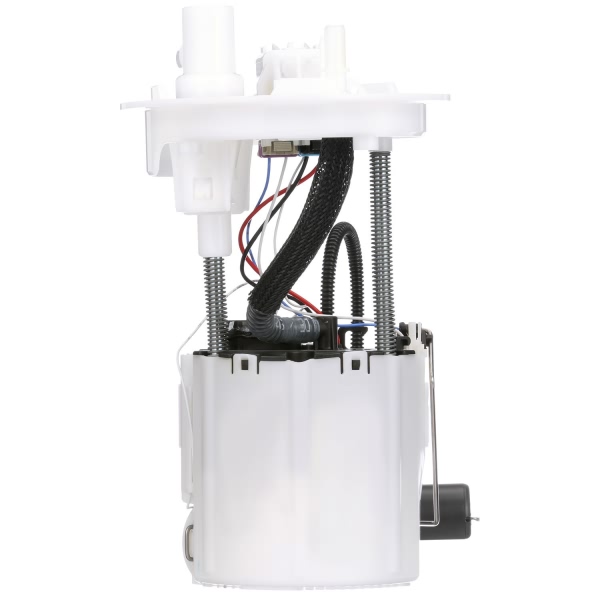

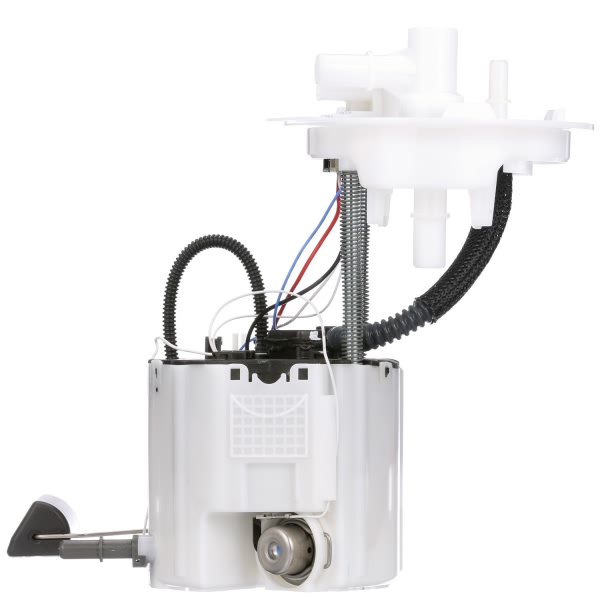

Part Description | Fuel Pump Module Assembly |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |

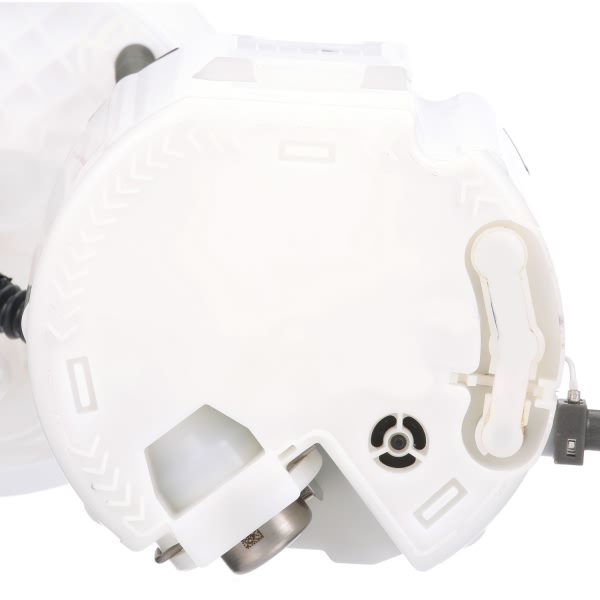

Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly withFloat Arm, Seals, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |

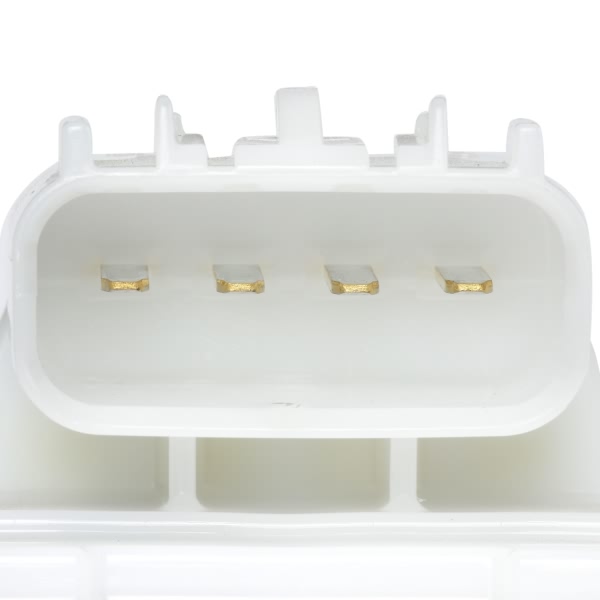

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604284957 |
Vapor Pressure Sensor | No |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Cadillac ATS | All Trims | 4 Cyl 2.5L |
2013-2018 Cadillac ATS | All Trims | 4 Cyl 2.0L |
2013-2018 Cadillac ATS | All Trims | 6 Cyl 3.6L |
2014 Cadillac CTS | Luxury | 6 Cyl 3.6L |
2014 Cadillac CTS | Performance | 6 Cyl 3.6L |
2014 Cadillac CTS | Premium | 6 Cyl 3.6L |
2014-2018 Cadillac CTS | All Trims | 4 Cyl 2.0L |
2015-2018 Cadillac CTS | All Trims | 6 Cyl 3.6L |
2016-2018 Chevrolet Camaro | All Trims | 4 Cyl 2.0L |
2016-2018 Chevrolet Camaro | All Trims | 6 Cyl 3.6L |
