Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |

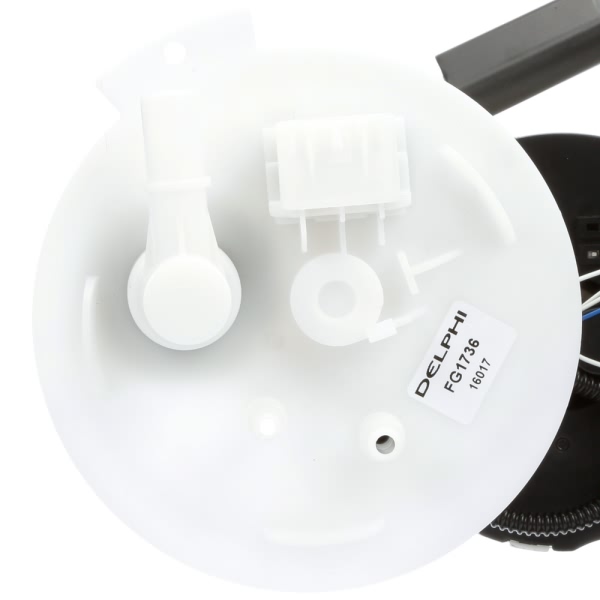

Part Number | FG1736 |

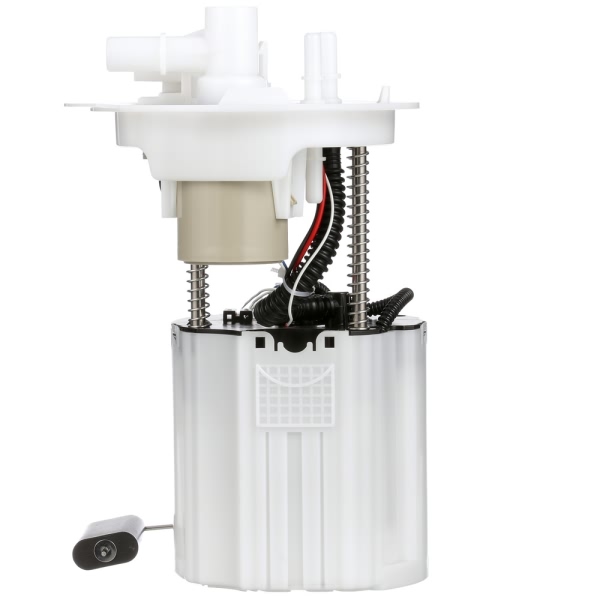

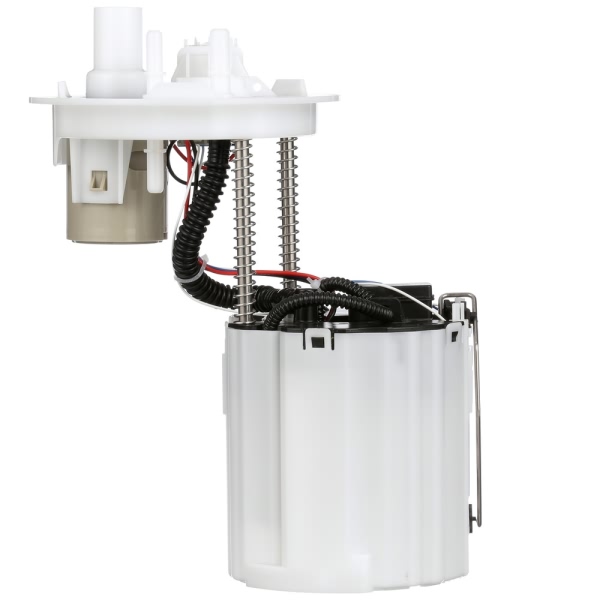

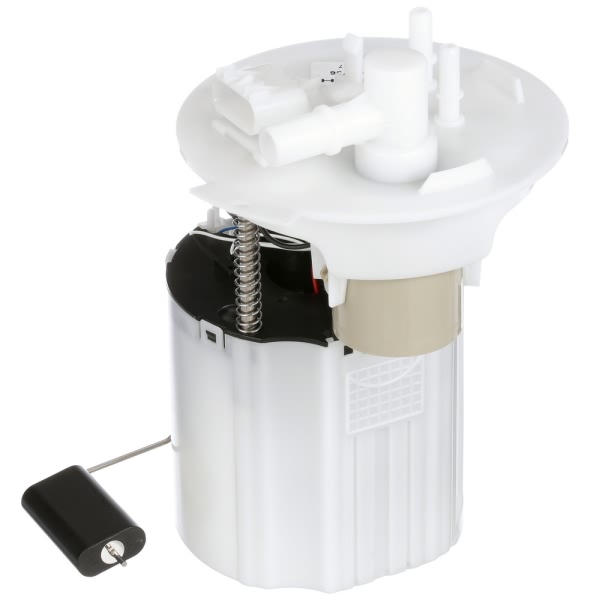

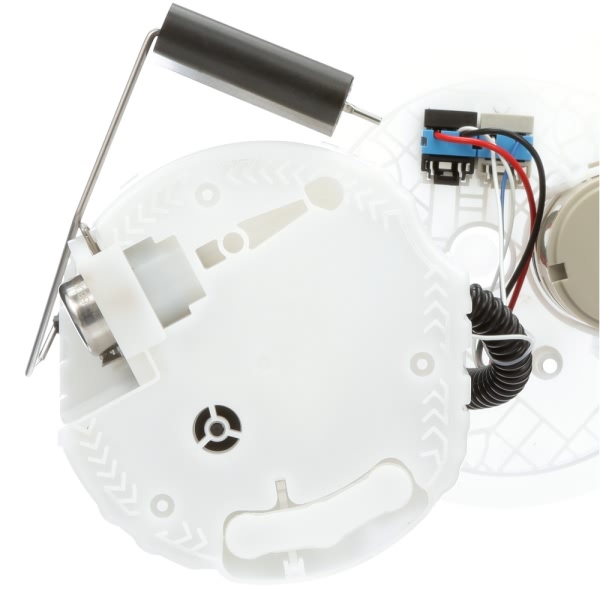

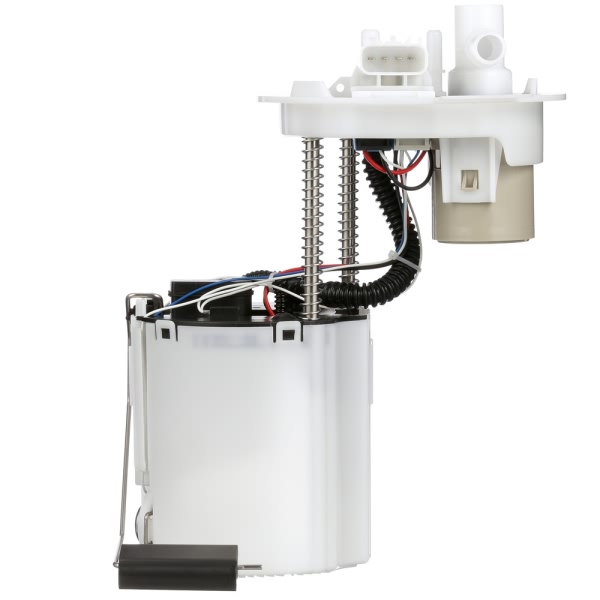

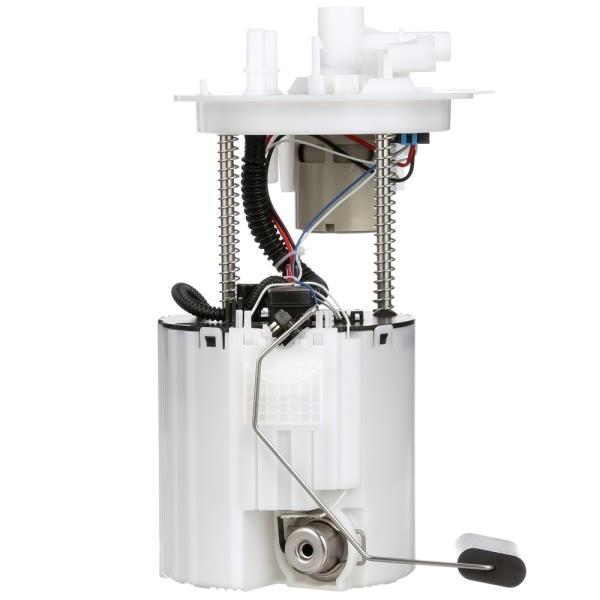

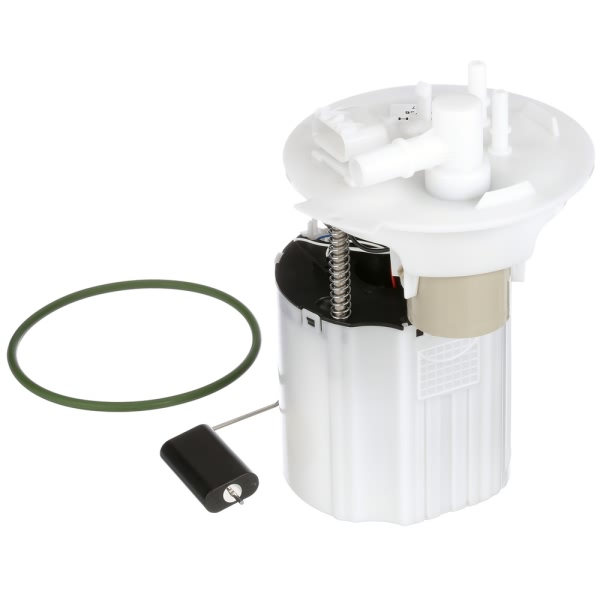

Part Description | Fuel Pump Module Assembly |
Current Draw | 11 |
Flow Rating | 34 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 83.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

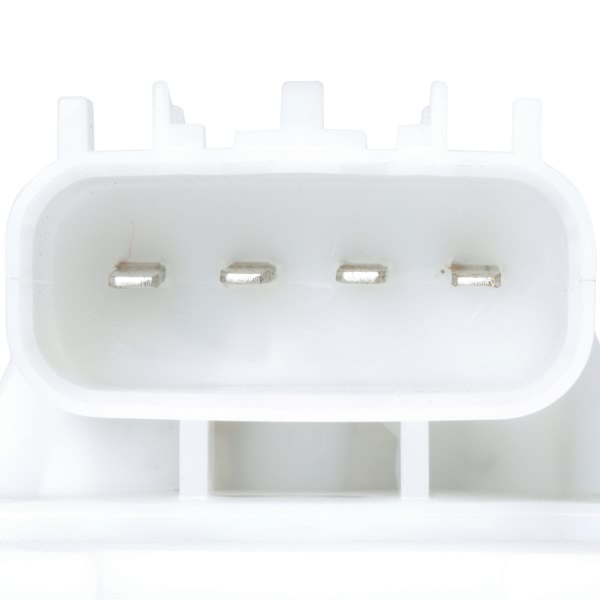

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604280959 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2011-2012 Buick LaCrosse | All Trims | 4 Cyl 2.4L |
2016 Buick LaCrosse | Base | 6 Cyl 3.6L |
2016 Buick LaCrosse | Leather | 6 Cyl 3.6L |
2016 Buick LaCrosse | Premium | 6 Cyl 3.6L |
2016 Buick LaCrosse | Sport Touring | 6 Cyl 3.6L |
2011-2012 Buick Regal | All Trims | 4 Cyl 2.4L |
2014-2016 Cadillac XTS | Premium | 6 Cyl 3.6L |
2014-2018 Cadillac XTS | Base | 6 Cyl 3.6L |
2014-2018 Cadillac XTS | Livery | 6 Cyl 3.6L |
2014-2018 Cadillac XTS | Luxury | 6 Cyl 3.6L |
