Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1719 |

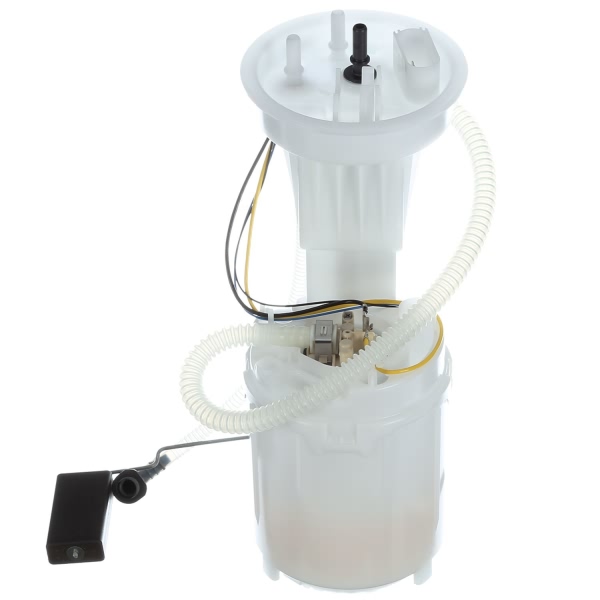

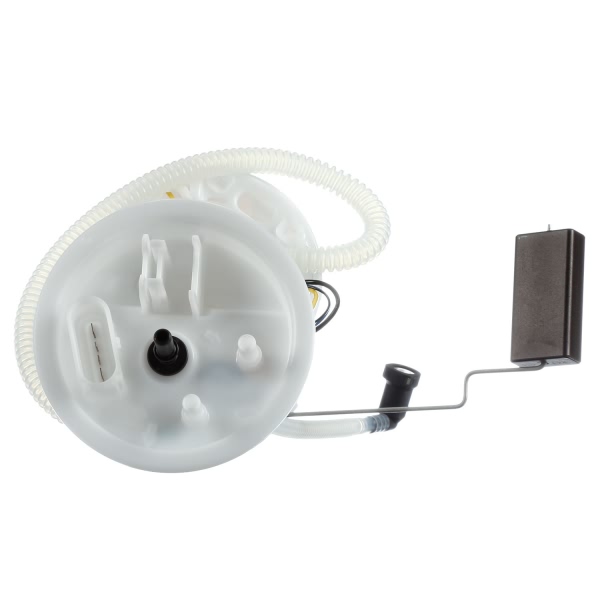

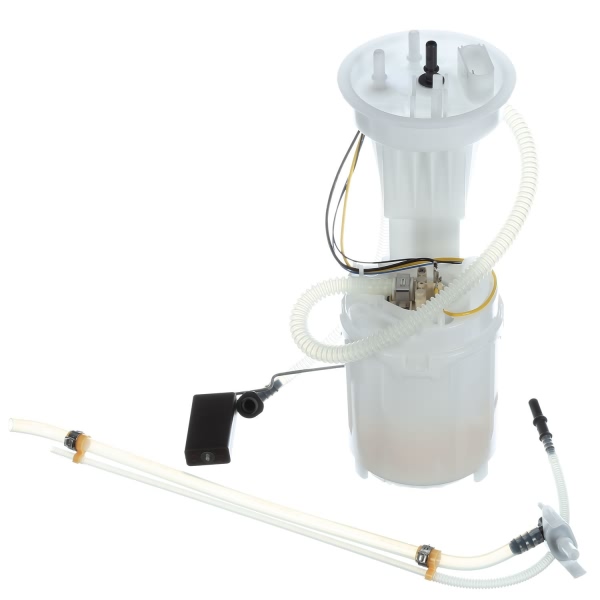

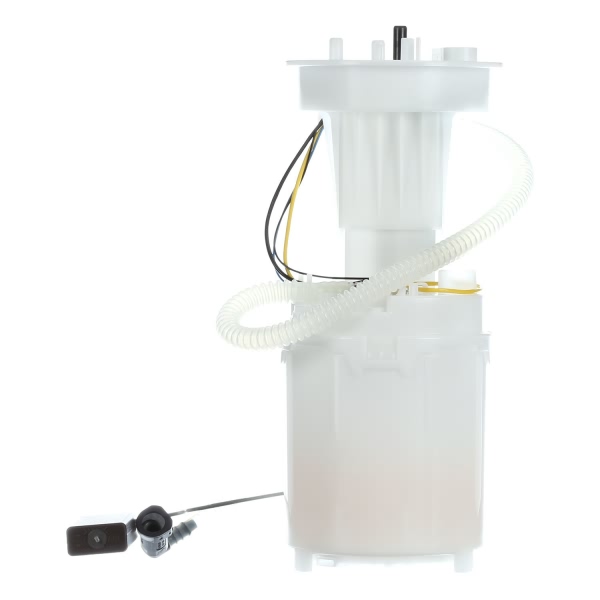

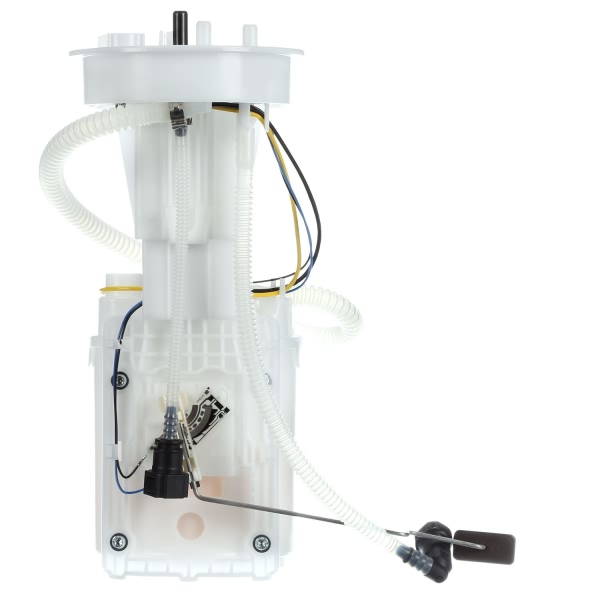

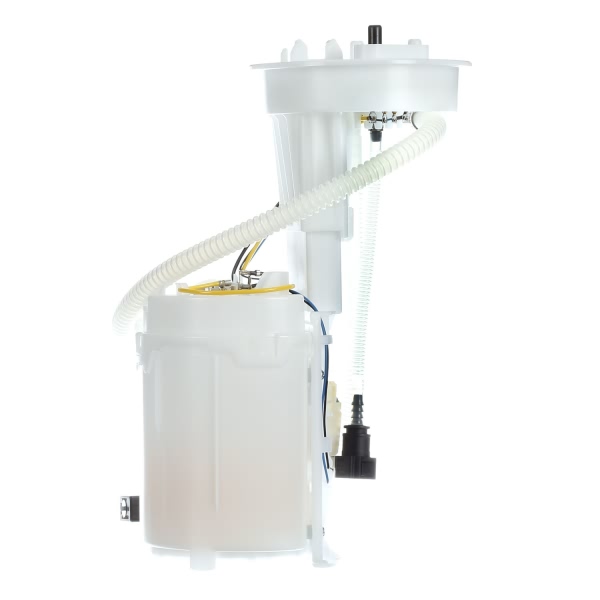

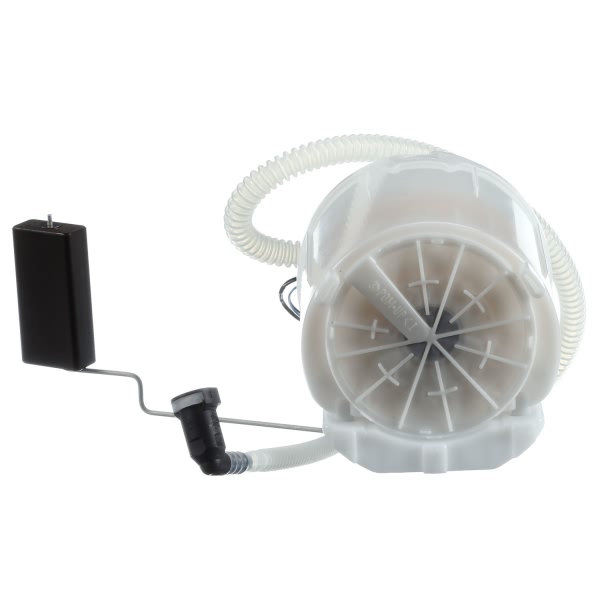

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 52 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 305.0 |
Resistance Ohms Full | 56.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

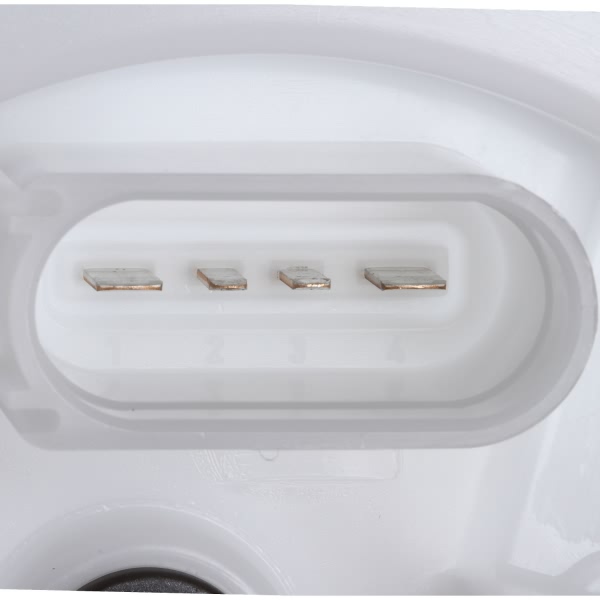

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604241653 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2002 Audi A4 | All Trims | 4 Cyl 1.8L |
2002 Audi A4 | All Trims | 6 Cyl 3.0L |
2003 Audi A4 | Base | 4 Cyl 1.8L |
2003 Audi A4 | Cabriolet | 4 Cyl 1.8L |
2003 Audi A4 | Base | 6 Cyl 3.0L |
2003 Audi A4 | Cabriolet | 6 Cyl 3.0L |
