Check if it fits by entering your vehicle infoBrand | Delphi |

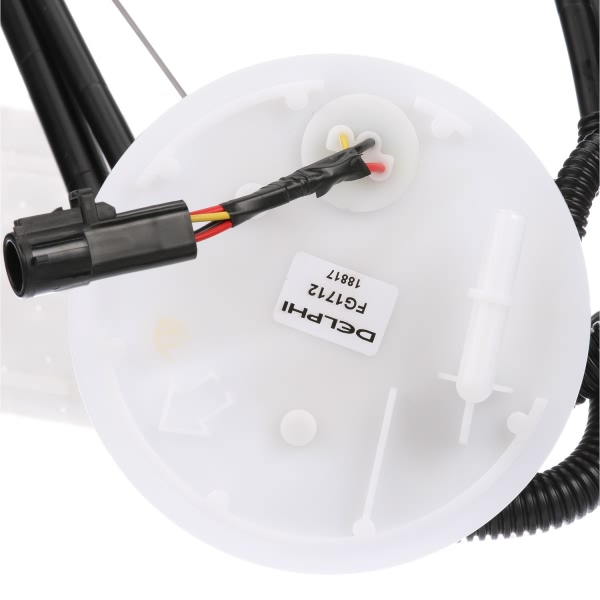

Part Number | FG1712 |

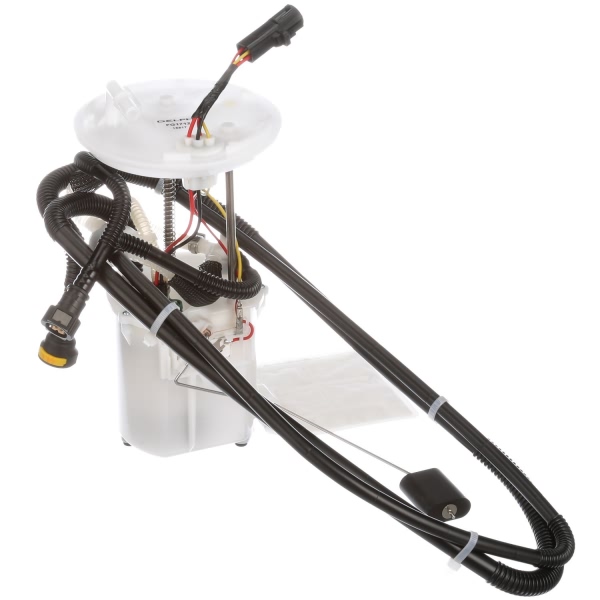

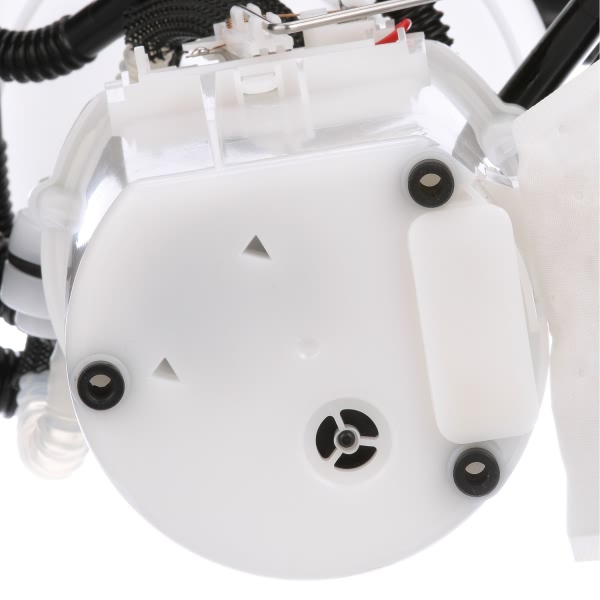

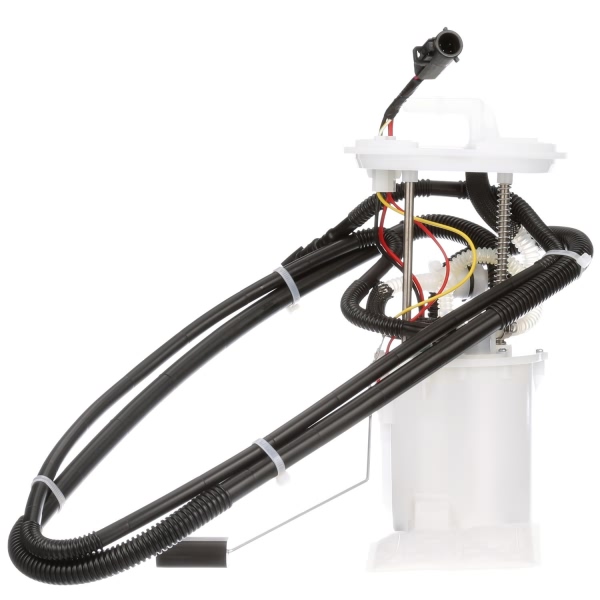

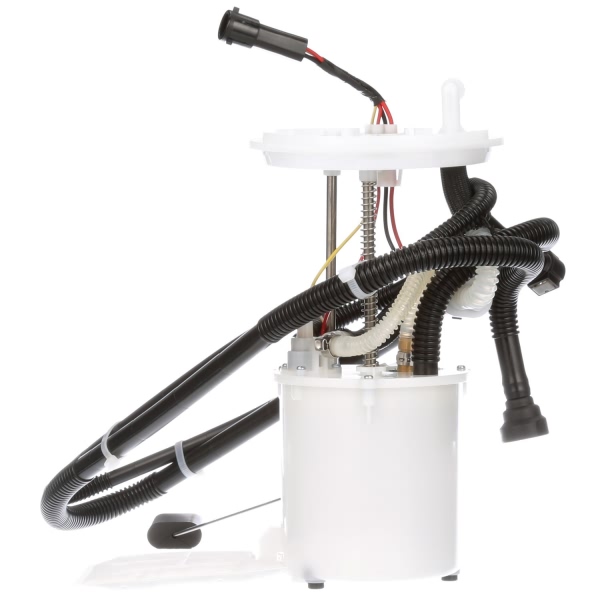

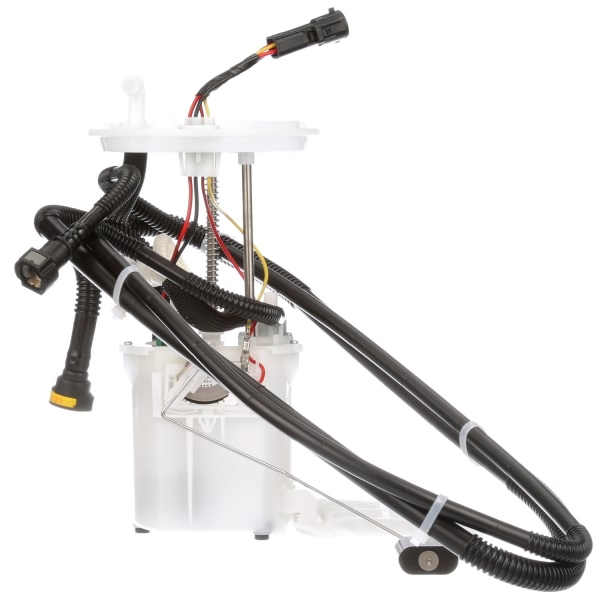

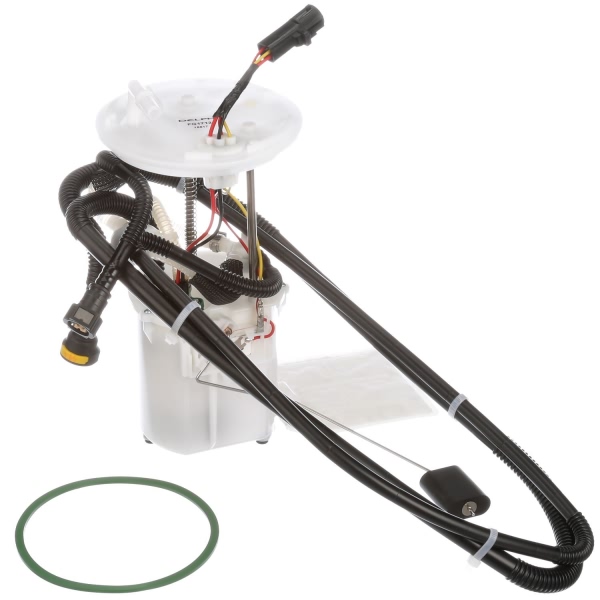

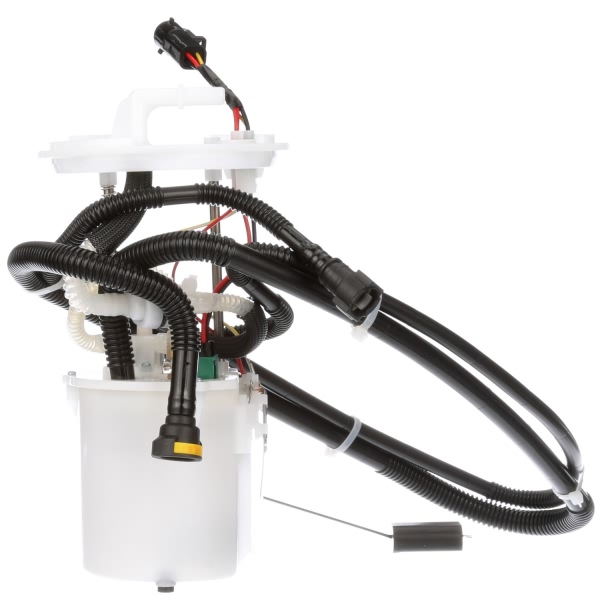

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 75 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 15.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 80 psi |

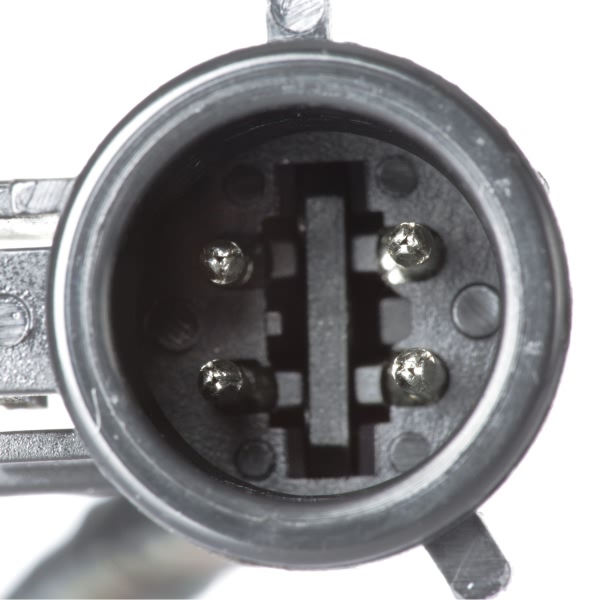

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 886931224933 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2003-2004 Jaguar S-Type | Base | 8 Cyl 4.2L |
2003-2005 Jaguar S-Type | All Trims | 6 Cyl 3.0L |
2005 Jaguar S-Type | Sport | 8 Cyl 4.2L |
2004-2005 Jaguar Vanden Plas | All Trims | 8 Cyl 4.2L |
2004-2005 Jaguar XJ8 | All Trims | 8 Cyl 4.2L |
