Check if it fits by entering your vehicle infoBrand | Delphi |

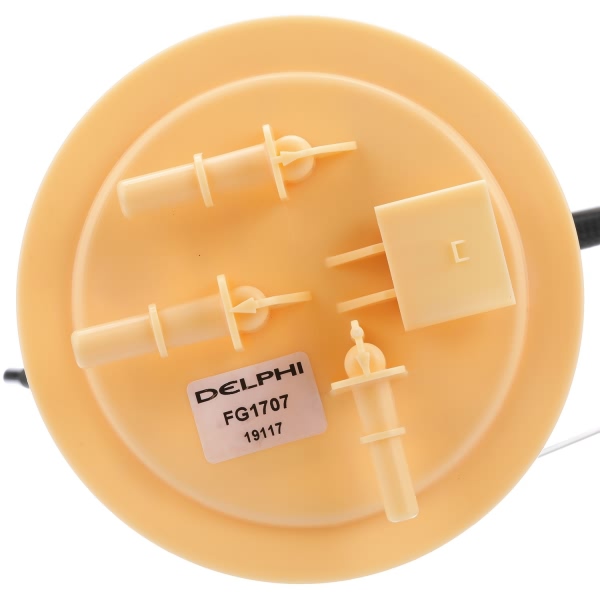

Part Number | FG1707 |

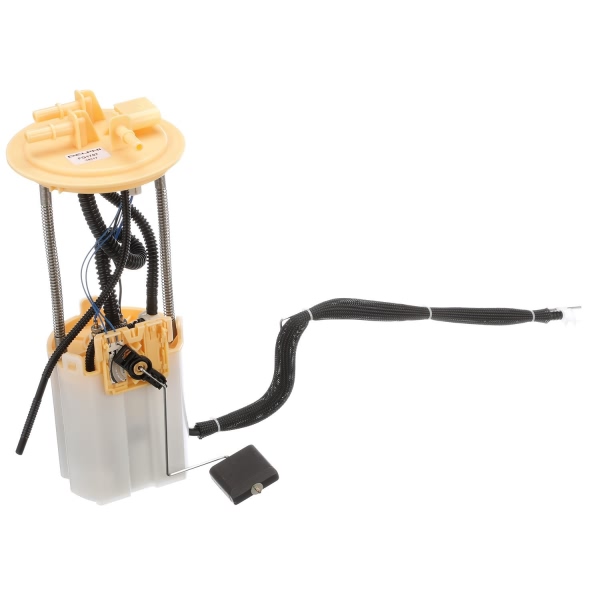

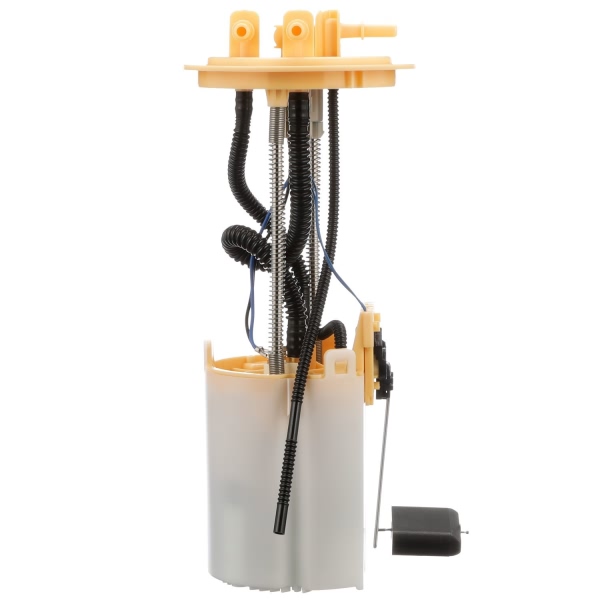

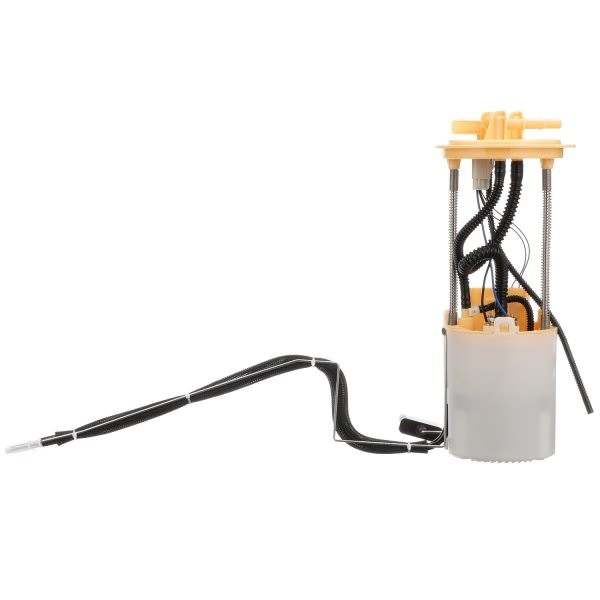

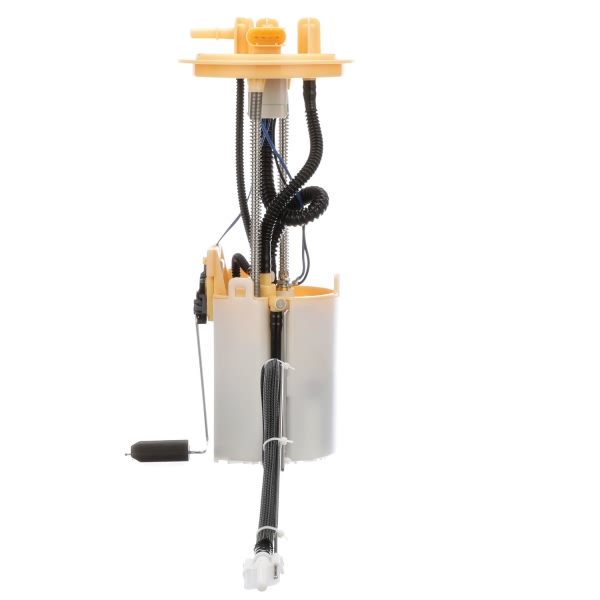

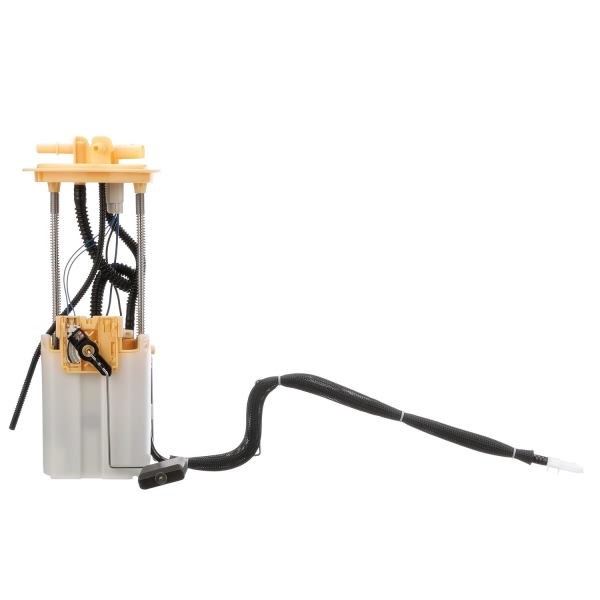

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 40 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Diesel |

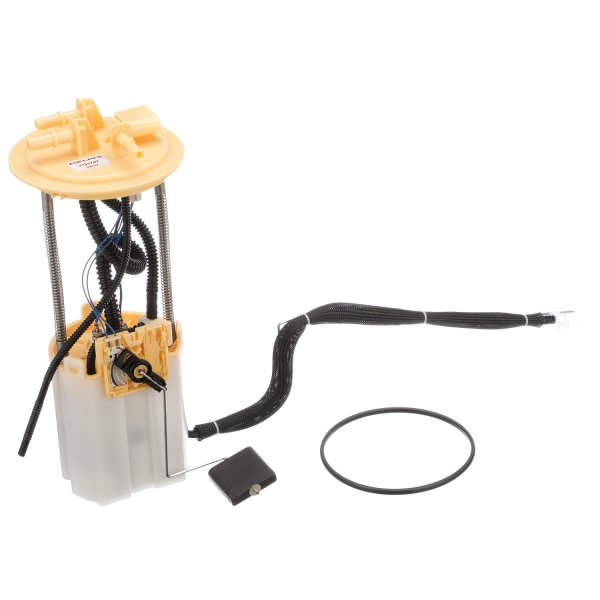

Gasket or Seal Included | Yes |
In Tank or External | In Tank |

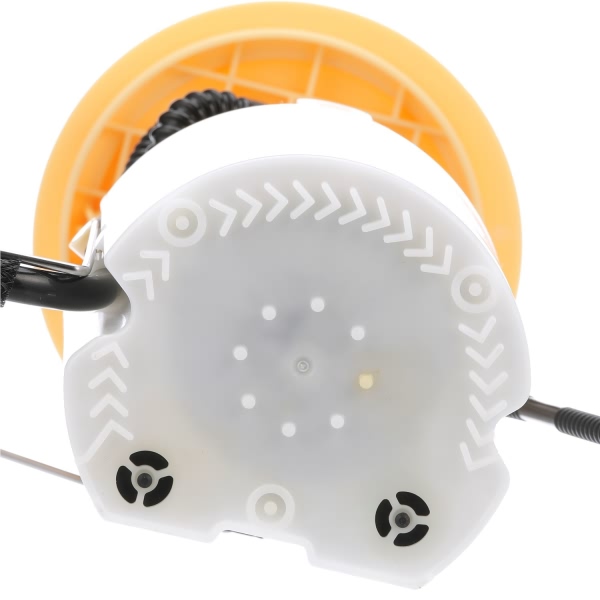

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 101.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 50.0 |
Resistance Ohms Full | 870.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

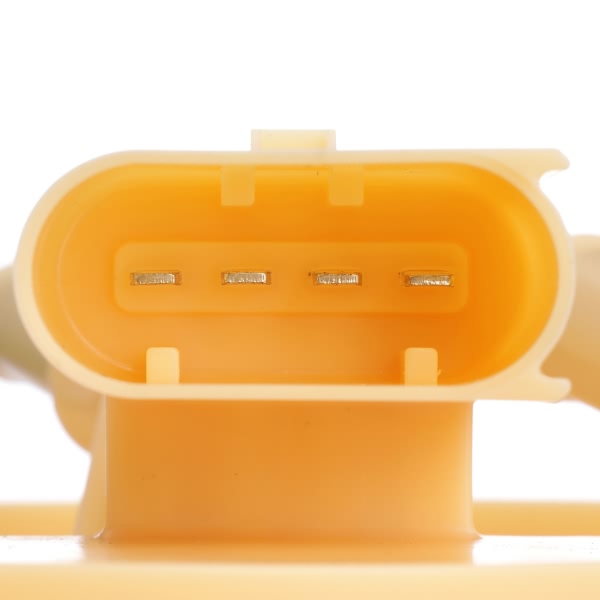

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604265819 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2007-2009 Dodge Sprinter 2500 | All Trims | 6 Cyl 3.0L |
2007-2009 Dodge Sprinter 3500 | All Trims | 6 Cyl 3.0L |
2010-2018 Mercedes-Benz Sprinter 2500 | All Trims | 6 Cyl 3.0L |
2017 Mercedes-Benz Sprinter 2500 | All Trims | 4 Cyl 2.1L |
2010-2018 Mercedes-Benz Sprinter 3500 | All Trims | 6 Cyl 3.0L |
2017 Mercedes-Benz Sprinter 3500 | All Trims | 4 Cyl 2.1L |
