Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1682 |

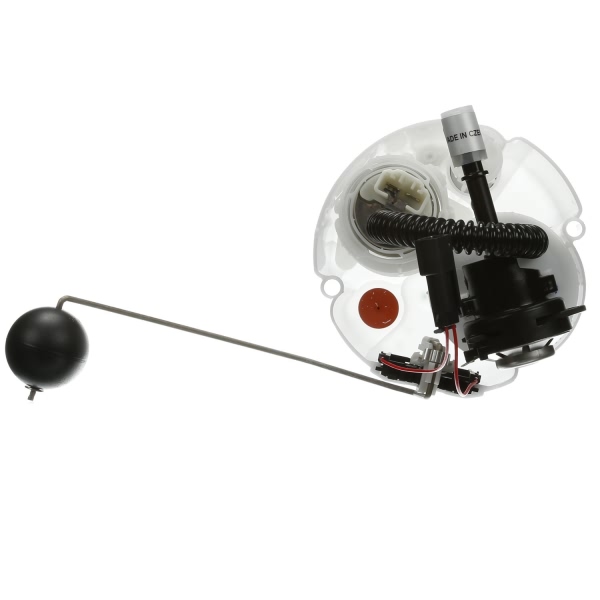

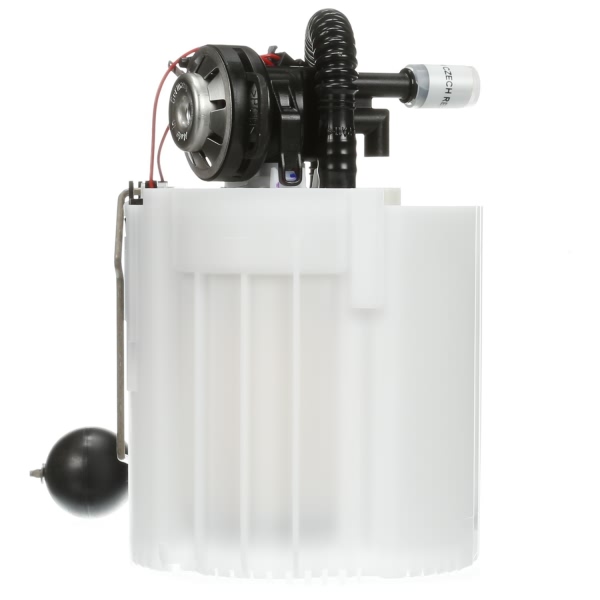

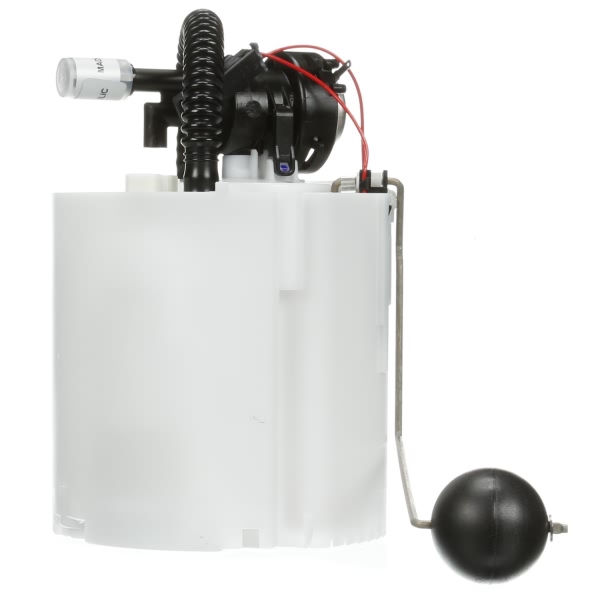

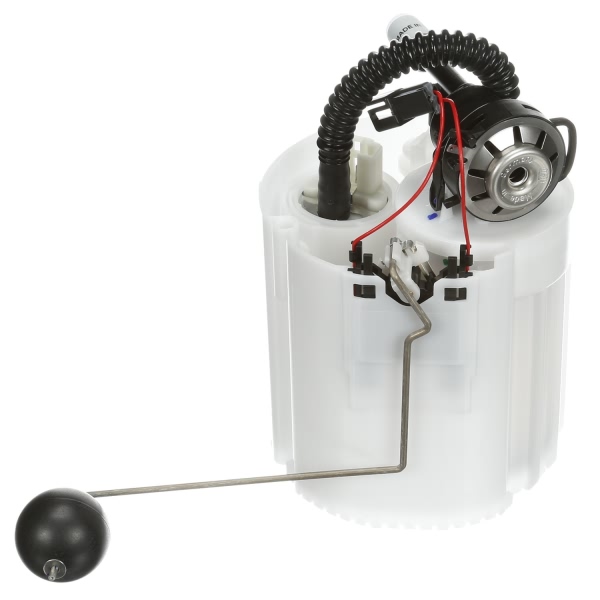

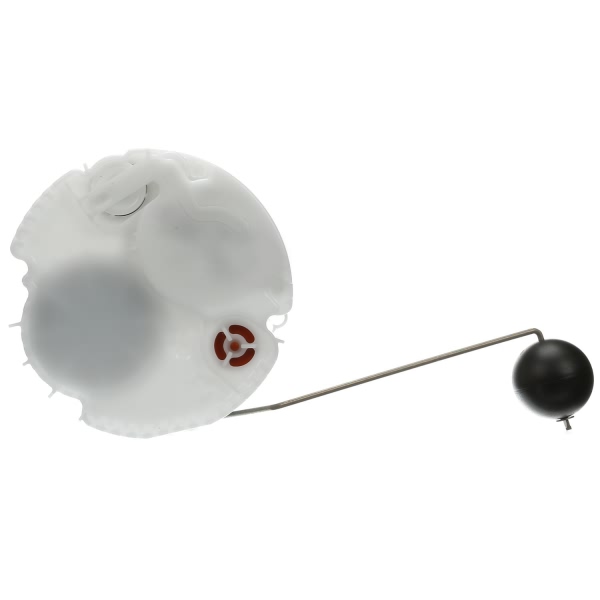

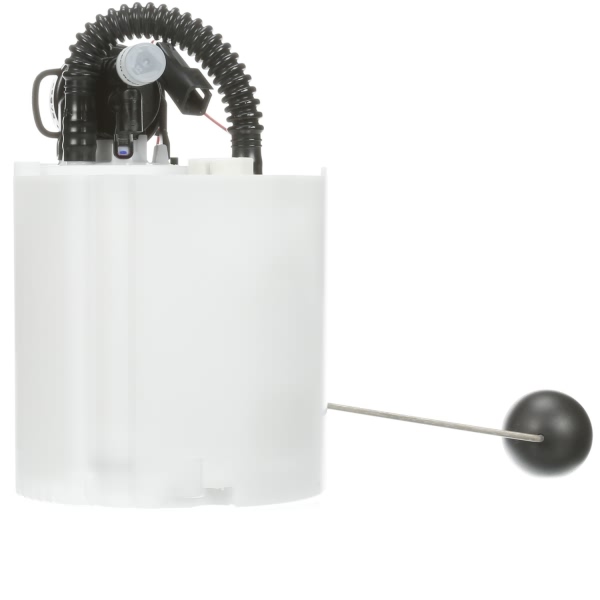

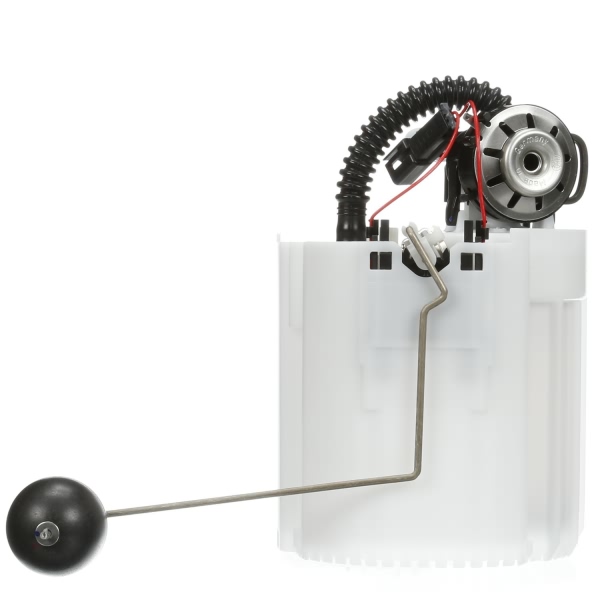

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 65 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 95.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 386.0 |
Resistance Ohms Full | 16.0 |
Strainer Included | Yes |
System Pressure | 55 psi |

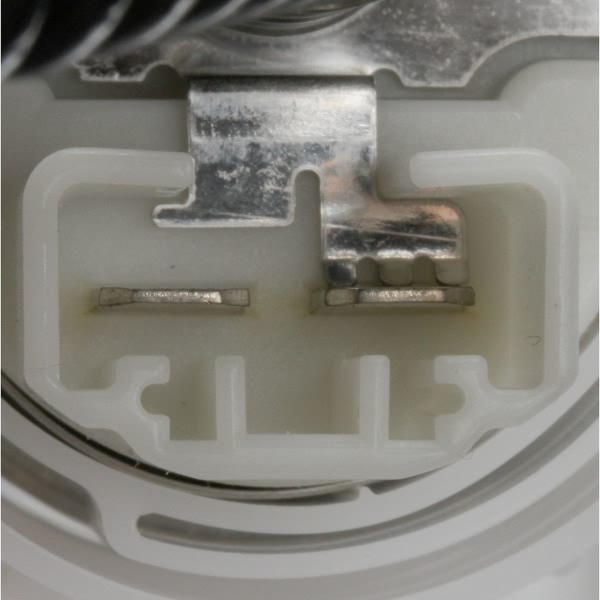

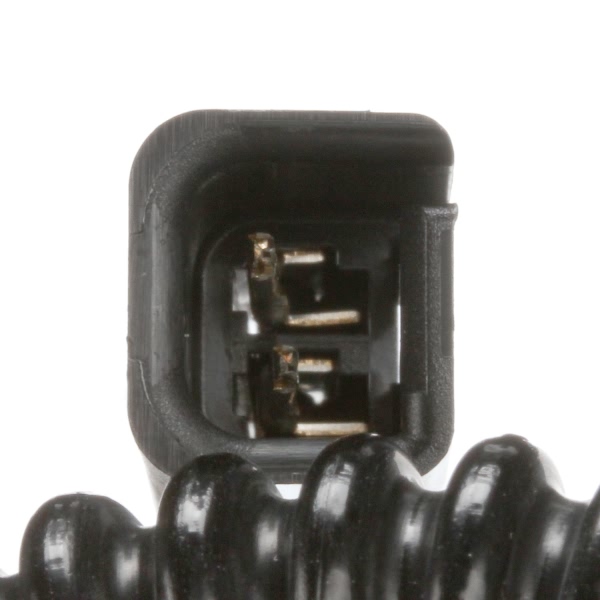

Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Blade |
UPC | 689604240960 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2001-2003 Volvo S60 | 2.4T | 5 Cyl 2.4L |
2001-2004 Volvo S60 | All Trims | 5 Cyl 2.3L |
2002 Volvo S60 | AWD | 5 Cyl 2.4L |
2004 Volvo S60 | 2.5T AWD | 5 Cyl 2.5L |
2004-2006 Volvo S60 | 2.5T | 5 Cyl 2.5L |
2005-2006 Volvo S60 | T5 | 5 Cyl 2.4L |
2007-2009 Volvo S60 | All Trims | 5 Cyl 2.4L |
2001-2003 Volvo V70 | 2.4T | 5 Cyl 2.4L |
2001-2004 Volvo V70 | All Trims | 5 Cyl 2.3L |
2002 Volvo V70 | AWD | 5 Cyl 2.4L |
