Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1677 |

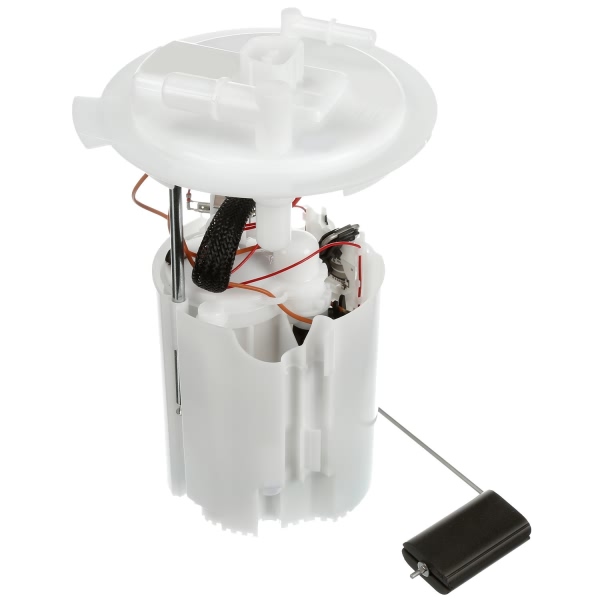

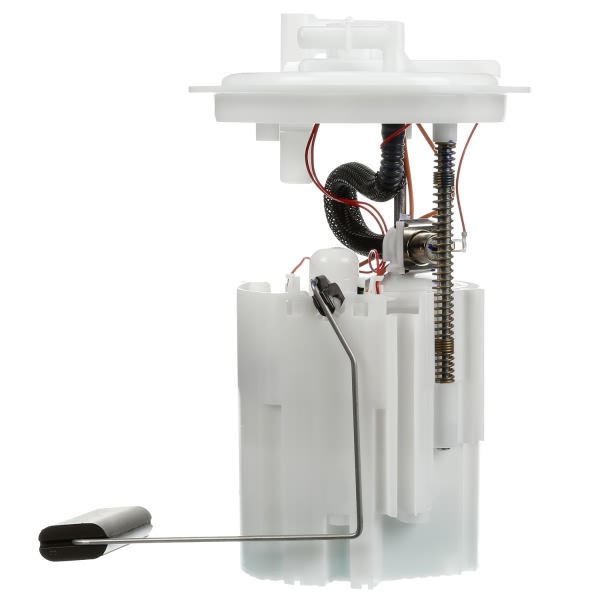

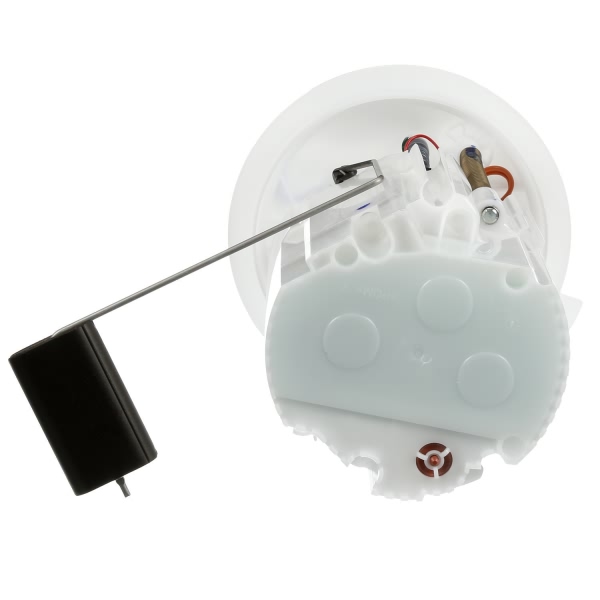

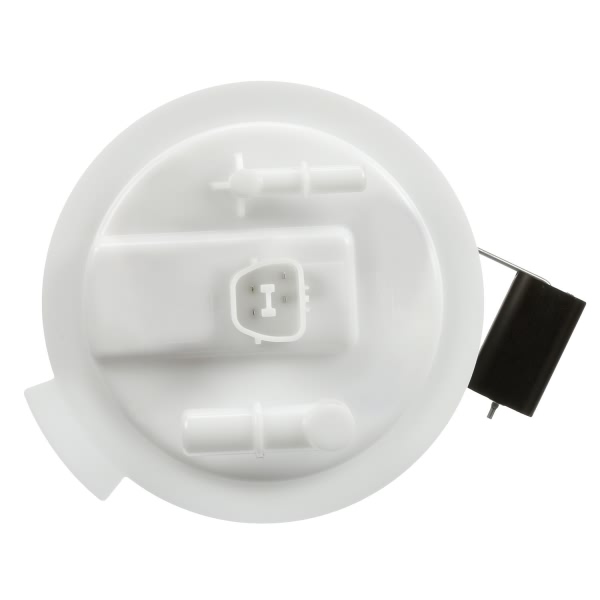

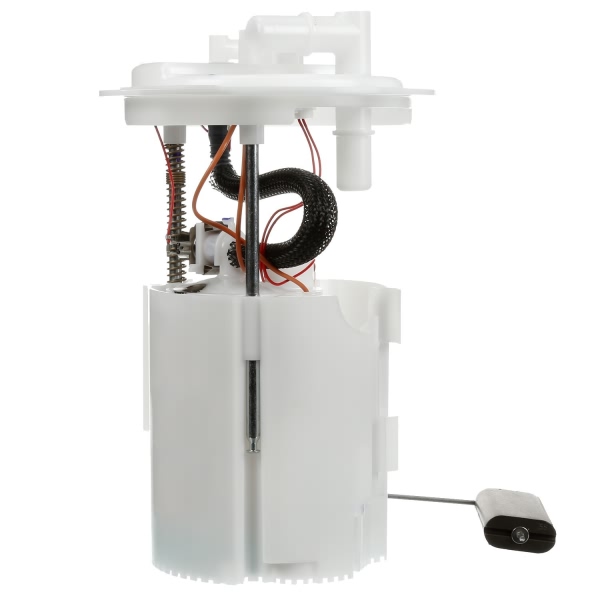

Part Description | Fuel Pump Module Assembly |
Average Current Draw | 10 |
Average Flow Rating | 55 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 138.0 |
Outlet Outside Diameter | 0.375 |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 65 psi |

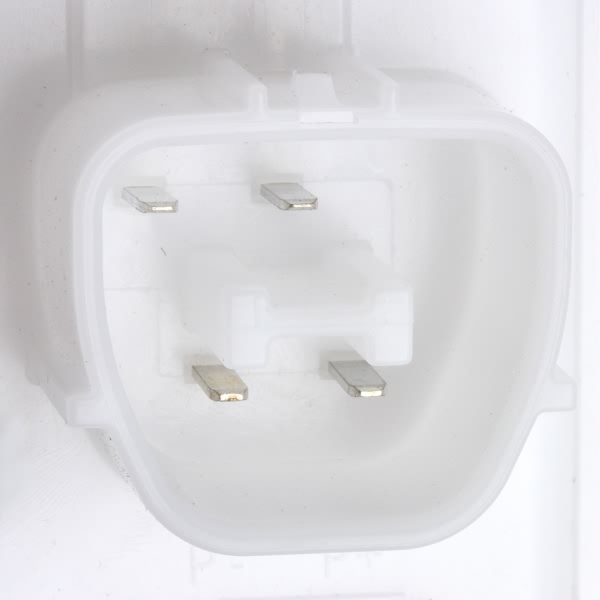

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604241905 |
Vapor Pressure Sensor | No |
Voltage | 12.0 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2014 Ford Edge | All Trims | 4 Cyl 2.0L |
2015 Ford Edge | SE | 4 Cyl 2.0L |
2015 Ford Edge | SEL | 4 Cyl 2.0L |
2015 Ford Edge | Titanium | 4 Cyl 2.0L |
