Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1661 |

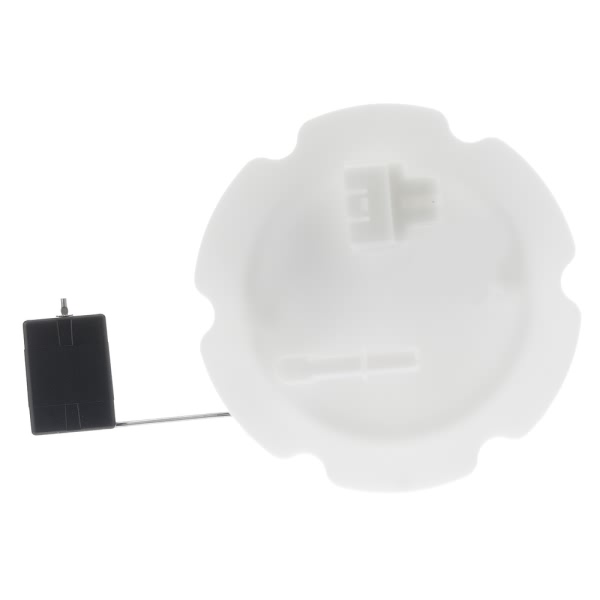

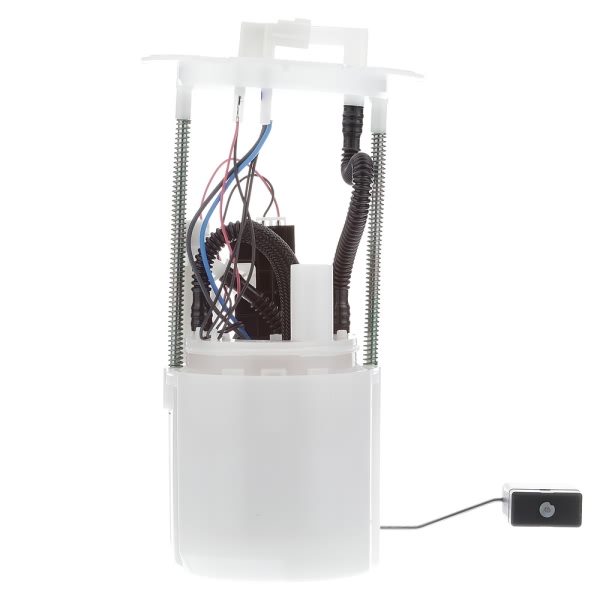

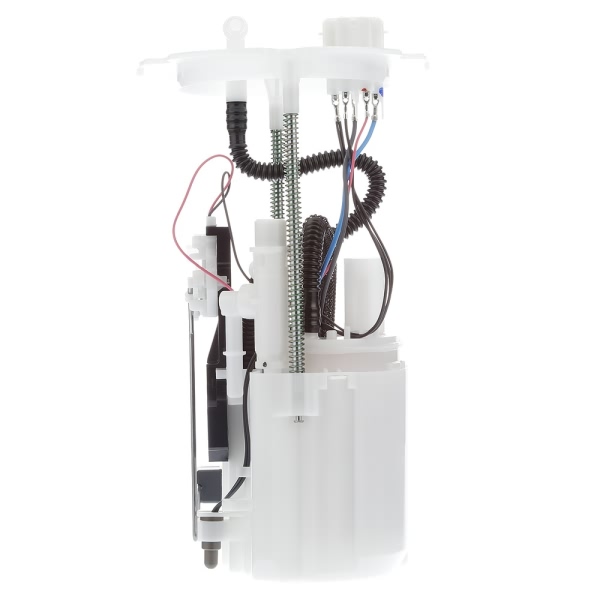

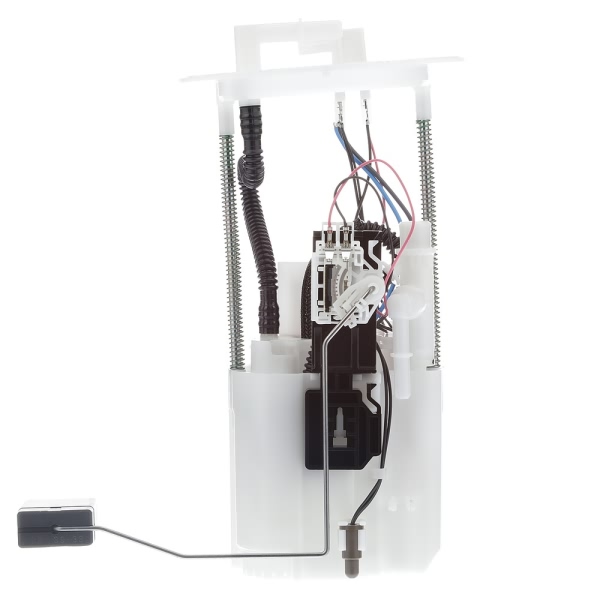

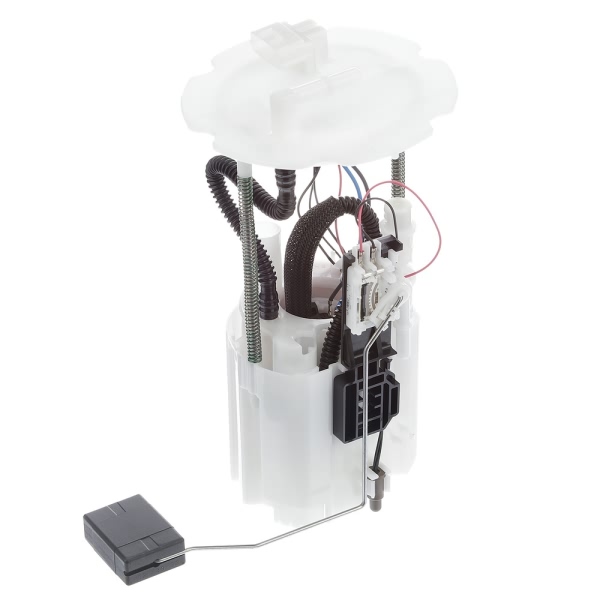

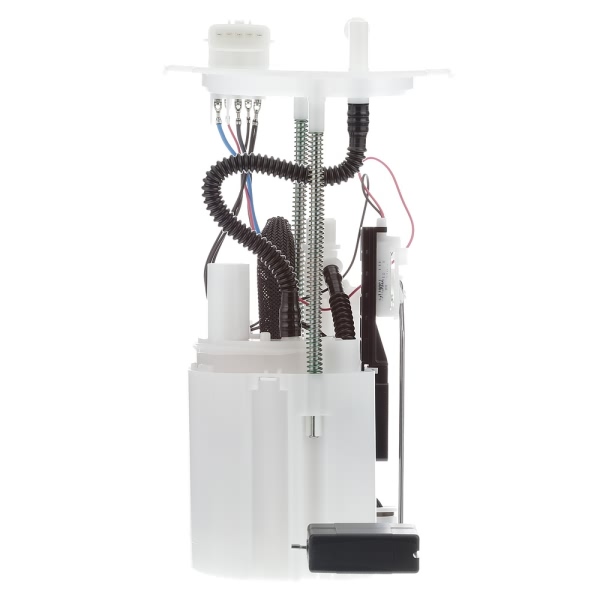

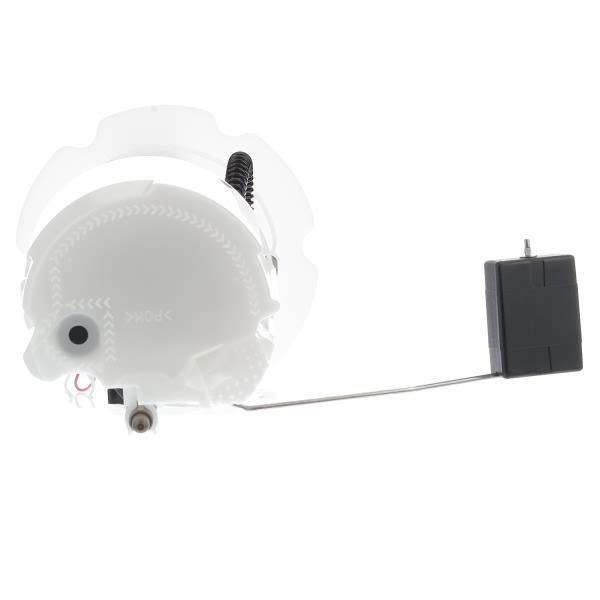

Part Description | Fuel Pump Module Assembly |
Average Current Draw | 10 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Outlet Outside Diameter | 0.375 |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 81.0 |
Resistance Ohms Full | 3.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

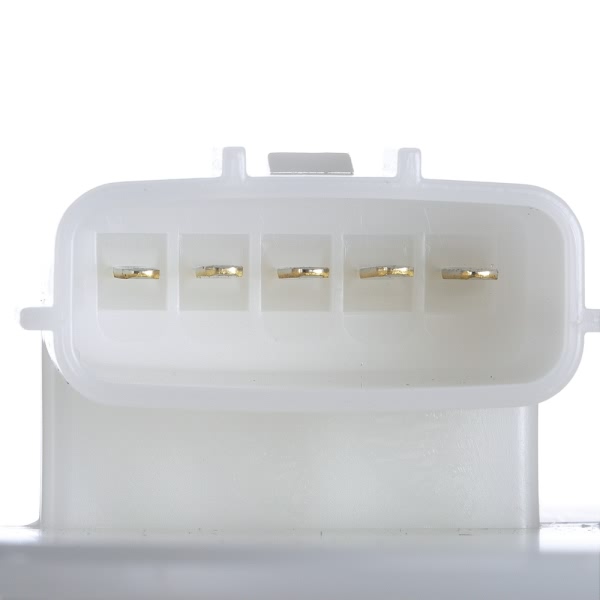

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604282458 |
Vapor Pressure Sensor | No |
Voltage | 12.0 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2012 Infiniti FX35 | All Trims | 6 Cyl 3.5L |
2013 Infiniti FX37 | All Trims | 6 Cyl 3.7L |
2014-2015 Infiniti QX70 | All Trims | 6 Cyl 3.7L |
