Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1646 |

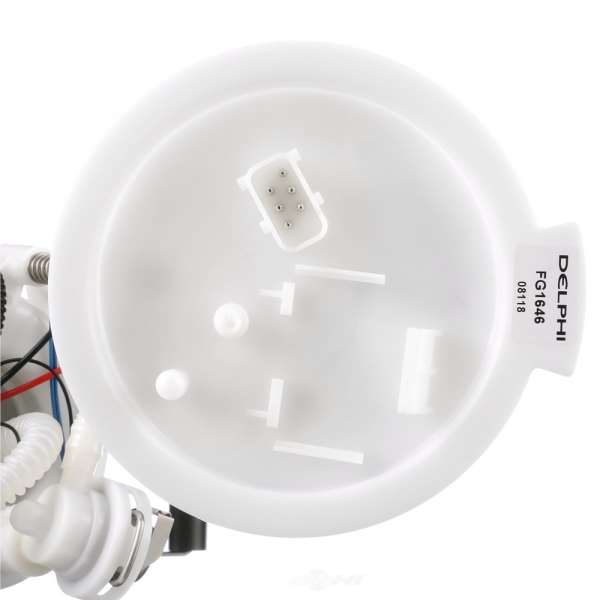

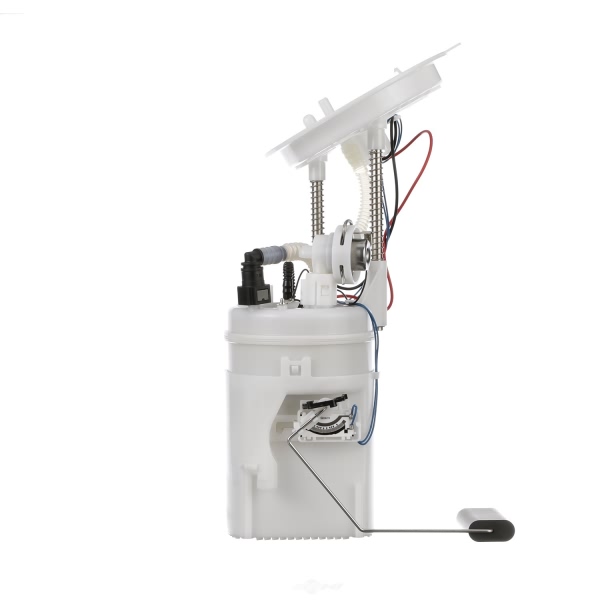

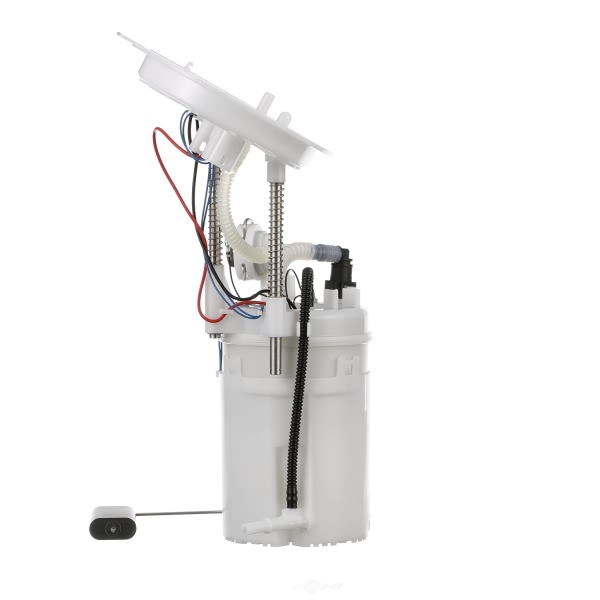

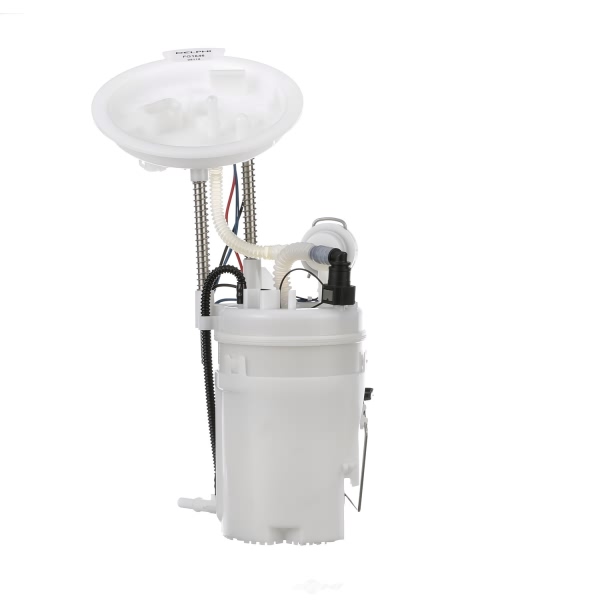

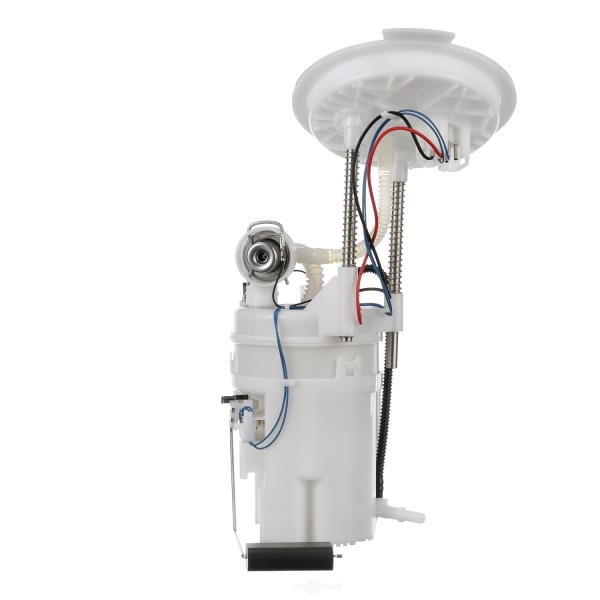

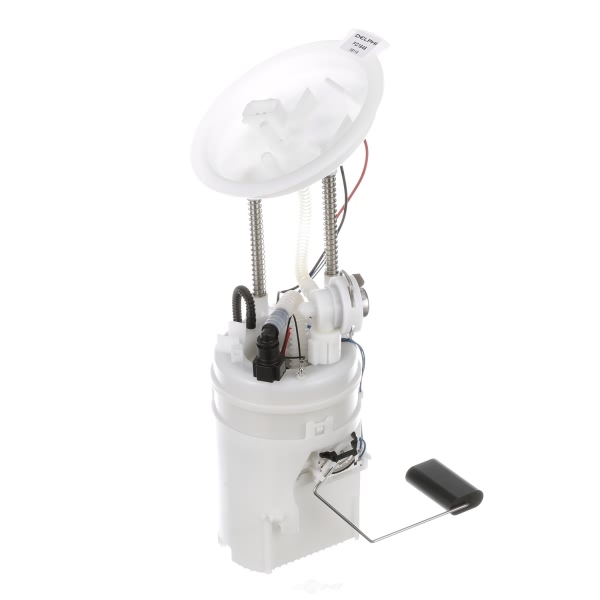

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 45 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

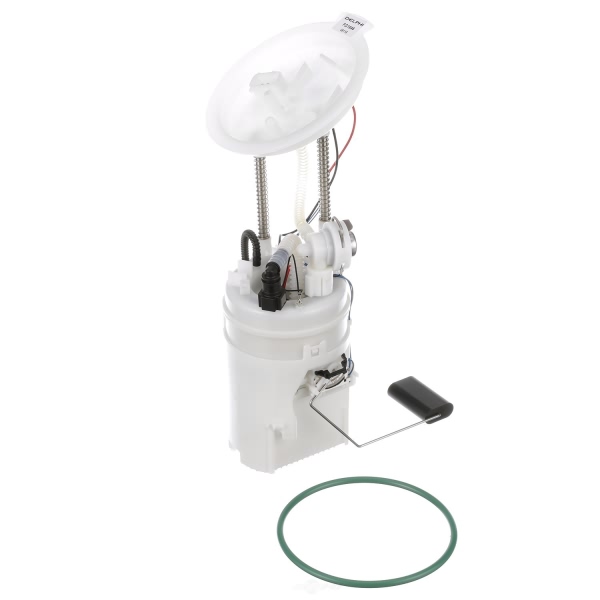

Gasket or Seal Included | Yes |
In Tank or External | In Tank |

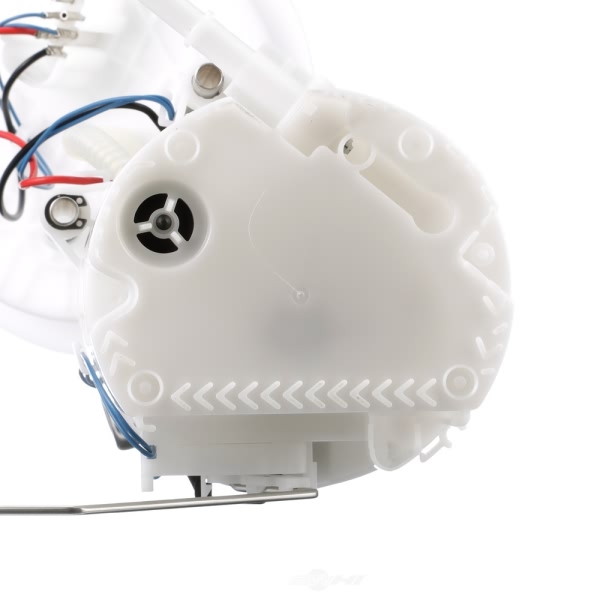

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 87.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 990.0 |
Resistance Ohms Full | 50.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

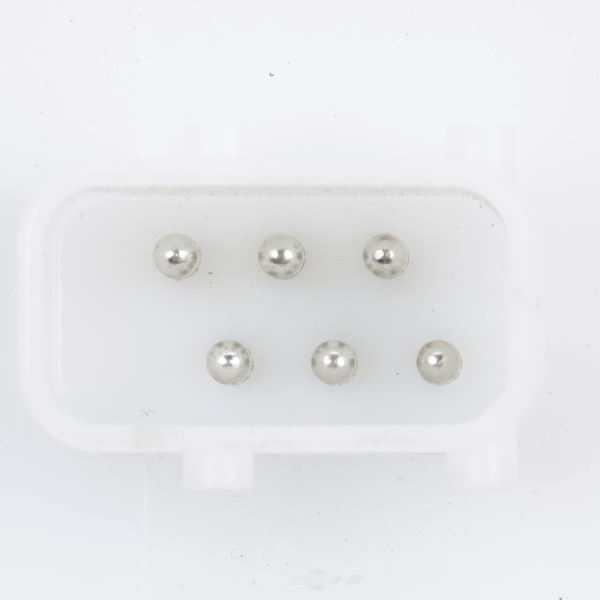

Terminal Gender | Male |
Terminal Quantity | 6 |
Terminal Type | Pin |
UPC | 689604240762 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 BMW X3 | All Trims | 4 Cyl 2.0L |
2013-2015 BMW X3 | All Trims | 6 Cyl 3.0L |
2015-2017 BMW X3 | xDrive28i | 4 Cyl 2.0L |
2016-2017 BMW X3 | xDrive35i | 6 Cyl 3.0L |
2015-2017 BMW X4 | All Trims | 4 Cyl 2.0L |
2018 BMW X4 | xDrive28i | 4 Cyl 2.0L |
