Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |

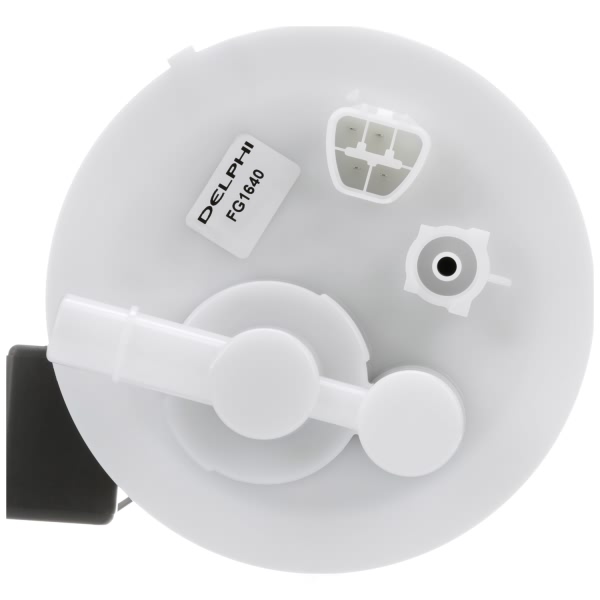

Part Number | FG1640 |

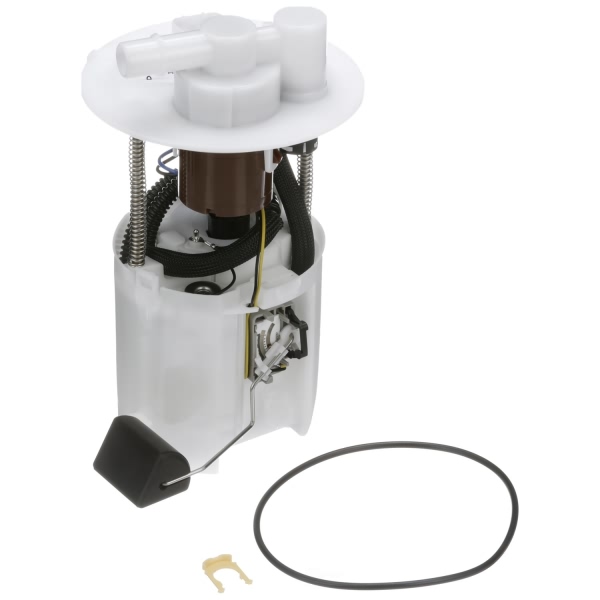

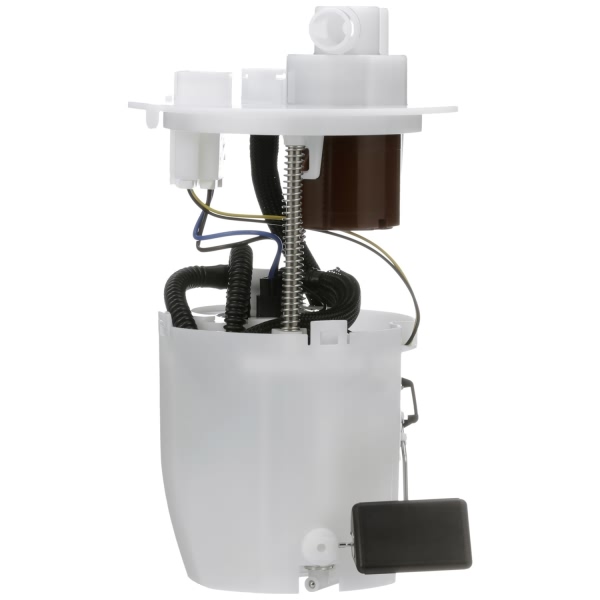

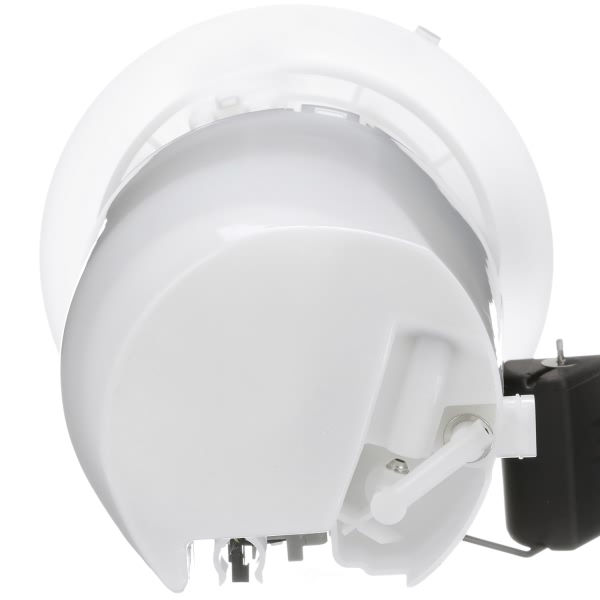

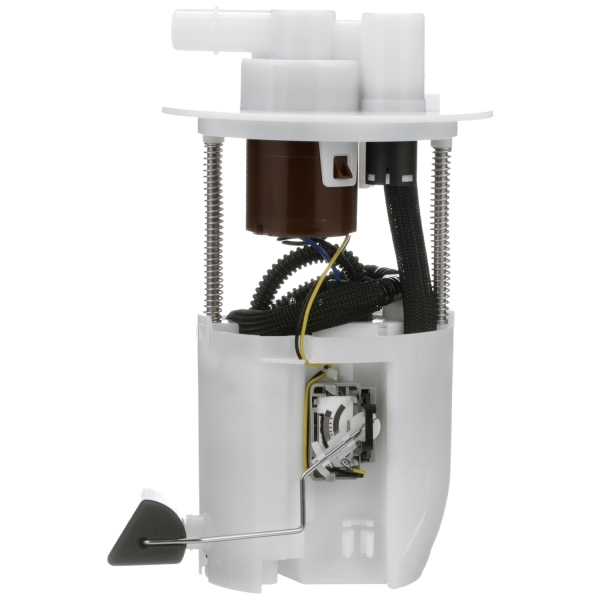

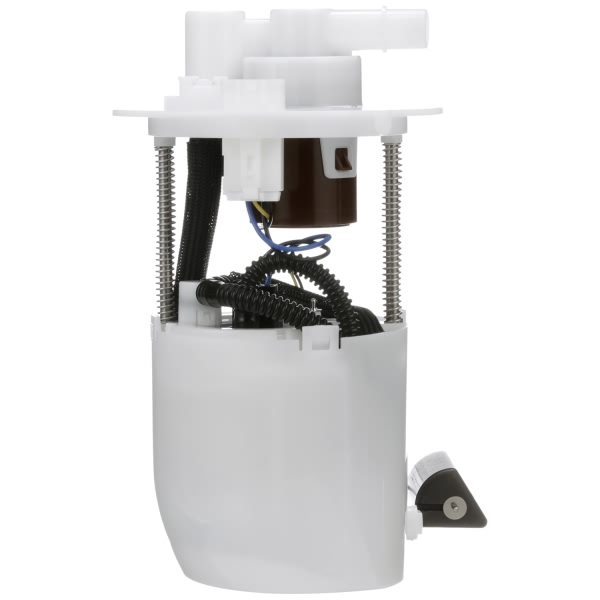

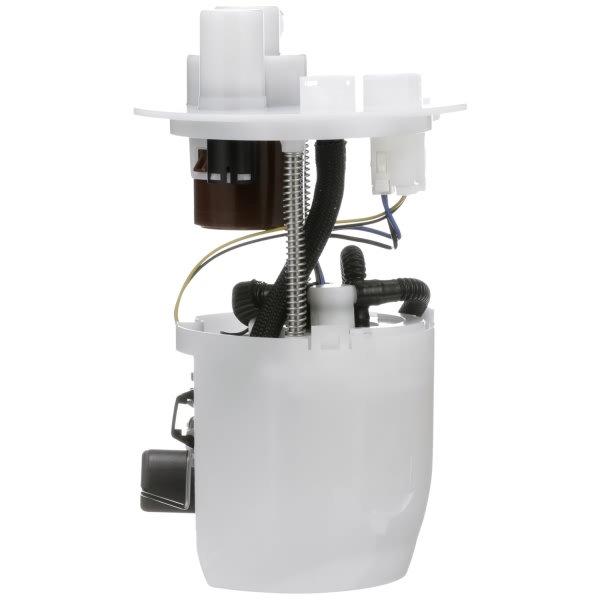

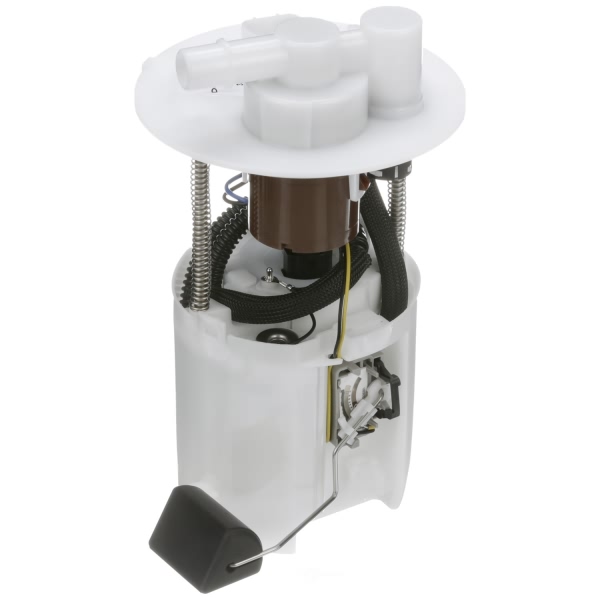

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 40 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 95.0 PSI |

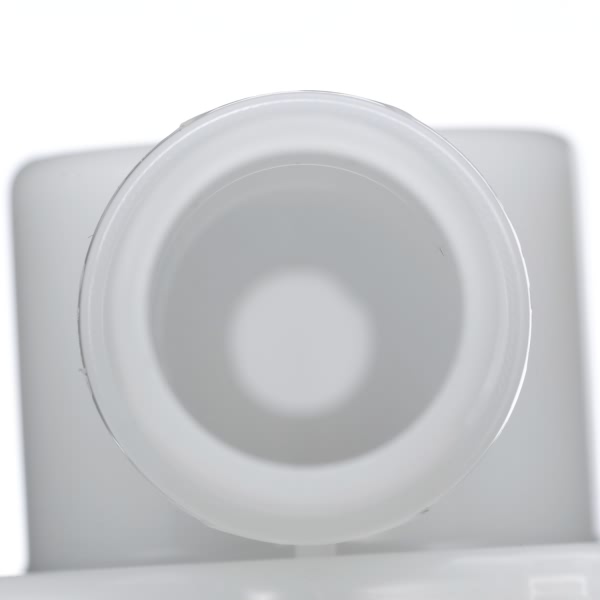

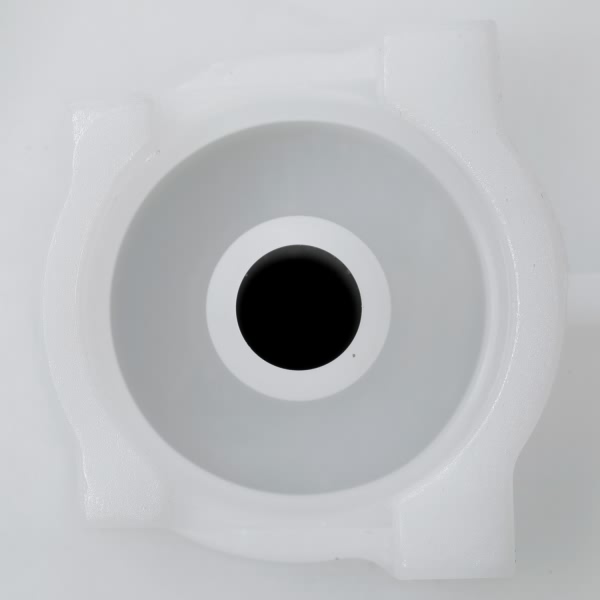

Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 2 |
Outlet Type | Push'' |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 410.0 |
Resistance Ohms Full | 15.0 |
Strainer Included | Yes |
System Pressure | 47 psi |

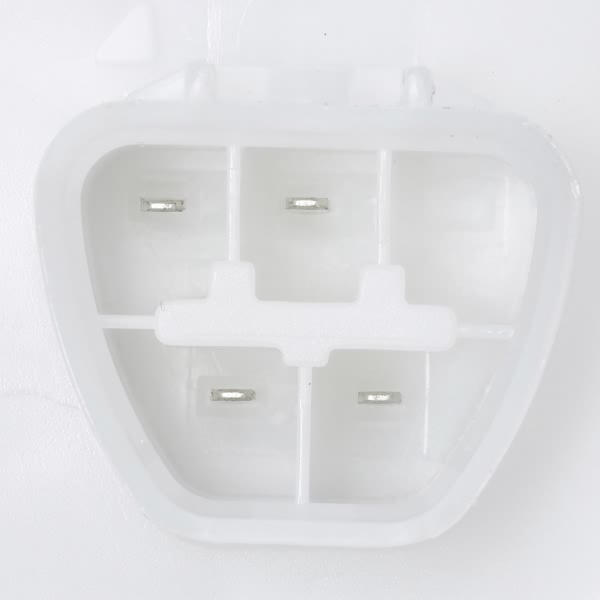

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604240724 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2014-2019 Toyota Corolla | All Trims | 4 Cyl 1.8L |
