Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1638 |

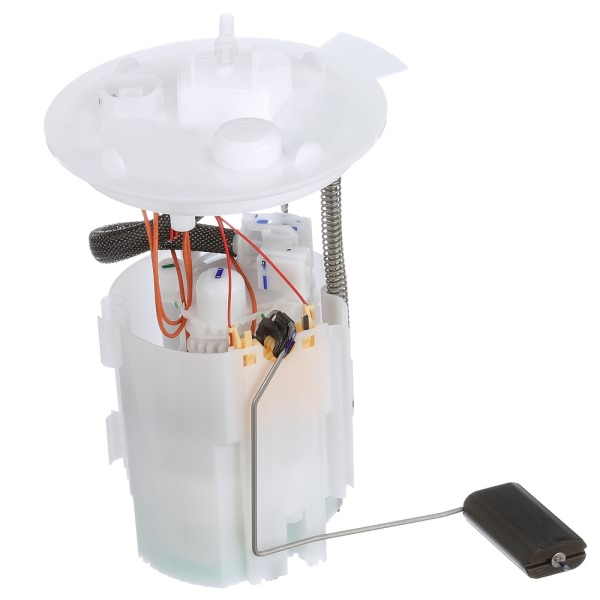

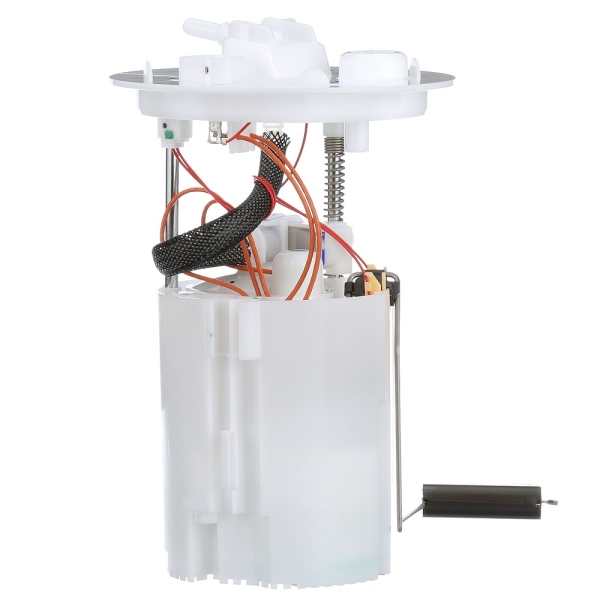

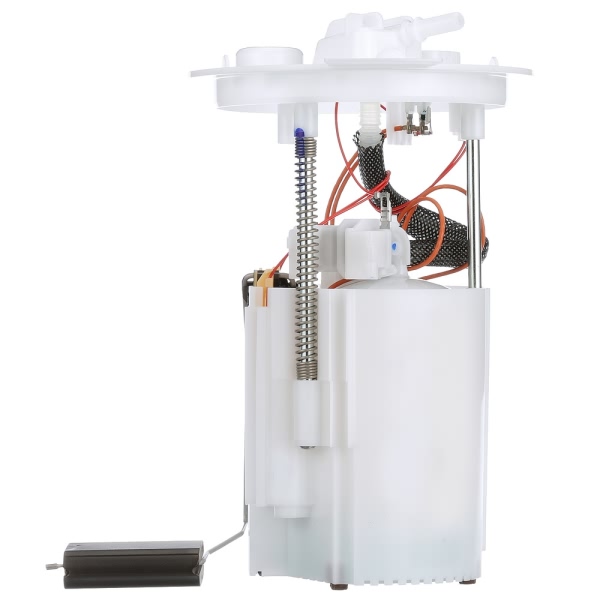

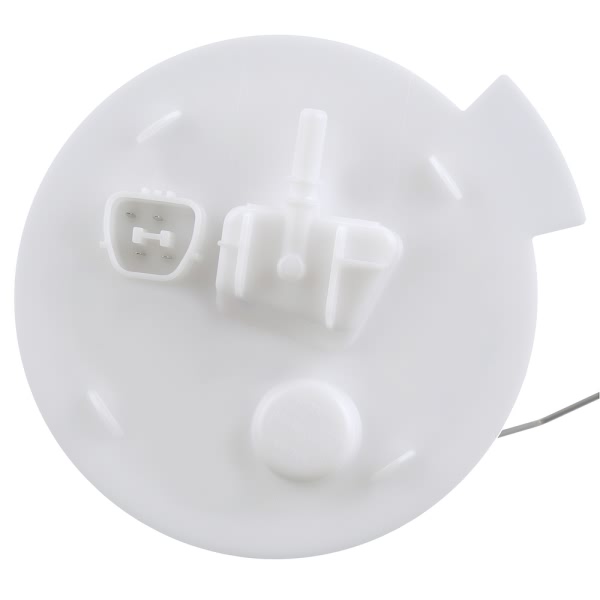

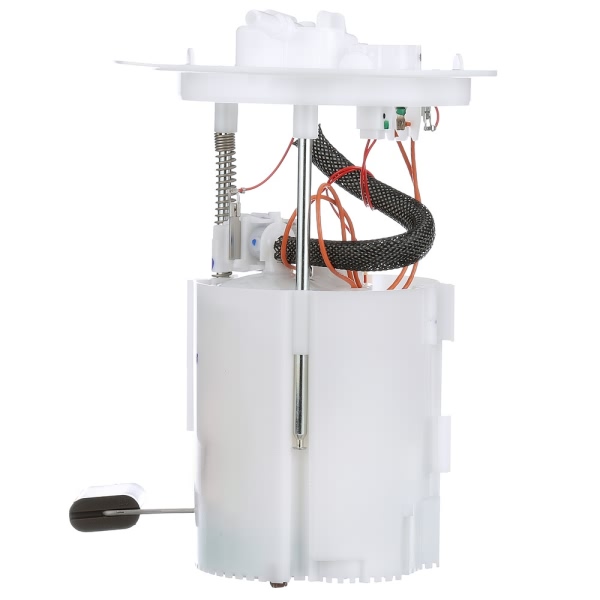

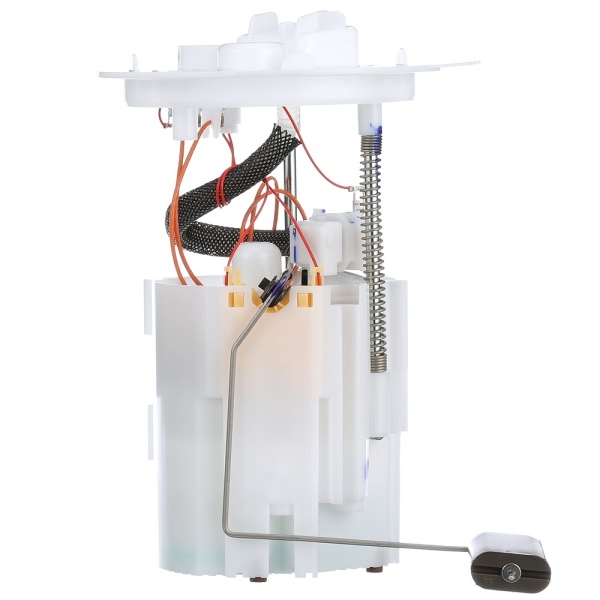

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 26 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |

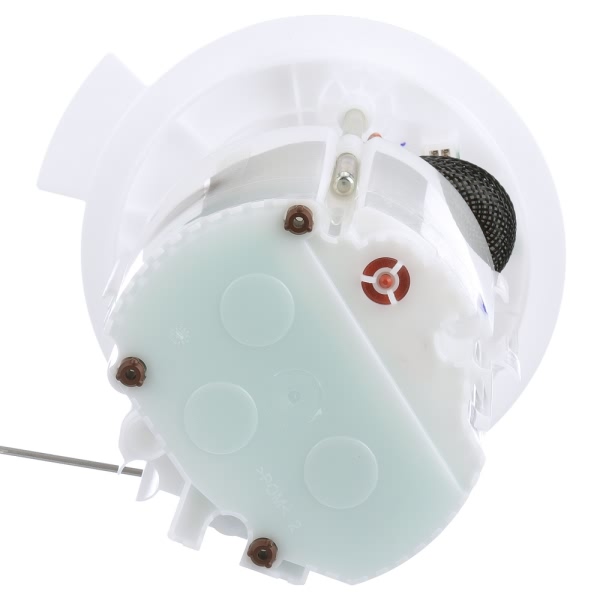

Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 55.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 464.0 |
Resistance Ohms Full | 50.0 |
Strainer Included | Yes |
System Pressure | 49 psi |

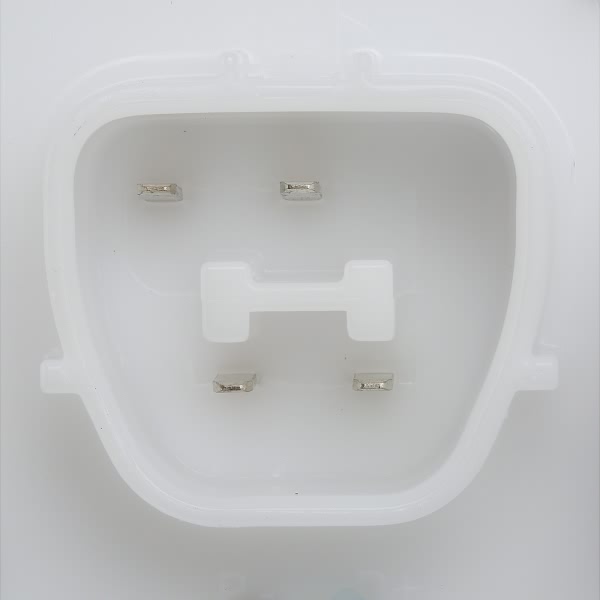

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604279571 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Ford C-Max | Energi SEL | 4 Cyl 2.0L |
2017 Ford C-Max | Energi SE | 4 Cyl 2.0L |
2017 Ford C-Max | Energi Titanium | 4 Cyl 2.0L |
