Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1604 |

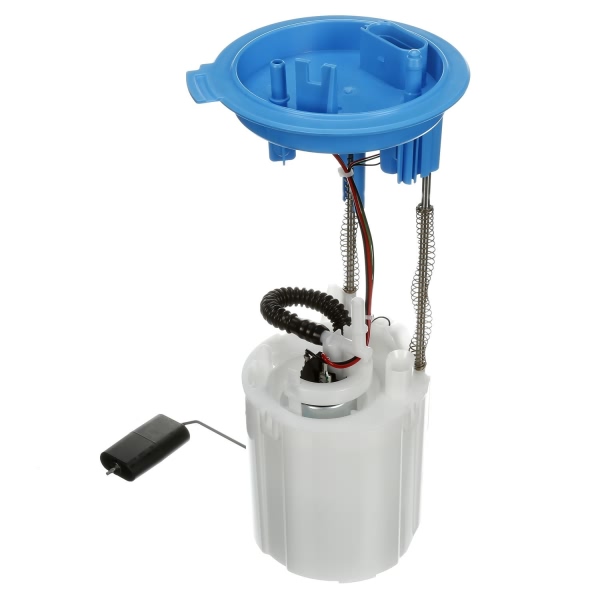

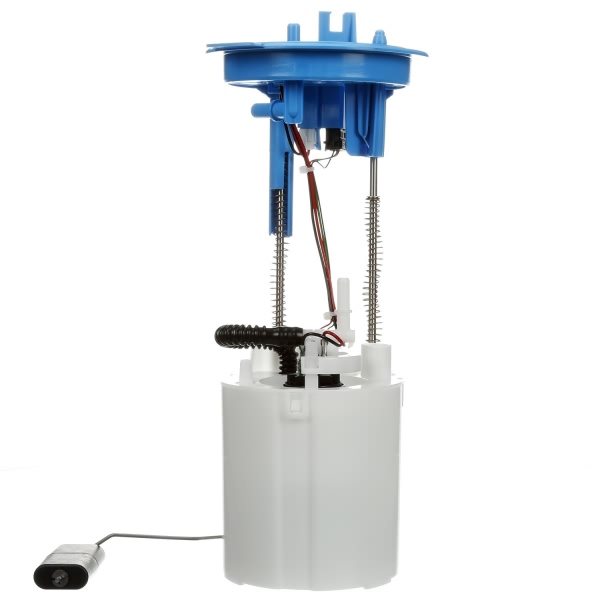

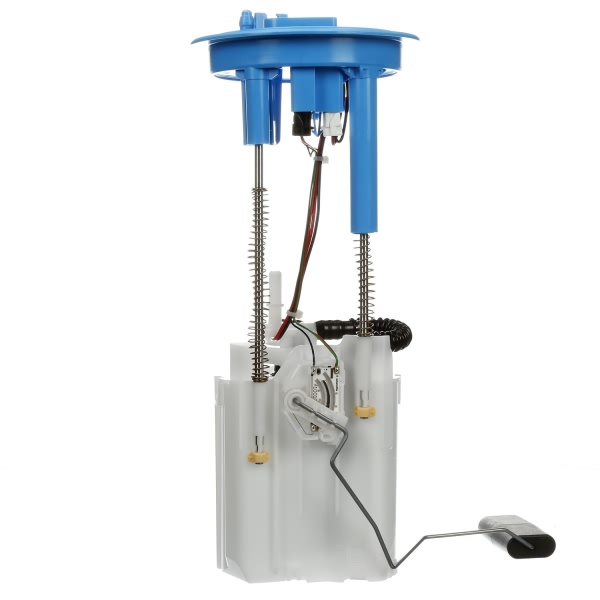

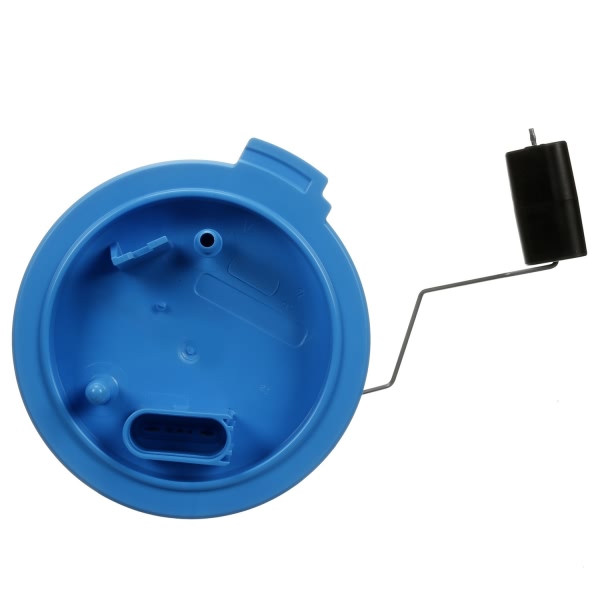

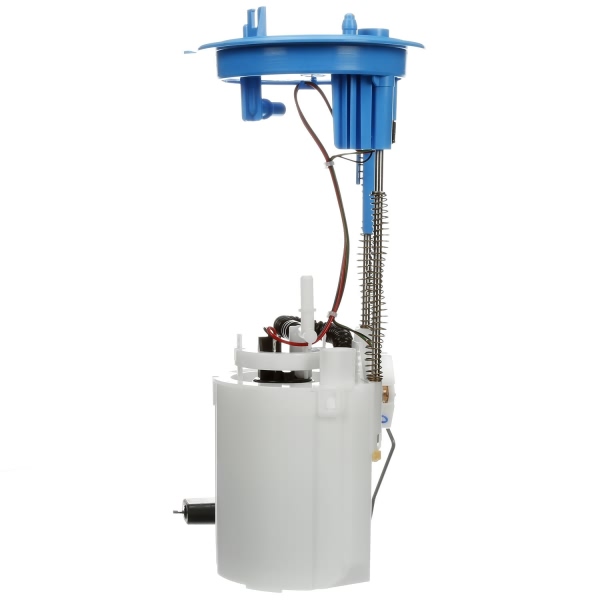

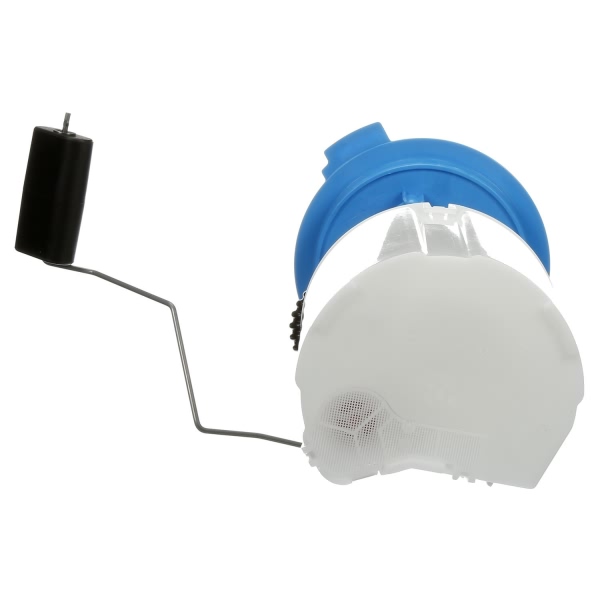

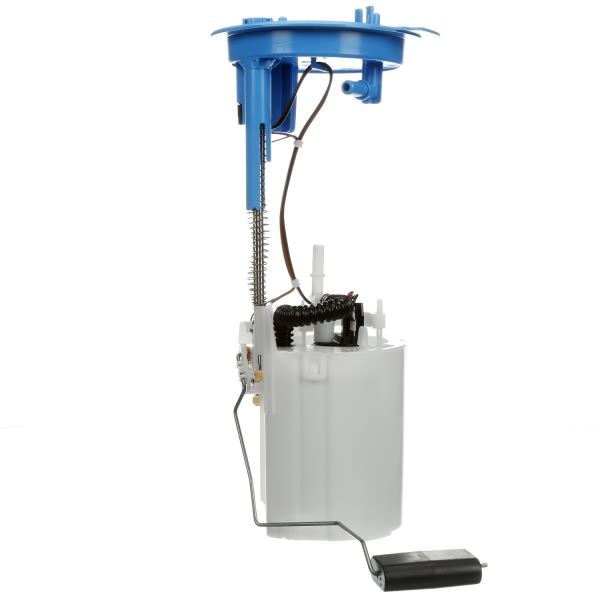

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 85 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 95.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 51.0 |
Resistance Ohms Full | 264.0 |
Strainer Included | Yes |
System Pressure | 65 psi |

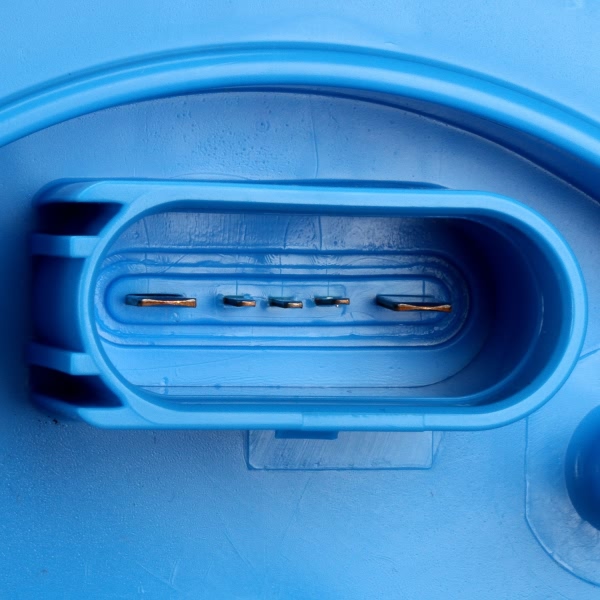

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604240557 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2015 Audi Q3 | All Trims | 4 Cyl 2.0L |
2015 Audi Q3 Quattro | All Trims | 4 Cyl 2.0L |
2009-2017 Volkswagen Tiguan | All Trims | 4 Cyl 2.0L |
2017-2018 Volkswagen Tiguan Limited | All Trims | 4 Cyl 2.0L |
