Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1600 |

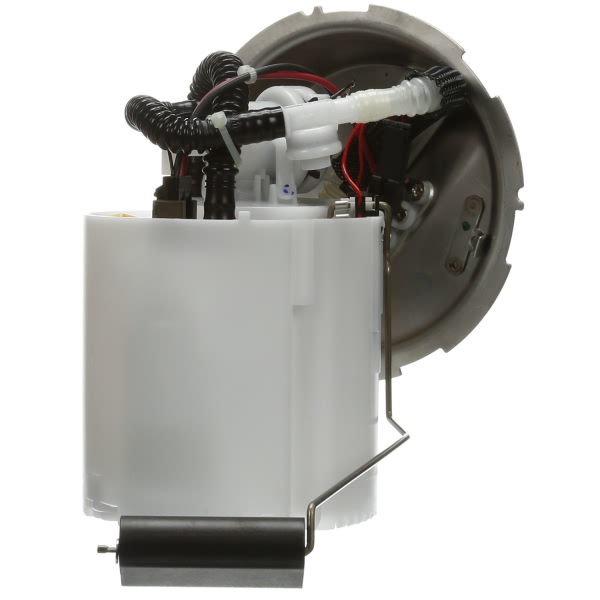

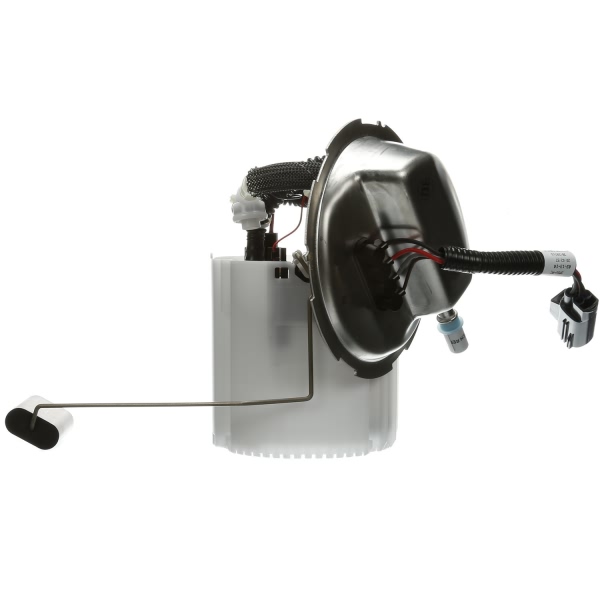

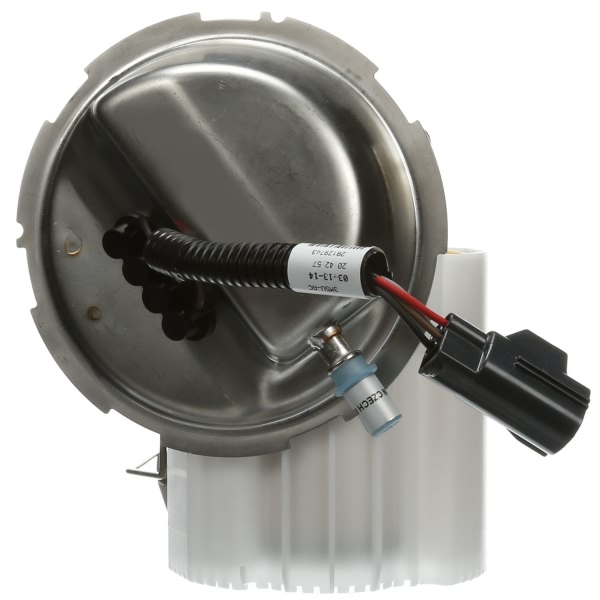

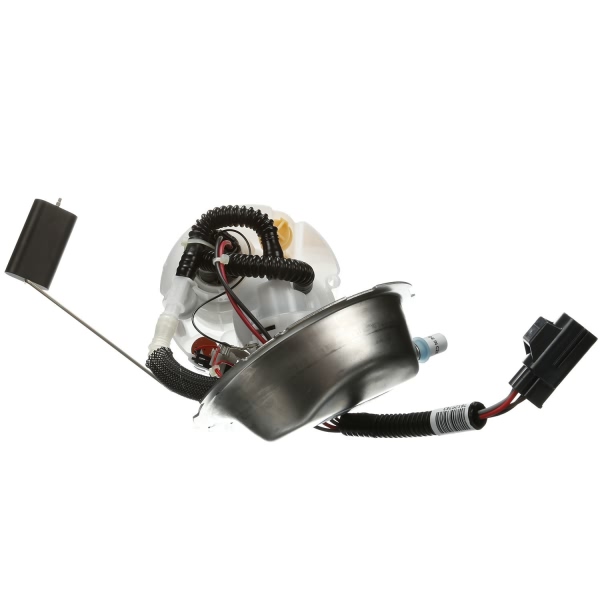

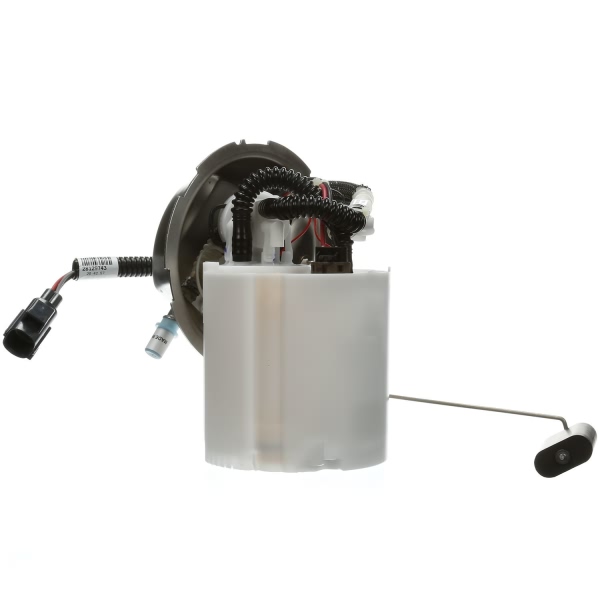

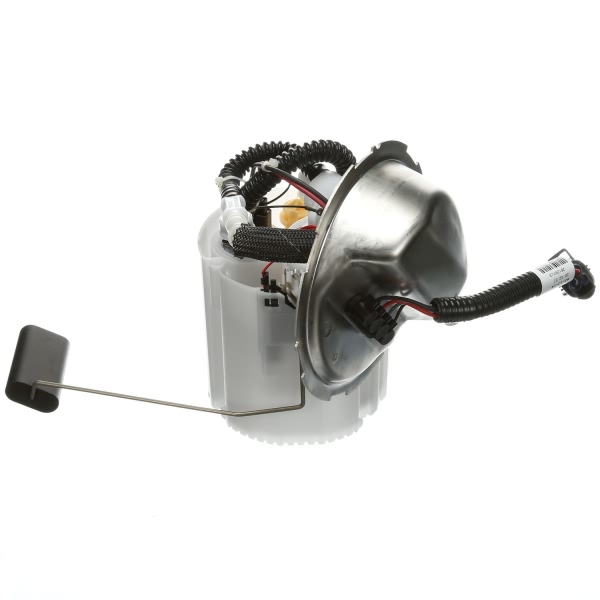

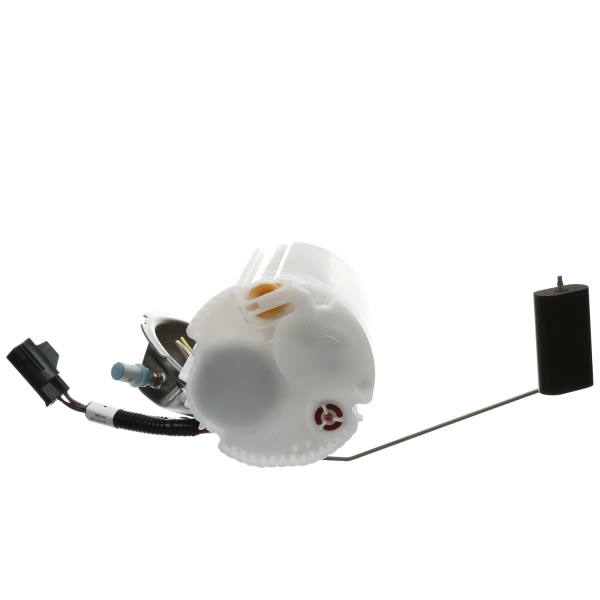

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 70 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 95.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 203.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 84 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |

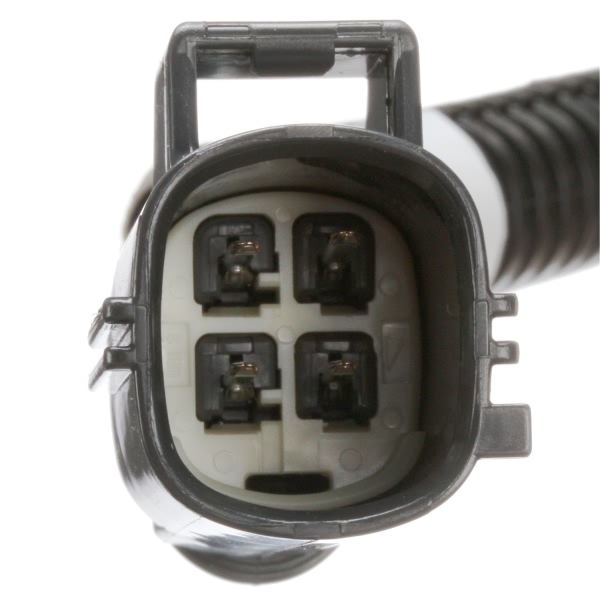

Terminal Type | Blade |
UPC | 689604240533 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2004-2010 Volvo S40 | All Trims | 5 Cyl 2.4L |
2004-2011 Volvo S40 | All Trims | 5 Cyl 2.5L |
2005-2008 Volvo V50 | All Trims | 5 Cyl 2.5L |
2005-2010 Volvo V50 | All Trims | 5 Cyl 2.4L |
2011 Volvo V50 | All Trims | 5 Cyl 2.5L |
