Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1597 |

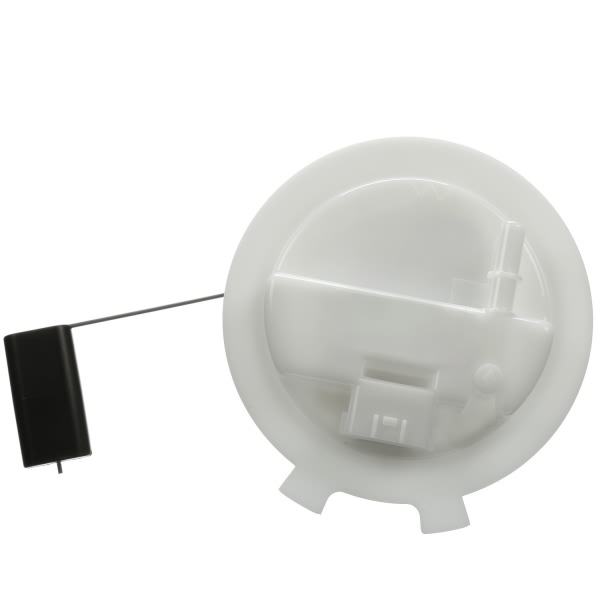

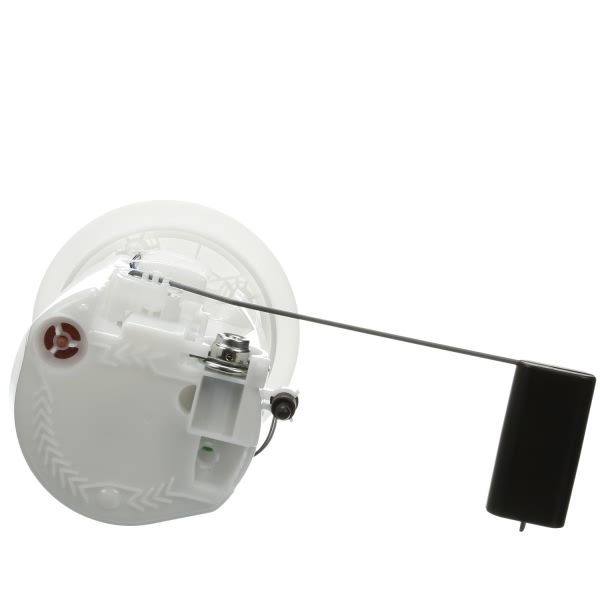

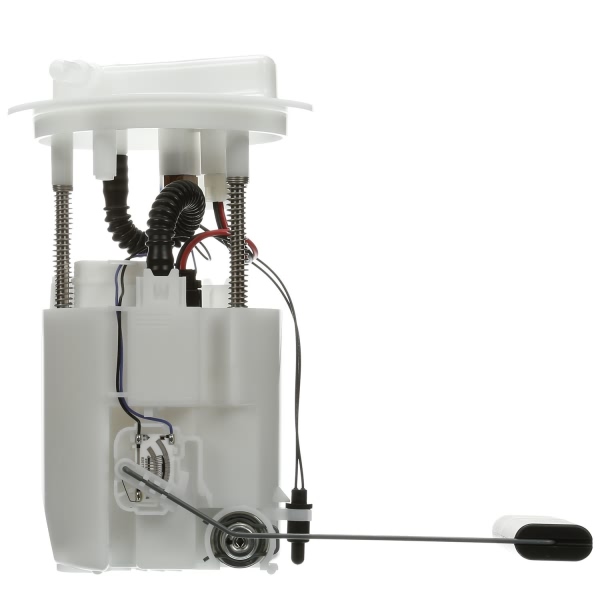

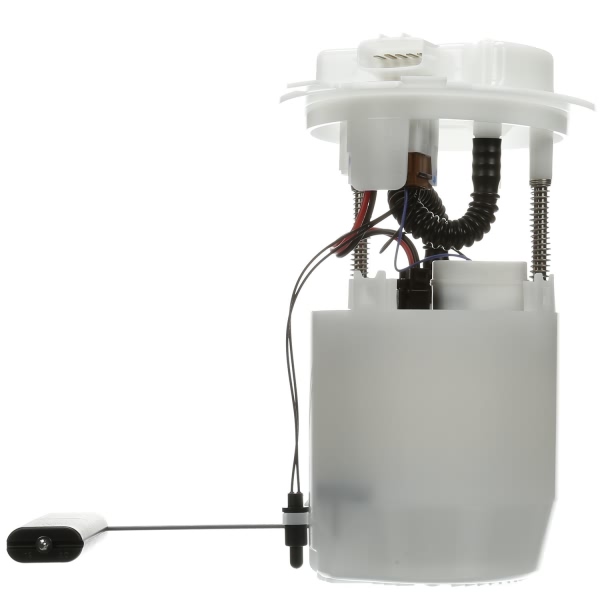

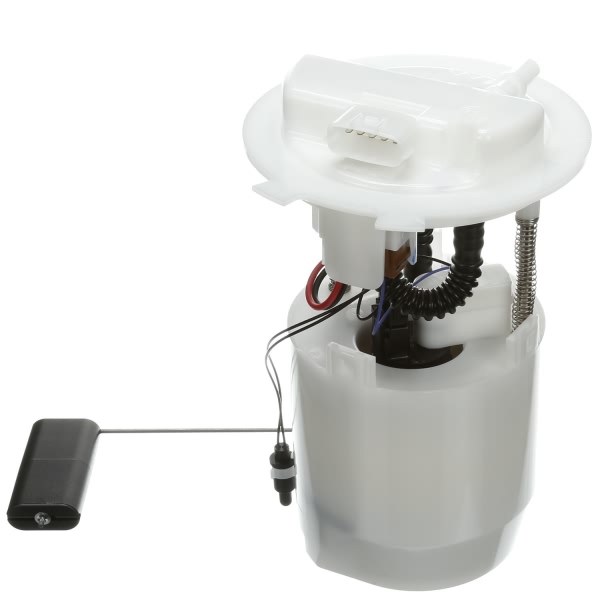

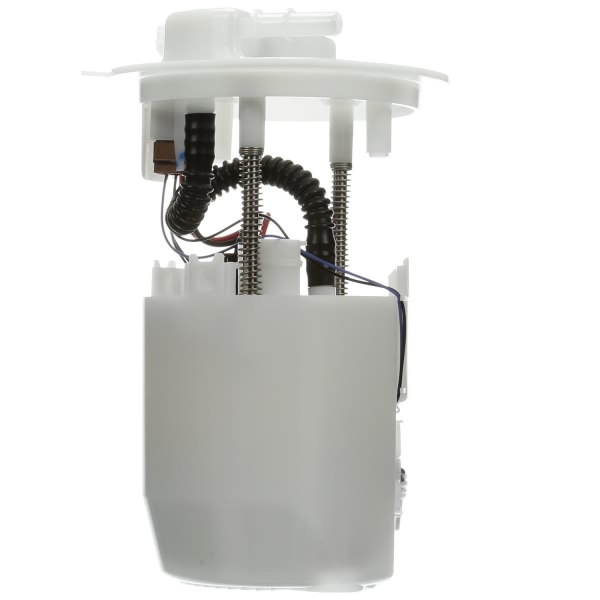

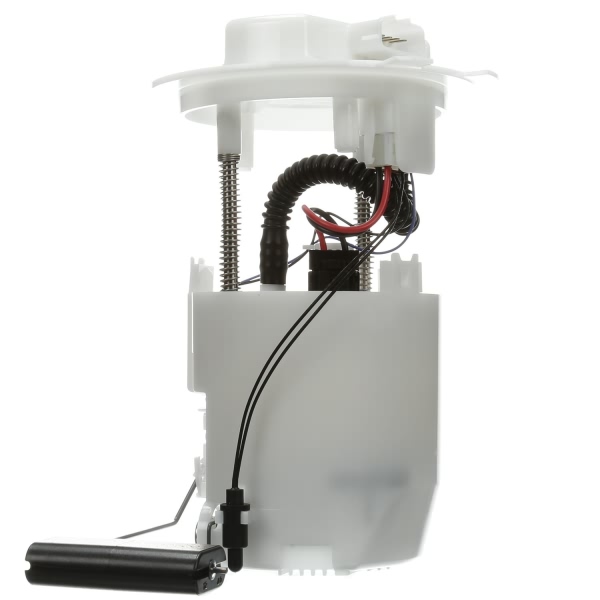

Part Description | Fuel Pump Module Assembly |
Average Current Draw | 10 |
Average Flow Rating | 60 |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 95.0 |
Outlet Outside Diameter | 0.375 |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 283.0 |
Resistance Ohms Full | 50.0 |
Strainer Included | Yes |
System Pressure | 73 psi |

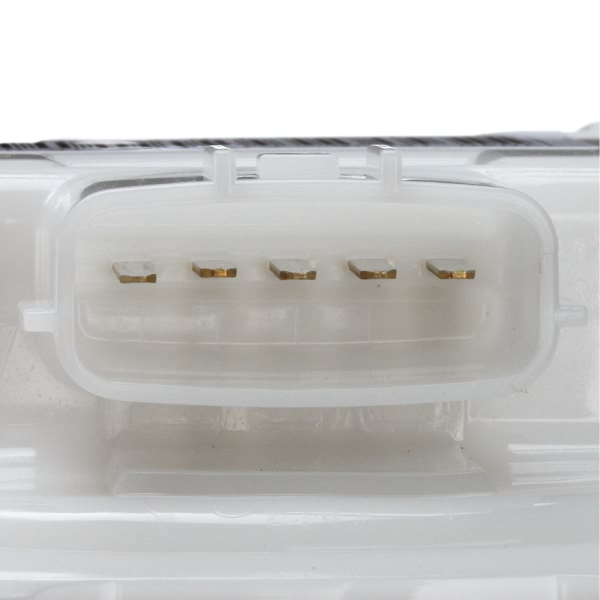

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604240502 |
Vapor Pressure Sensor | No |
Voltage | 12.0 |
Year Make Model | Trim | Engine |
---|---|---|
2011-2017 Nissan Juke | All Trims | 4 Cyl 1.6L |
2017-2019 Nissan Sentra | All Trims | 4 Cyl 1.6L |
