Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1548 |

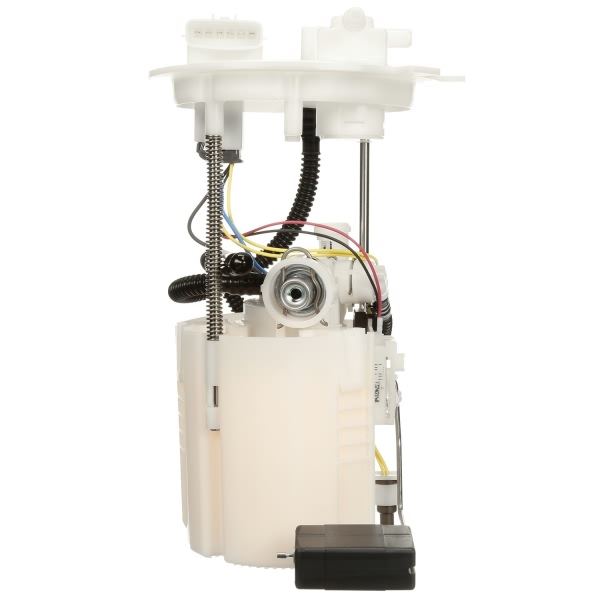

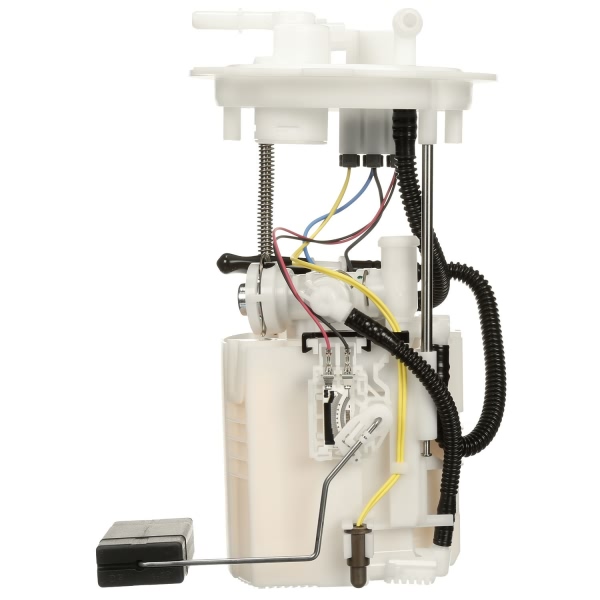

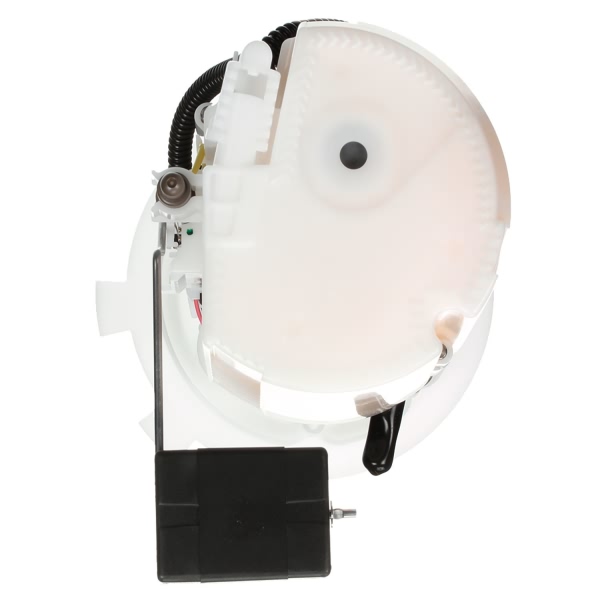

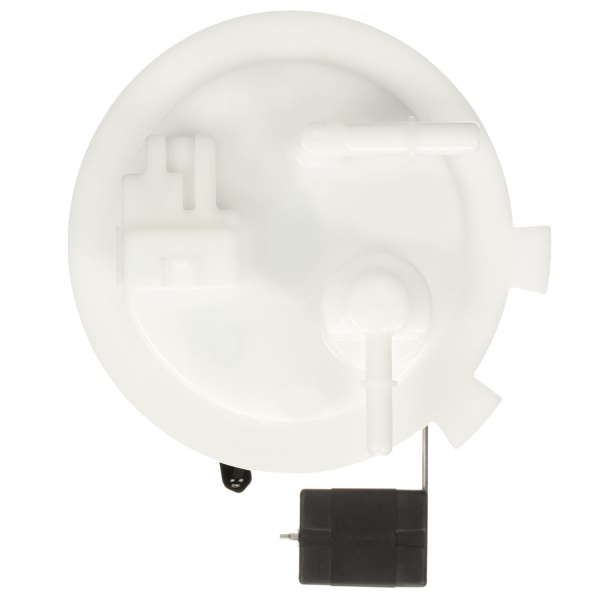

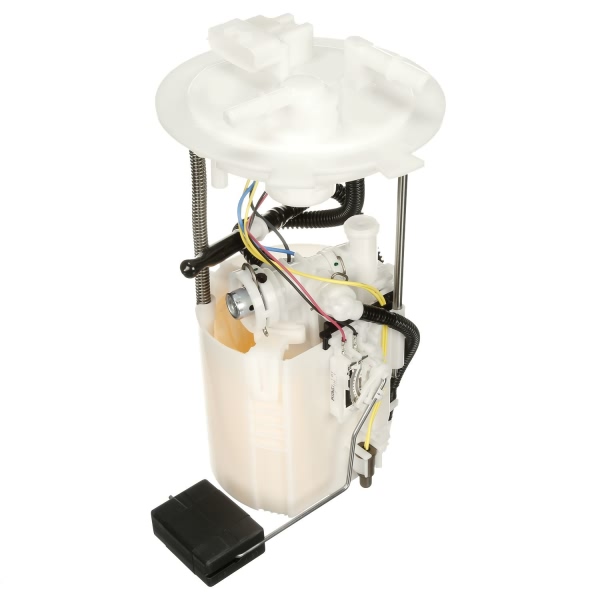

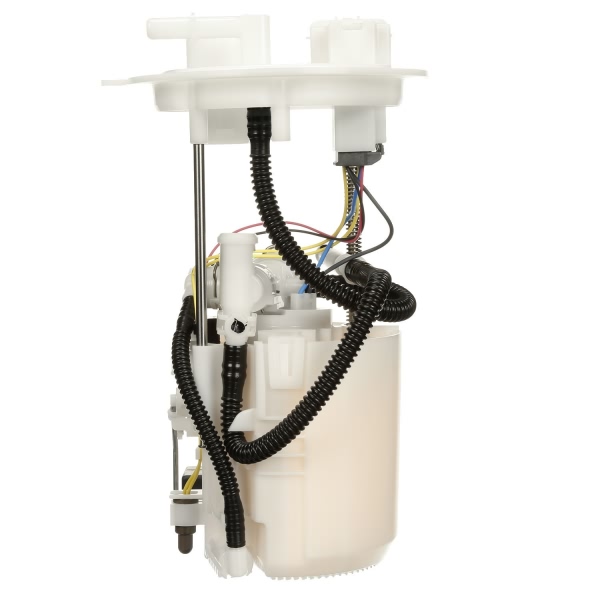

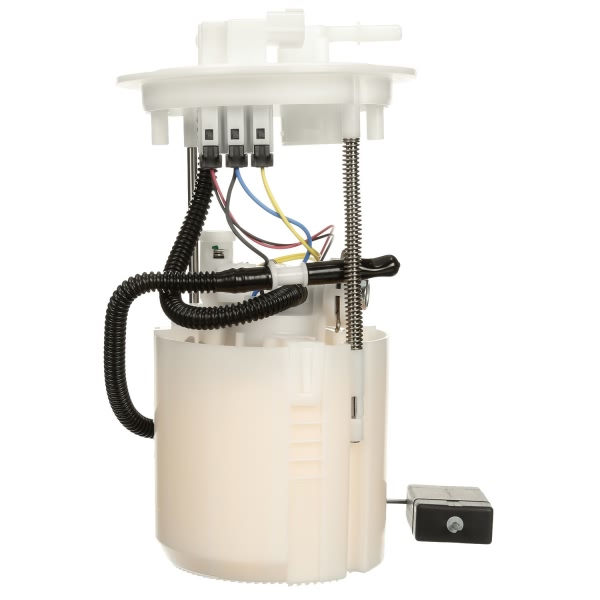

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 32 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 49.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 283.0 |
Resistance Ohms Full | 51.0 |
Strainer Included | Yes |
System Pressure | 44 psi |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604241349 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2013 Infiniti JX35 | All Trims | 6 Cyl 3.5L |
2014-2016 Infiniti QX60 | All Trims | 6 Cyl 3.5L |
2013-2016 Nissan Pathfinder | All Trims | 6 Cyl 3.5L |
