Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1480 |

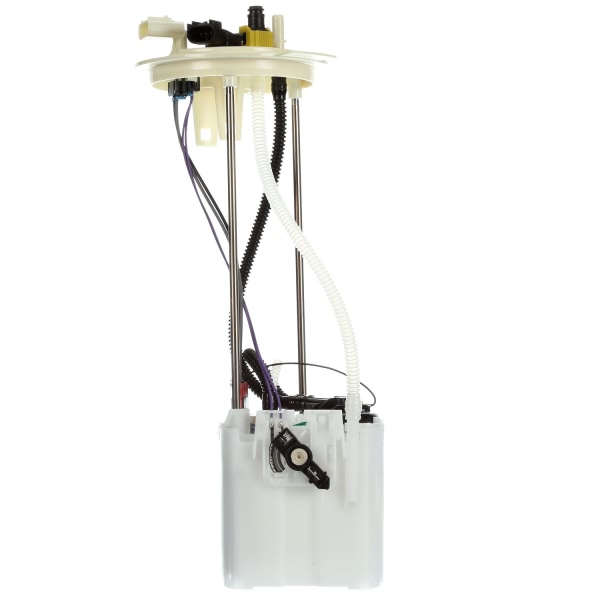

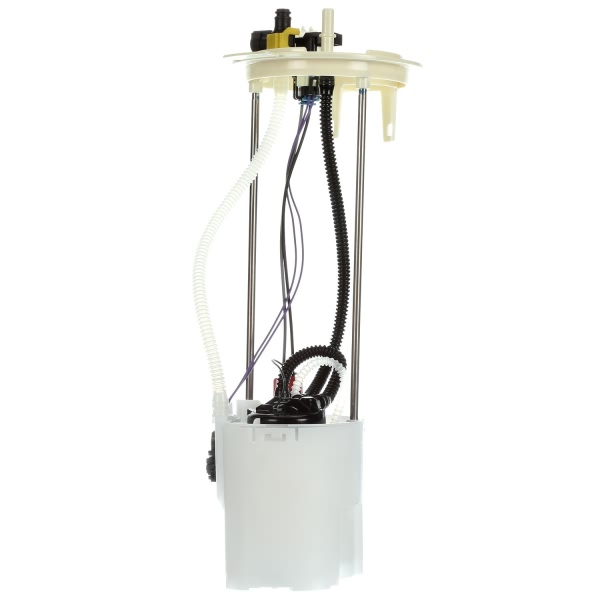

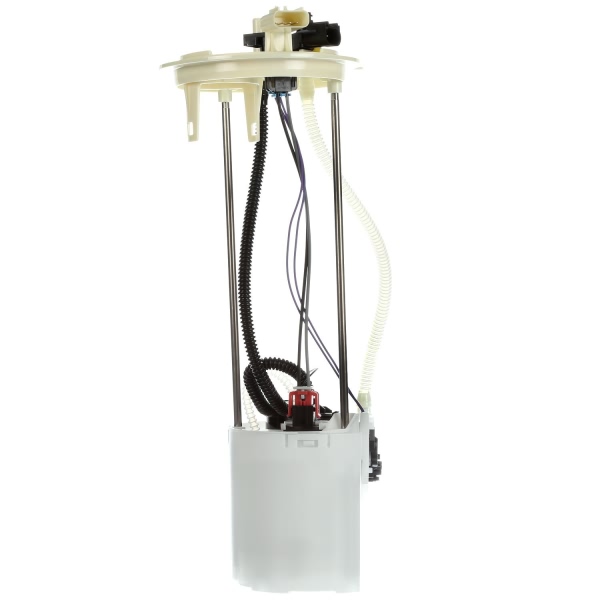

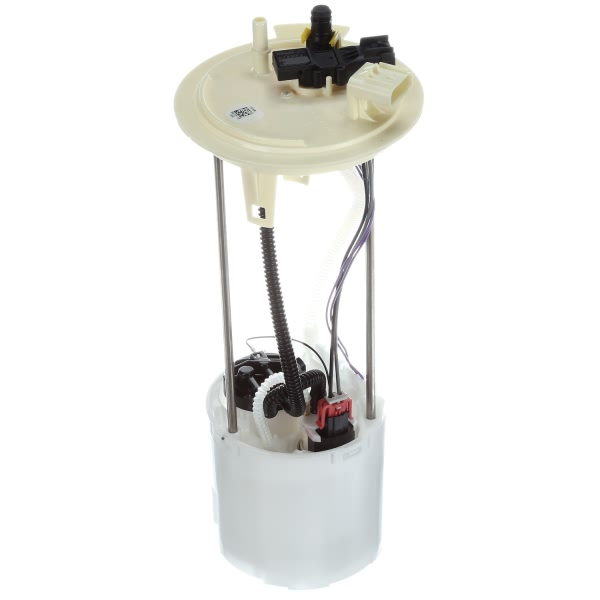

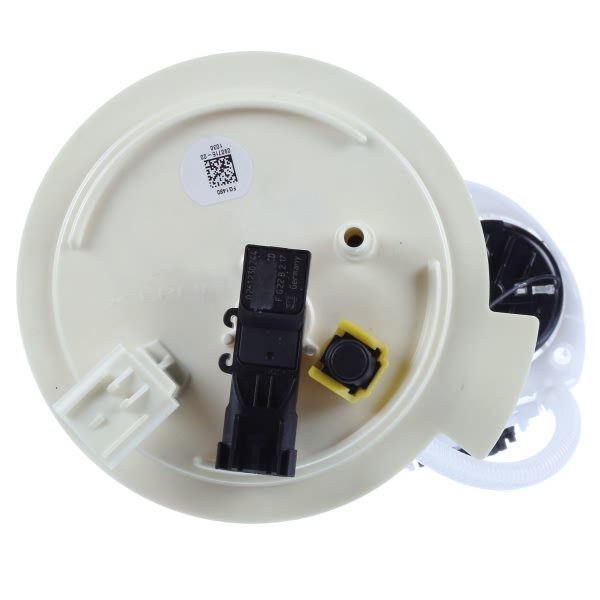

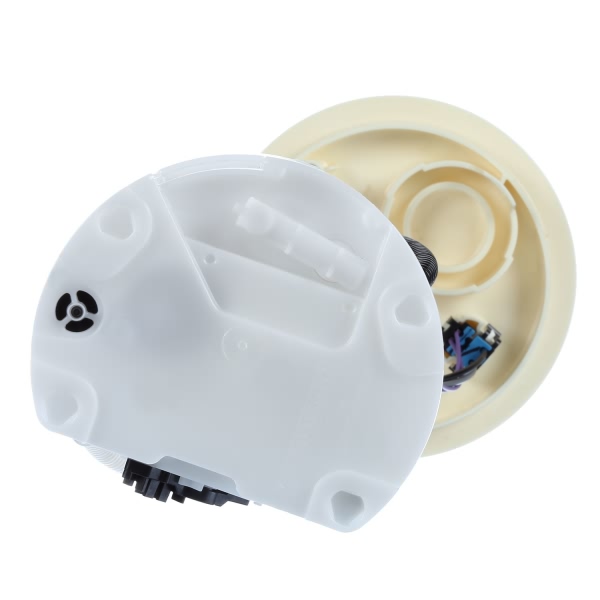

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 39 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 55 psi |

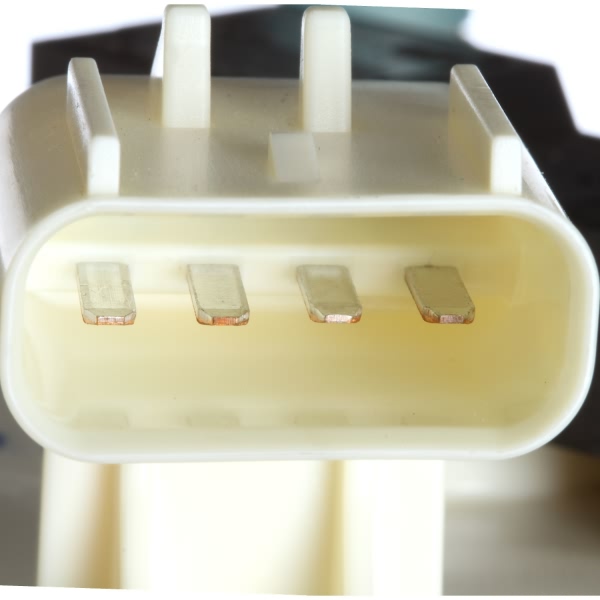

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604239933 |
Vapor Pressure Sensor | Yes |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2009-2011 Ford E-150 | All Trims | 8 Cyl 5.4L |
2009-2014 Ford E-250 | All Trims | 8 Cyl 5.4L |
2009 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
2009-2010 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
2010-2014 Ford E-350 Super Duty | Base | 10 Cyl 6.8L |
2010-2014 Ford E-350 Super Duty | XL | 10 Cyl 6.8L |
2010-2014 Ford E-350 Super Duty | XLT | 10 Cyl 6.8L |
2011-2014 Ford E-350 Super Duty | Base | 8 Cyl 5.4L |
2011-2014 Ford E-350 Super Duty | XL | 8 Cyl 5.4L |
2011-2014 Ford E-350 Super Duty | XLT | 8 Cyl 5.4L |
