Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1403 |

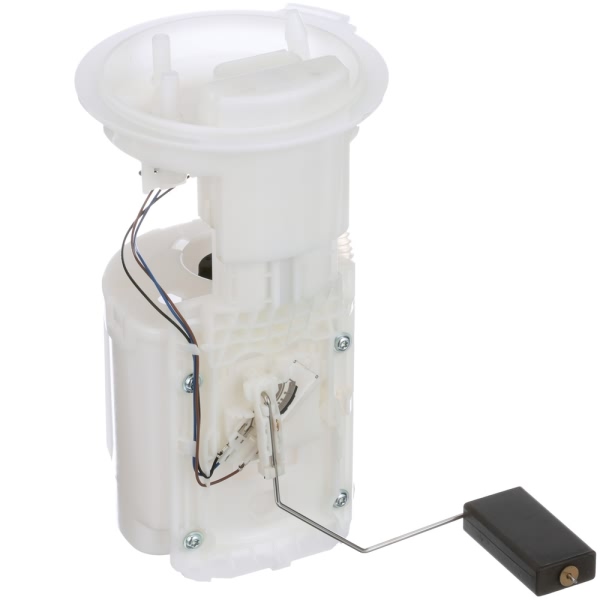

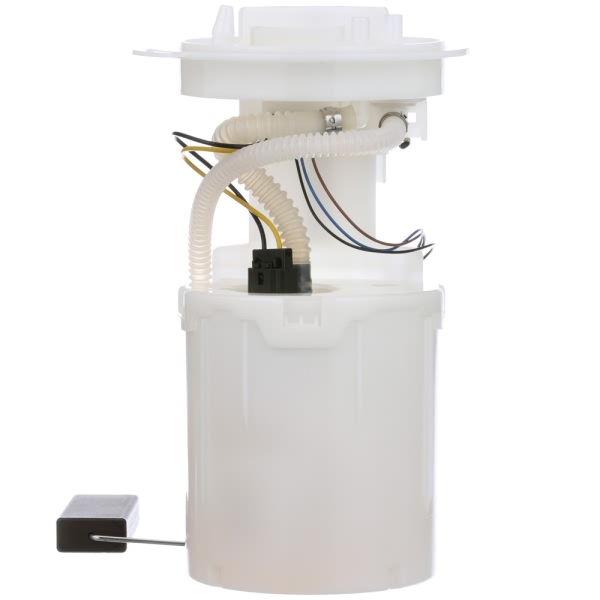

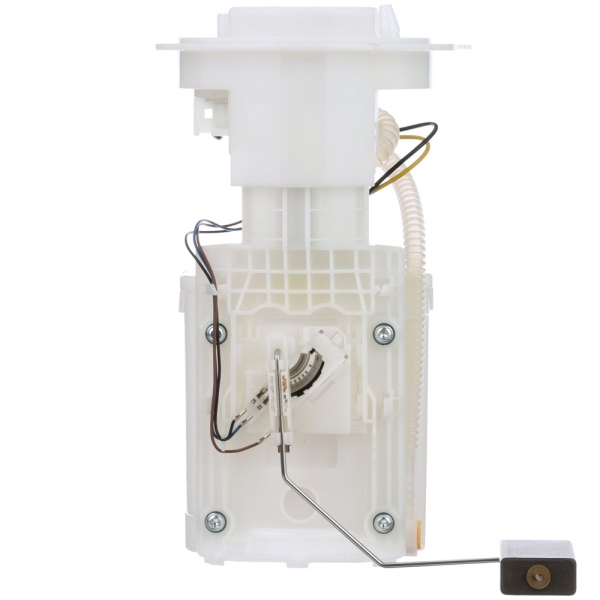

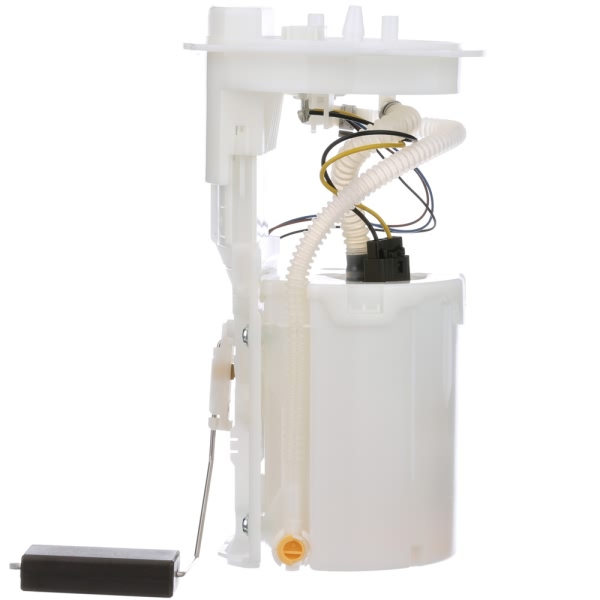

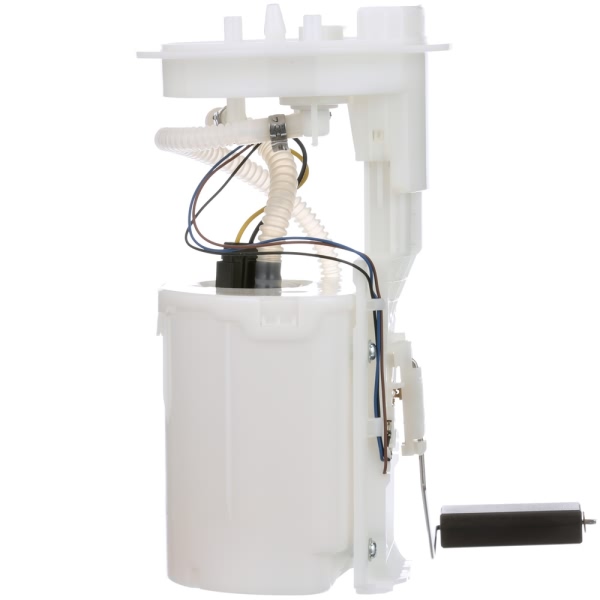

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 48 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |

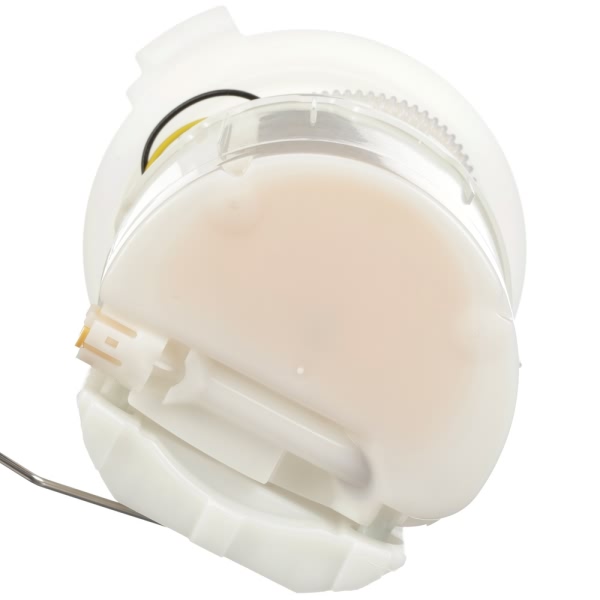

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 94.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 290.0 |
Resistance Ohms Full | 50.0 |
Strainer Included | Yes |
System Pressure | 65 psi |

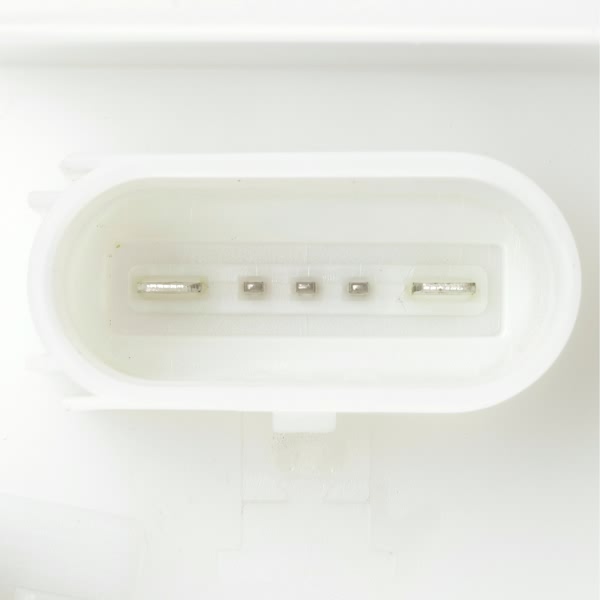

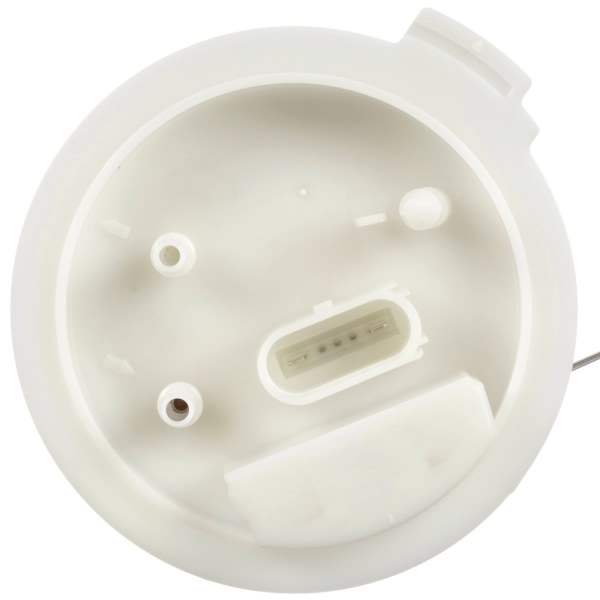

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604234235 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2006-2013 Audi A3 | Base | 4 Cyl 2.0L |
2008-2009 Audi TT | All Trims | 4 Cyl 2.0L |
2012-2018 Volkswagen Beetle | All Trims | 4 Cyl 2.0L |
2014 Volkswagen Beetle | Base | 4 Cyl 1.8L |
2015-2017 Volkswagen Beetle | All Trims | 4 Cyl 1.8L |
2007-2016 Volkswagen Eos | All Trims | 4 Cyl 2.0L |
2006 Volkswagen GTI | All Trims | 4 Cyl 2.0L |
2007 Volkswagen GTI | Fahrenheit | 4 Cyl 2.0L |
2007-2012 Volkswagen GTI | Base | 4 Cyl 2.0L |
2013-2014 Volkswagen GTI | All Trims | 4 Cyl 2.0L |
