Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1345 |

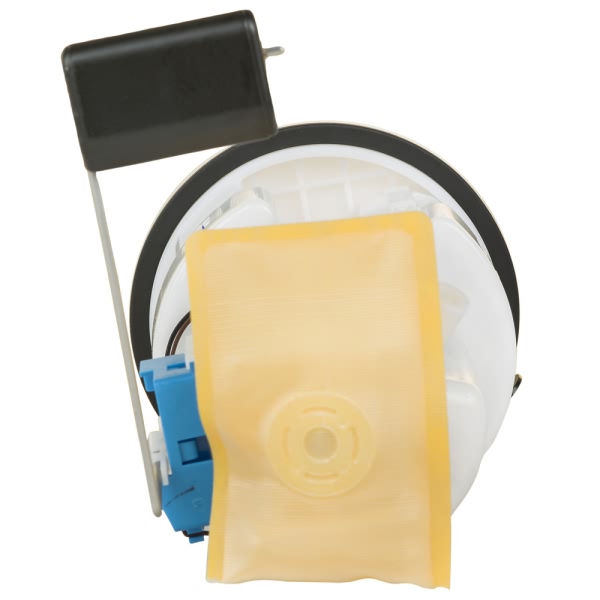

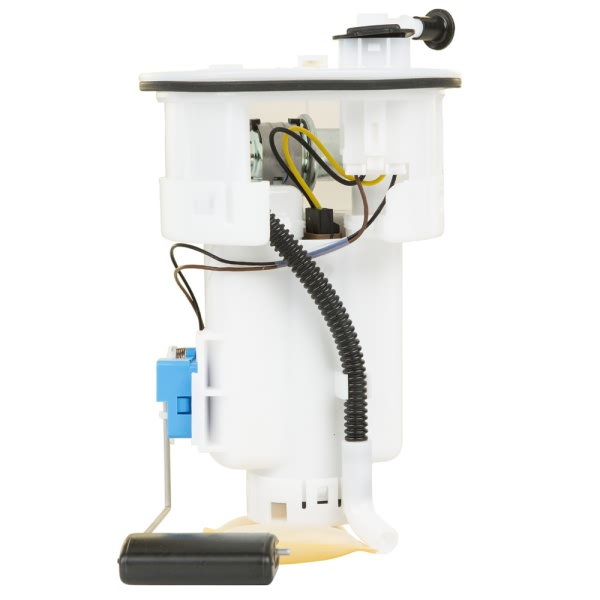

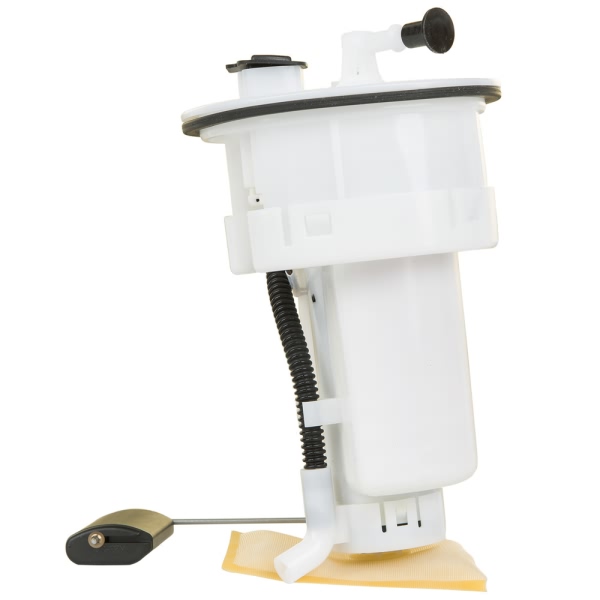

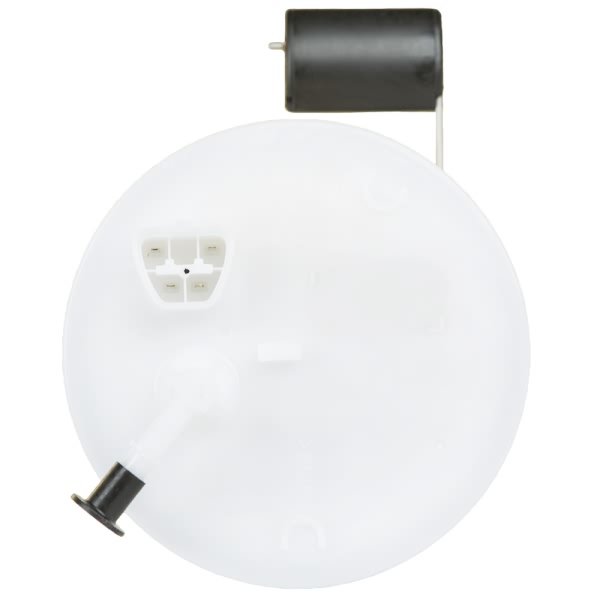

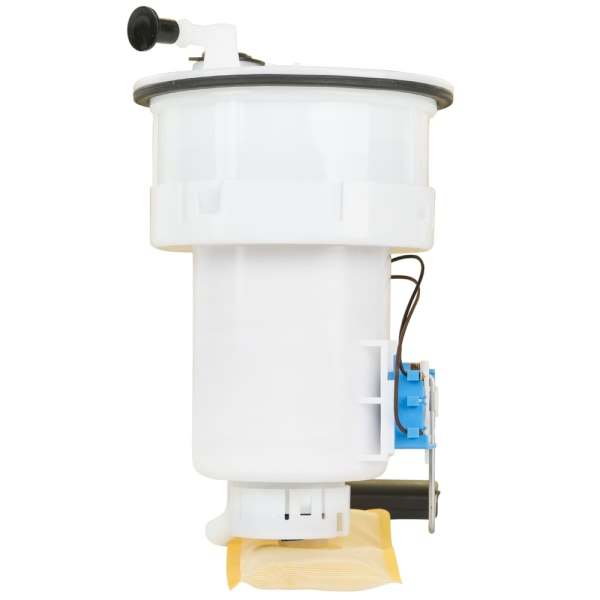

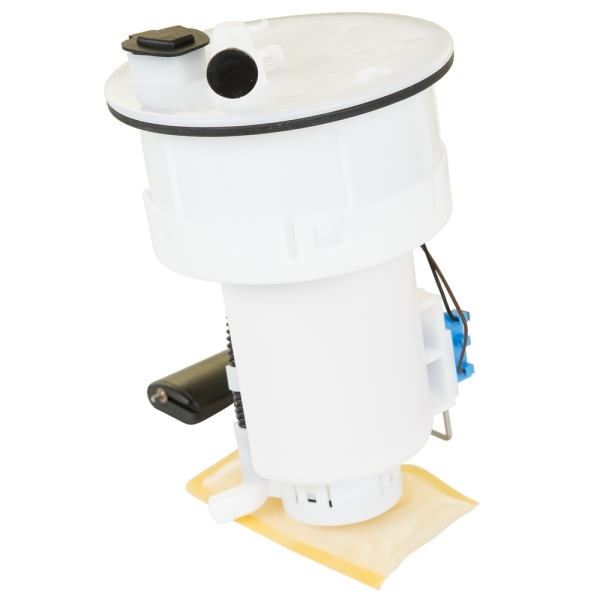

Part Description | Fuel Pump Module Assembly |
Current Draw | 5 |
Flow Rating | 50 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 51.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Hose |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 200.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 51 psi |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604233092 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Hyundai Elantra | All Trims | 4 Cyl 2.0L |
2005-2008 Hyundai Tiburon | All Trims | 6 Cyl 2.7L |
2007-2008 Hyundai Tiburon | All Trims | 4 Cyl 2.0L |
