Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1326 |

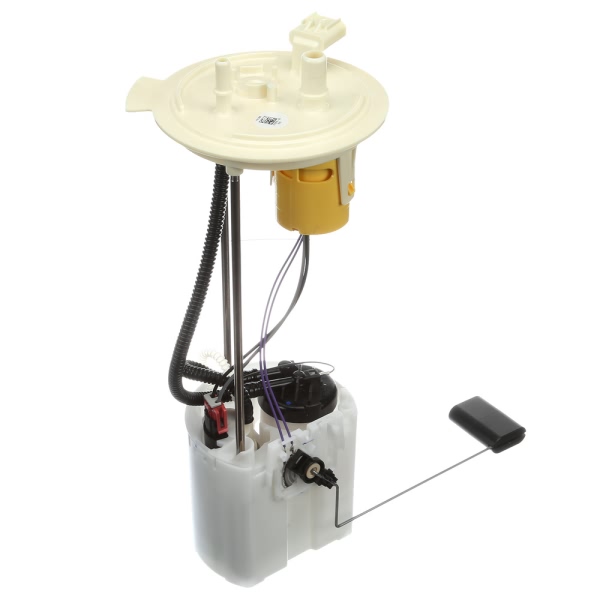

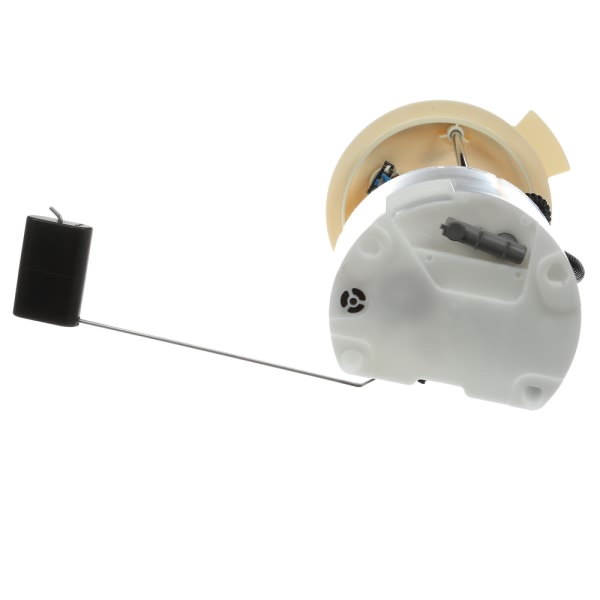

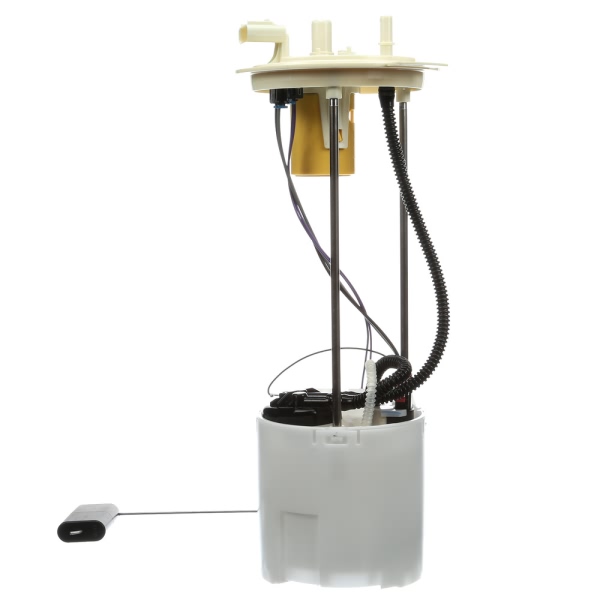

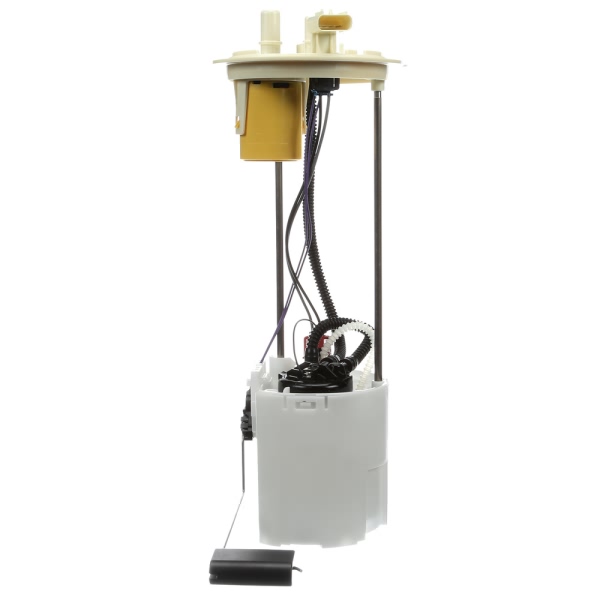

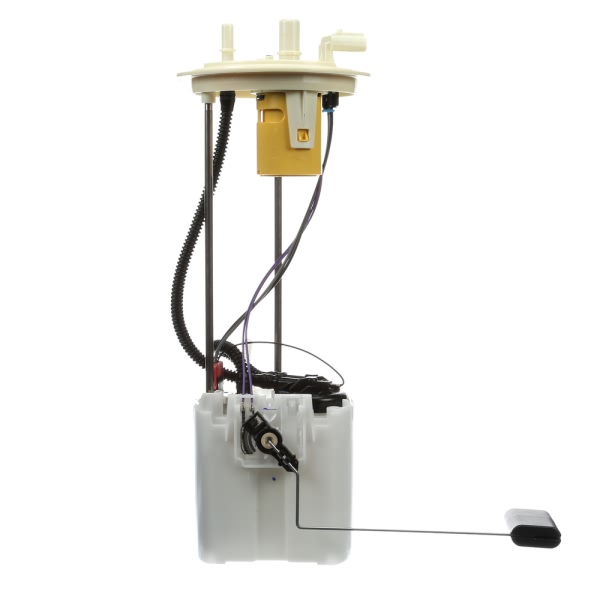

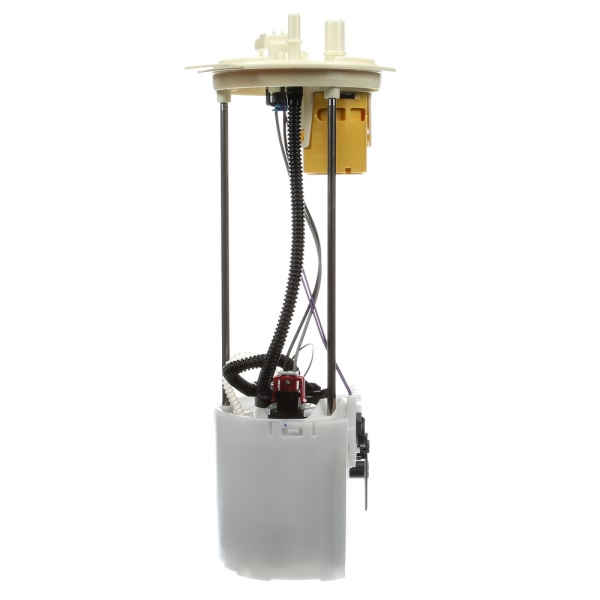

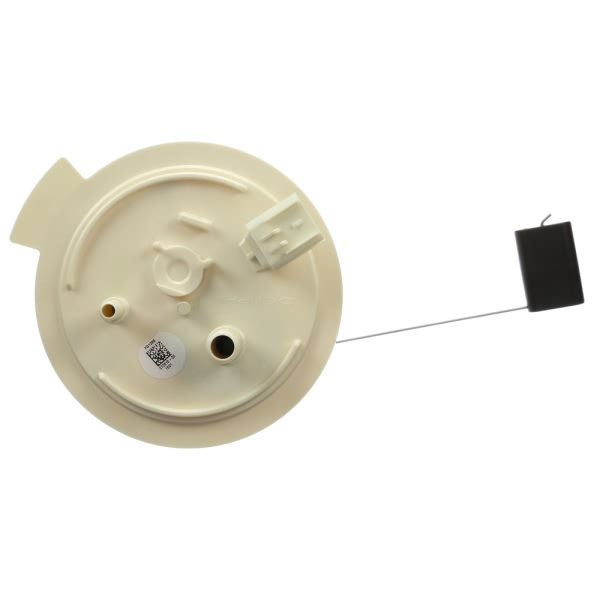

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 37 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |

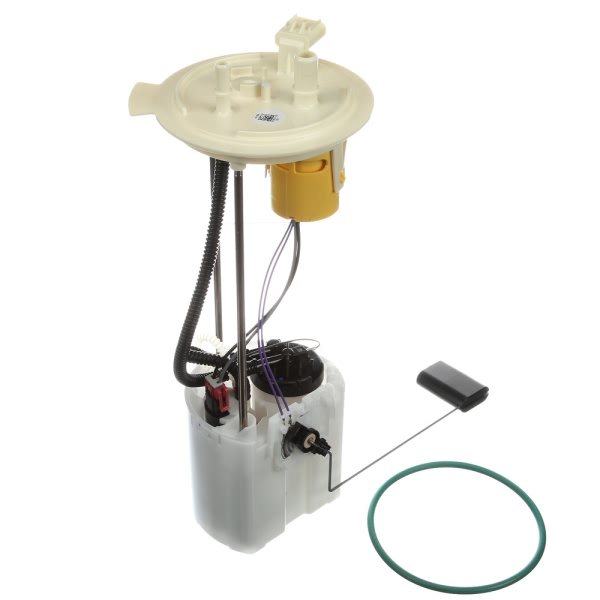

Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

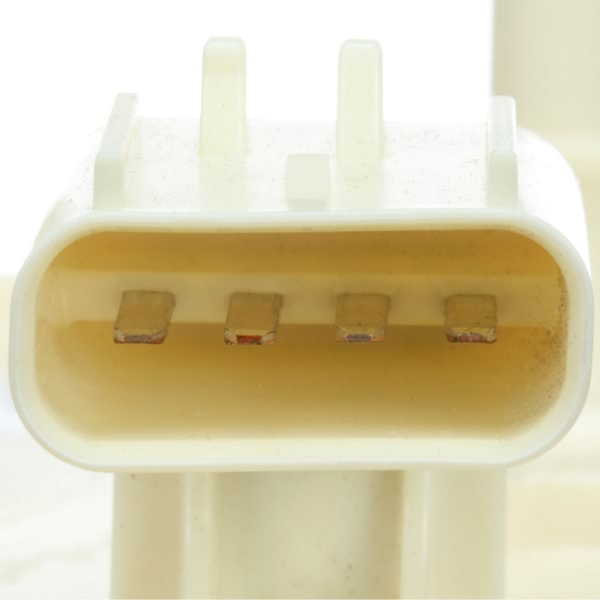

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604232927 |
Vapor Pressure Sensor | No |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2011-2016 Ford F-250 Super Duty | All Trims | 8 Cyl 6.2L |
2011-2016 Ford F-350 Super Duty | King Ranch | 8 Cyl 6.2L |
2011-2016 Ford F-350 Super Duty | Lariat | 8 Cyl 6.2L |
2011-2016 Ford F-350 Super Duty | XL | 8 Cyl 6.2L |
2011-2016 Ford F-350 Super Duty | XLT | 8 Cyl 6.2L |
2013-2016 Ford F-350 Super Duty | Platinum | 8 Cyl 6.2L |
