Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1299 |

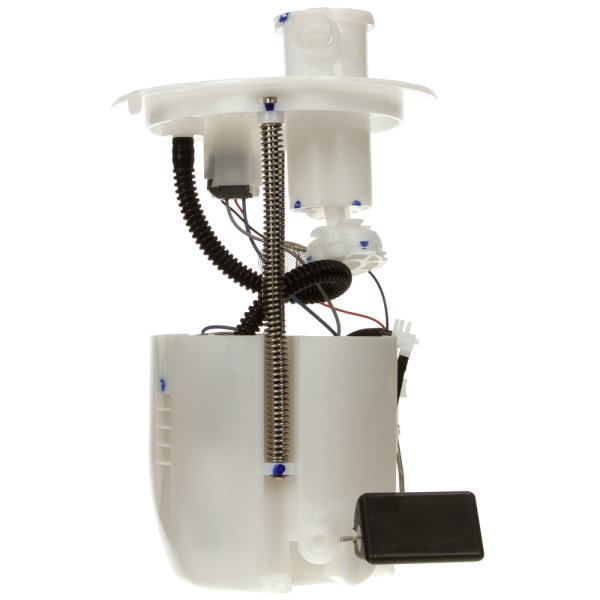

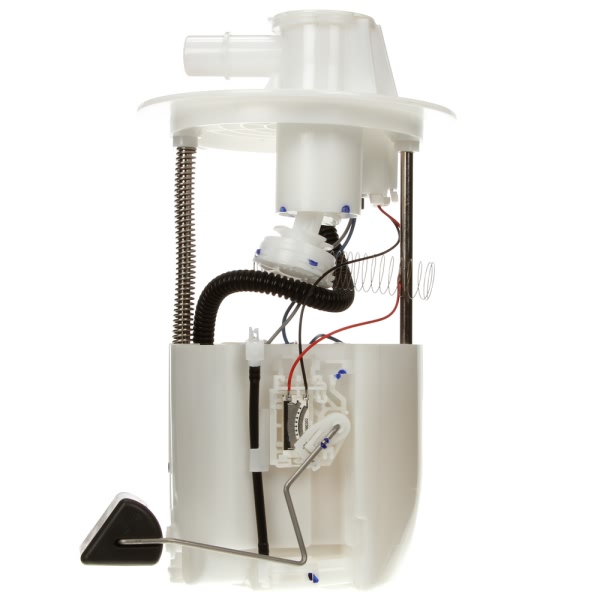

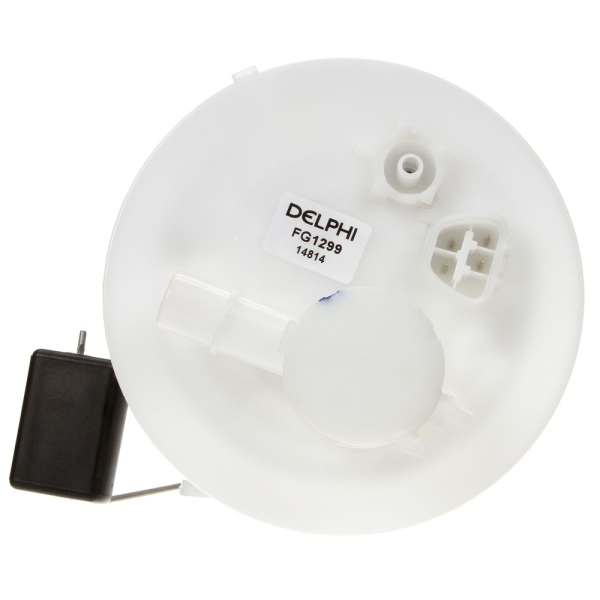

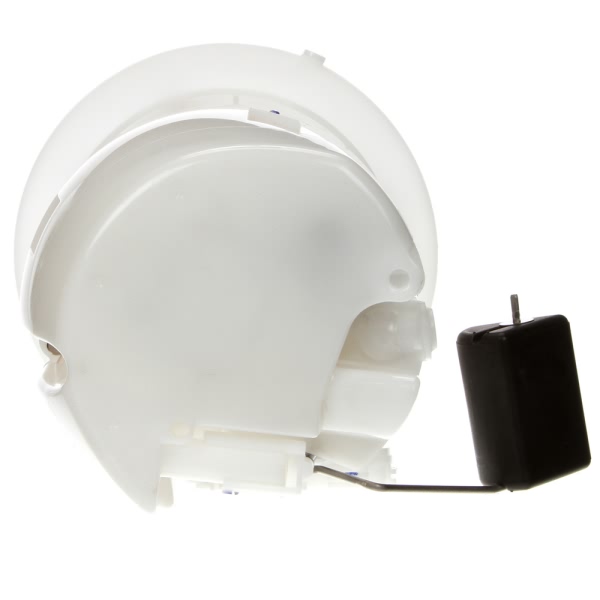

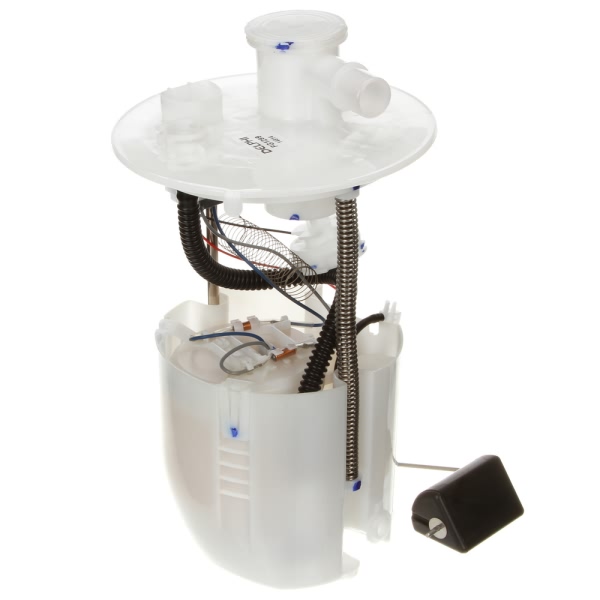

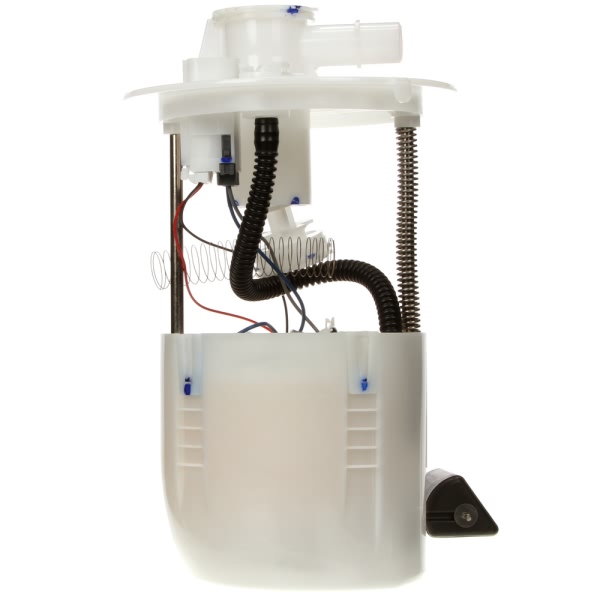

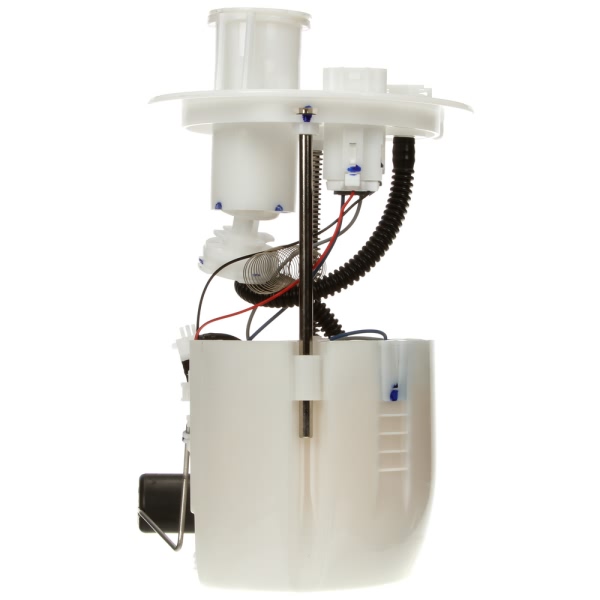

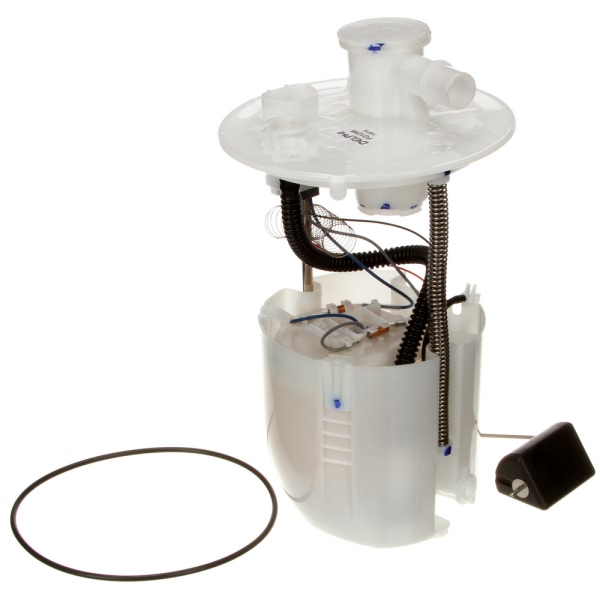

Part Description | Fuel Pump Module Assembly |
Current Draw | 4 |
Flow Rating | 28 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 51.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Push'' |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 409.0 |
Resistance Ohms Full | 14.0 |
Strainer Included | Yes |
System Pressure | 29 psi |

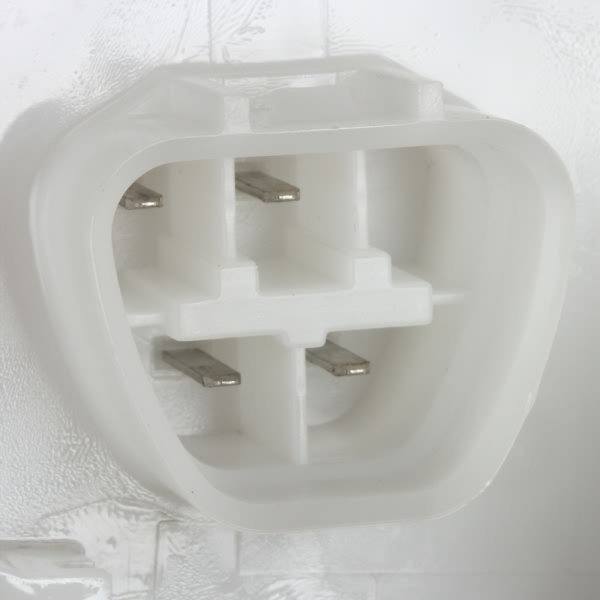

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604236833 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005-2010 Pontiac Vibe | All Trims | 4 Cyl 1.8L |
2009-2010 Pontiac Vibe | Base | 4 Cyl 2.4L |
2009-2010 Pontiac Vibe | GT | 4 Cyl 2.4L |
