Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1275 |

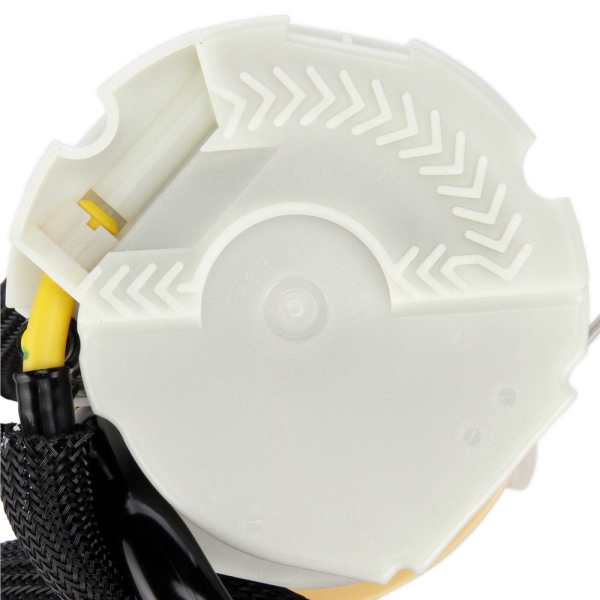

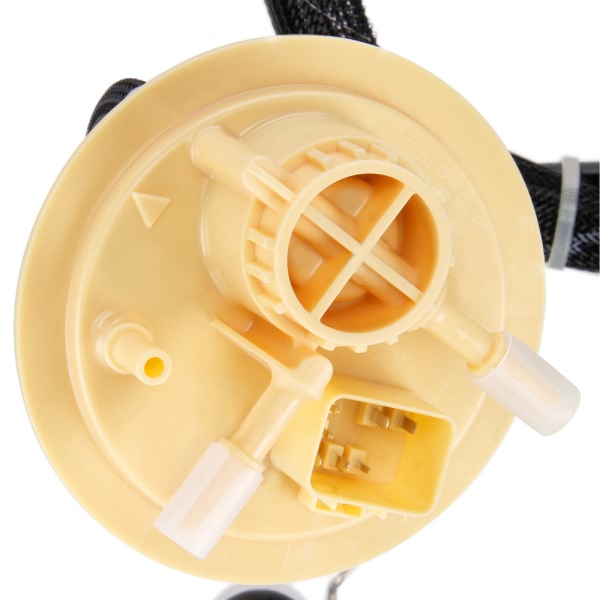

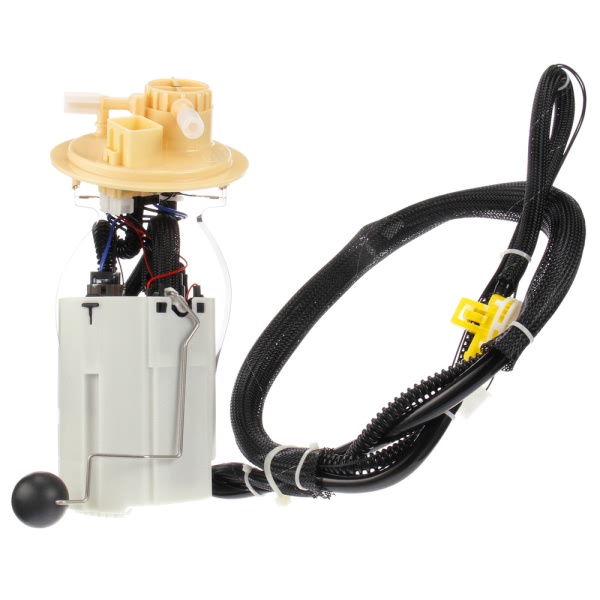

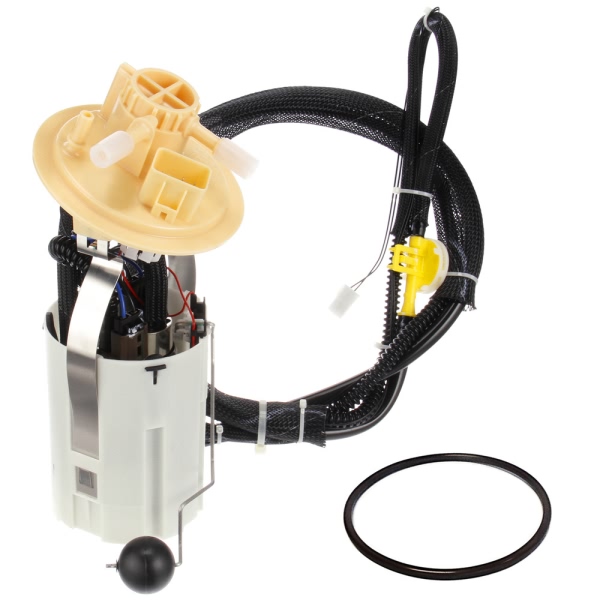

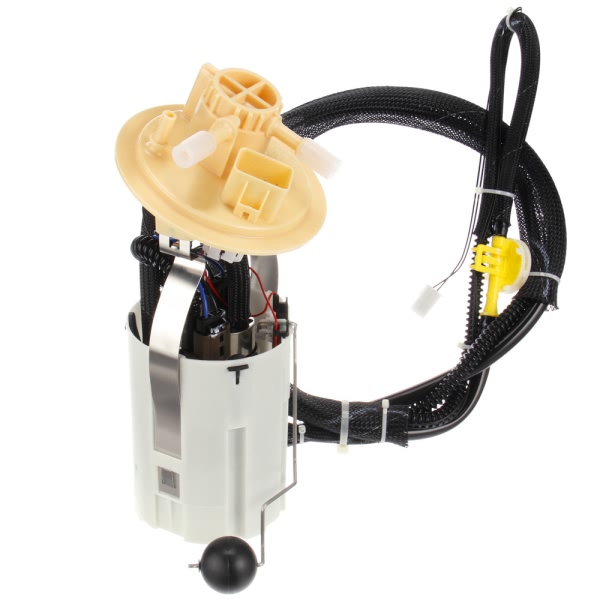

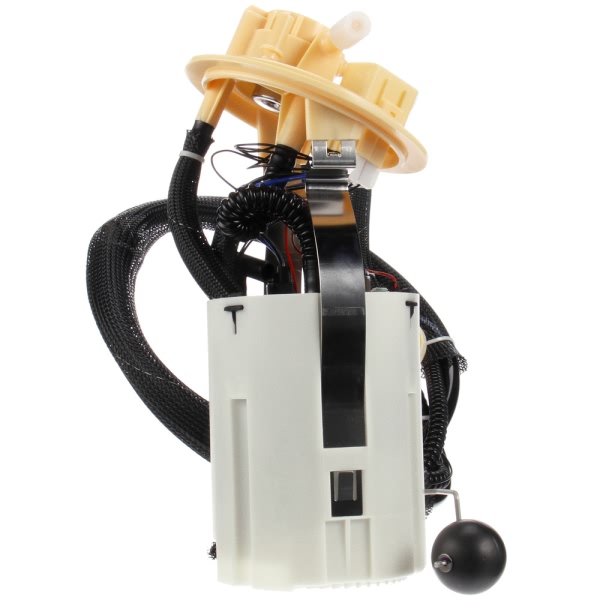

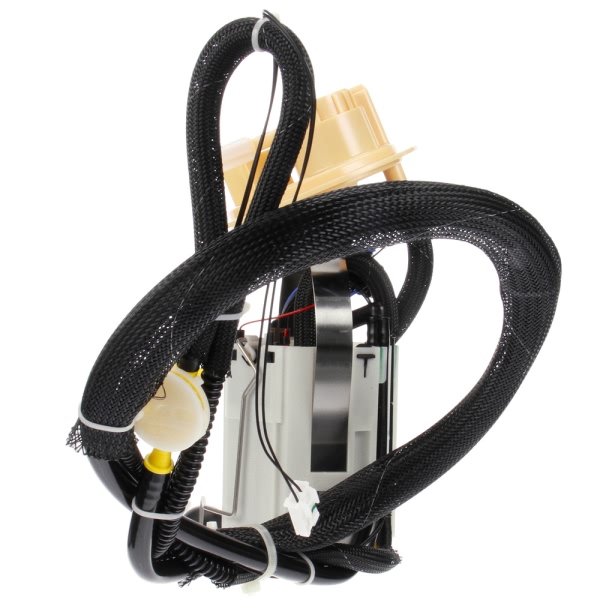

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 49 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 106.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 392.0 |
Resistance Ohms Full | 12.0 |
Strainer Included | Yes |
System Pressure | 55 psi |
Terminal Gender | Male |

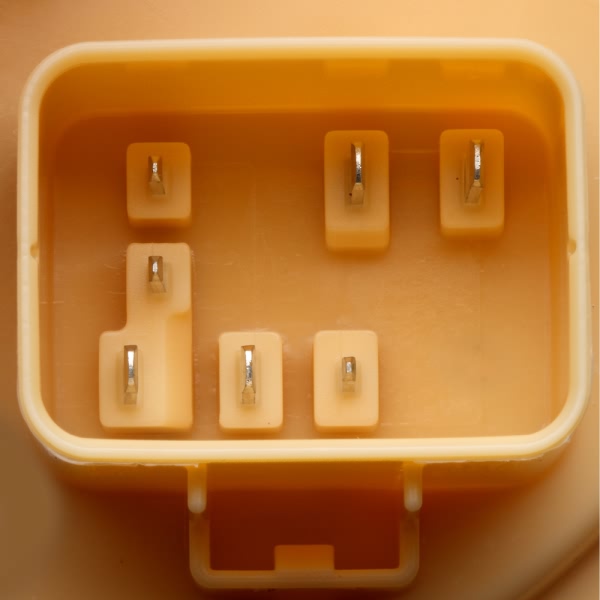

Terminal Quantity | 7 |
Terminal Type | Blade |
UPC | 886931099302 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005 Volvo S60 | 2.4 | 5 Cyl 2.4L |
2005 Volvo S60 | 2.5T AWD | 5 Cyl 2.5L |
2005-2006 Volvo S60 | T5 | 5 Cyl 2.4L |
2005-2006 Volvo S60 | 2.5T | 5 Cyl 2.5L |
2005-2007 Volvo S60 | R | 5 Cyl 2.5L |
2005-2006 Volvo S80 | 2.5T AWD | 5 Cyl 2.5L |
2005-2006 Volvo S80 | All Trims | 5 Cyl 2.5L |
2005 Volvo V70 | T5 | 5 Cyl 2.4L |
2005-2006 Volvo XC70 | Base | 5 Cyl 2.5L |
2003-2006 Volvo XC90 | All Trims | 5 Cyl 2.5L |
