Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1273 |

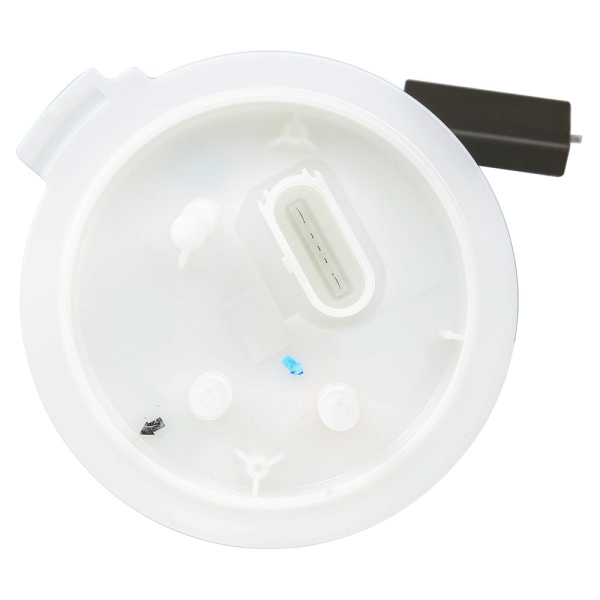

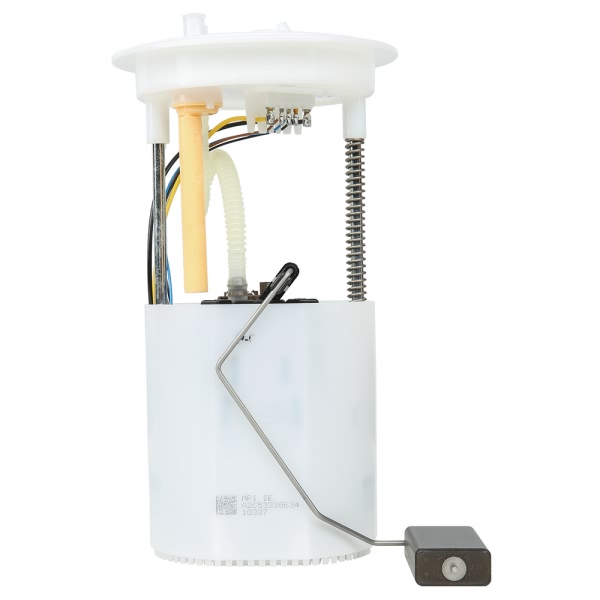

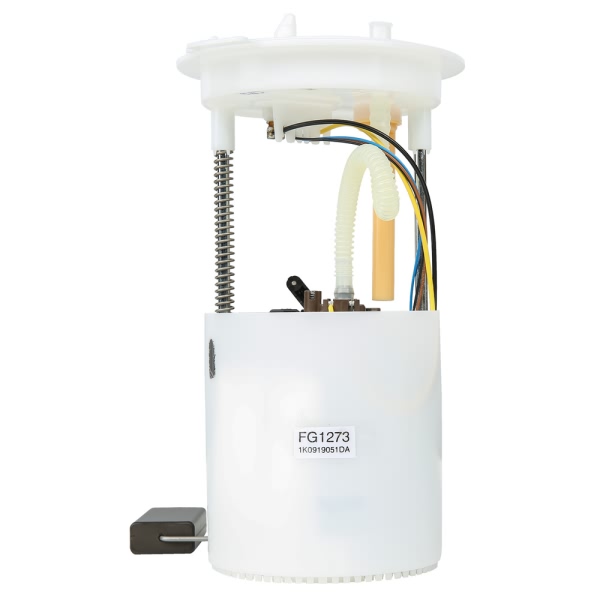

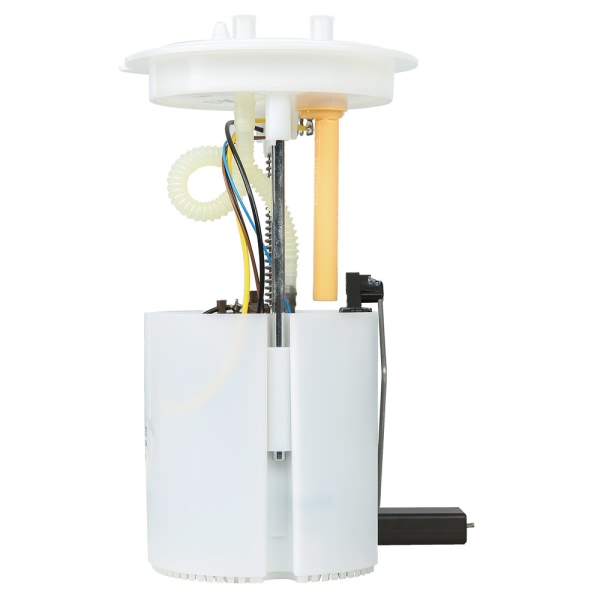

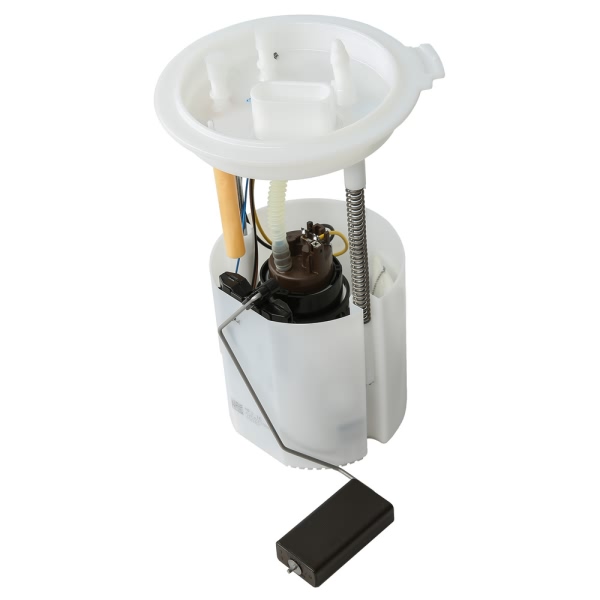

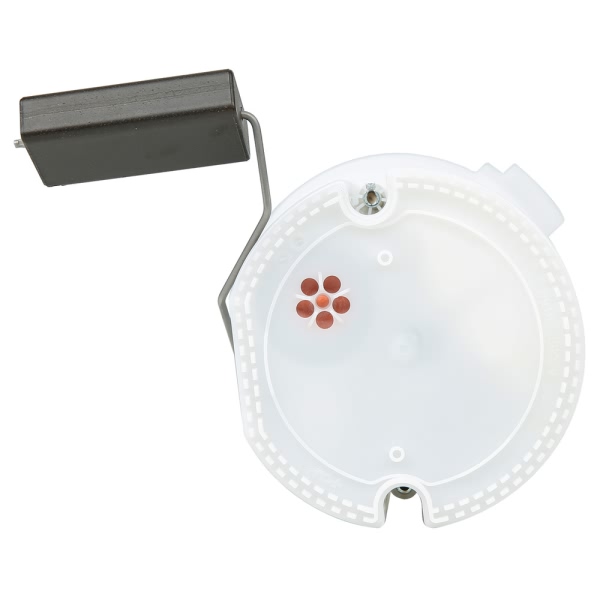

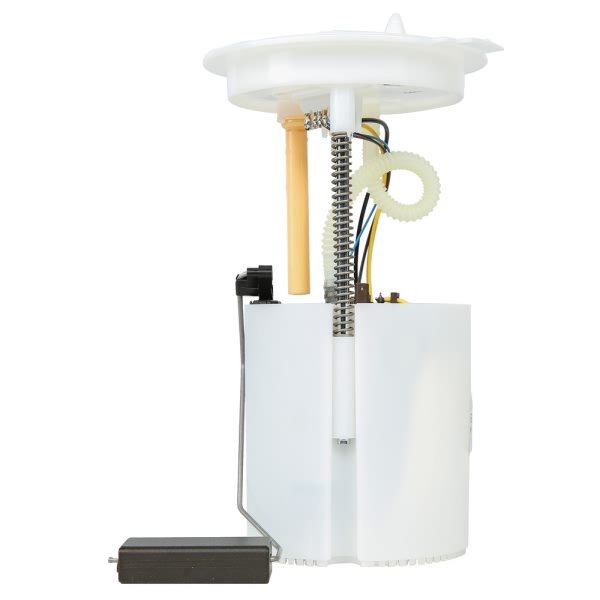

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 55 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 52.0 |
Resistance Ohms Full | 292.0 |
Strainer Included | Yes |
System Pressure | 80 psi |

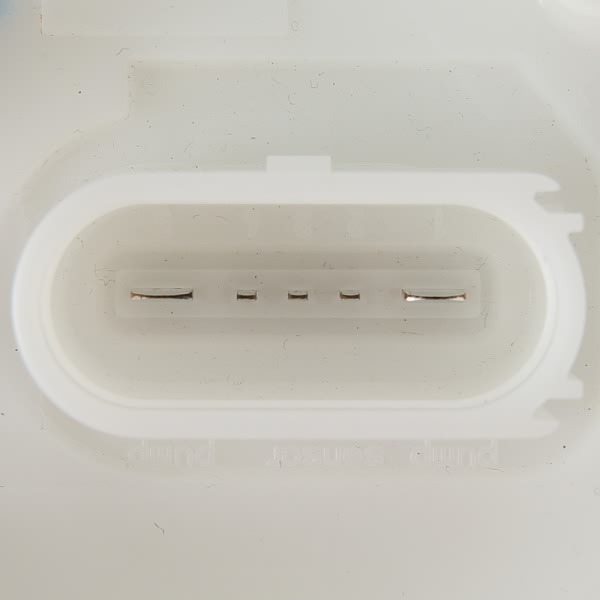

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604232408 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2012-2014 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
2010-2014 Volkswagen Golf | All Trims | 5 Cyl 2.5L |
2008-2013 Volkswagen Jetta | All Trims | 5 Cyl 2.5L |
2011-2012 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
2013-2015 Volkswagen Jetta | S | 4 Cyl 2.0L |
2014 Volkswagen Jetta | GLI | 4 Cyl 2.0L |
2014 Volkswagen Jetta | S | 5 Cyl 2.5L |
2014 Volkswagen Jetta | SE | 5 Cyl 2.5L |
2015 Volkswagen Jetta | Base | 4 Cyl 2.0L |
2007-2009 Volkswagen Rabbit | All Trims | 5 Cyl 2.5L |
