Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1251 |

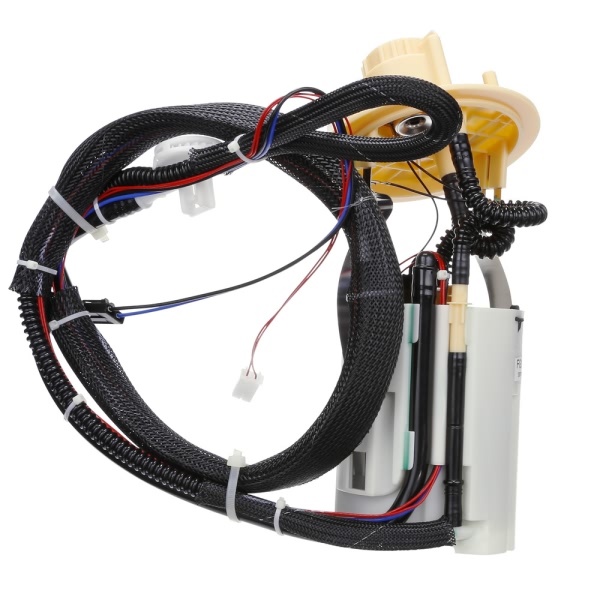

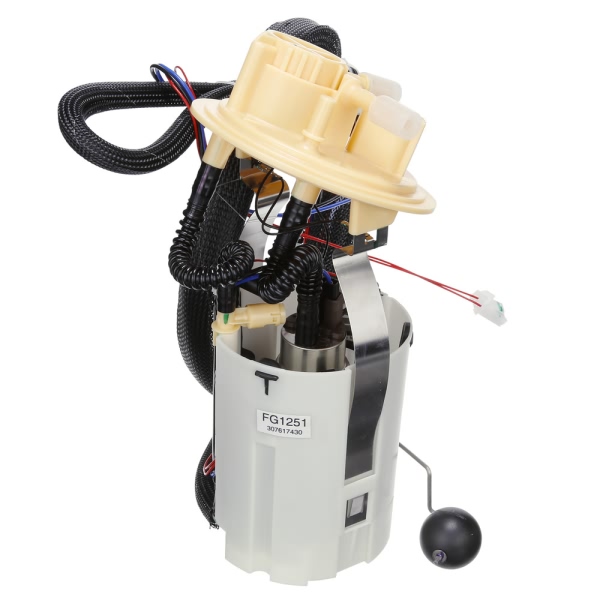

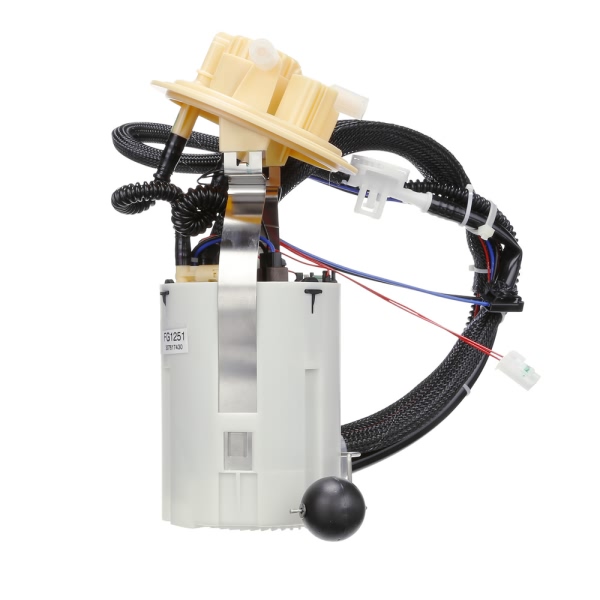

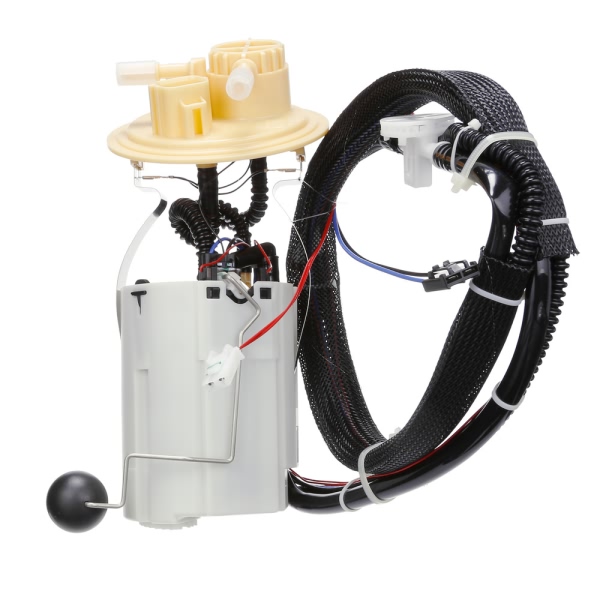

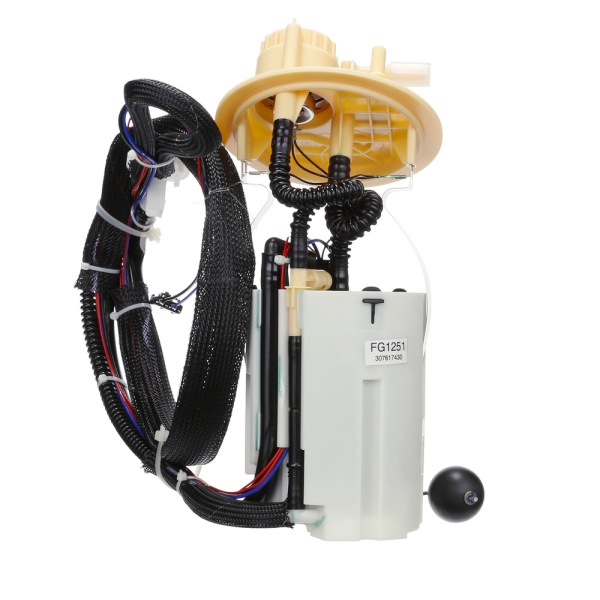

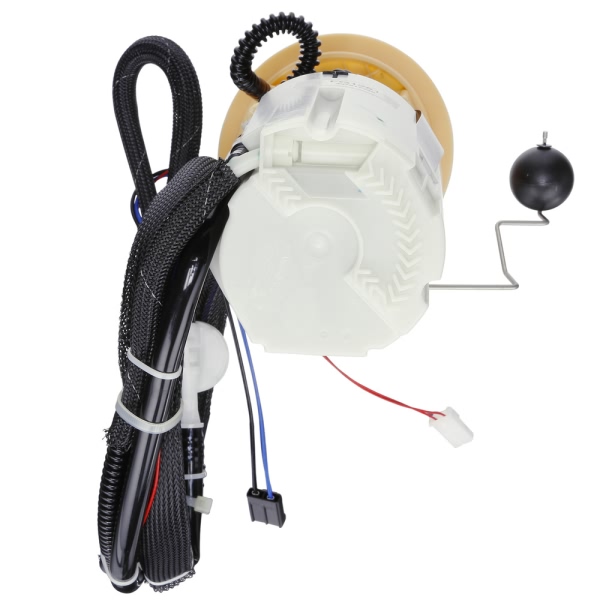

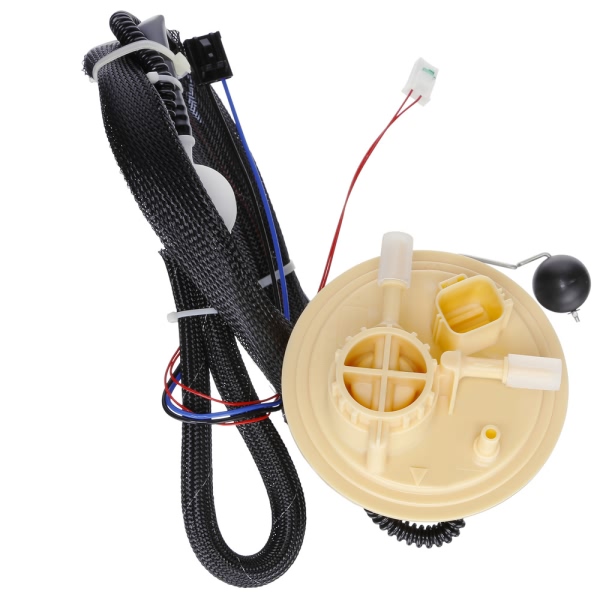

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 40 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 390.0 |
Resistance Ohms Full | 13.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

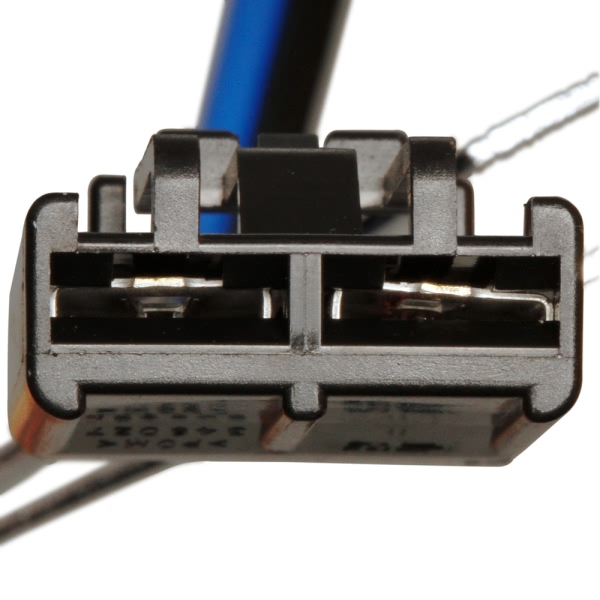

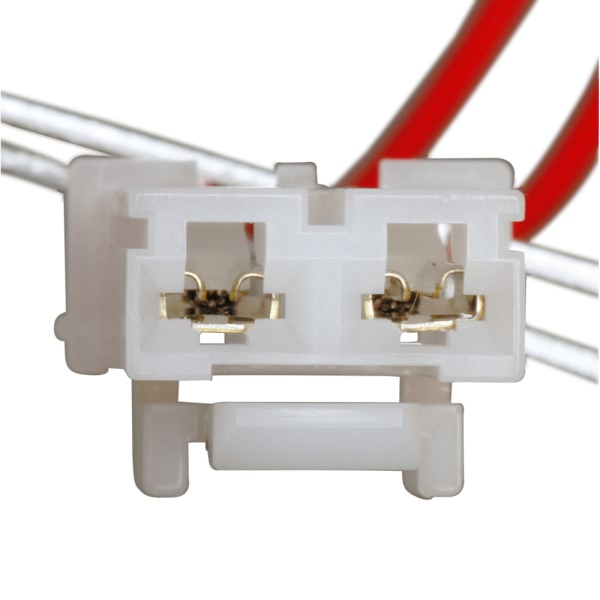

Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Blade |
UPC | 689604232187 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Volvo S60 | All Trims | 5 Cyl 2.3L |
2001-2002 Volvo S60 | 2.4T | 5 Cyl 2.4L |
2001-2002 Volvo S60 | Base | 5 Cyl 2.4L |
2002 Volvo S60 | AWD | 5 Cyl 2.4L |
1999-2001 Volvo S80 | All Trims | 6 Cyl 2.8L |
1999-2002 Volvo S80 | All Trims | 6 Cyl 2.9L |
2001-2002 Volvo V70 | All Trims | 5 Cyl 2.3L |
2001-2002 Volvo V70 | 2.4T | 5 Cyl 2.4L |
2001-2002 Volvo V70 | Base | 5 Cyl 2.4L |
2001-2002 Volvo V70 | X/C | 5 Cyl 2.4L |
