Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1228 |

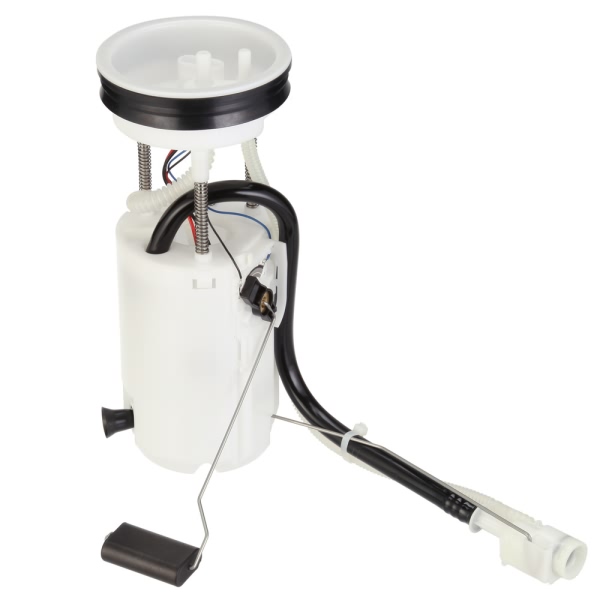

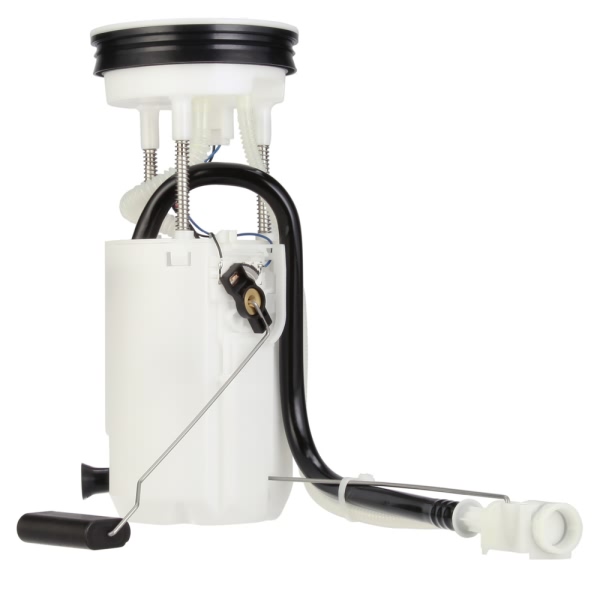

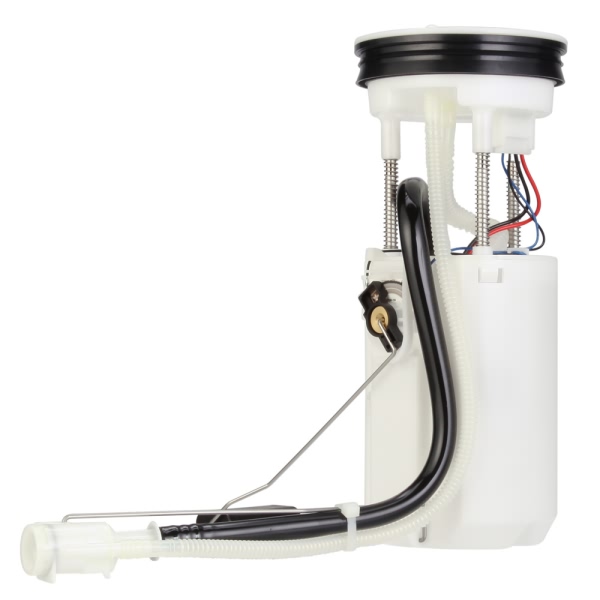

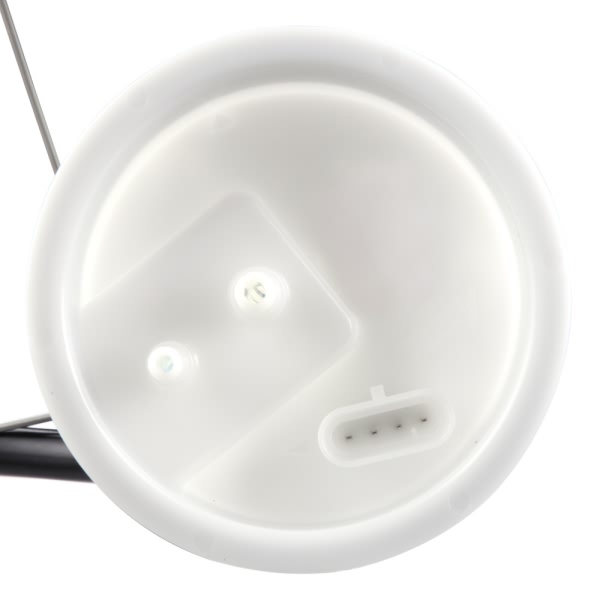

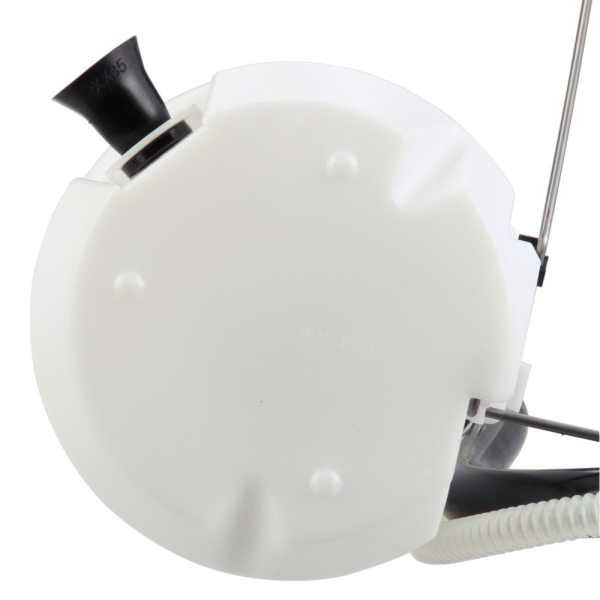

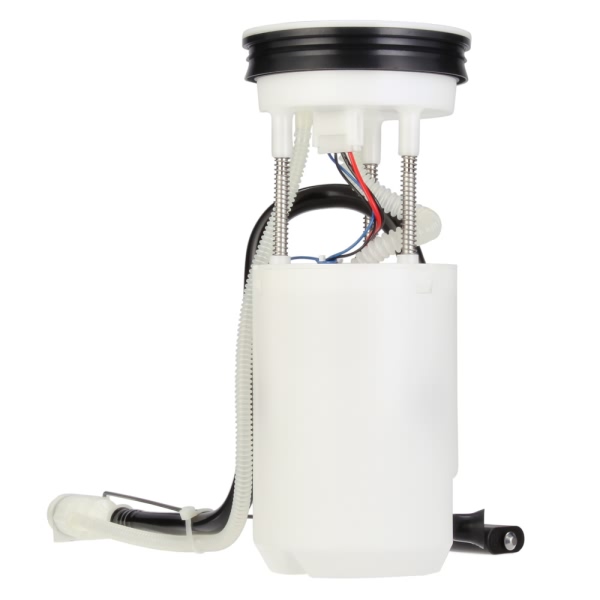

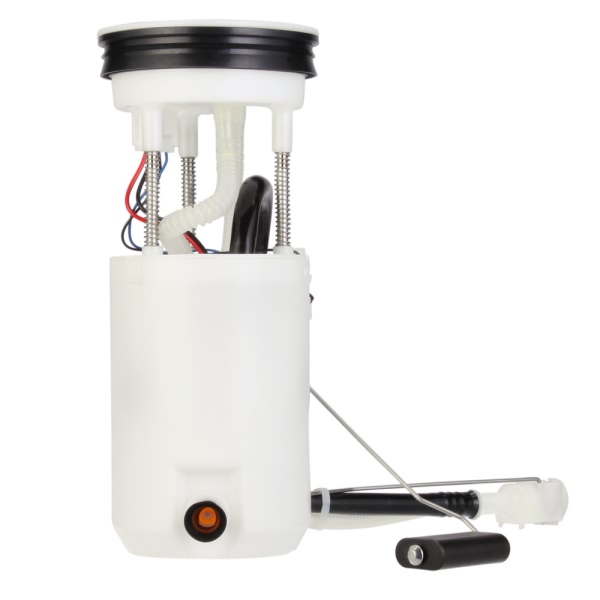

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 45 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 200.0 |
Resistance Ohms Full | 11.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

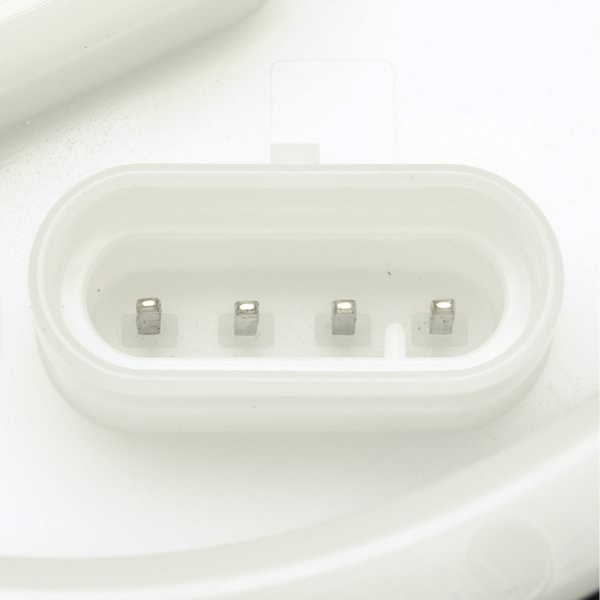

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604231975 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Mercedes-Benz ML320 | All Trims | 6 Cyl 3.2L |
2003-2005 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.7L |
2002-2005 Mercedes-Benz ML500 | All Trims | 8 Cyl 5.0L |
