Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1223 |

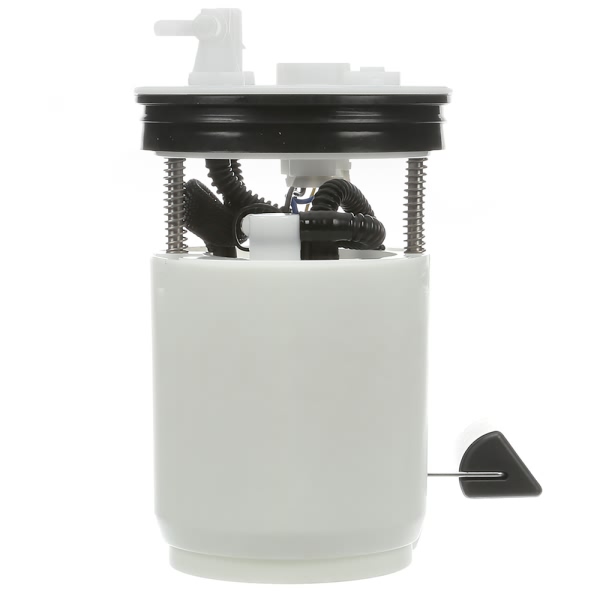

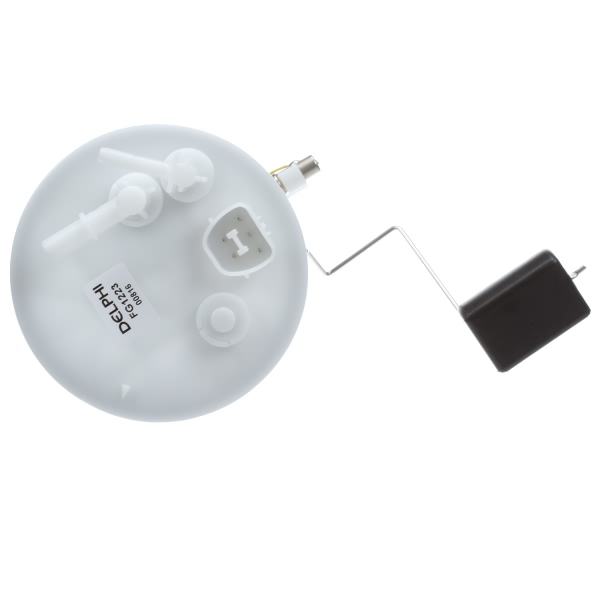

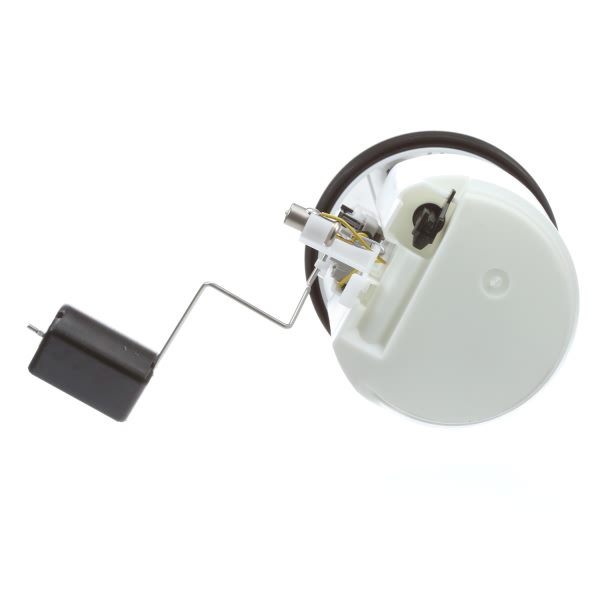

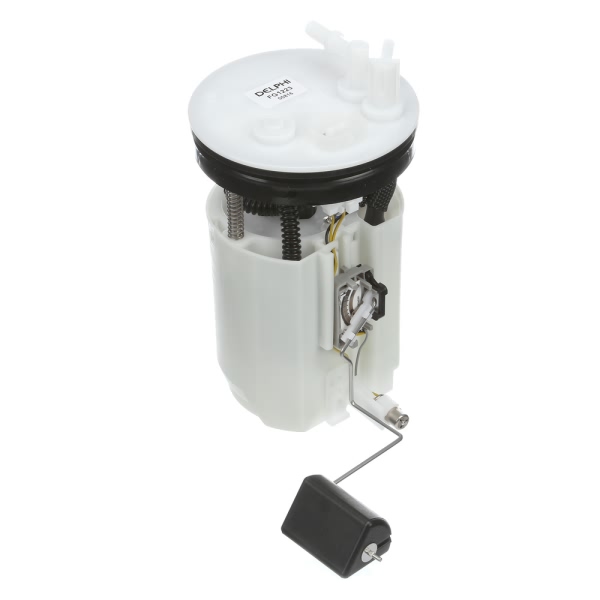

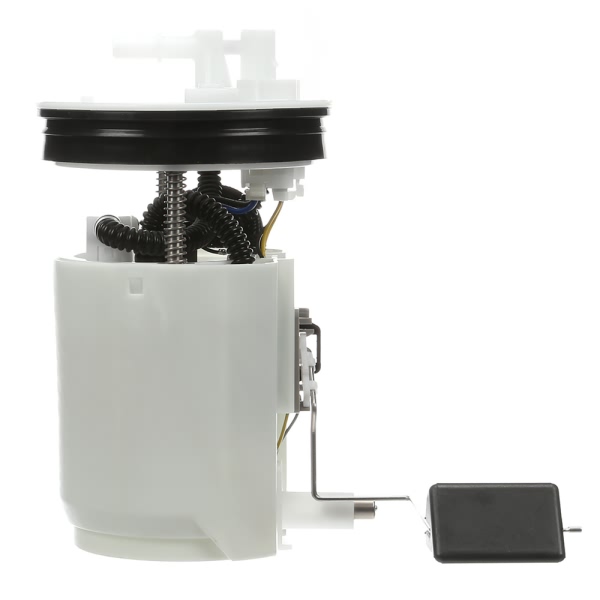

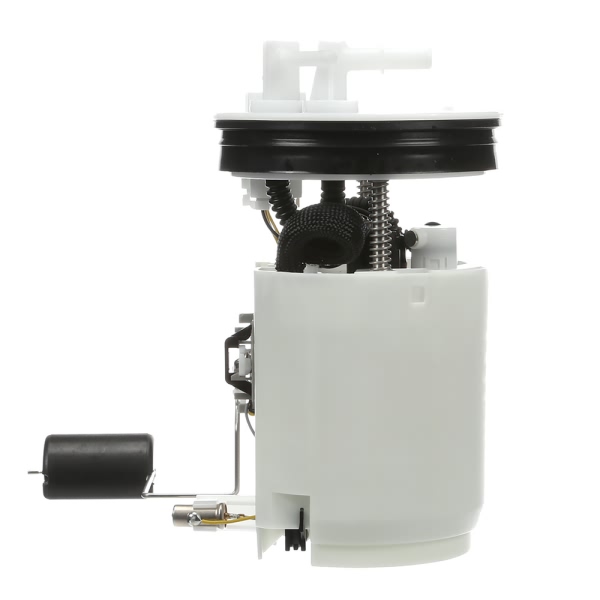

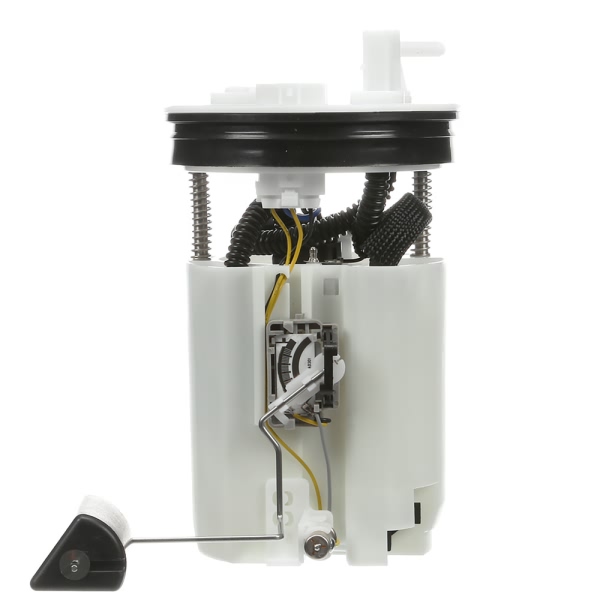

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 35 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 94.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 110.0 |
Resistance Ohms Full | 5.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

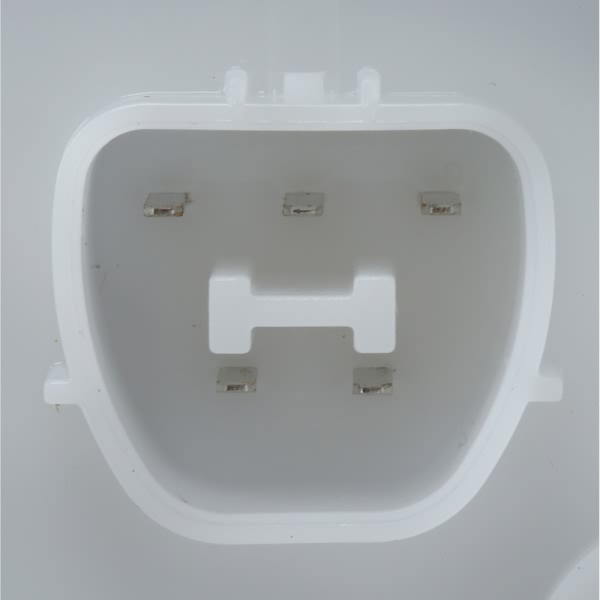

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604231937 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2002-2005 Chrysler Sebring | All Trims | 4 Cyl 2.4L |
2002-2005 Dodge Stratus | All Trims | 4 Cyl 2.4L |
2000-2005 Mitsubishi Eclipse | All Trims | 4 Cyl 2.4L |
2000-2003 Mitsubishi Galant | All Trims | 4 Cyl 2.4L |
