Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1199 |

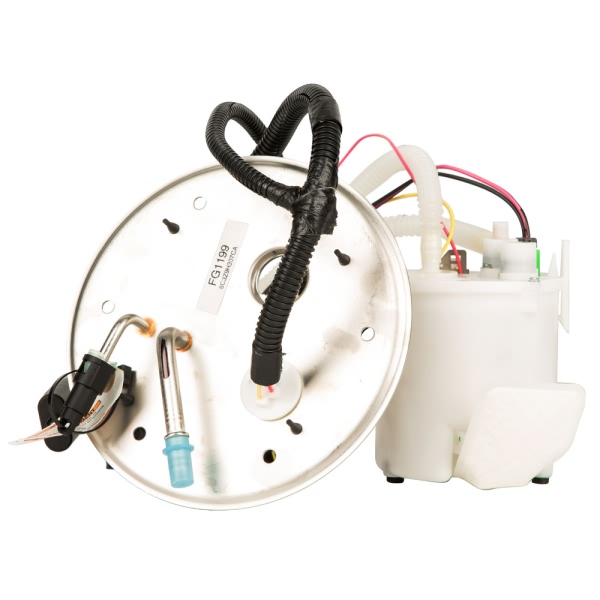

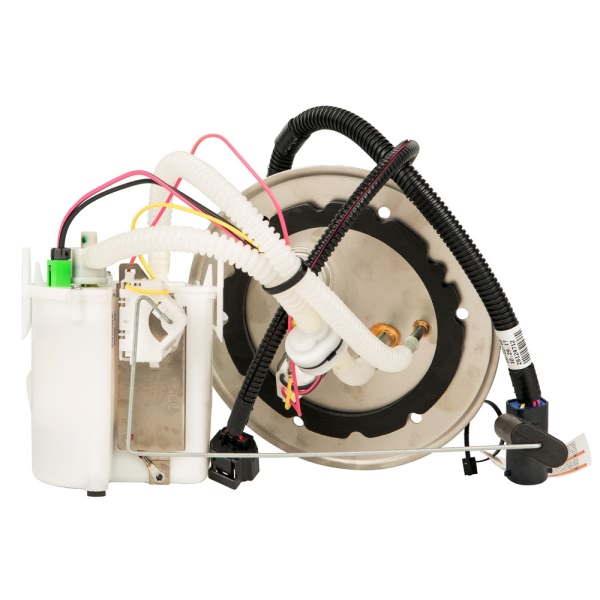

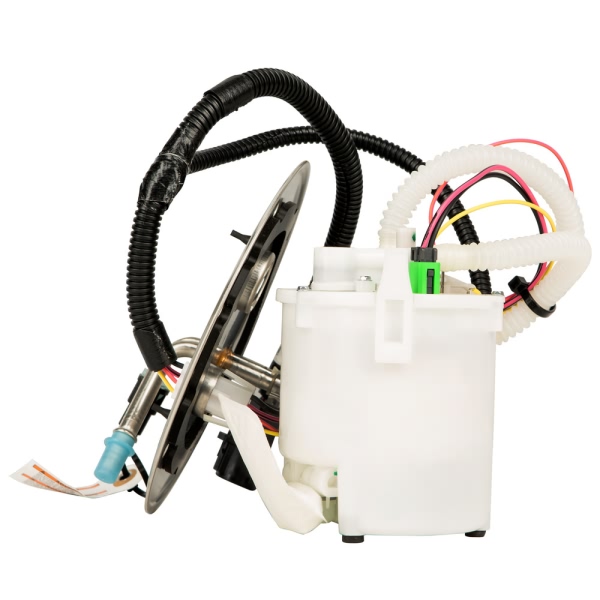

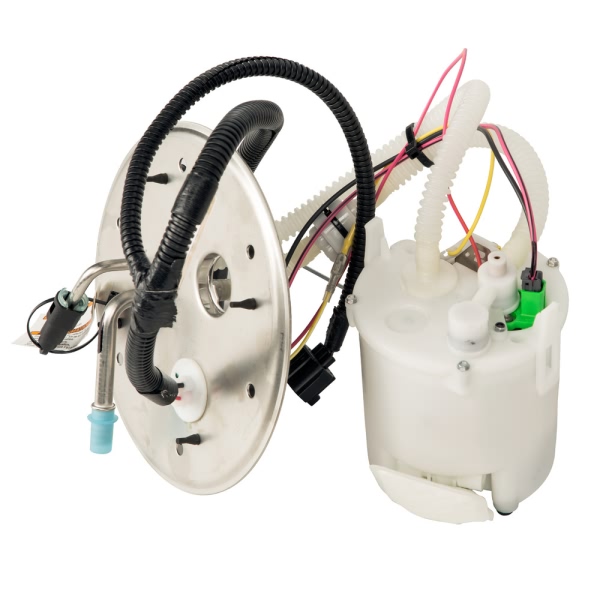

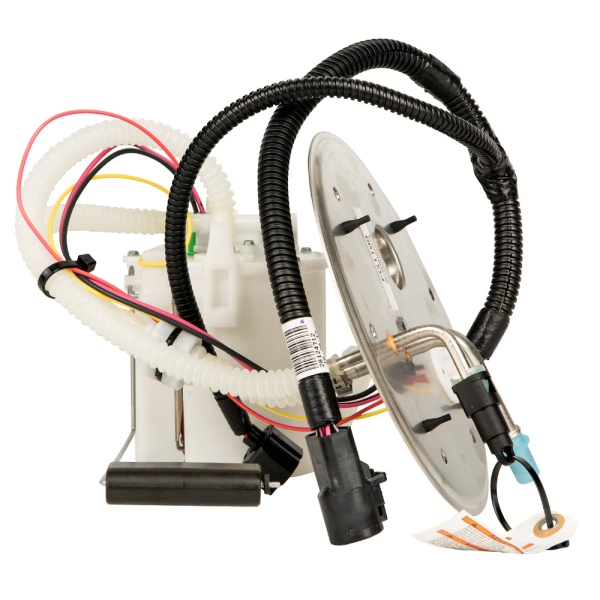

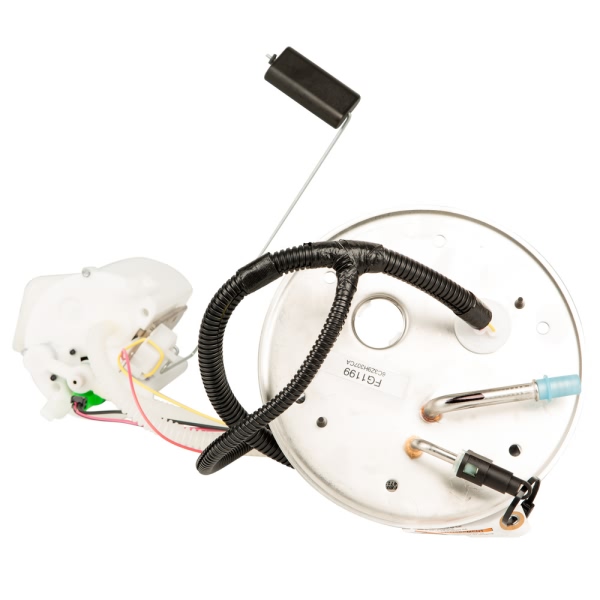

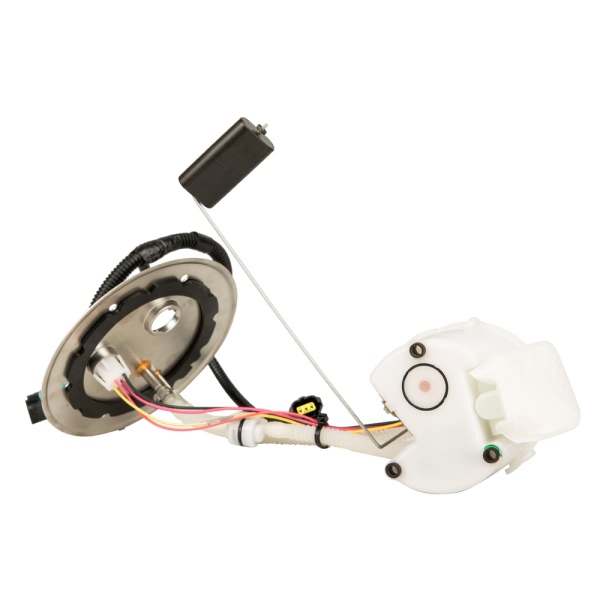

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 40 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 95.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 15.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

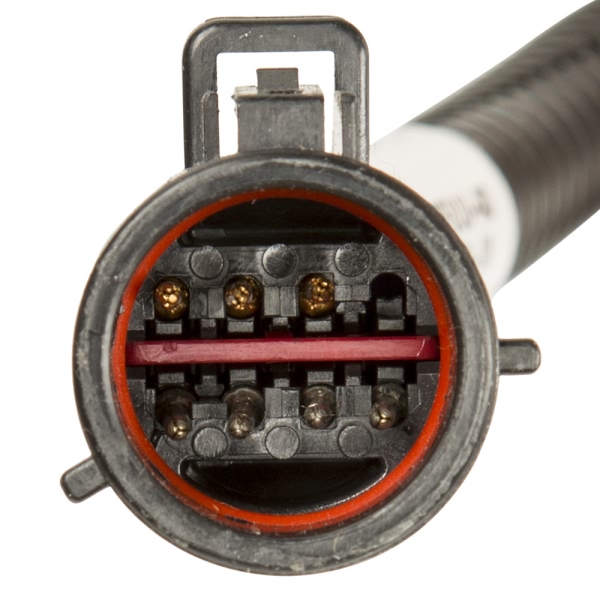

Terminal Gender | Male |
Terminal Quantity | 7 |
Terminal Type | Pin |
UPC | 689604231715 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005 Ford F-350 Super Duty | All Trims | 10 Cyl 6.8L |
2005 Ford F-350 Super Duty | All Trims | 8 Cyl 5.4L |
2006-2007 Ford F-350 Super Duty | Lariat | 10 Cyl 6.8L |
2006-2007 Ford F-350 Super Duty | XL | 10 Cyl 6.8L |
2006-2007 Ford F-350 Super Duty | XLT | 10 Cyl 6.8L |
2006-2007 Ford F-350 Super Duty | Lariat | 8 Cyl 5.4L |
2006-2007 Ford F-350 Super Duty | XLT | 8 Cyl 5.4L |
2007 Ford F-350 Super Duty | XL | 8 Cyl 5.4L |
