Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |

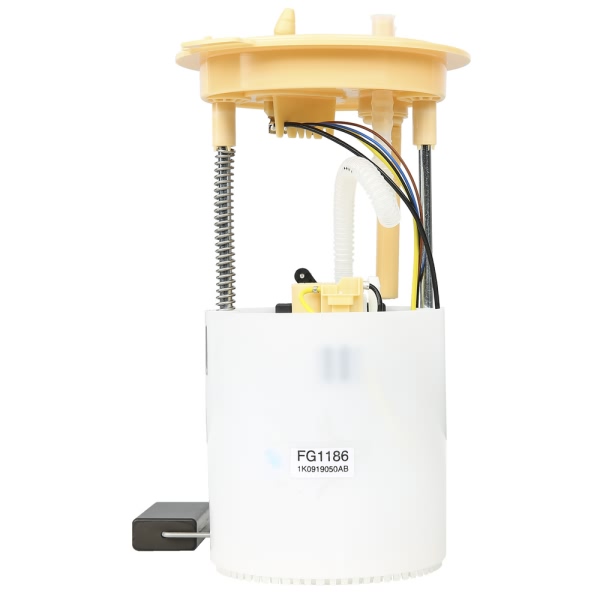

Part Number | FG1186 |

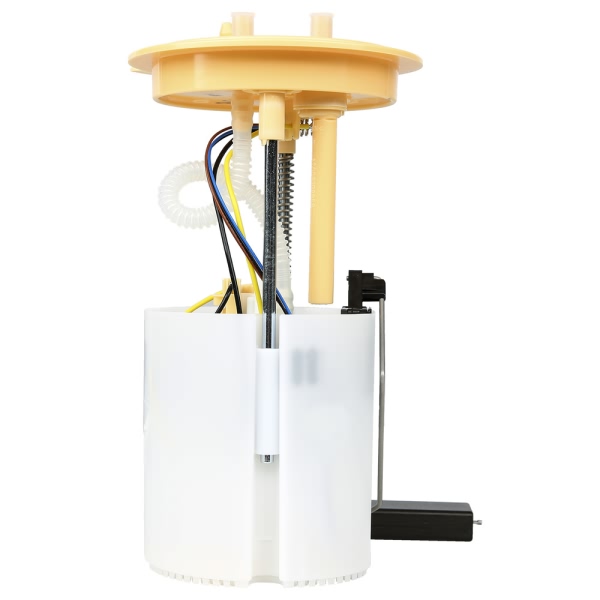

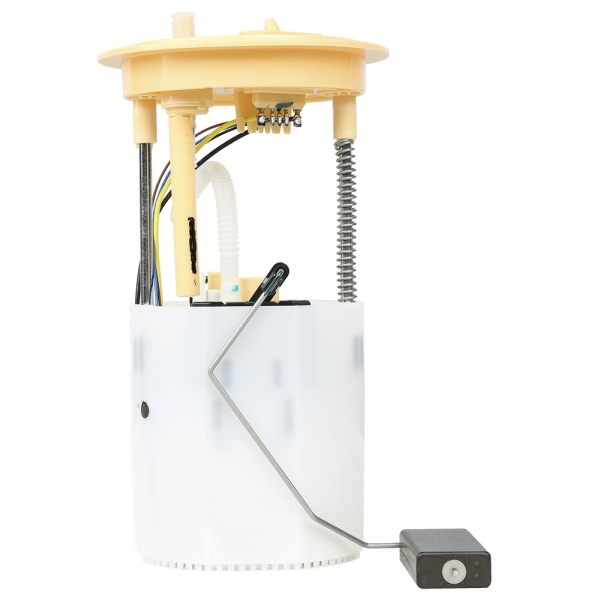

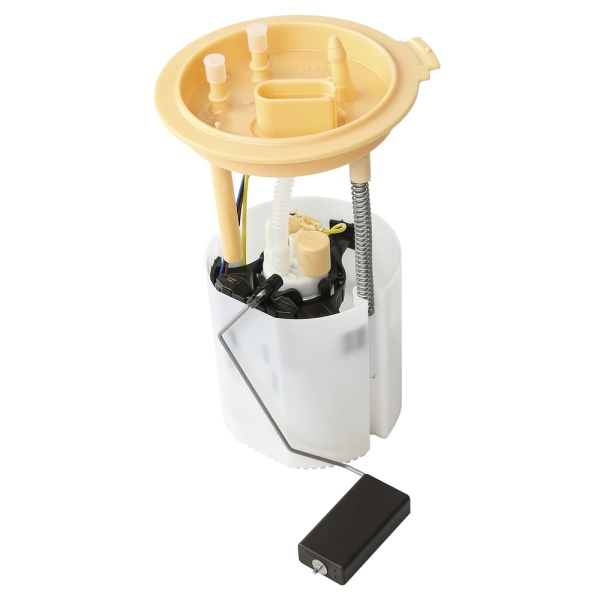

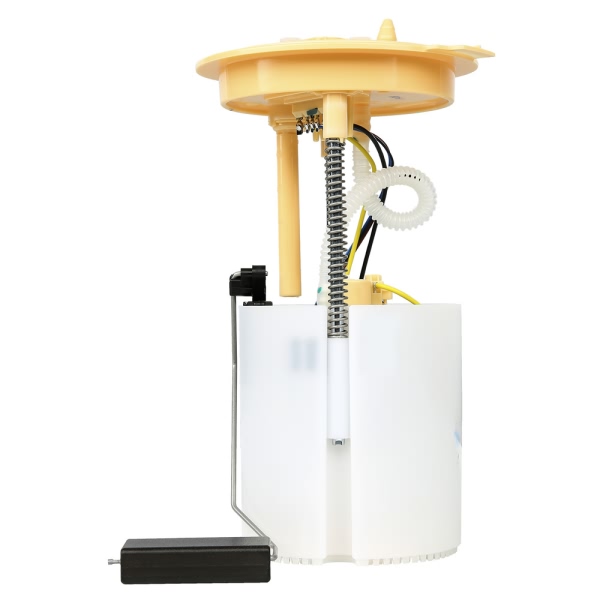

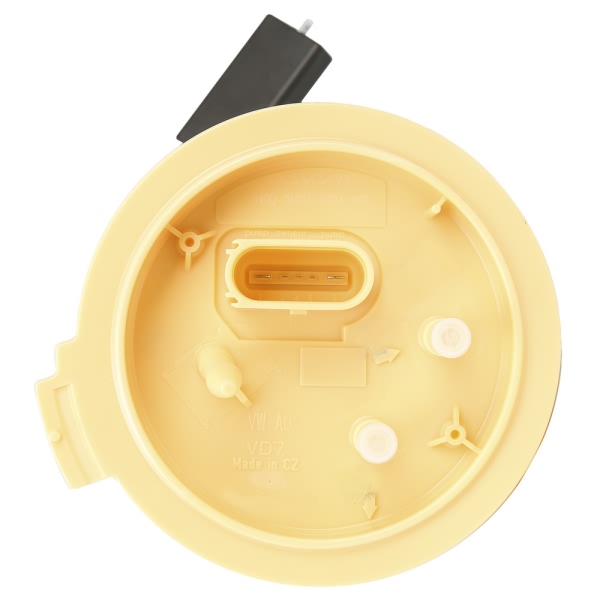

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |

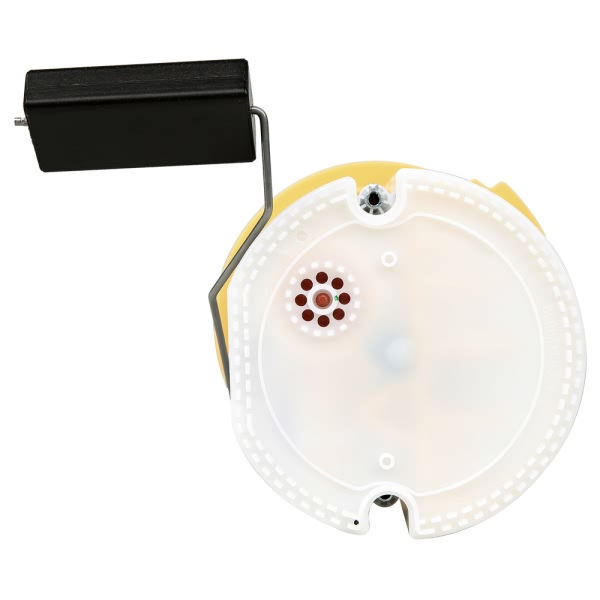

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 94.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 50.0 |
Resistance Ohms Full | 300.0 |
Strainer Included | Yes |
System Pressure | 44 psi |
Terminal Gender | Male |

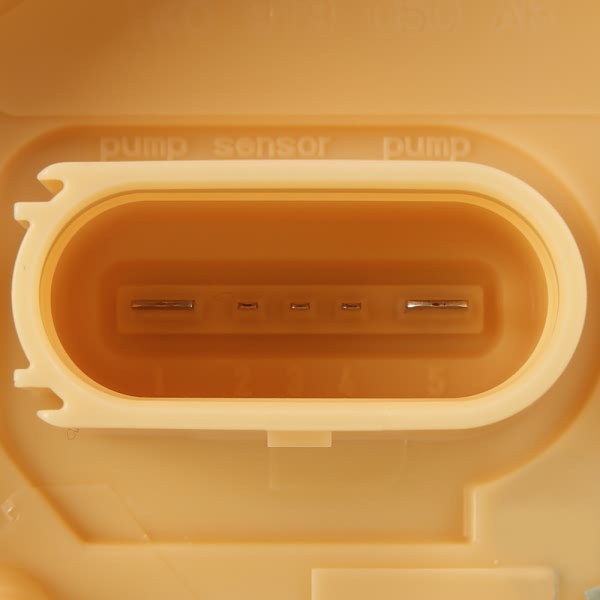

Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604231609 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2010-2013 Audi A3 | All Trims | 4 Cyl 2.0L |
2013-2015 Volkswagen Beetle | All Trims | 4 Cyl 2.0L |
2010-2014 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
2005-2006 Volkswagen Jetta | All Trims | 4 Cyl 1.9L |
2009-2015 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
