Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1163 |

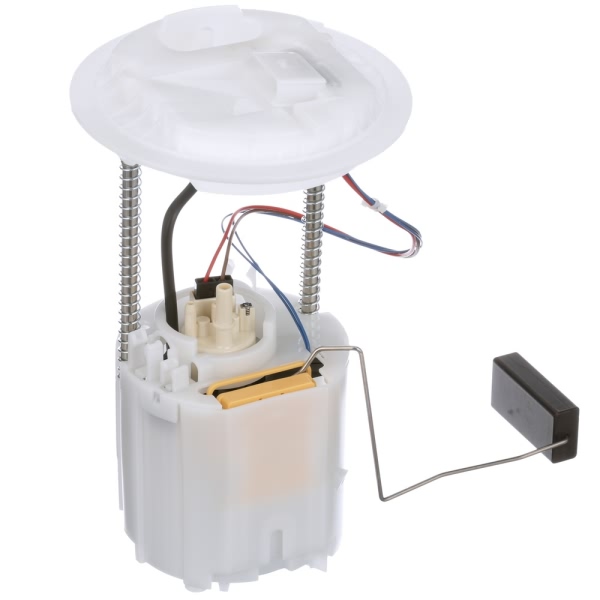

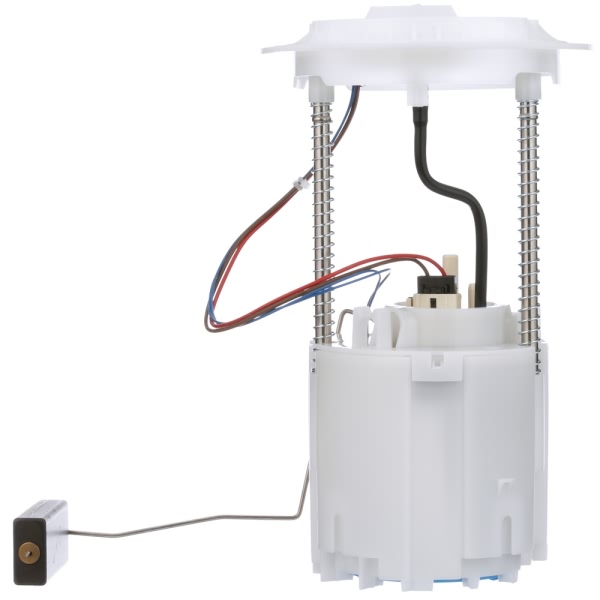

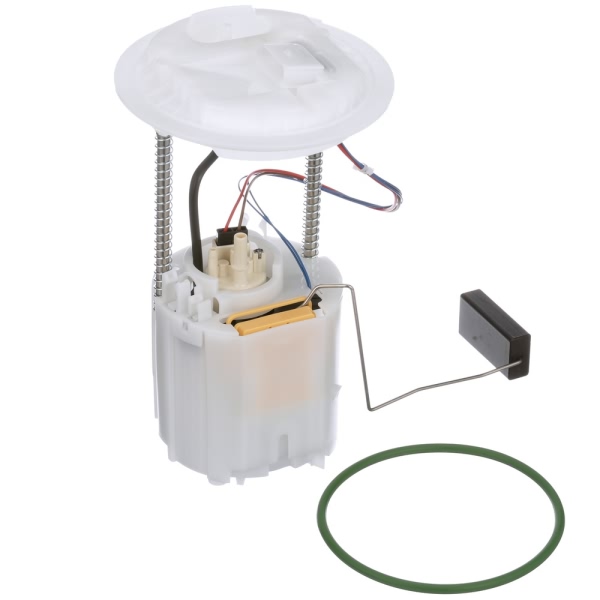

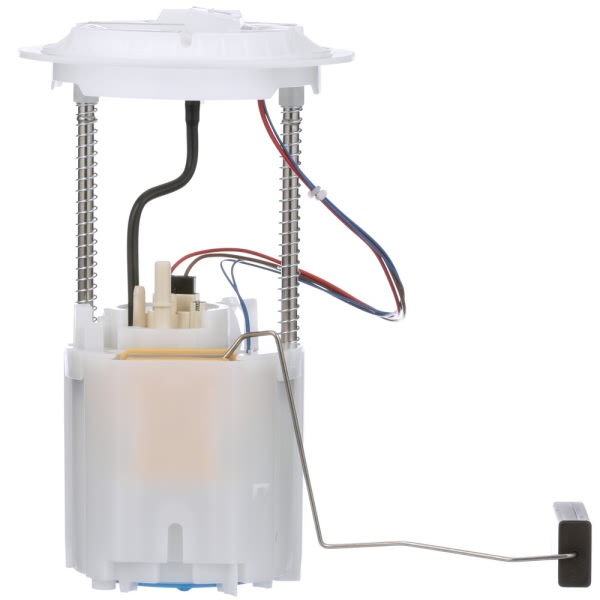

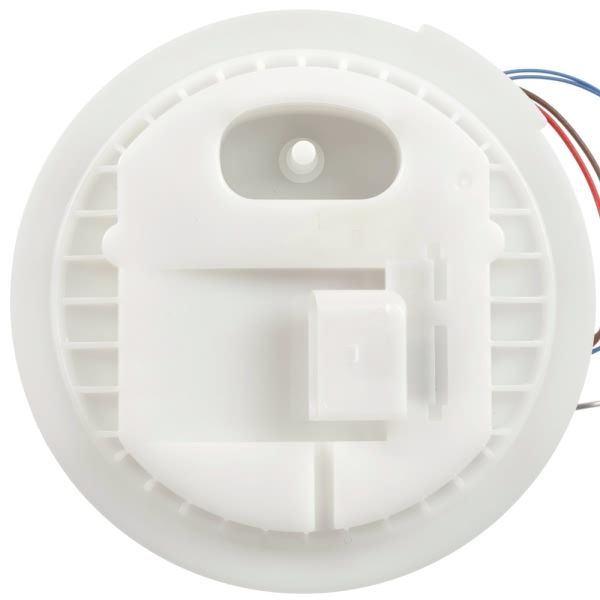

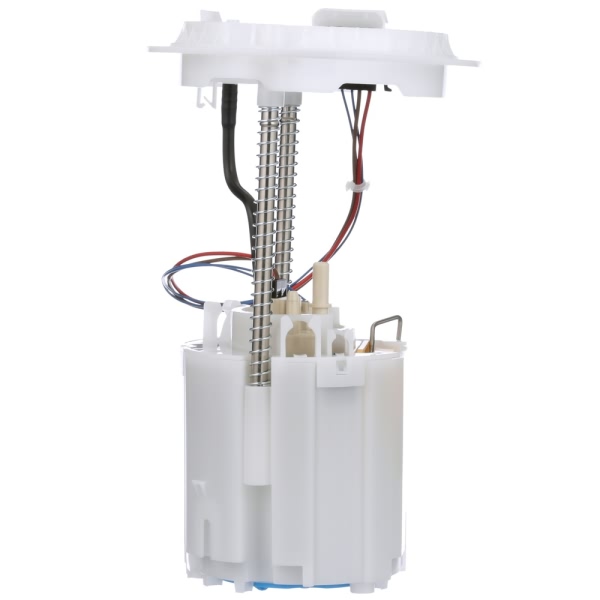

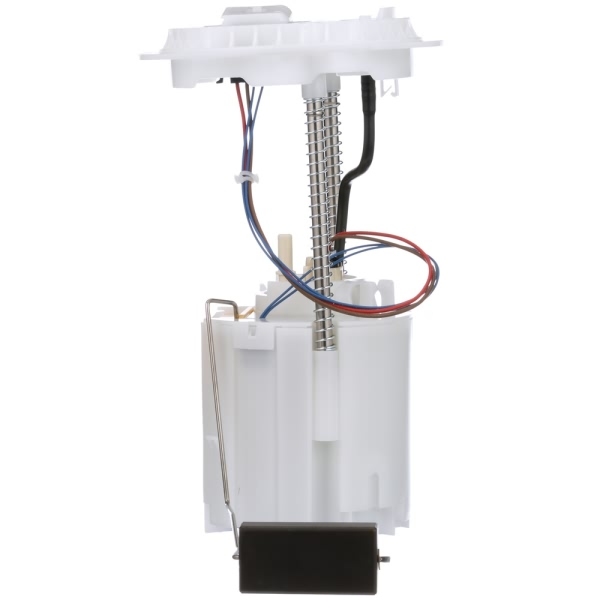

Part Description | Fuel Pump Module Assembly |
Current Draw | 9 |
Flow Rating | 21 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |

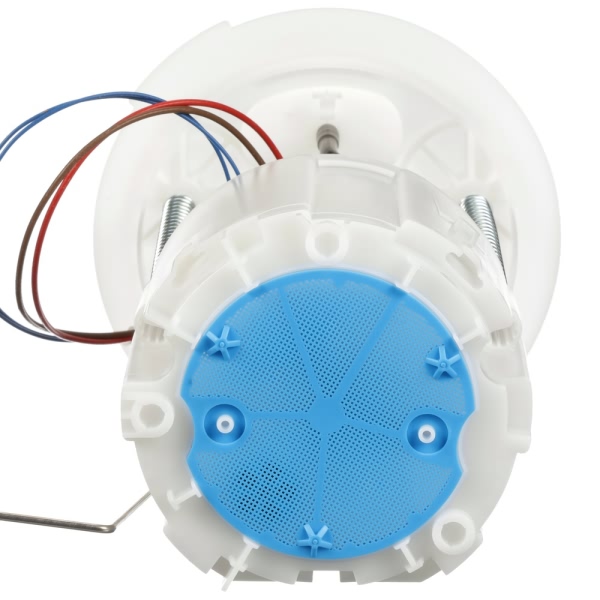

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 990.0 |
Resistance Ohms Full | 230.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

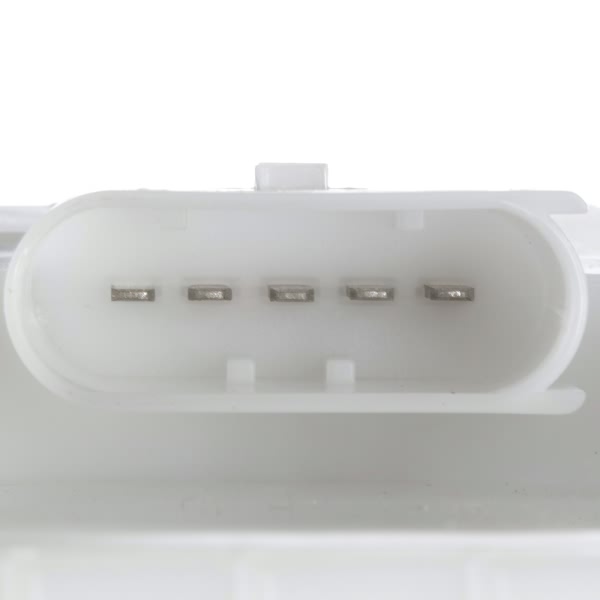

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 886931270121 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2007-2012 Mercedes-Benz GL450 | All Trims | 8 Cyl 4.7L |
2008-2012 Mercedes-Benz GL550 | All Trims | 8 Cyl 5.5L |
2006-2011 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L |
2006-2007 Mercedes-Benz ML500 | Base | 8 Cyl 5.0L |
2008-2011 Mercedes-Benz ML550 | All Trims | 8 Cyl 5.5L |
