Check if it fits by entering your vehicle infoBrand | Delphi |

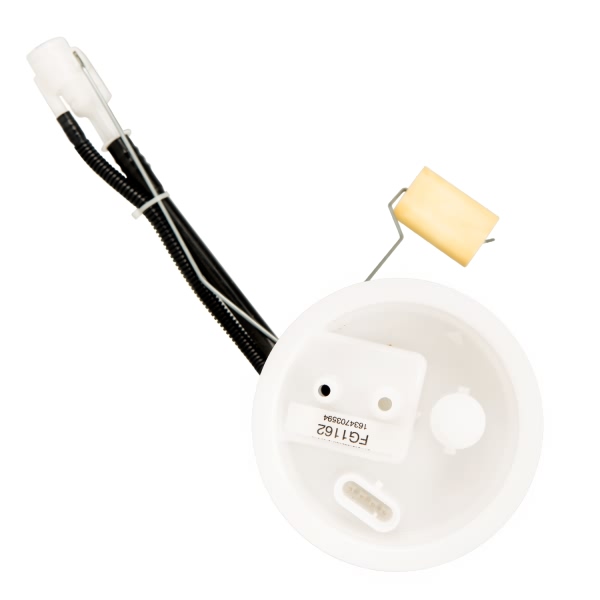

Part Number | FG1162 |

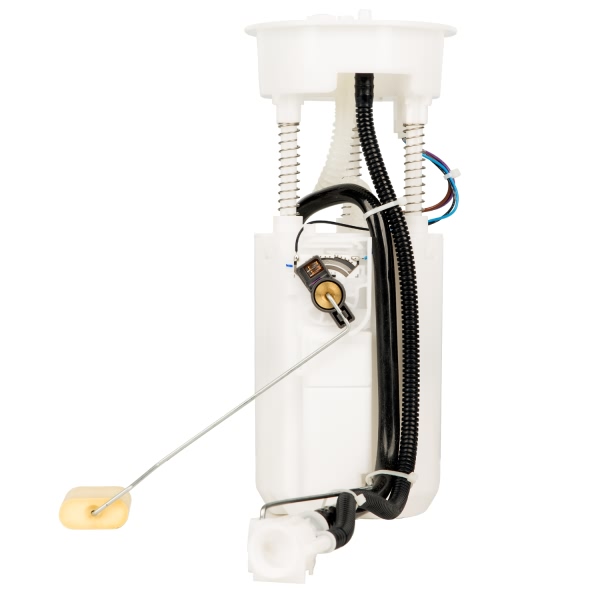

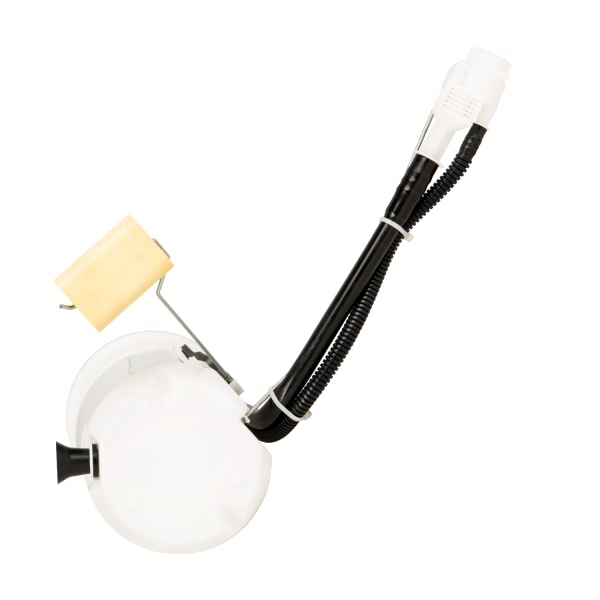

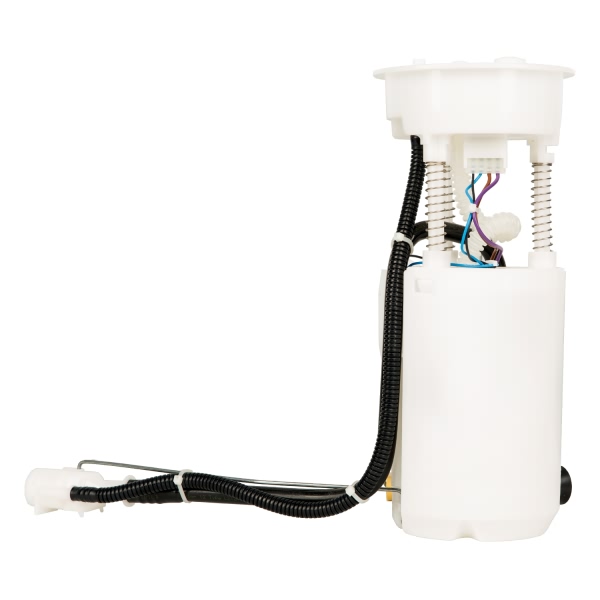

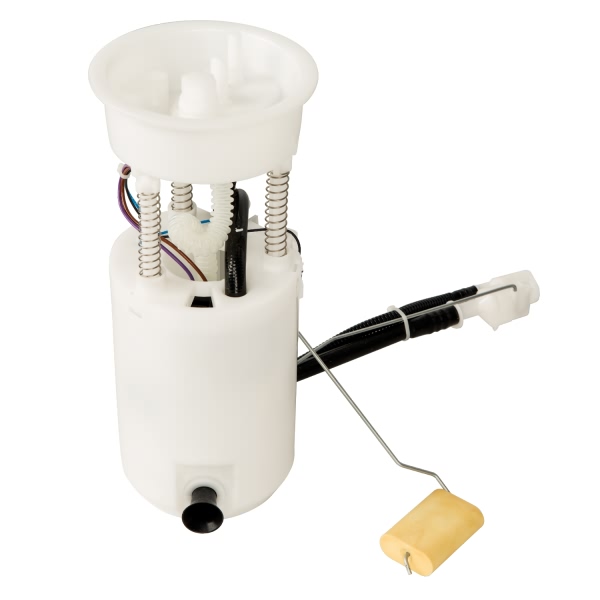

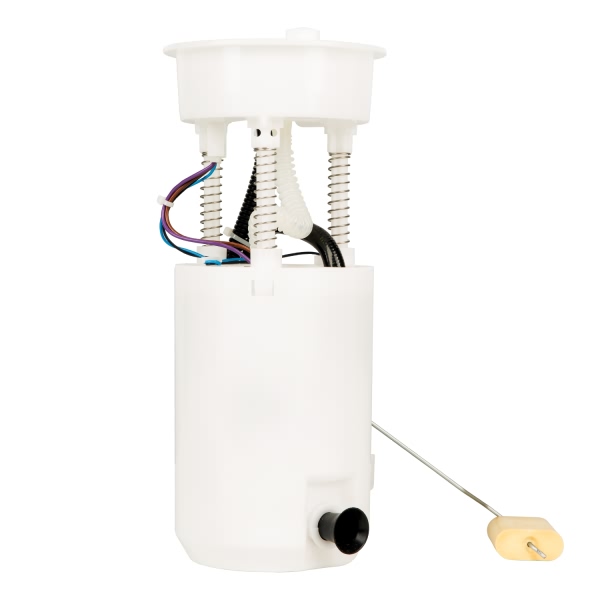

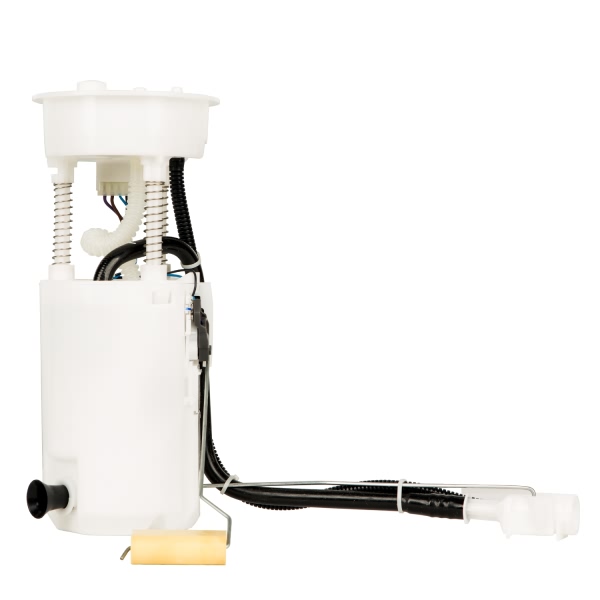

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 21 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

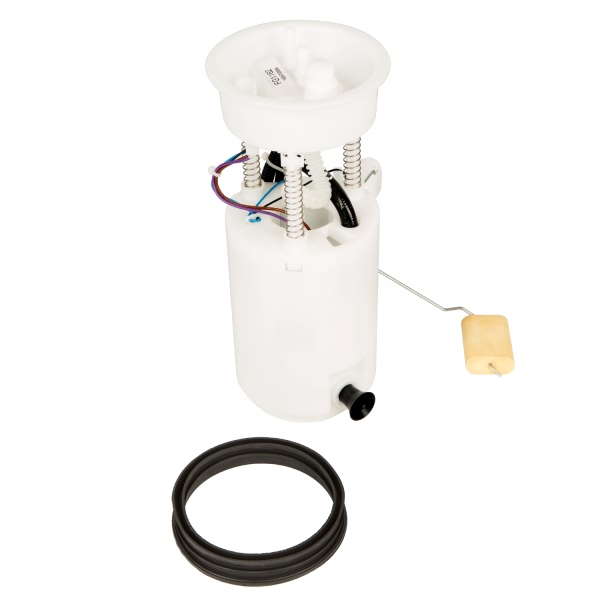

Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Regulator Included | No |
Resistance Ohms Empty | 200.0 |
Resistance Ohms Full | 3.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

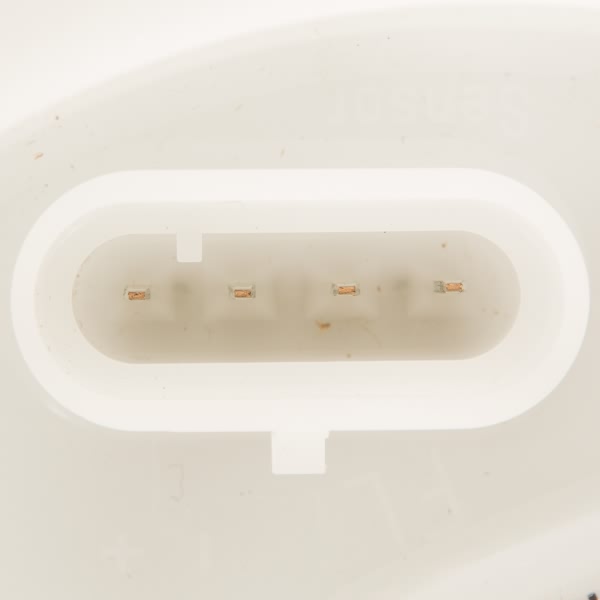

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 886931367722 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1998-2002 Mercedes-Benz ML320 | All Trims | 6 Cyl 3.2L |
1999-2001 Mercedes-Benz ML430 | All Trims | 8 Cyl 4.3L |
2000-2003 Mercedes-Benz ML55 AMG | All Trims | 8 Cyl 5.5L |
