Check if it fits by entering your vehicle infoBrand | Delphi |

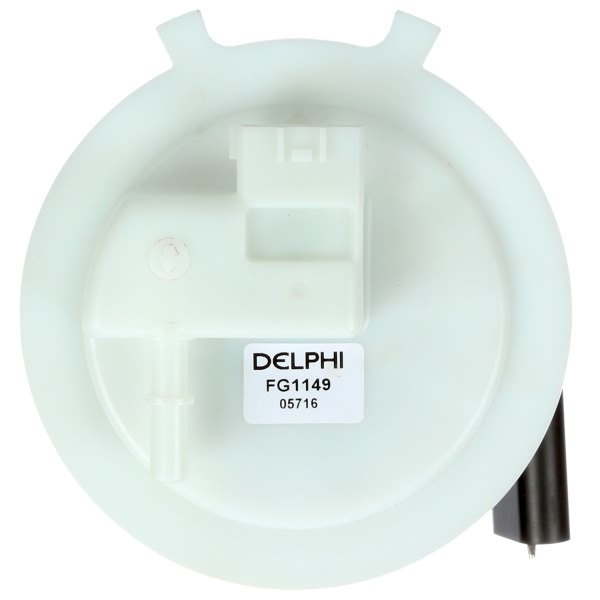

Part Number | FG1149 |

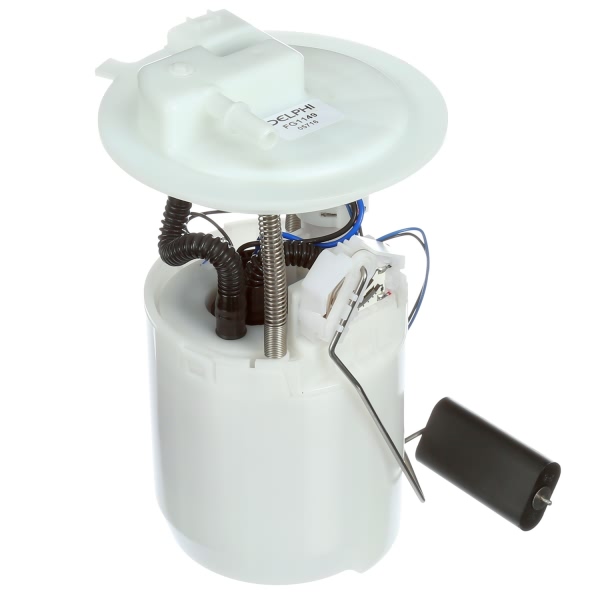

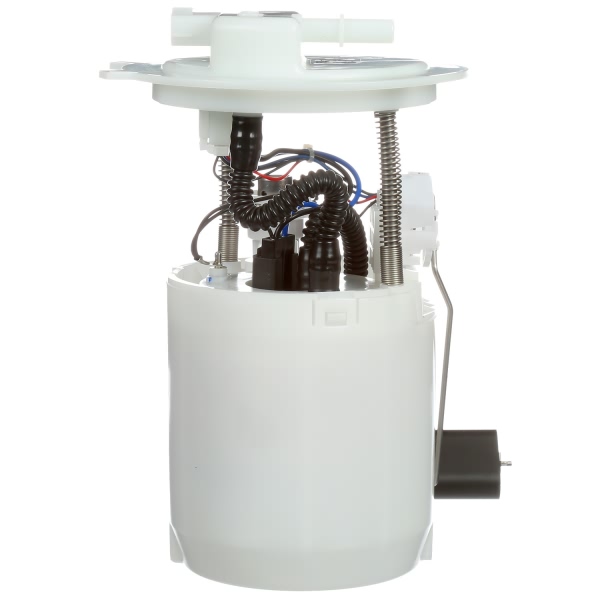

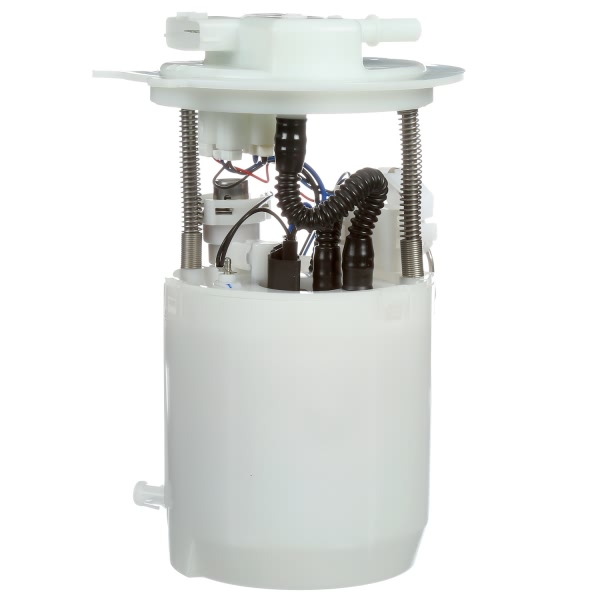

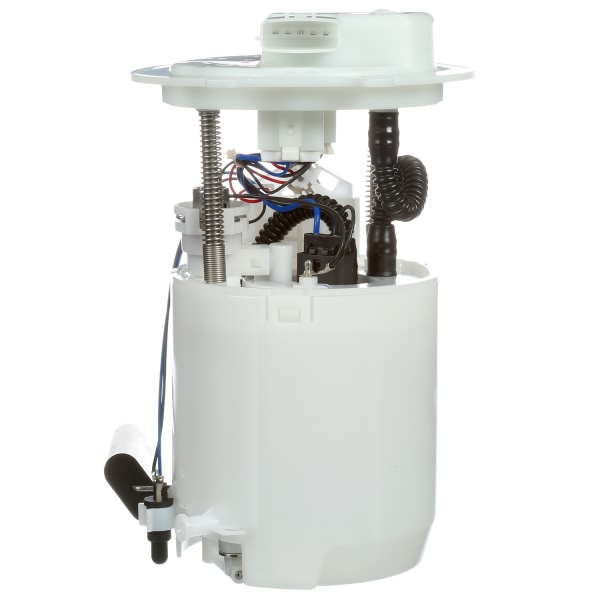

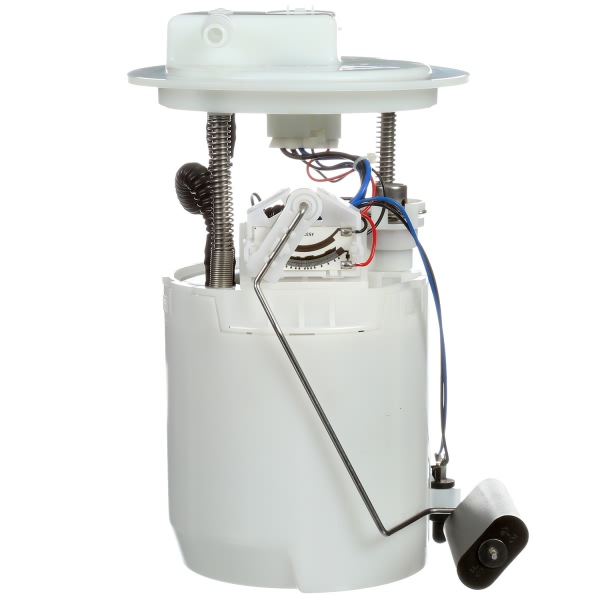

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 20 gph |

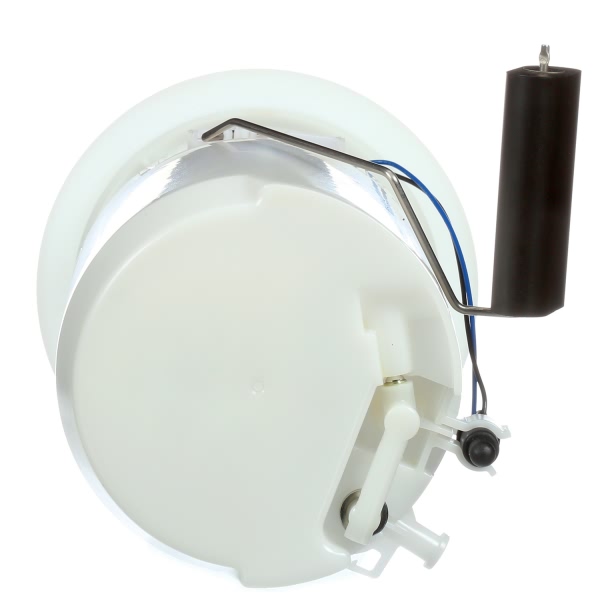

Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

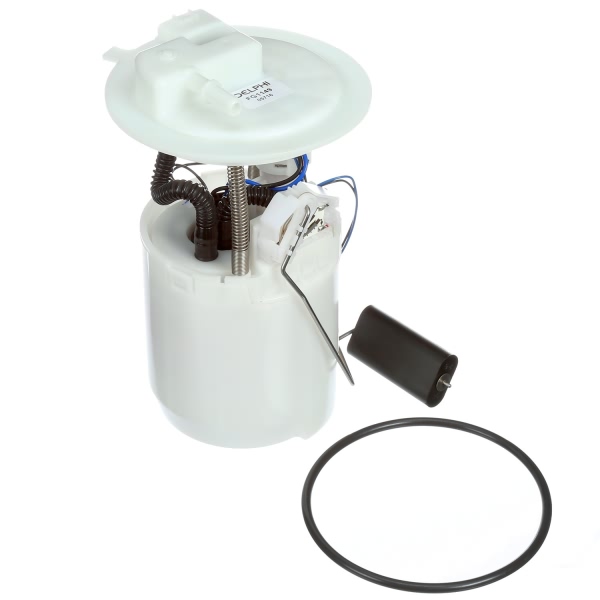

Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 80.0 |
Resistance Ohms Full | 5.0 |
Strainer Included | Yes |
System Pressure | 51 psi |
Terminal Gender | Male |

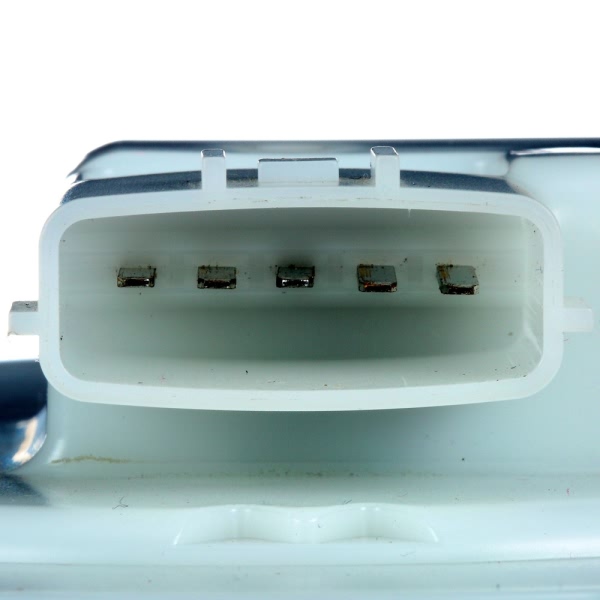

Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 886931184312 |
Vapor Pressure Sensor | No |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2009-2014 Nissan Cube | All Trims | 4 Cyl 1.8L |
2007-2012 Nissan Versa | All Trims | 4 Cyl 1.8L |
2009-2011 Nissan Versa | All Trims | 4 Cyl 1.6L |
