Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1143 |

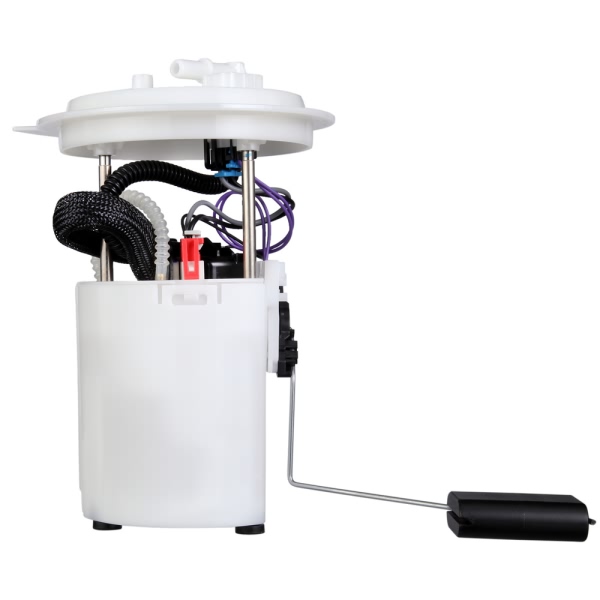

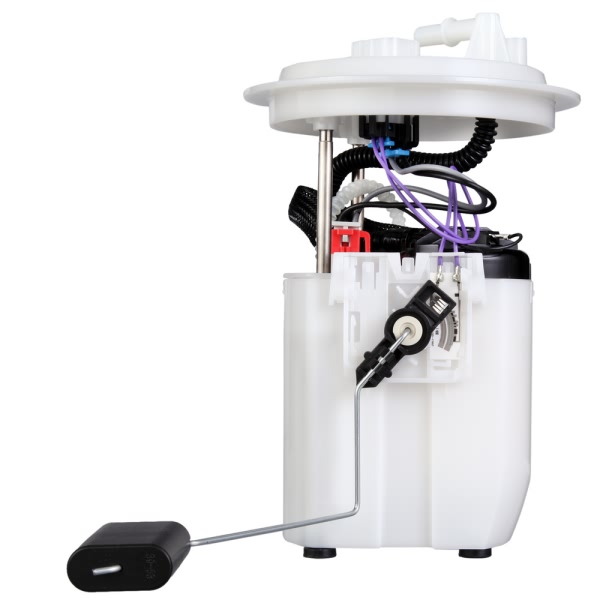

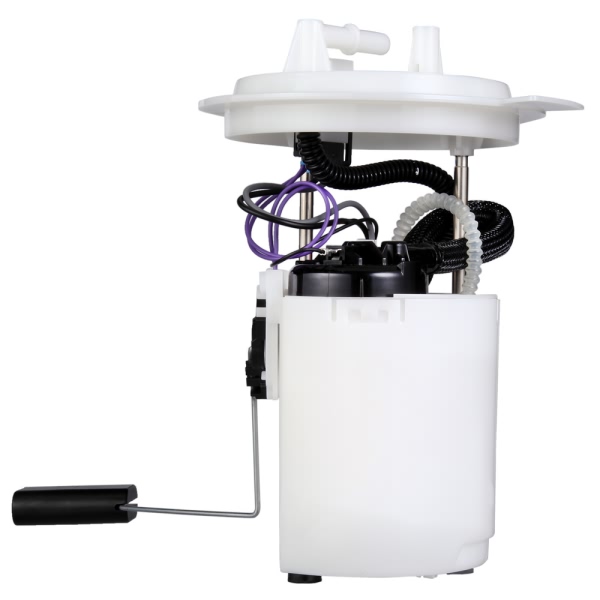

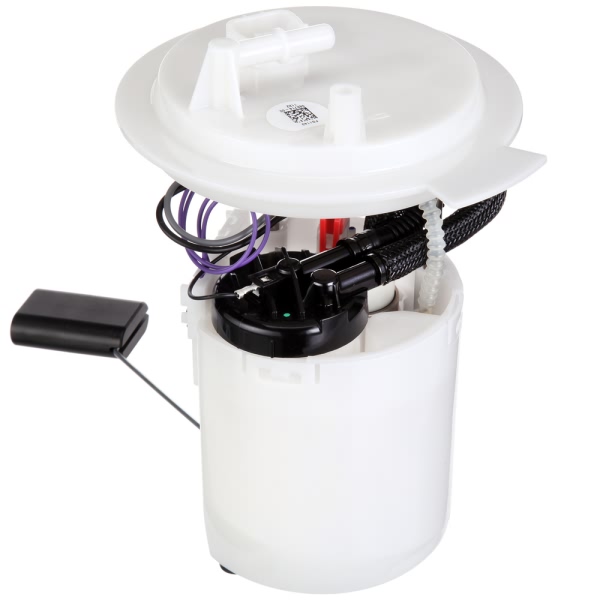

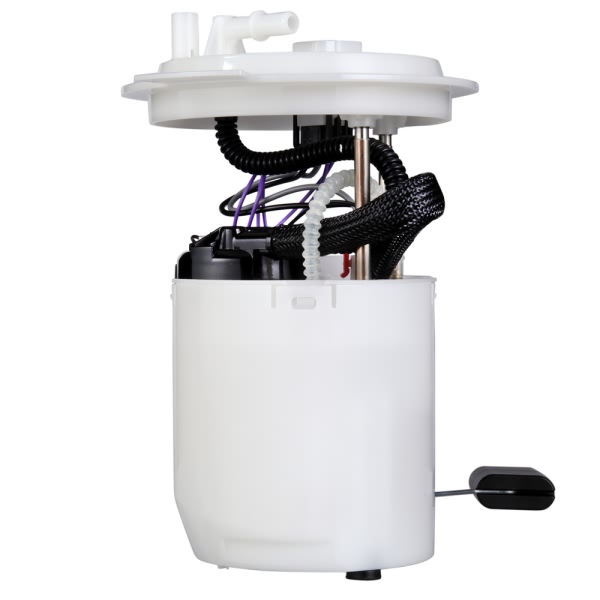

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

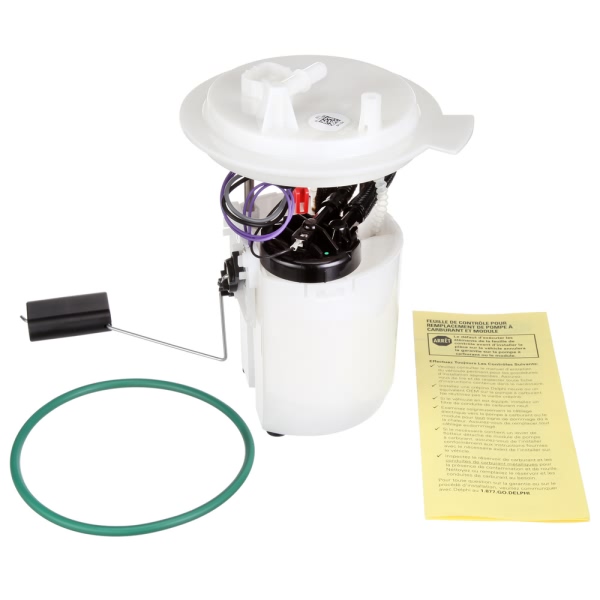

Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |

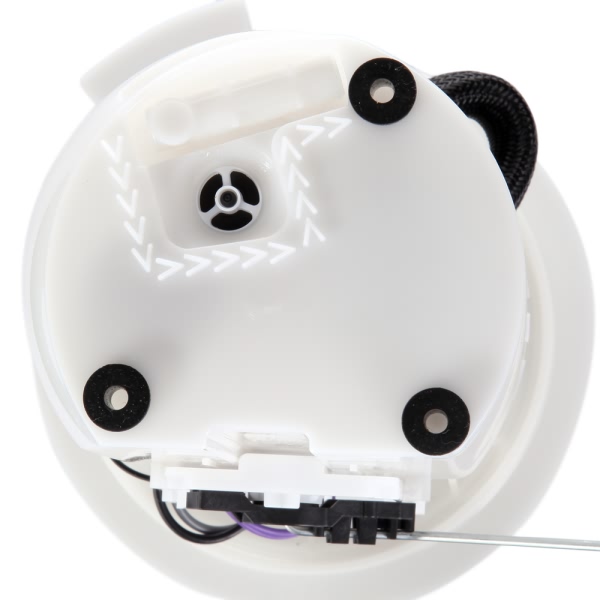

Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 65 psi |

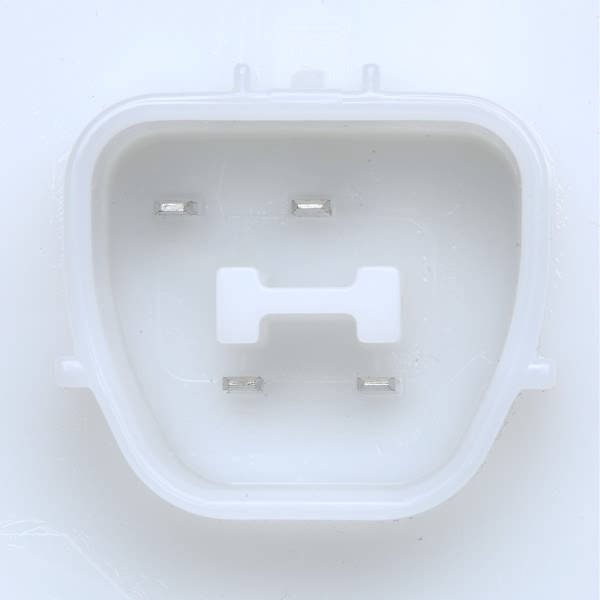

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604230831 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2006-2008 Ford Fusion | All Trims | 6 Cyl 3.0L |
2009 Ford Fusion | SE | 6 Cyl 3.0L |
2009 Ford Fusion | SEL | 6 Cyl 3.0L |
2010-2012 Ford Fusion | All Trims | 6 Cyl 3.5L |
2007-2012 Lincoln MKZ | All Trims | 6 Cyl 3.5L |
2006 Lincoln Zephyr | All Trims | 6 Cyl 3.0L |
2009-2010 Mazda 6 | All Trims | 6 Cyl 3.7L |
2006-2009 Mercury Milan | All Trims | 6 Cyl 3.0L |
