Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1139 |

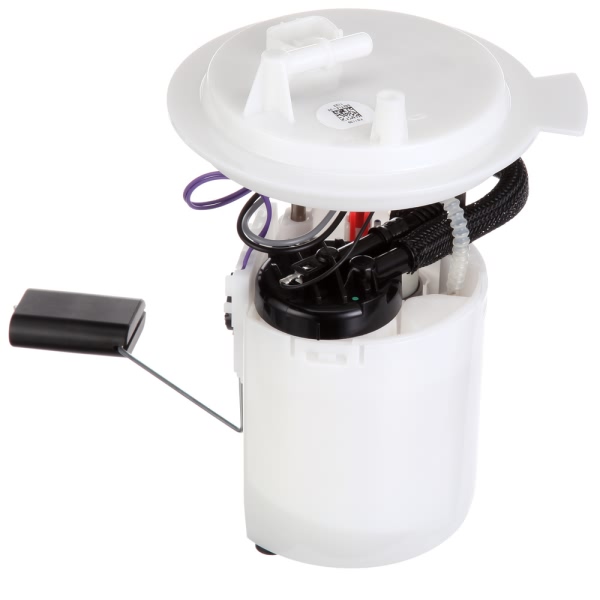

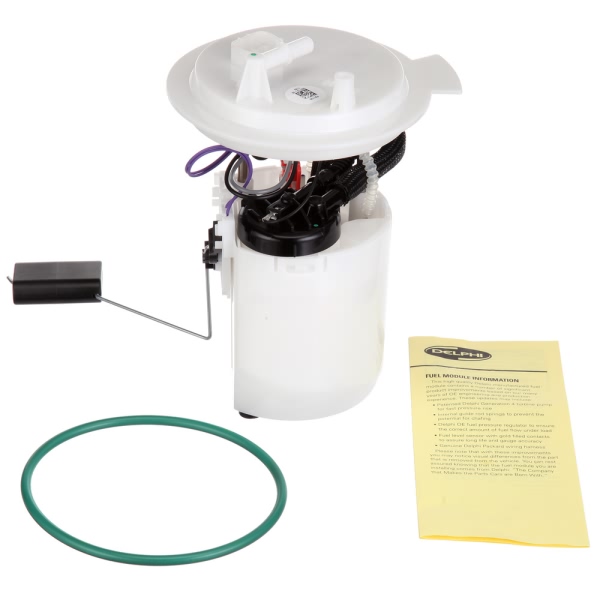

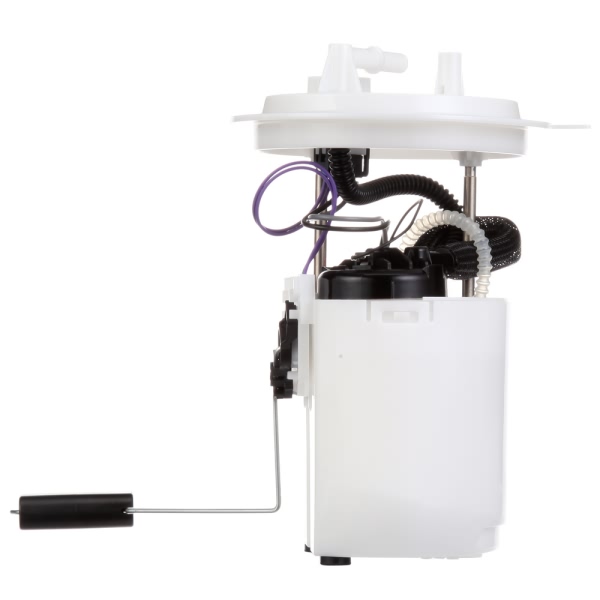

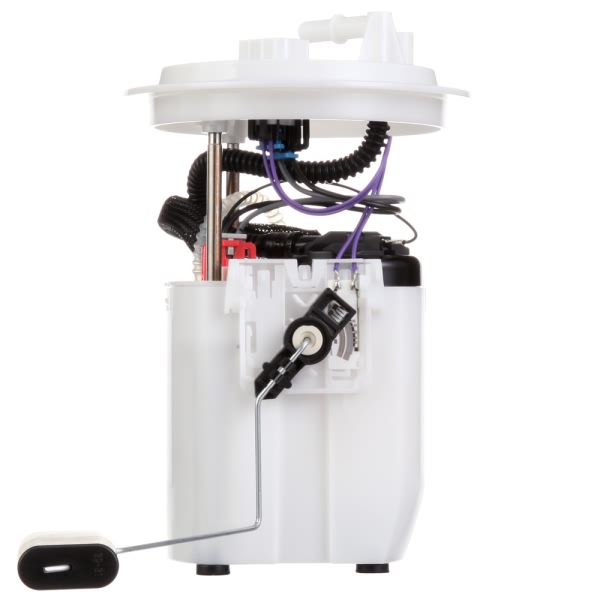

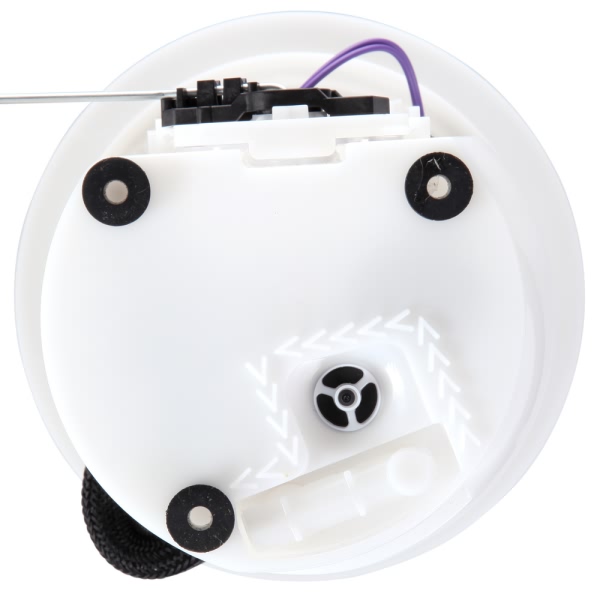

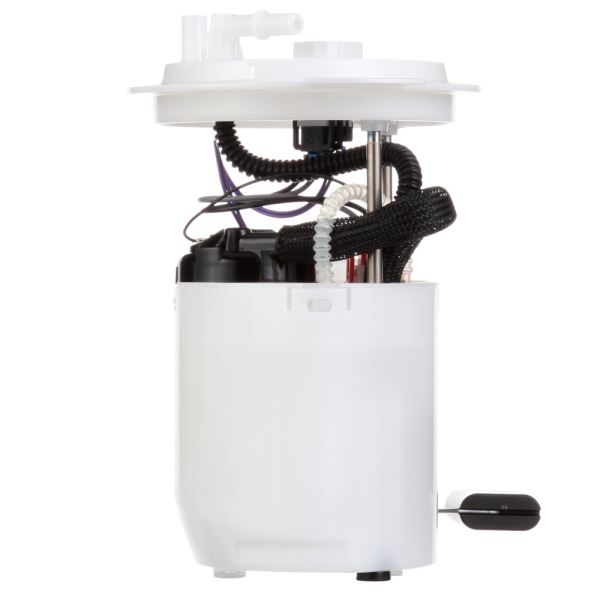

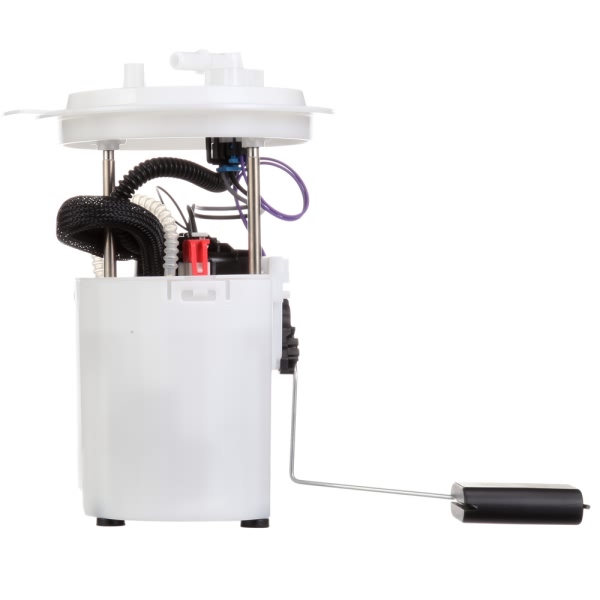

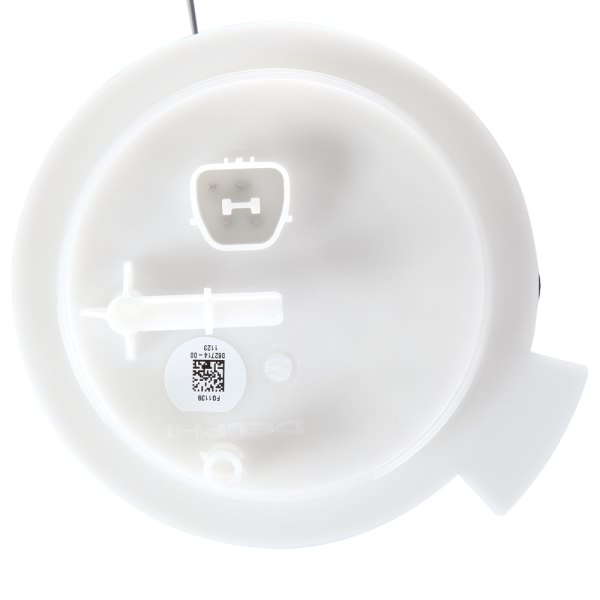

Part Description | Fuel Pump Module Assembly |
Current Draw | 9 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 120.0 |
Resistance Ohms Full | 14.0 |
Strainer Included | Yes |
System Pressure | 59 psi |
Terminal Gender | Male |

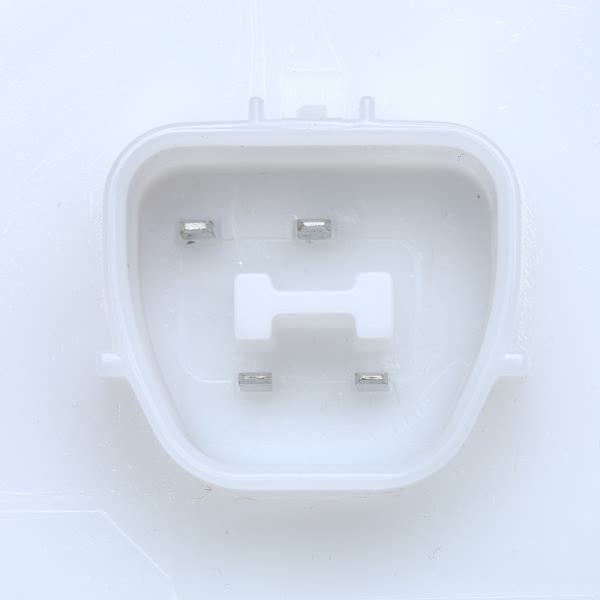

Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604230794 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2011-2014 Chrysler 200 | All Trims | 4 Cyl 2.4L |
2007-2010 Chrysler Sebring | All Trims | 4 Cyl 2.4L |
2007-2010 Chrysler Sebring | All Trims | 6 Cyl 2.7L |
2007-2010 Chrysler Sebring | All Trims | 6 Cyl 3.5L |
2008-2009 Dodge Avenger | All Trims | 6 Cyl 2.7L |
2008-2010 Dodge Avenger | All Trims | 6 Cyl 3.5L |
2008-2014 Dodge Avenger | All Trims | 4 Cyl 2.4L |
