Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1079 |
Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 23 gph |
Fuel Level Sender Assembly Included | No |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |

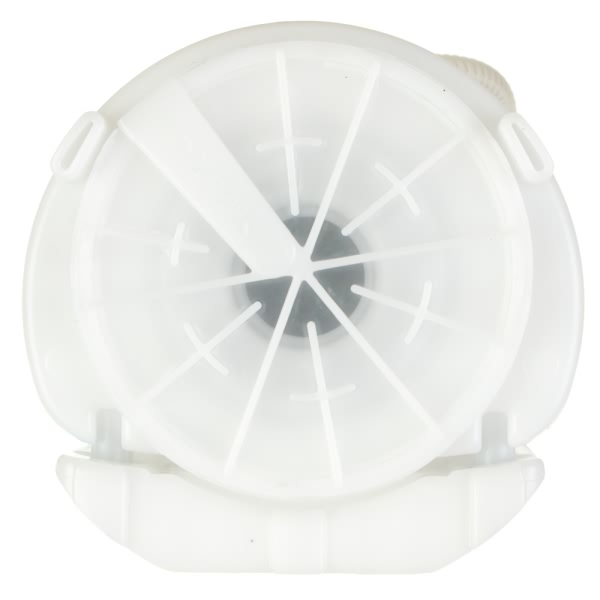

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 87.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 53.0 |
Resistance Ohms Full | 285.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

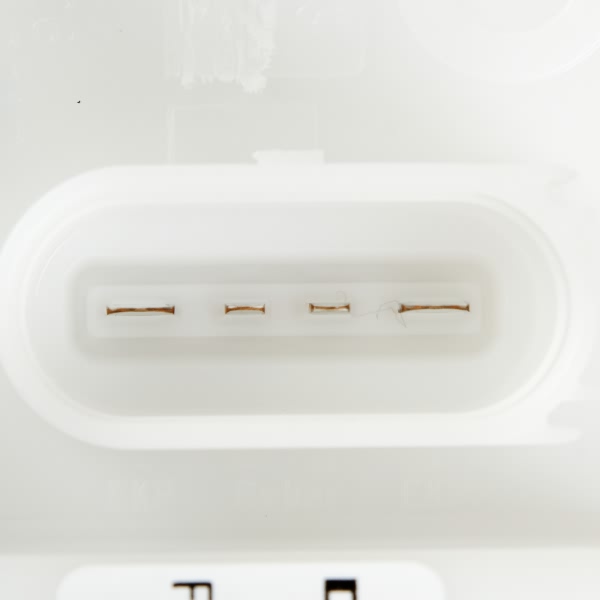

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604218631 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2000-2002 Audi TT | All Trims | 4 Cyl 1.8L |
2002-2005 Volkswagen Beetle | All Trims | 4 Cyl 1.8L |
2002-2005 Volkswagen Beetle | All Trims | 4 Cyl 2.0L |
2006-2010 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
2001 Volkswagen Golf | GL | 4 Cyl 2.0L |
2001 Volkswagen Golf | GLS | 4 Cyl 2.0L |
2002-2005 Volkswagen Golf | All Trims | 6 Cyl 2.8L |
2002-2006 Volkswagen Golf | All Trims | 4 Cyl 1.8L |
2002-2006 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
2002-2004 Volkswagen Jetta | All Trims | 6 Cyl 2.8L |
