Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1057 |

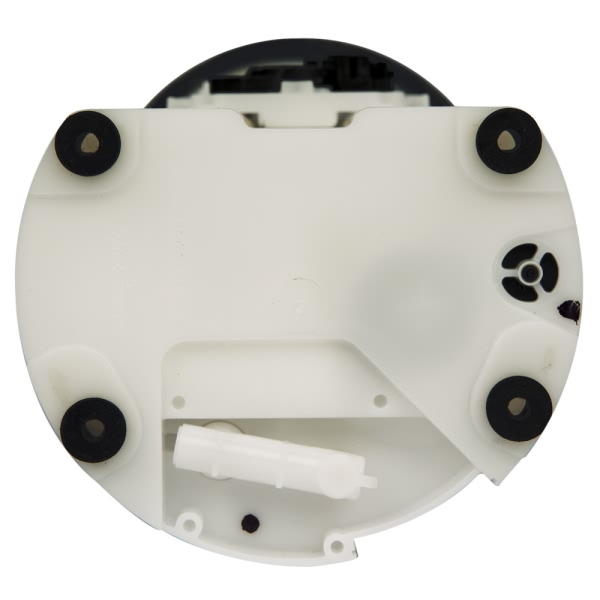

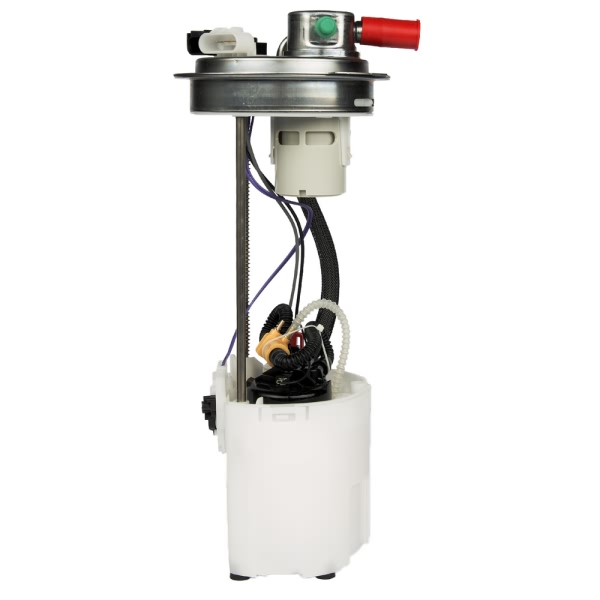

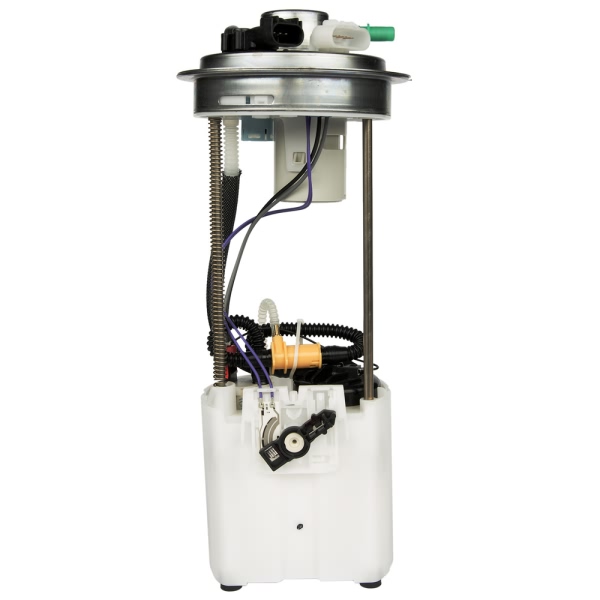

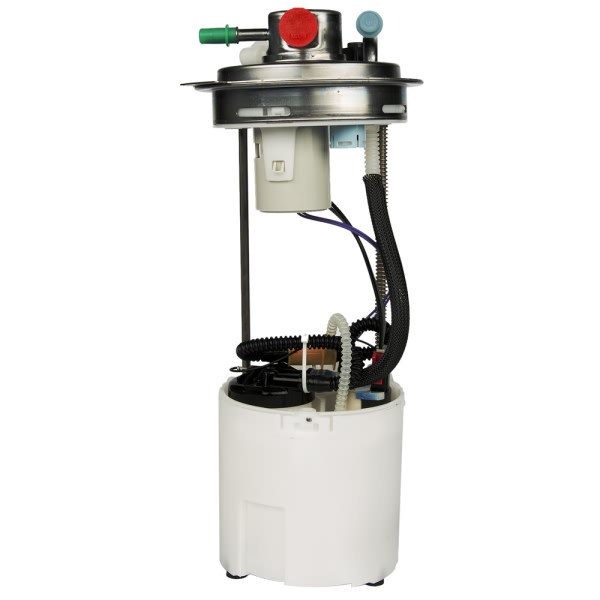

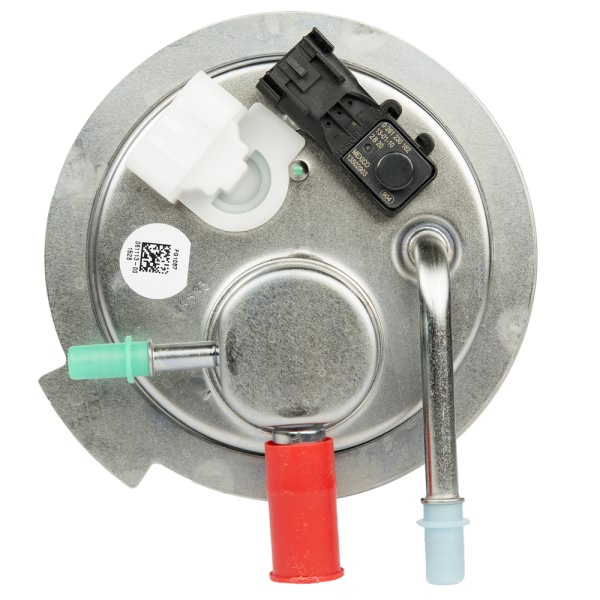

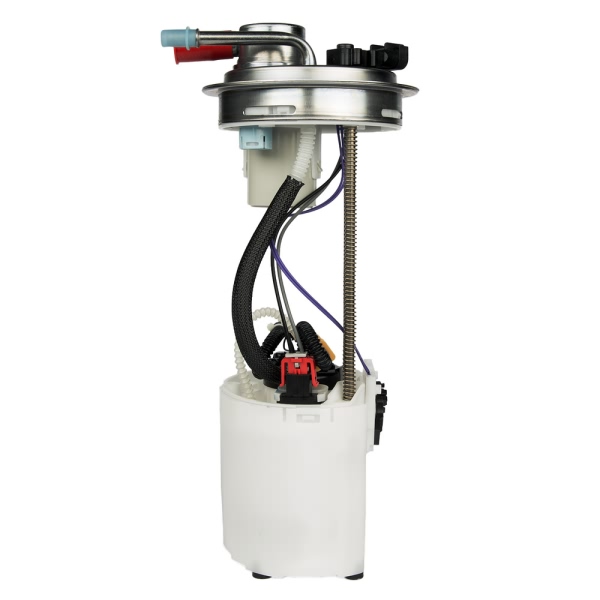

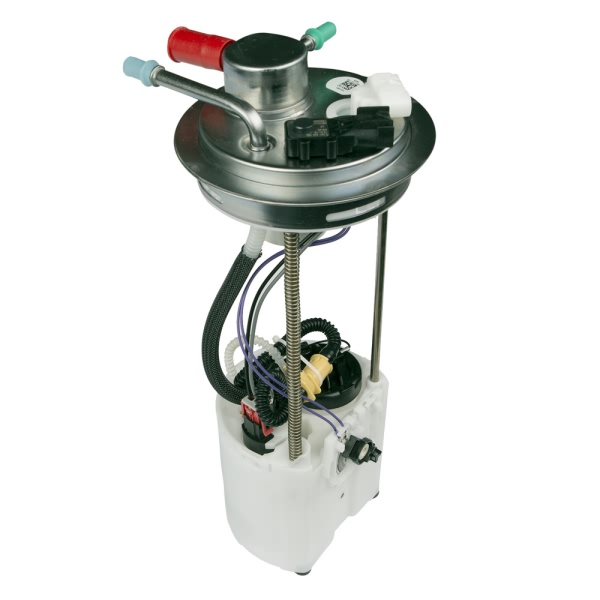

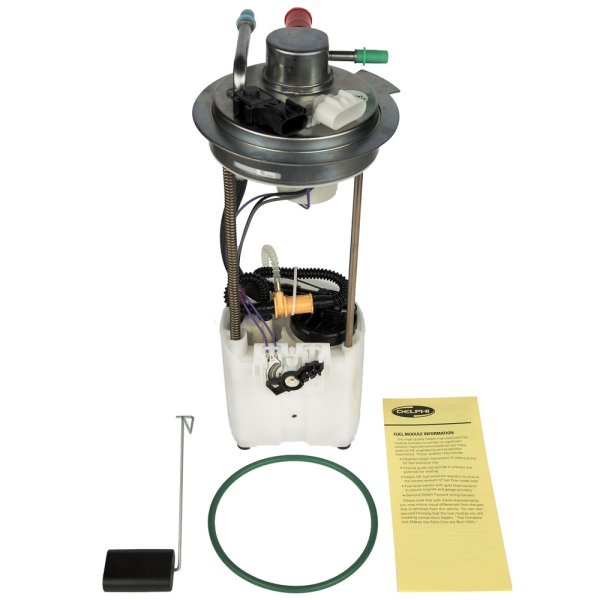

Part Description | Fuel Pump Module Assembly |
Current Draw | 11 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 73 psi |

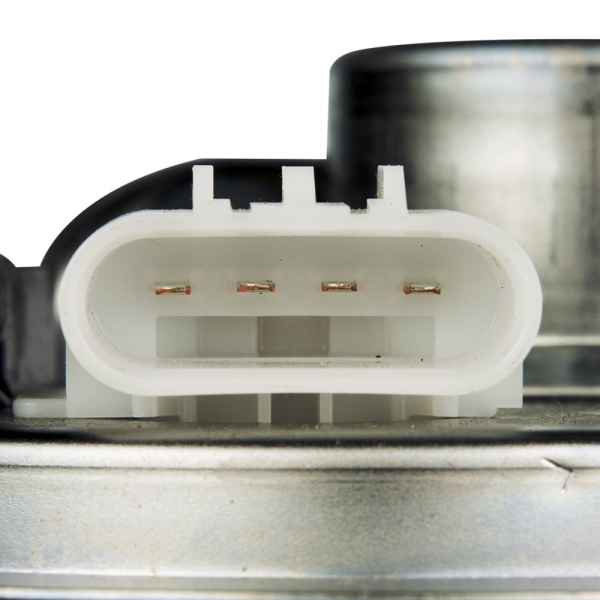

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604217290 |
Vapor Pressure Sensor | Yes |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2009 Chevrolet Silverado 1500 | All Trims | 8 Cyl 6.0L |
2009-2010 Chevrolet Silverado 1500 | All Trims | 8 Cyl 4.8L |
2009-2013 Chevrolet Silverado 1500 | All Trims | 8 Cyl 5.3L |
2009-2013 Chevrolet Silverado 1500 | All Trims | 8 Cyl 6.2L |
2011 Chevrolet Silverado 1500 | LS | 8 Cyl 4.8L |
2011 Chevrolet Silverado 1500 | LT | 8 Cyl 4.8L |
2011 Chevrolet Silverado 1500 | WT | 8 Cyl 4.8L |
2012-2013 Chevrolet Silverado 1500 | All Trims | 8 Cyl 4.8L |
2009 GMC Sierra 1500 | All Trims | 8 Cyl 6.0L |
2009-2013 GMC Sierra 1500 | All Trims | 8 Cyl 4.8L |
