Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1055 |

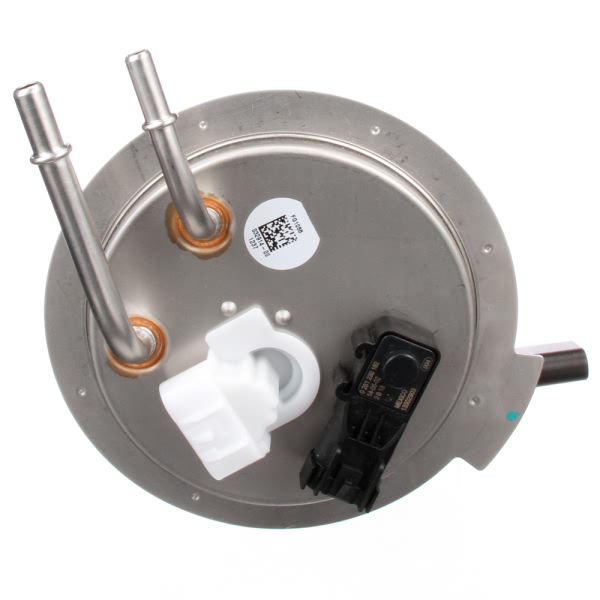

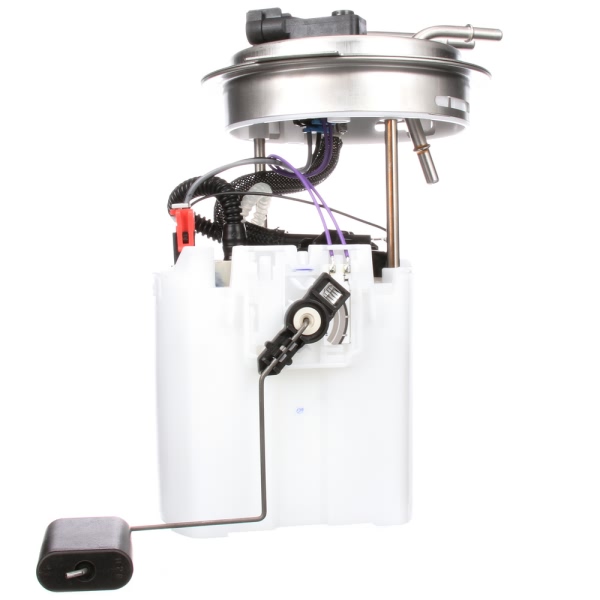

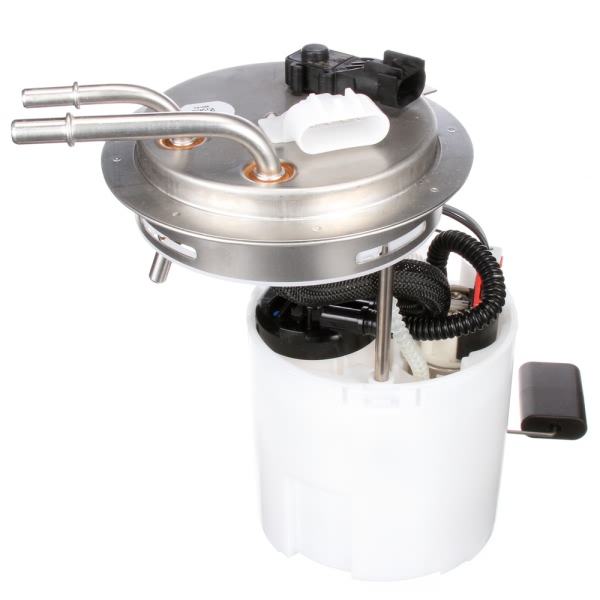

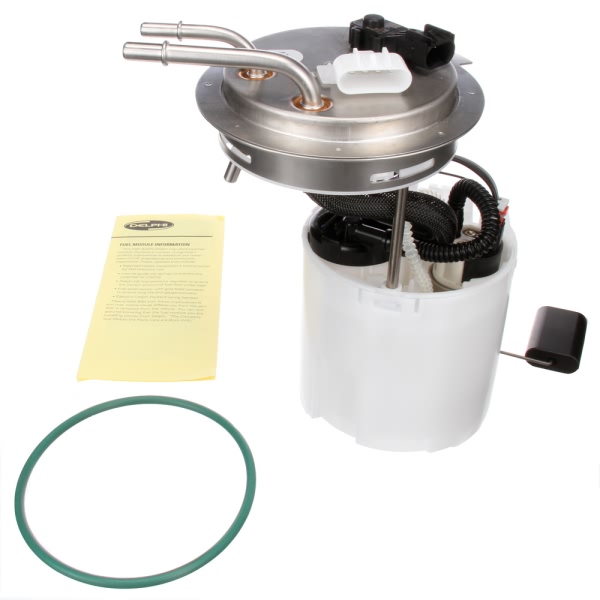

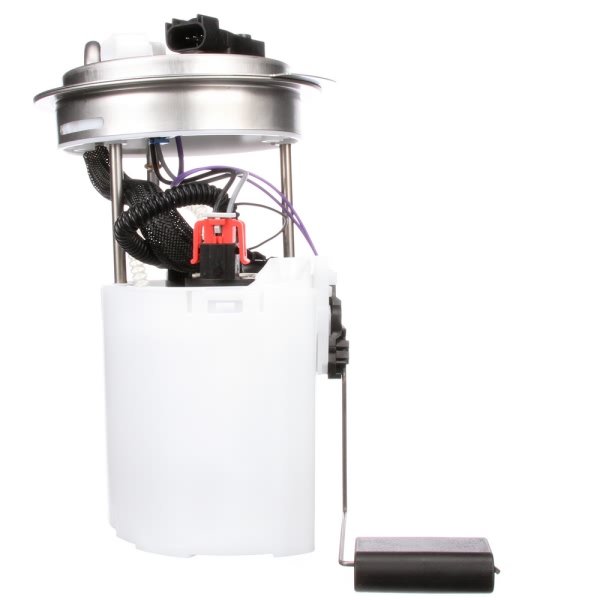

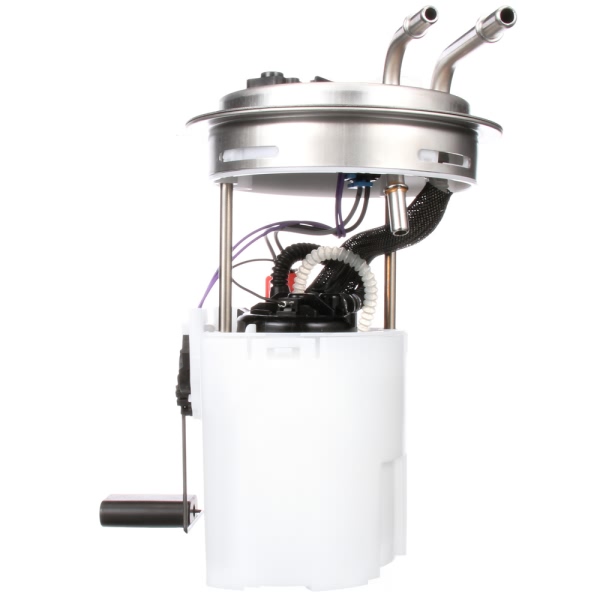

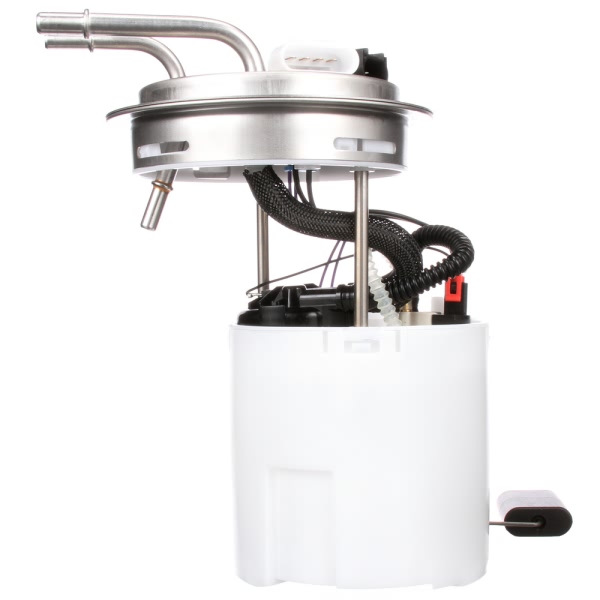

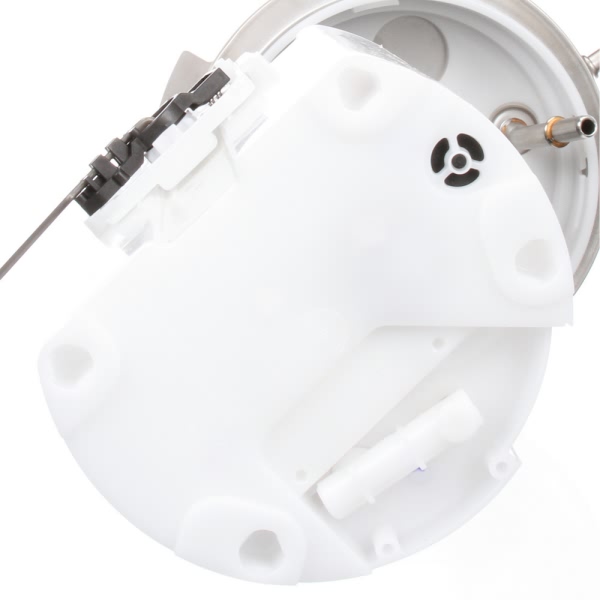

Part Description | Fuel Pump Module Assembly |
Current Draw | 11 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 73 psi |
Terminal Gender | Male |

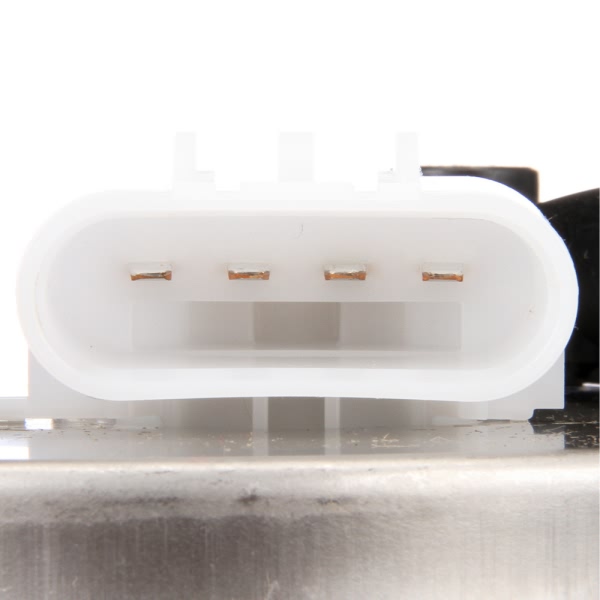

Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604215876 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2009-2014 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
2009-2013 Cadillac Escalade EXT | All Trims | 8 Cyl 6.2L |
2008-2013 Chevrolet Avalanche | All Trims | 8 Cyl 5.3L |
2008-2014 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L |
2008-2011 GMC Yukon XL 1500 | All Trims | 8 Cyl 5.3L |
2009-2011 GMC Yukon XL 1500 | All Trims | 8 Cyl 6.2L |
2012 GMC Yukon XL 1500 | SLE | 8 Cyl 5.3L |
2012 GMC Yukon XL 1500 | SLT | 8 Cyl 5.3L |
2012-2013 GMC Yukon XL 1500 | Denali | 8 Cyl 6.2L |
2013-2014 GMC Yukon XL 1500 | All Trims | 8 Cyl 5.3L |
