Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1016 |

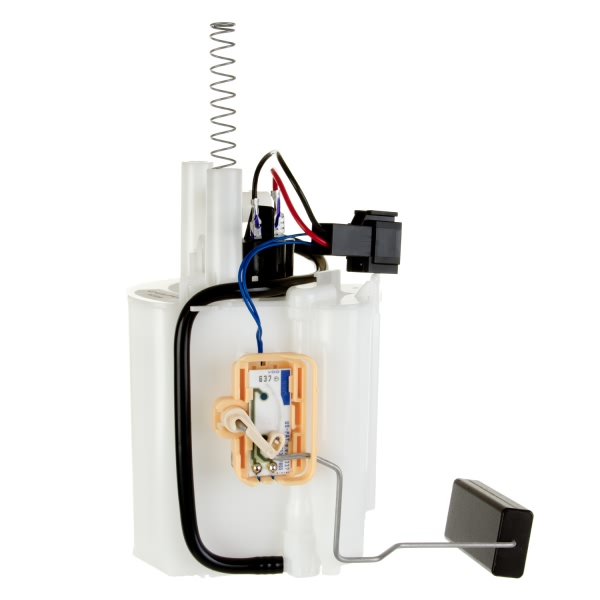

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 38 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.625'' |
Outlet Quantity | 1 |
Outlet Type | Hose |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 650.0 |
Resistance Ohms Full | 51.0 |
Strainer Included | Yes |
System Pressure | 58 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604216989 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2002 Mercedes-Benz C230 | All Trims | 4 Cyl 2.3L |
2003-2005 Mercedes-Benz C230 | All Trims | 4 Cyl 1.8L |
2006 Mercedes-Benz C230 | All Trims | 6 Cyl 2.5L |
2002-2005 Mercedes-Benz C240 | All Trims | 6 Cyl 2.6L |
2006-2007 Mercedes-Benz C280 | All Trims | 6 Cyl 3.0L |
2002 Mercedes-Benz C320 | All Trims | 6 Cyl 3.2L |
2003-2005 Mercedes-Benz C320 | 4Matic | 6 Cyl 3.2L |
2003-2005 Mercedes-Benz C320 | Base | 6 Cyl 3.2L |
2003-2005 Mercedes-Benz CLK320 | All Trims | 6 Cyl 3.2L |
