Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0986 |

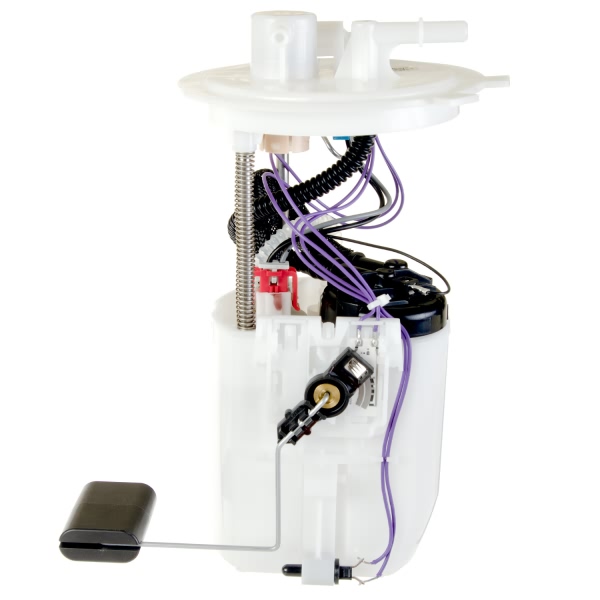

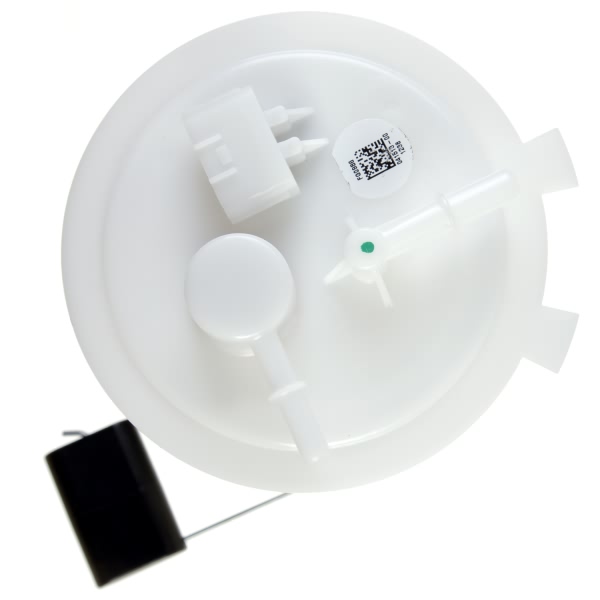

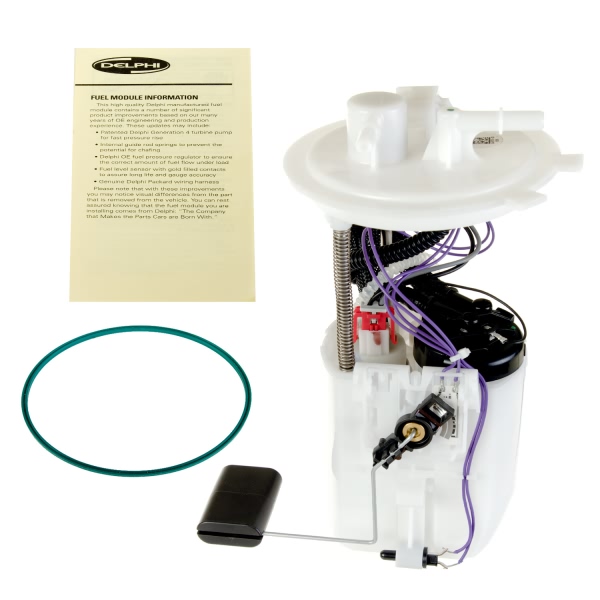

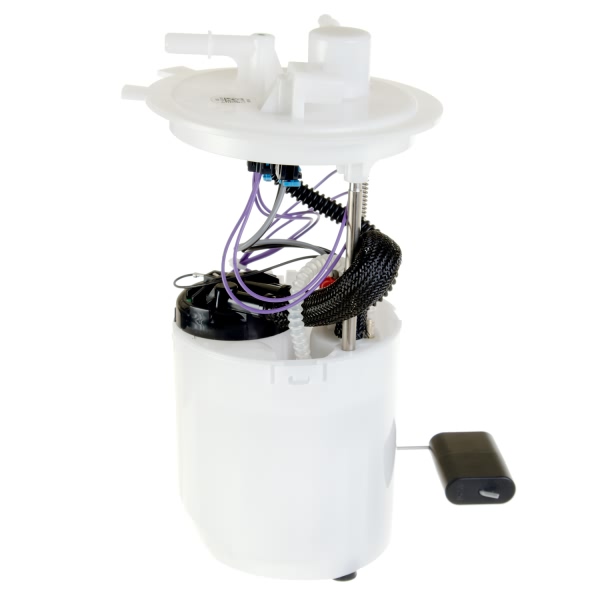

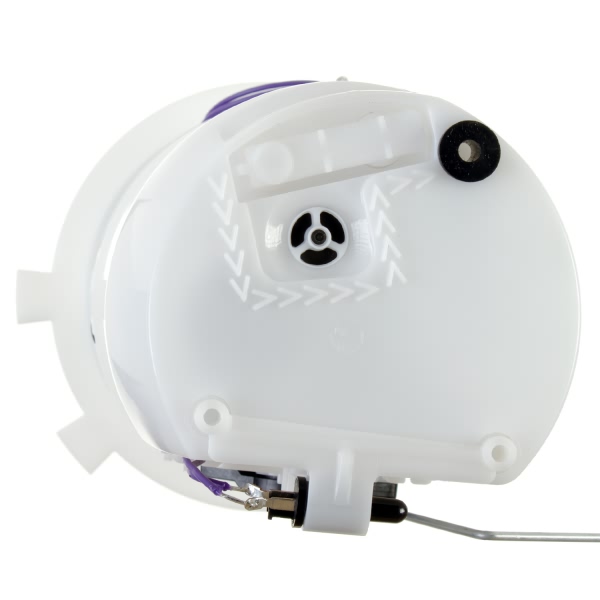

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 23 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 80.0 |
Resistance Ohms Full | 5.0 |
Strainer Included | Yes |
System Pressure | 49 psi |

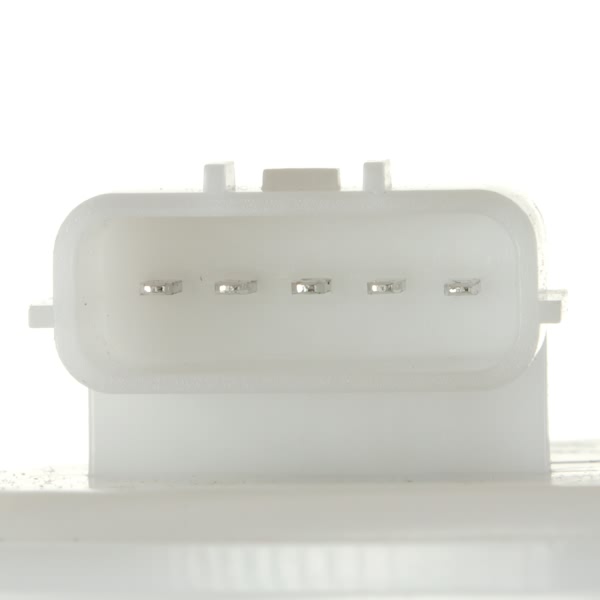

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 886931332003 |
Vapor Pressure Sensor | No |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2007-2012 Nissan Altima | All Trims | 4 Cyl 2.5L |
2007-2012 Nissan Altima | All Trims | 6 Cyl 3.5L |
2013 Nissan Altima | S | 4 Cyl 2.5L |
2009-2014 Nissan Maxima | All Trims | 6 Cyl 3.5L |
