Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0983 |

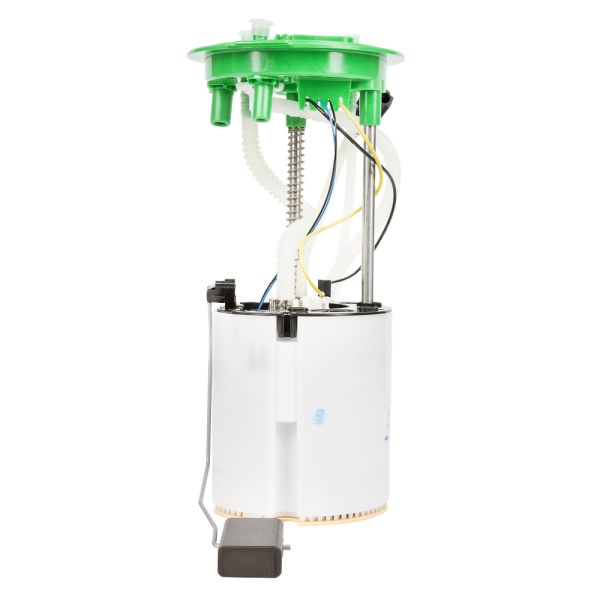

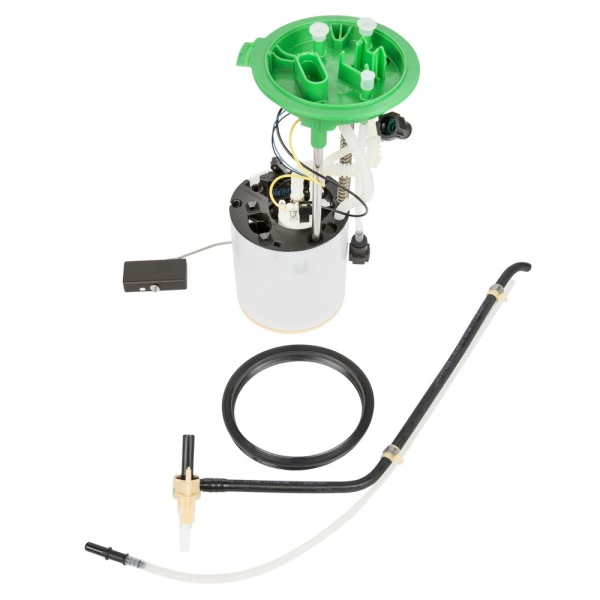

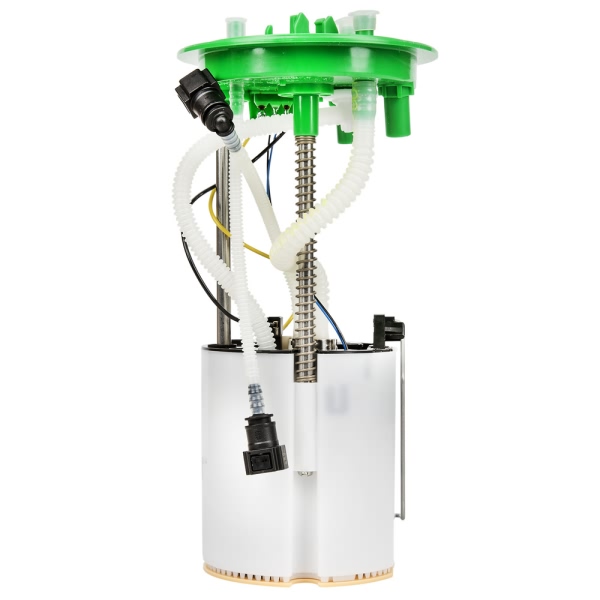

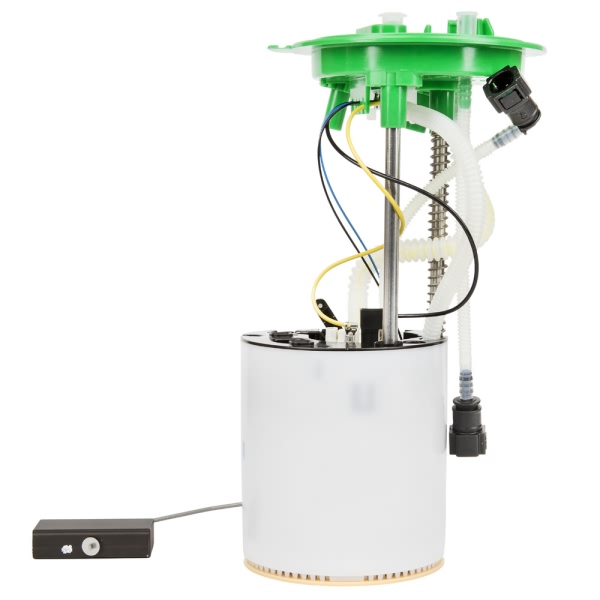

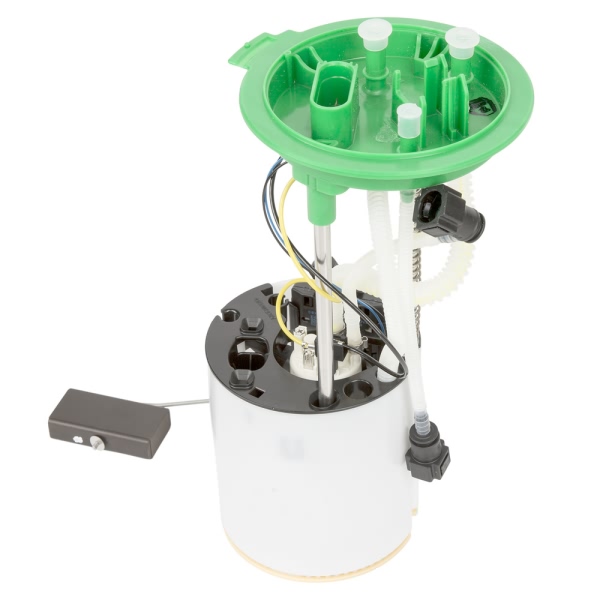

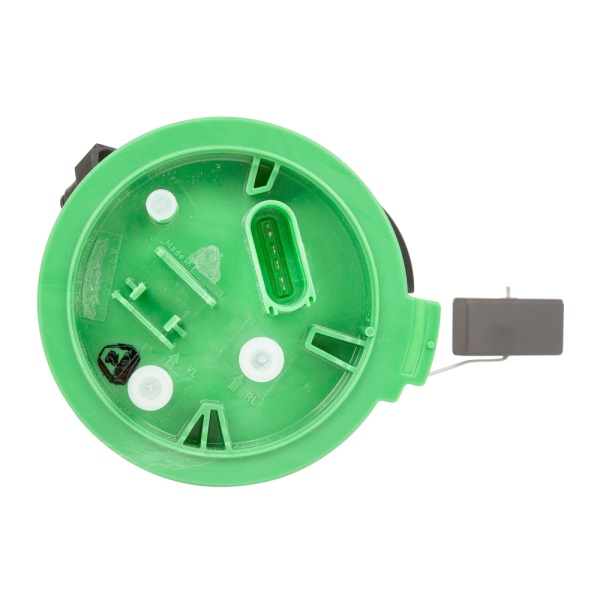

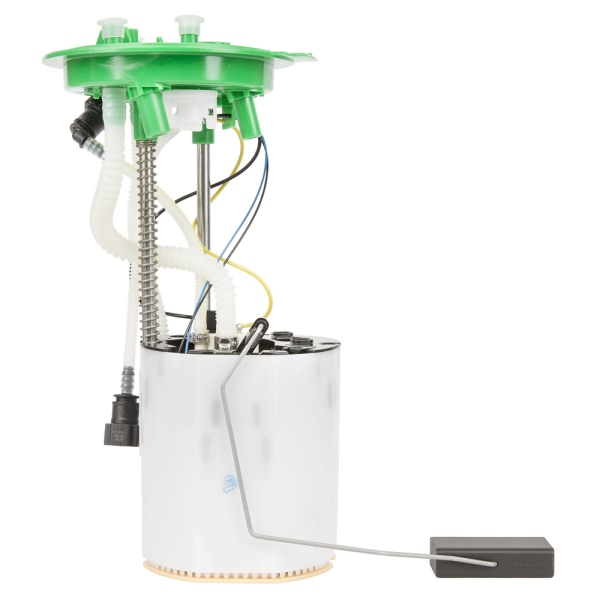

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 48 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |

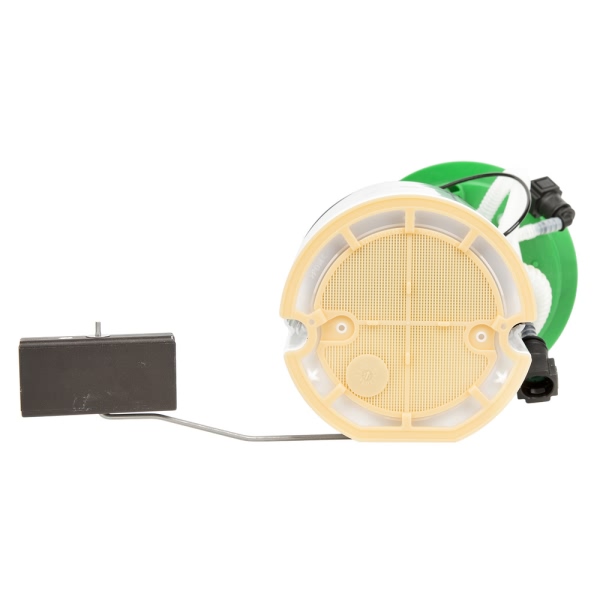

Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 105.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 305.0 |
Resistance Ohms Full | 55.0 |
Strainer Included | Yes |
System Pressure | 73 psi |
Terminal Gender | Male |

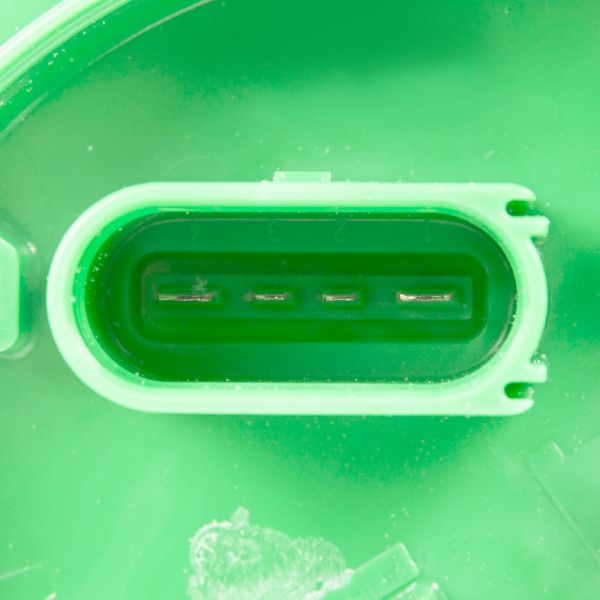

Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604214237 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Audi A4 | All Trims | 4 Cyl 2.0L |
2006 Audi A4 | All Trims | 6 Cyl 3.2L |
2007-2009 Audi A4 | All Trims | All Engines |
