Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |

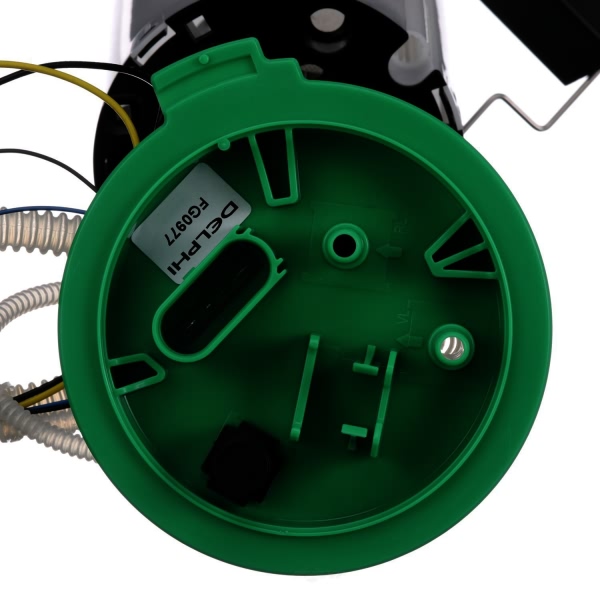

Part Number | FG0977 |

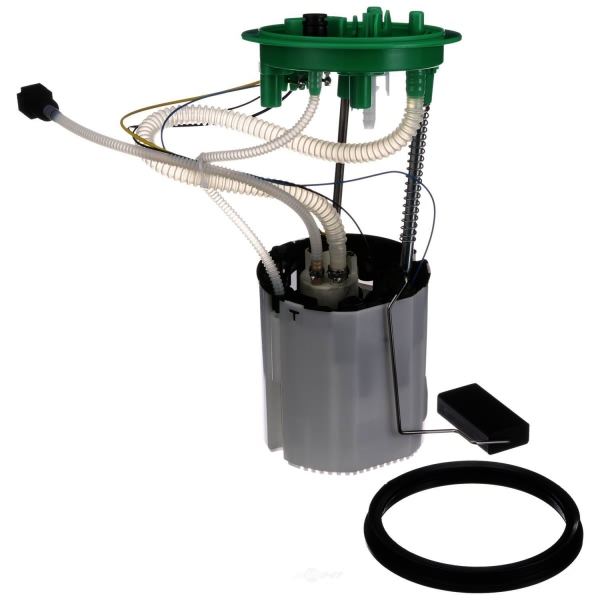

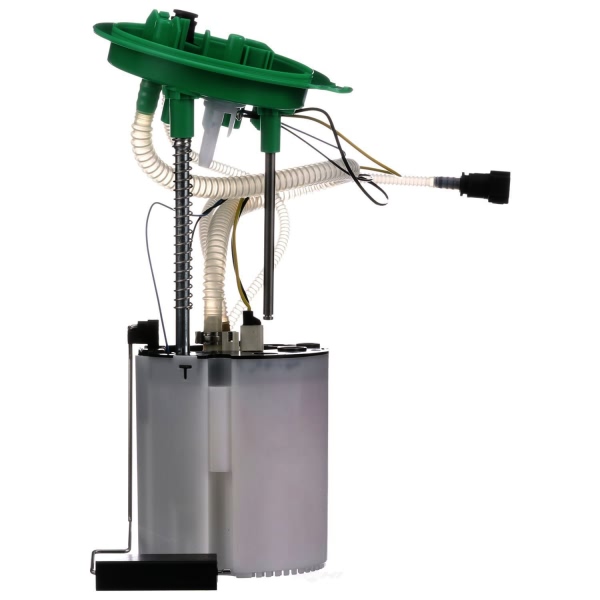

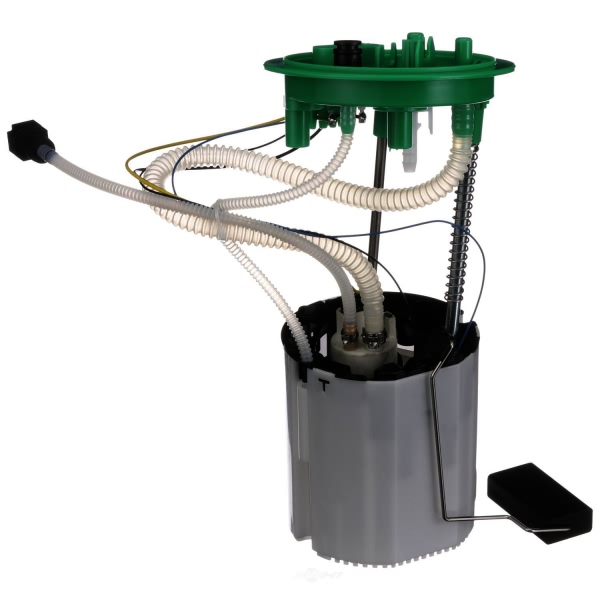

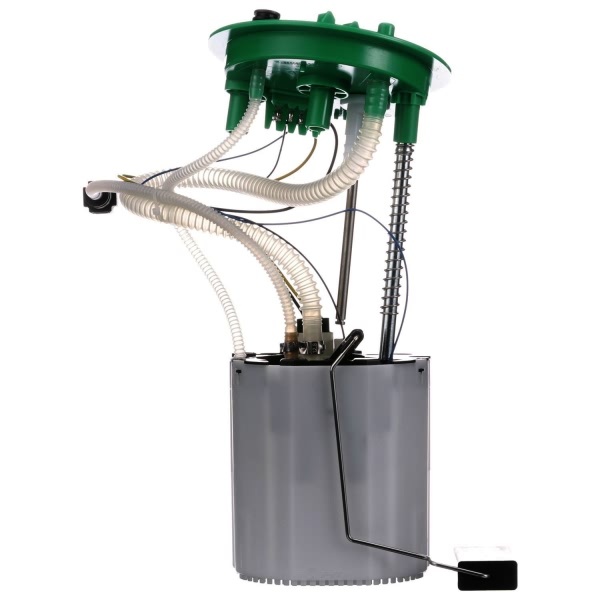

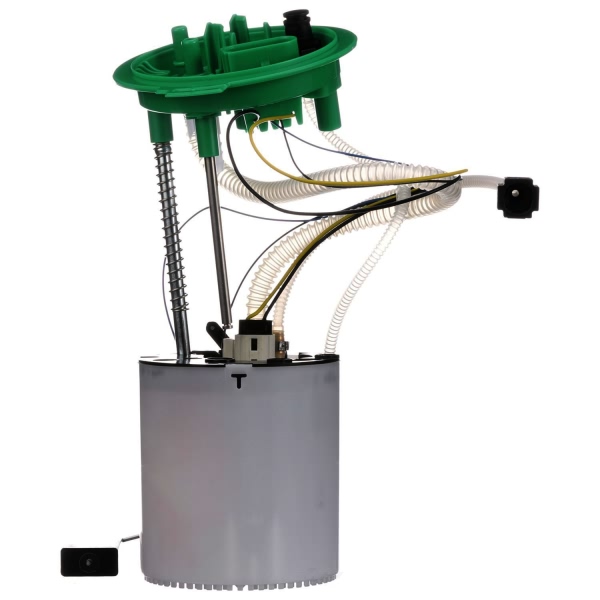

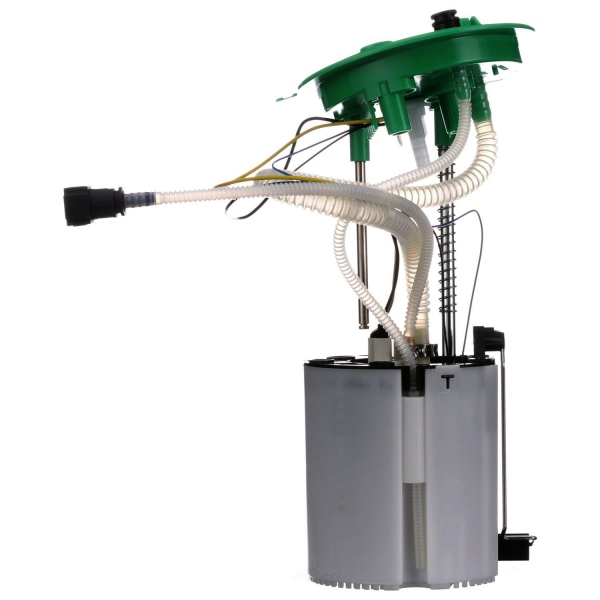

Part Description | Fuel Pump Module Assembly |
Current Draw | 9 |
Flow Rating | 45 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |

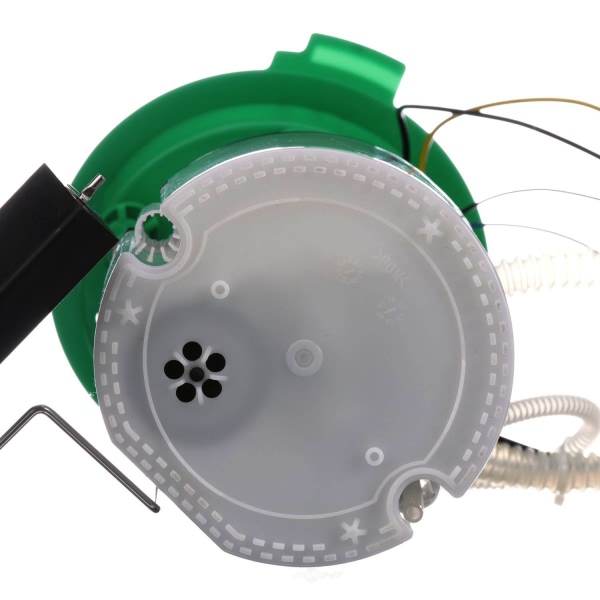

Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 109.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |

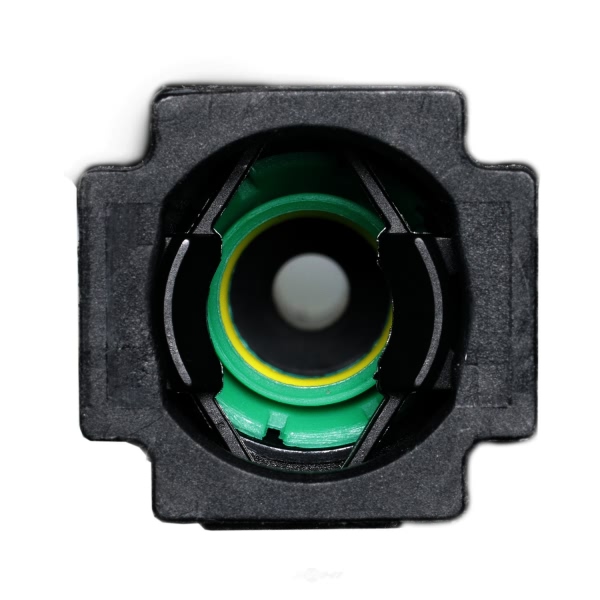

Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 300.0 |
Resistance Ohms Full | 46.0 |
Strainer Included | Yes |
System Pressure | 87 psi |

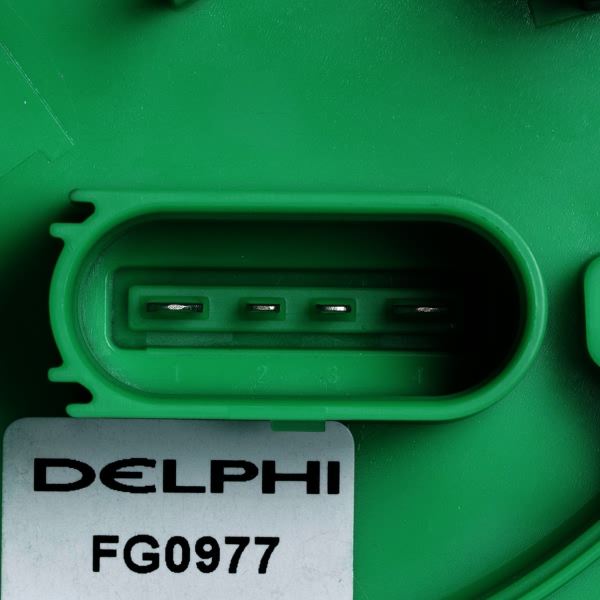

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604214176 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Audi A4 Quattro | All Trims | 4 Cyl 2.0L |
2005-2006 Audi A4 Quattro | All Trims | 6 Cyl 3.2L |
2007-2008 Audi A4 Quattro | All Trims | All Engines |
2009 Audi A4 Quattro | All Trims | 4 Cyl 2.0L |
2007-2008 Audi RS4 | All Trims | All Engines |
