Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0958 |

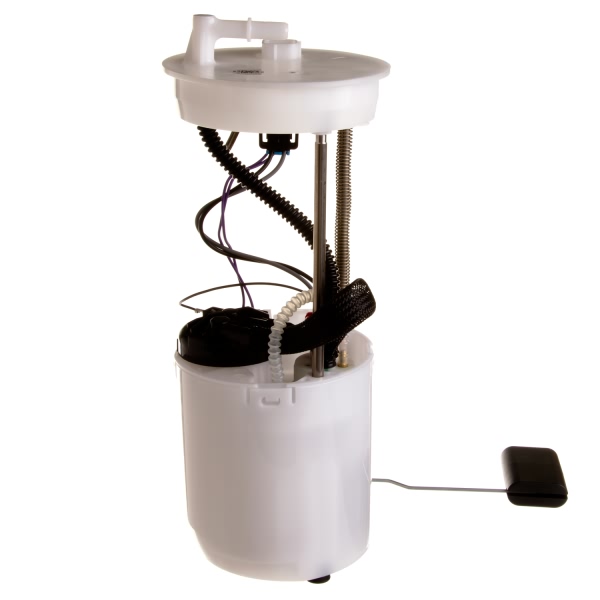

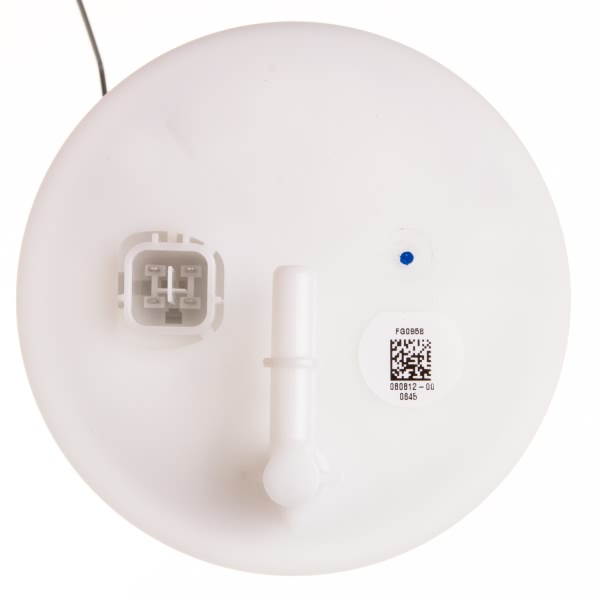

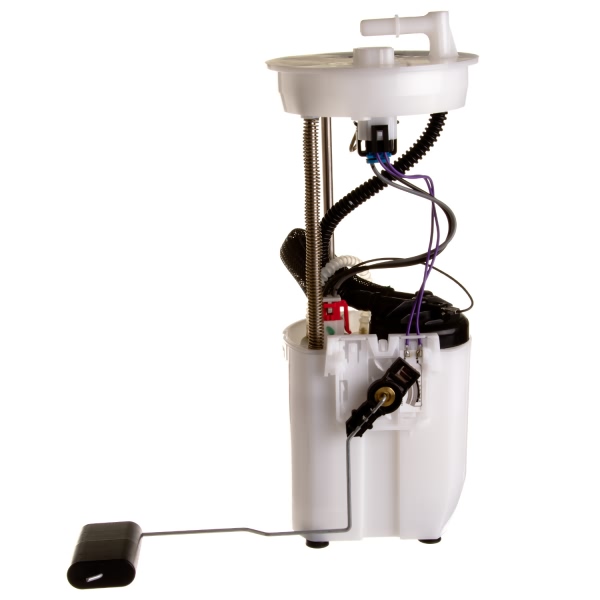

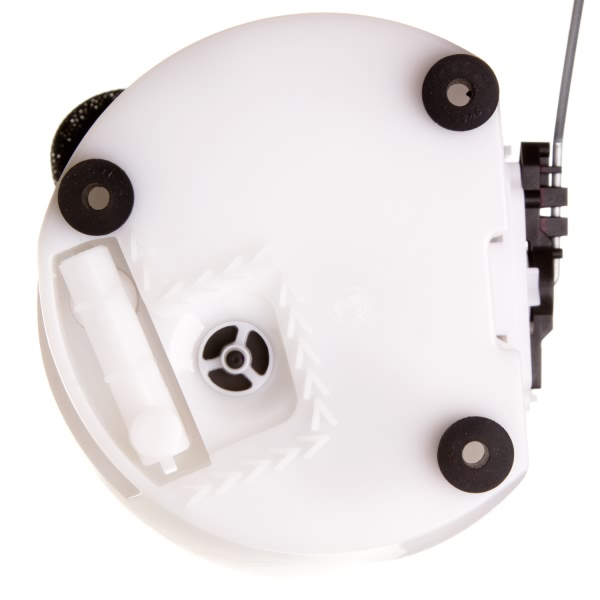

Part Description | Fuel Pump Module Assembly |
Current Draw | 14 |
Flow Rating | 21 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

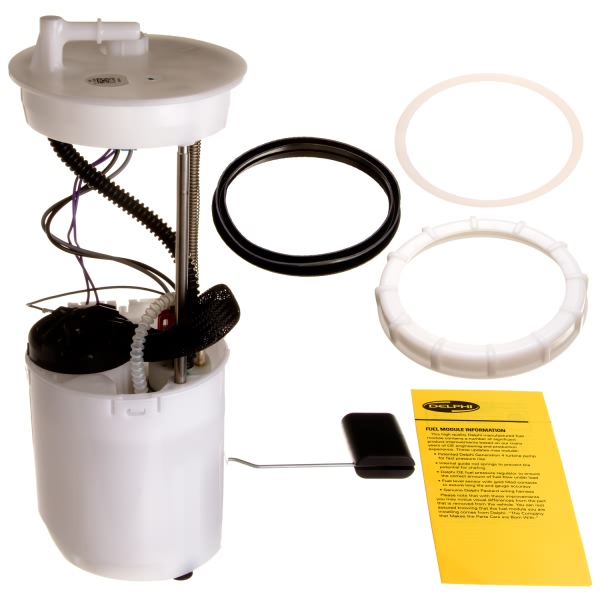

Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 780.0 |
Resistance Ohms Full | 20.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

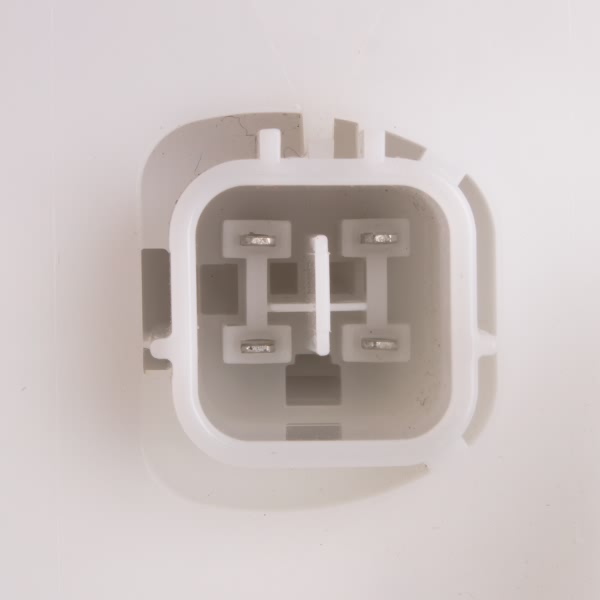

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604214671 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2007-2013 Acura MDX | All Trims | 6 Cyl 3.7L |
2010-2013 Acura ZDX | All Trims | 6 Cyl 3.7L |
2009-2011 Honda Pilot | All Trims | 6 Cyl 3.5L |
2014-2015 Honda Pilot | All Trims | 6 Cyl 3.5L |
