Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0957 |

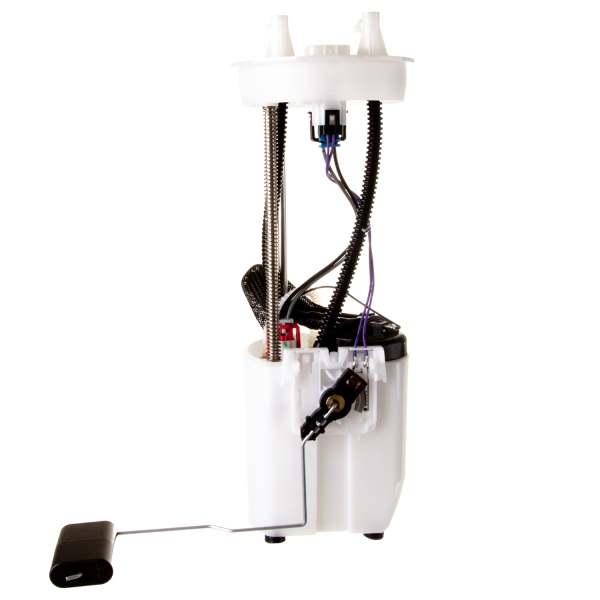

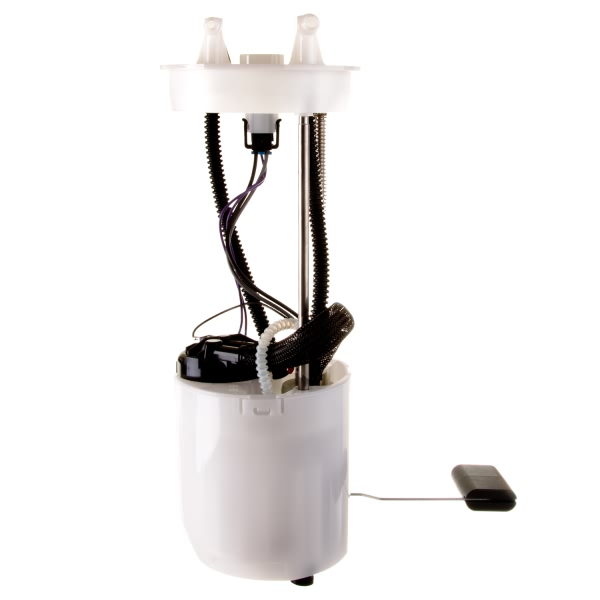

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 40 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

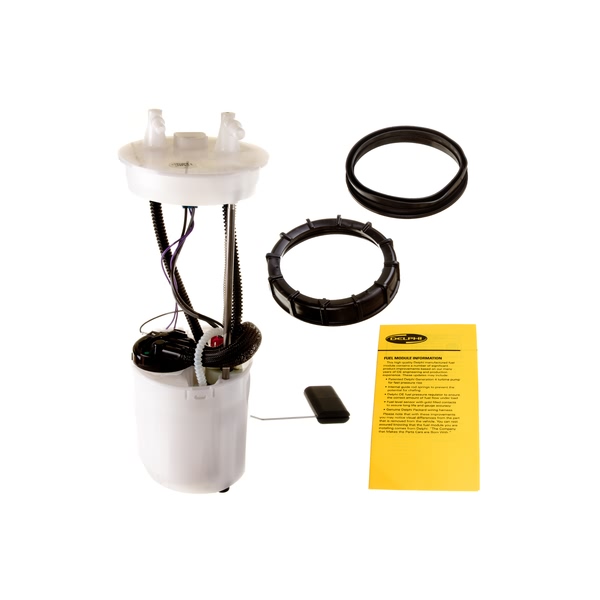

Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 131.0 |
Resistance Ohms Full | 12.0 |
Strainer Included | Yes |
System Pressure | 54 psi |

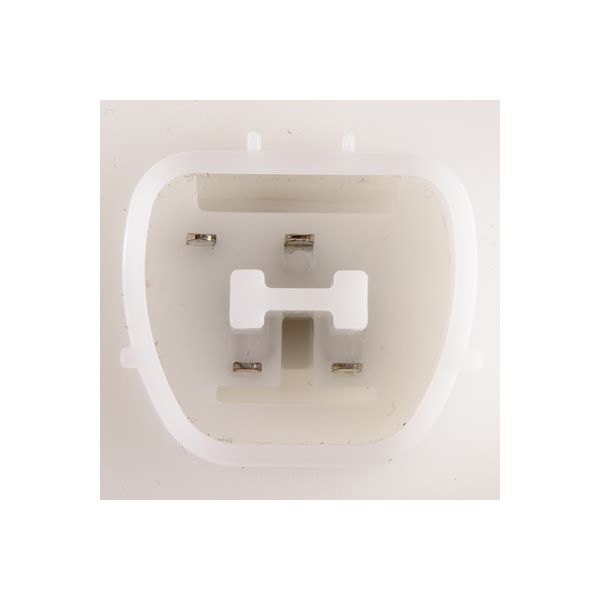

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604214664 |
Vapor Pressure Sensor | No |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Acura MDX | All Trims | 6 Cyl 3.5L |
2003-2004 Honda Pilot | All Trims | 6 Cyl 3.5L |
