Check if it fits by entering your vehicle infoBrand | Delphi |

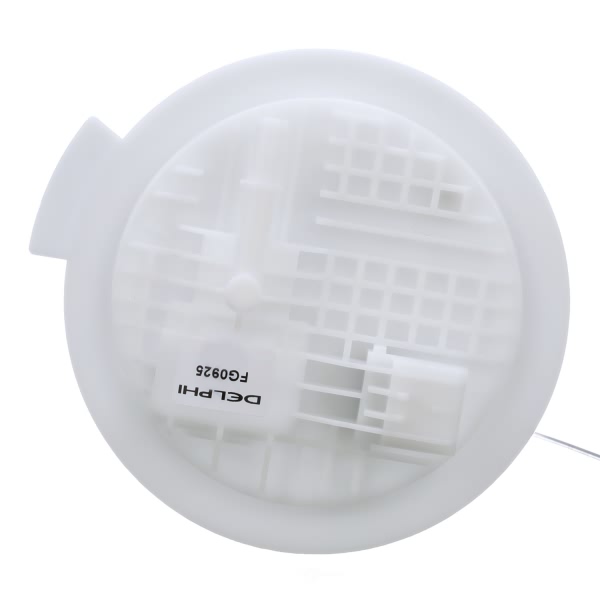

Part Number | FG0925 |

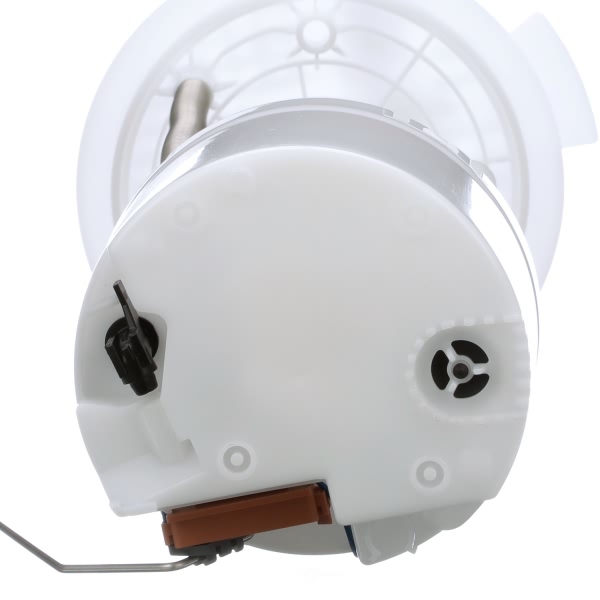

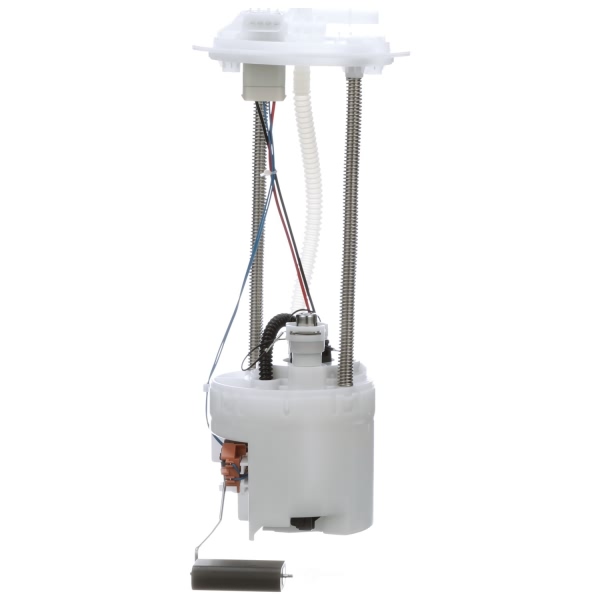

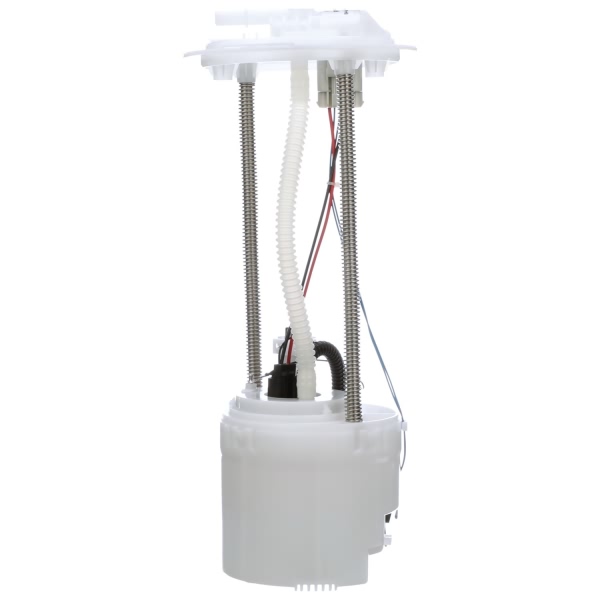

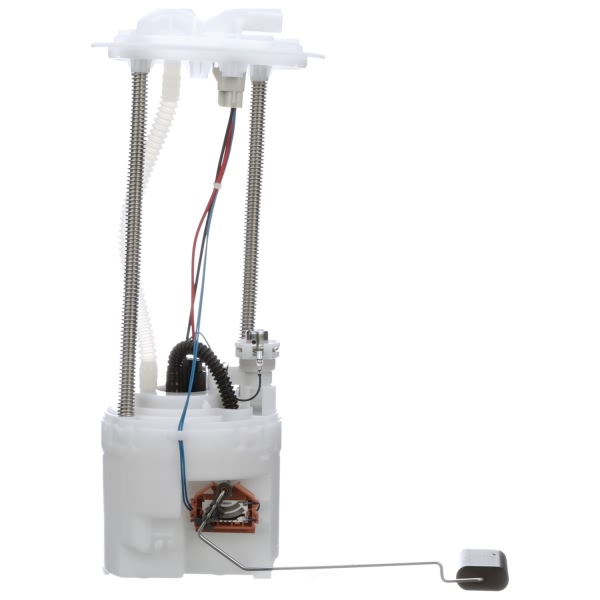

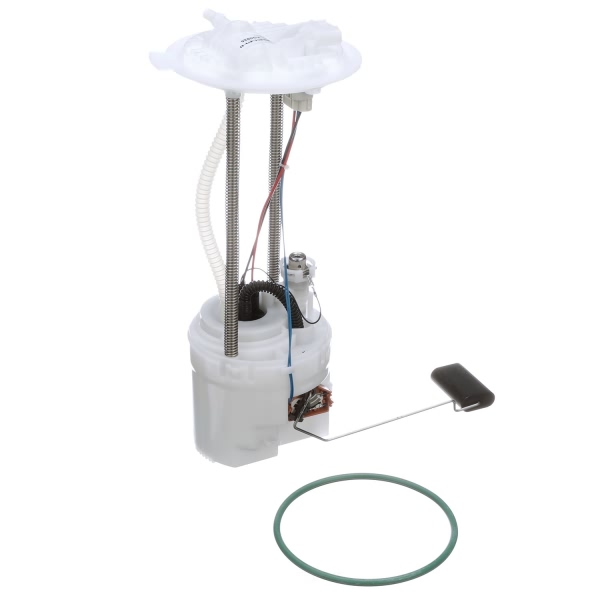

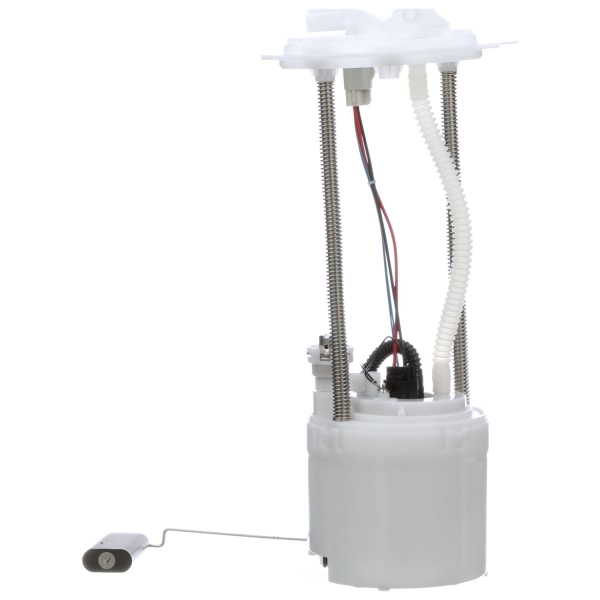

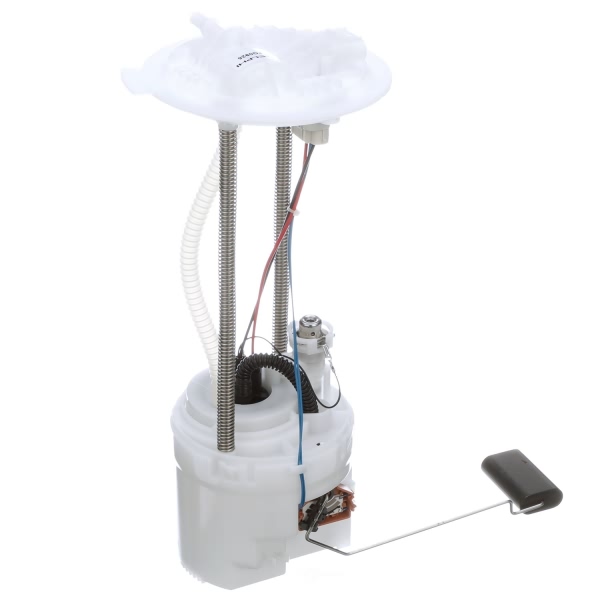

Part Description | Fuel Pump Module Assembly |
Current Draw | 12 |
Flow Rating | 29 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 80.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 220.0 |
Resistance Ohms Full | 20.0 |
Strainer Included | Yes |
System Pressure | 58 psi |

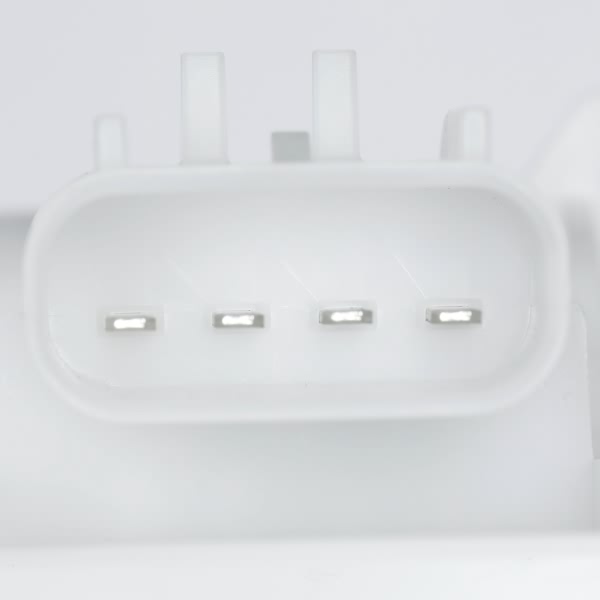

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604207376 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Dodge Dakota | All Trims | 8 Cyl 4.7L |
2005-2009 Dodge Dakota | All Trims | 6 Cyl 3.7L |
2006-2007 Mitsubishi Raider | All Trims | 8 Cyl 4.7L |
2006-2009 Mitsubishi Raider | All Trims | 6 Cyl 3.7L |
