Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0912 |
Part Description | Fuel Pump Module Assembly |
Current Draw | 11 |
Flow Rating | 21 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 65.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 780.0 |
Resistance Ohms Full | 20.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

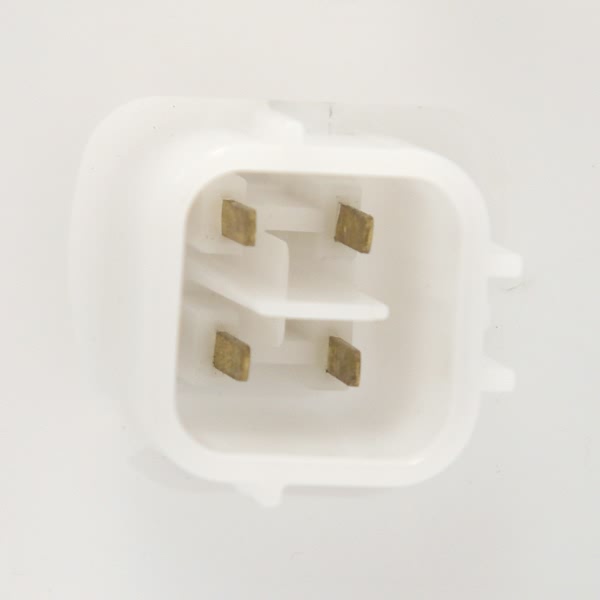

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604205334 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2009-2014 Acura TSX | All Trims | 4 Cyl 2.4L |
2008-2012 Honda Accord | All Trims | 4 Cyl 2.4L |
2012 Honda Crosstour | All Trims | 4 Cyl 2.4L |
