Check if it fits by entering your vehicle infoBrand | Delphi |

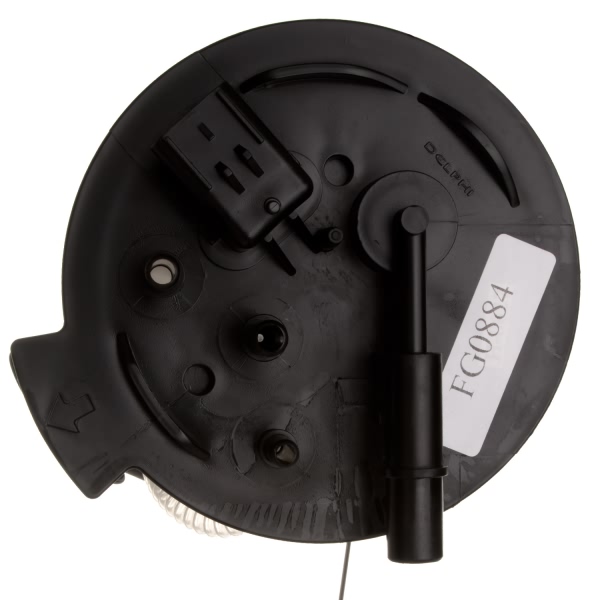

Part Number | FG0884 |

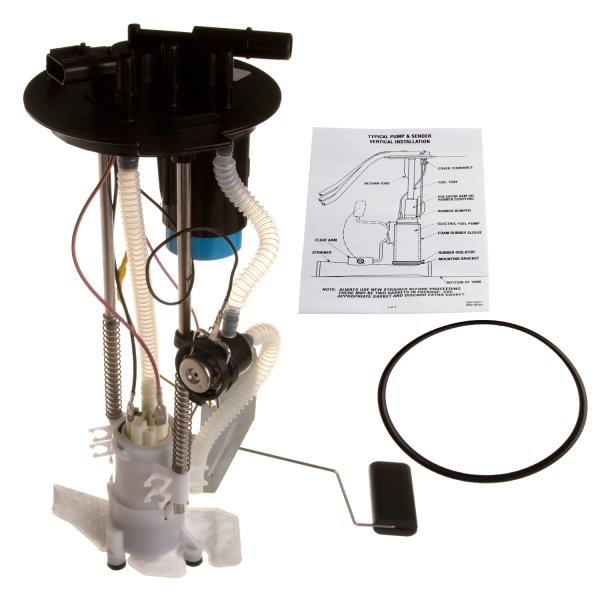

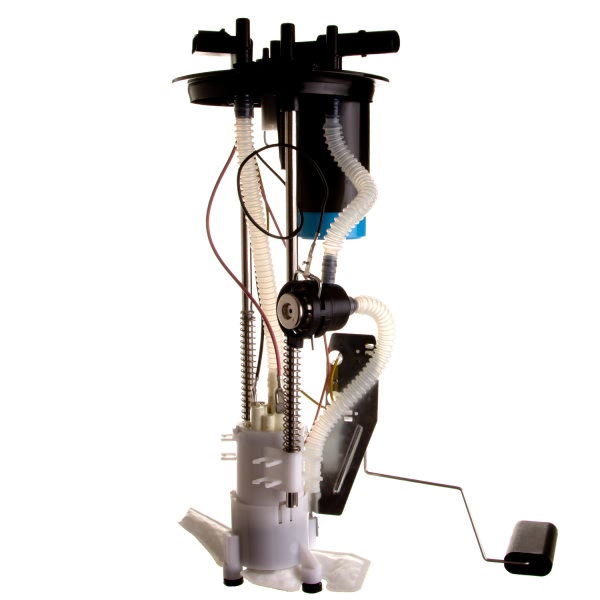

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 23 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |

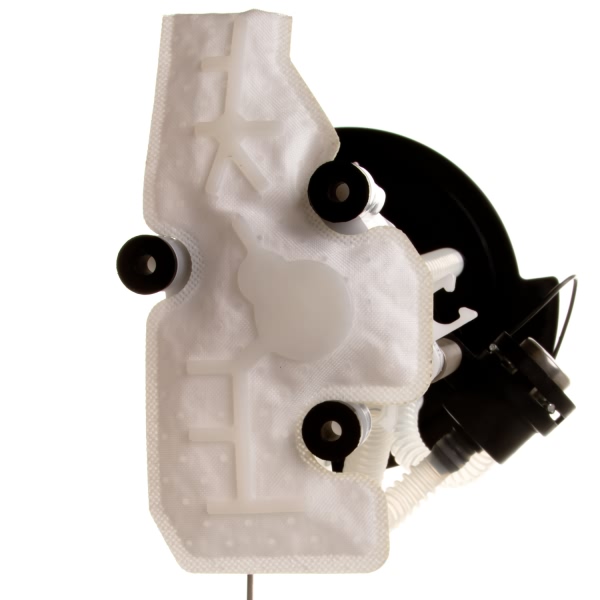

Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 65.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 4 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 62 psi |

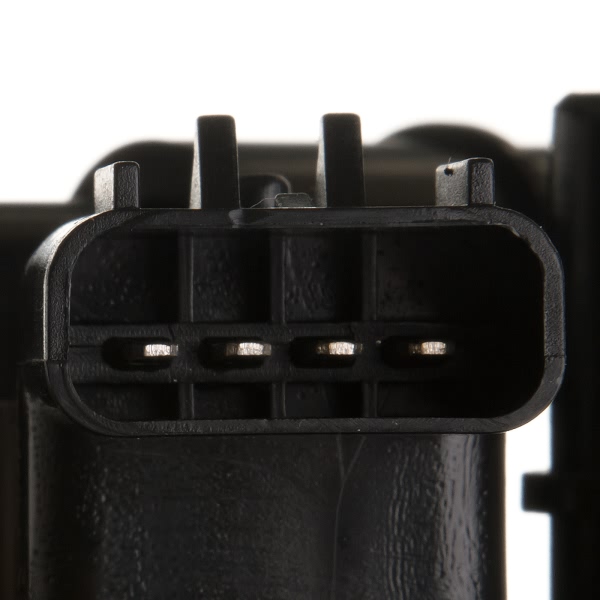

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604205815 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Ford Ranger | All Trims | 4 Cyl 2.3L |
2007-2008 Ford Ranger | All Trims | 6 Cyl 3.0L |
2007-2008 Ford Ranger | XL | 6 Cyl 4.0L |
2007-2008 Ford Ranger | XLT | 6 Cyl 4.0L |
2009 Ford Ranger | All Trims | 6 Cyl 4.0L |
2011 Ford Ranger | All Trims | 6 Cyl 4.0L |
2006-2009 Mazda B2300 | All Trims | 4 Cyl 2.3L |
2006 Mazda B3000 | Base | 6 Cyl 3.0L |
2006 Mazda B3000 | DS | 6 Cyl 3.0L |
2007 Mazda B3000 | All Trims | 6 Cyl 3.0L |
