Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0875 |

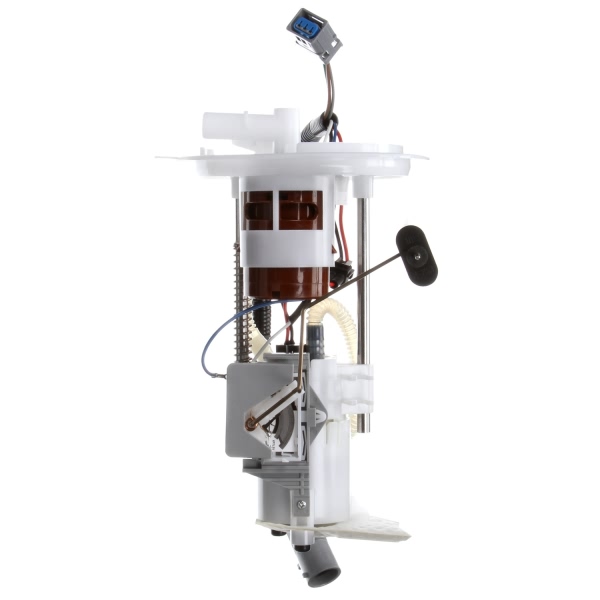

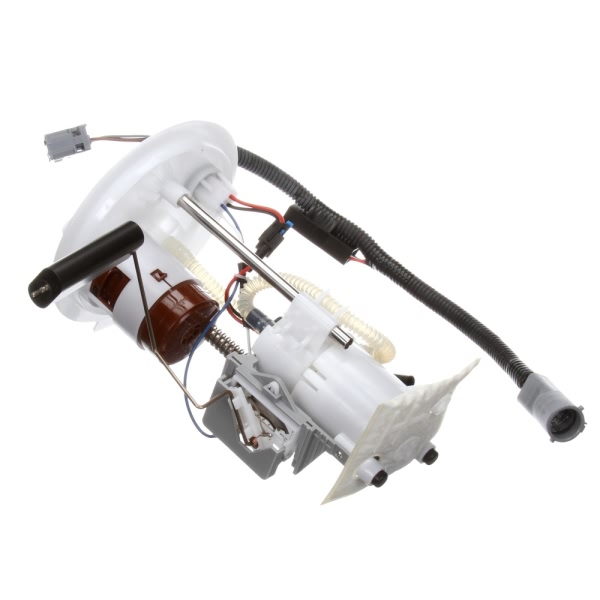

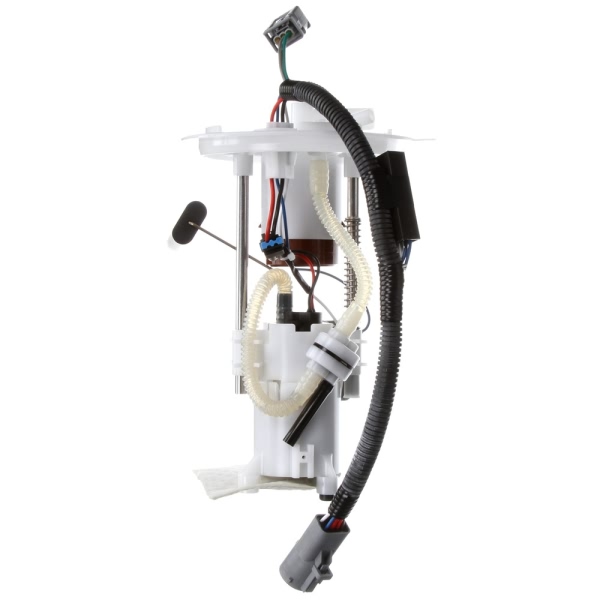

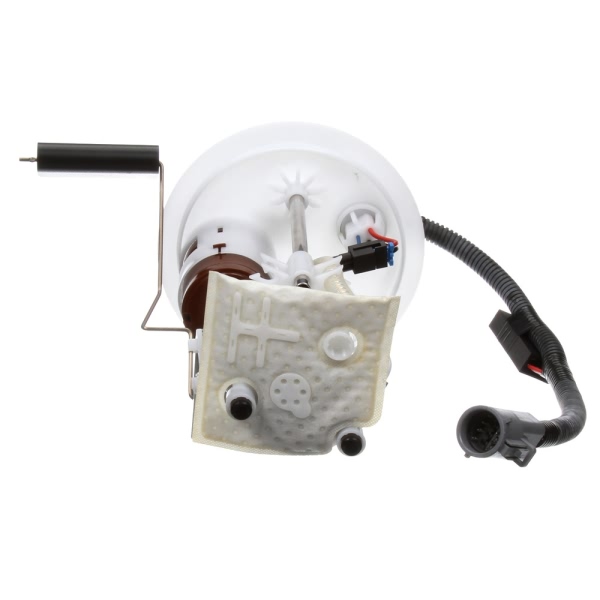

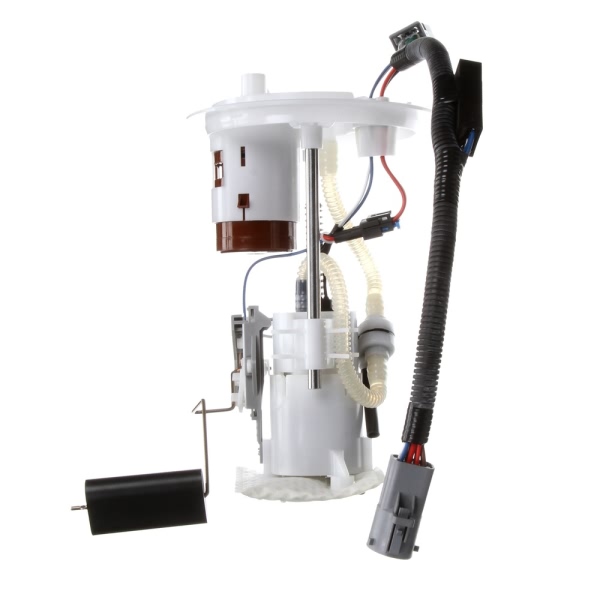

Part Description | Fuel Pump Module Assembly |
Current Draw | 15 |
Flow Rating | 26 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas/Flex |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 73.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 16.0 |
Resistance Ohms Full | 160.0 |
Strainer Included | Yes |
System Pressure | 39 psi |
Terminal Gender | Male |
Terminal Quantity | 8 |
Terminal Type | Pin |
UPC | 689604204207 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Ford Explorer | All Trims | 6 Cyl 4.0L |
2004-2005 Mercury Mountaineer | All Trims | 6 Cyl 4.0L |
