Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0872 |

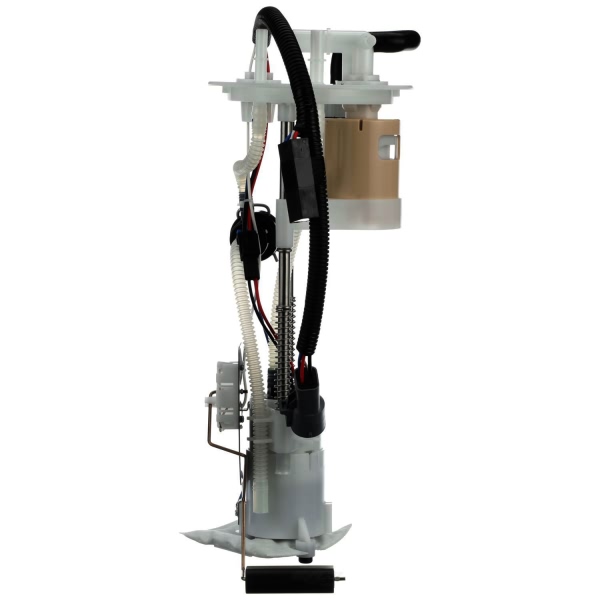

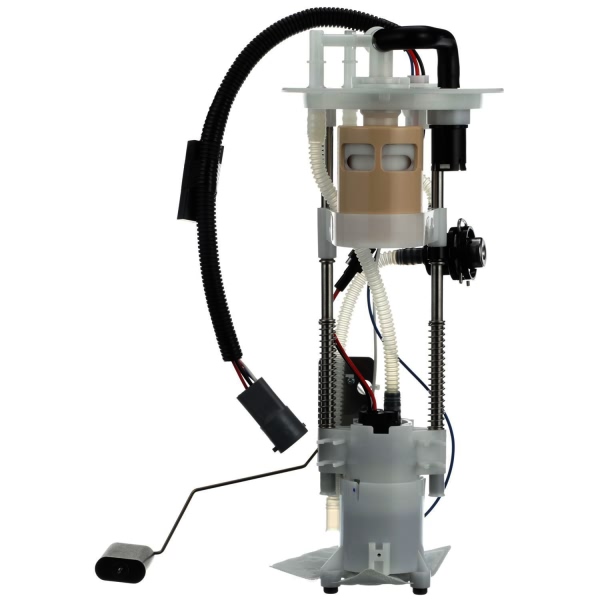

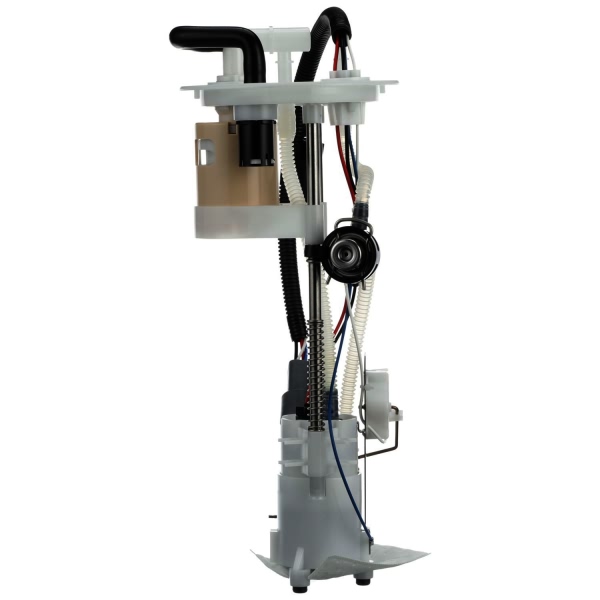

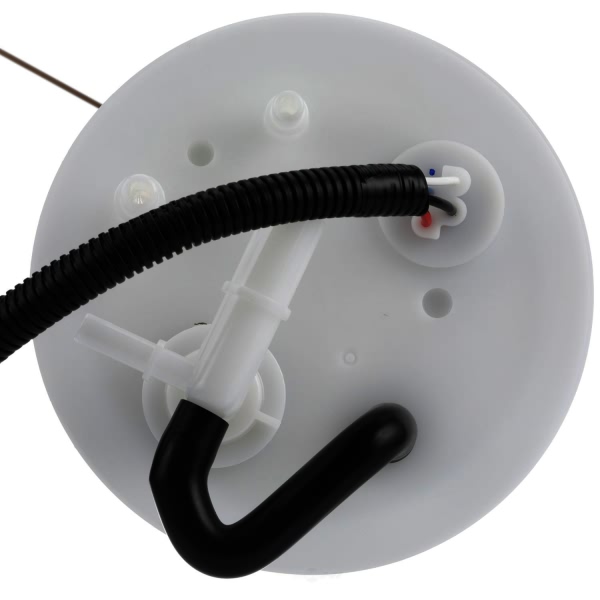

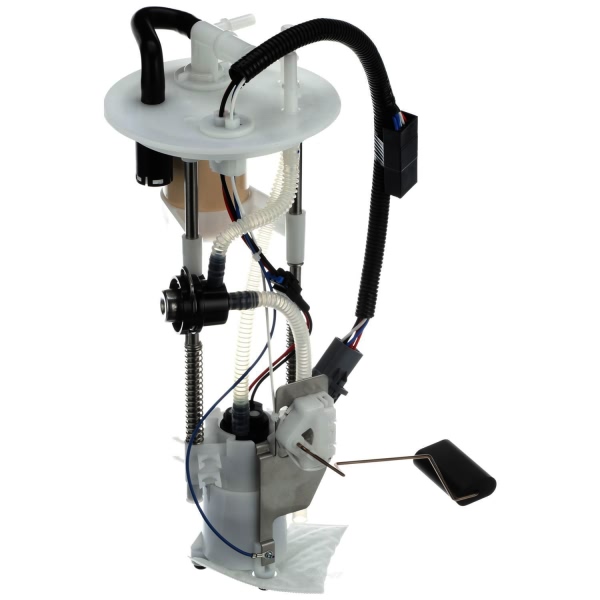

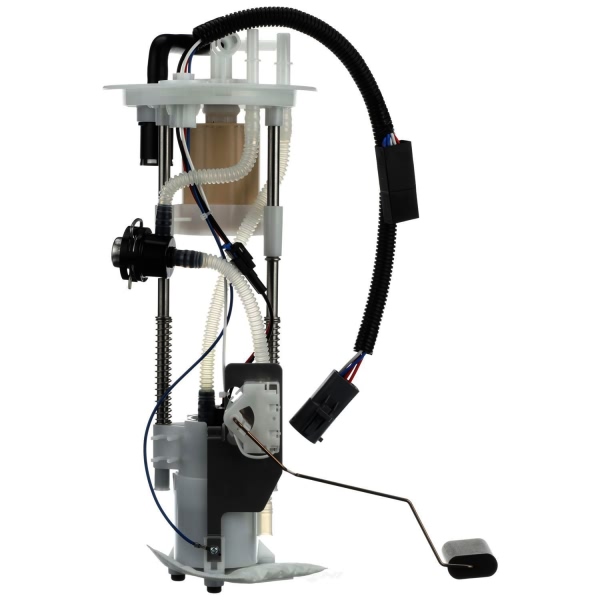

Part Description | Fuel Pump Module Assembly |
Current Draw | 5 |
Flow Rating | 36 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Flex |

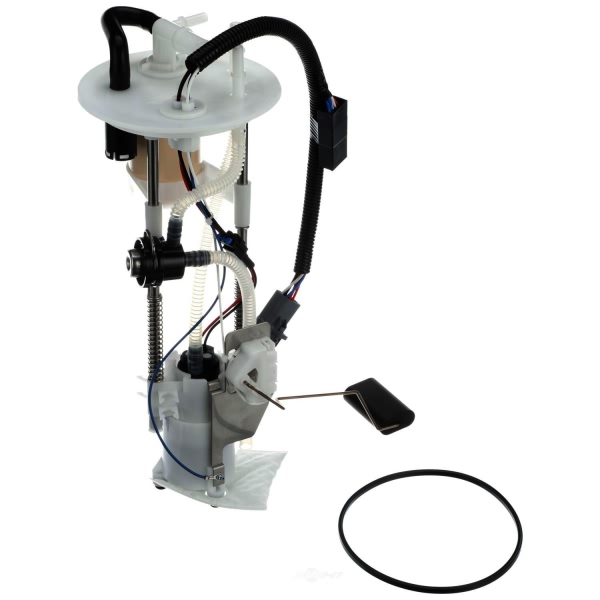

Gasket or Seal Included | Yes |
In Tank or External | In Tank |

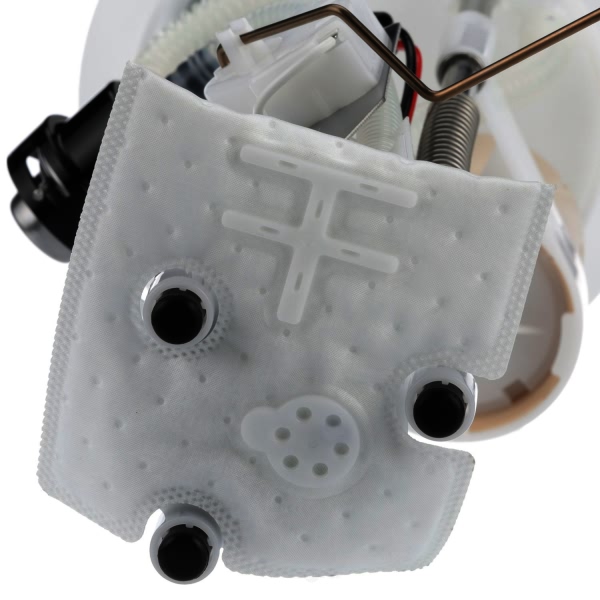

Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 102.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 4 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 6.0 |
Resistance Ohms Full | 140.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

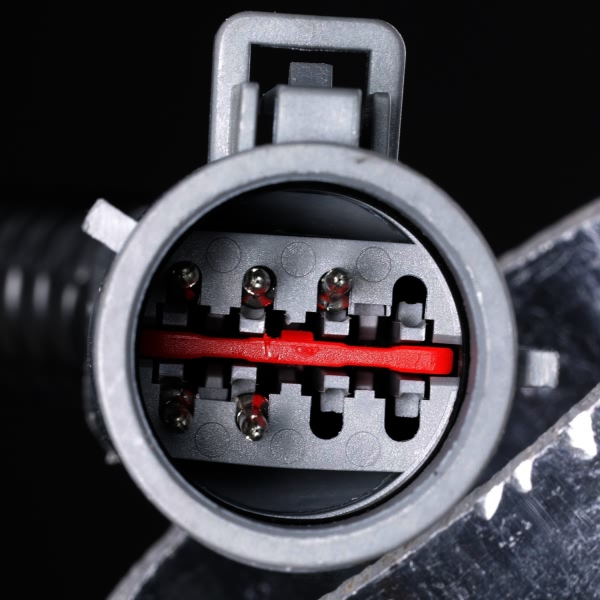

Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | Pin |
UPC | 689604204221 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Ford Ranger | All Trims | 6 Cyl 3.0L |
2001-2003 Mazda B3000 | All Trims | 6 Cyl 3.0L |
